Available from versions: Plugin Builder 1.60.14.17
IMPORTANT:
- This tool will only be available in versions of Promob that contain Builder Plugins capable of generating the production files, such as Documentation, Cutting, CNC or Integration Plugins.
The Wildcard is a model registered in the library, which allows any Materials, also registered in the library (or external to it. e.g. PDF files), to replace the standard texture of this Wildcard.
The Materials that replace the standard texture of a Wildcard model have a special register, in which the information of these materials will be displayed in the Builder documentation, disregarding the model applied in the 3D environment.

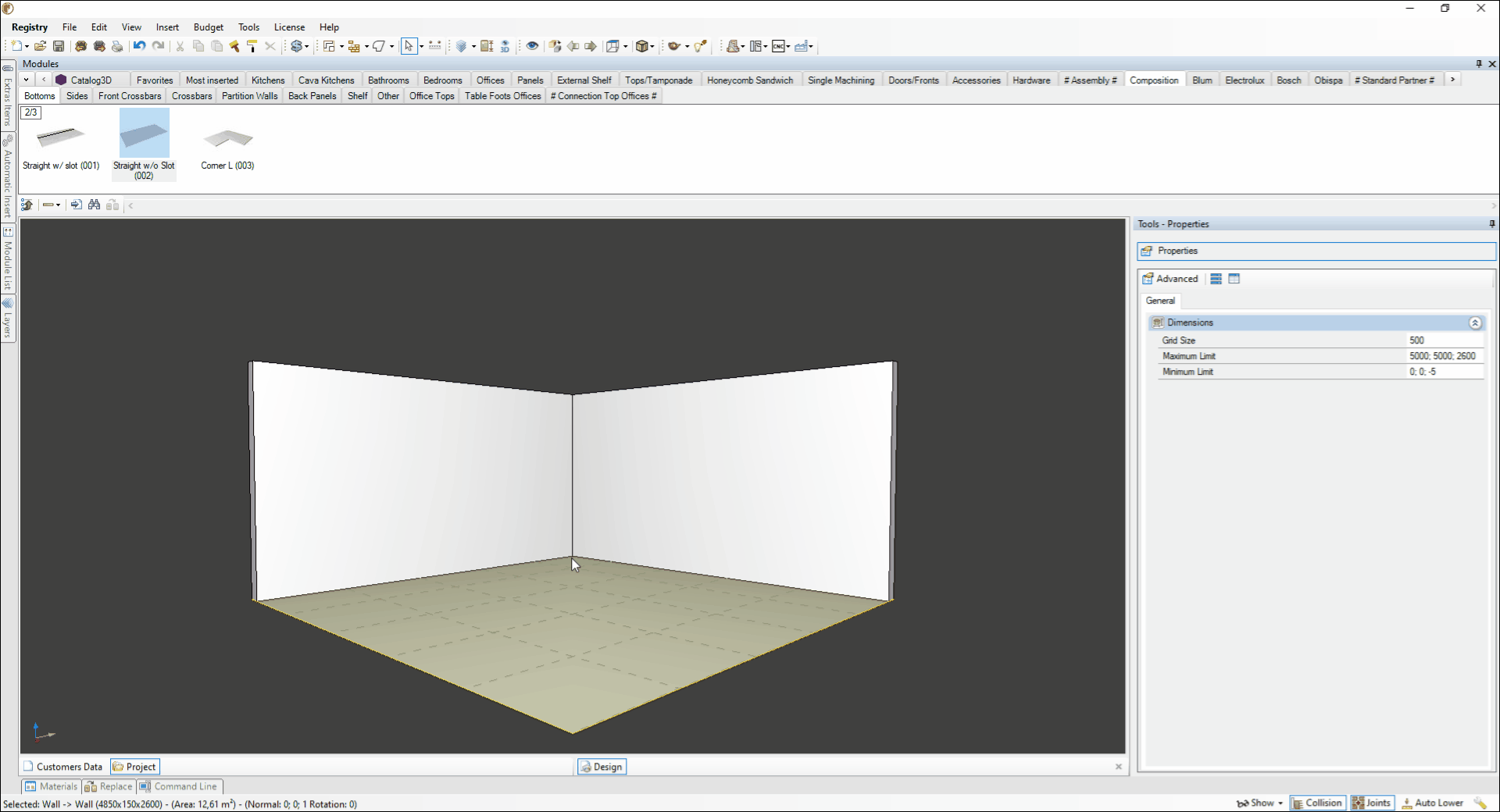

Example:

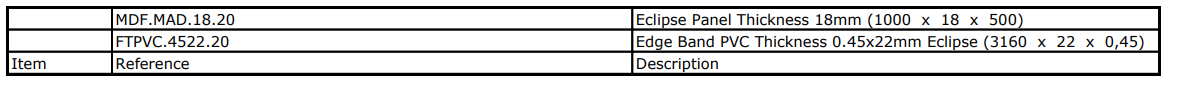

- Result in technical design and reports:

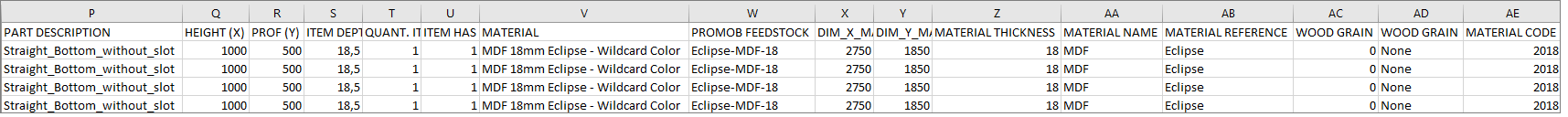

- Result in the .CSV file of the cut plan and nesting :

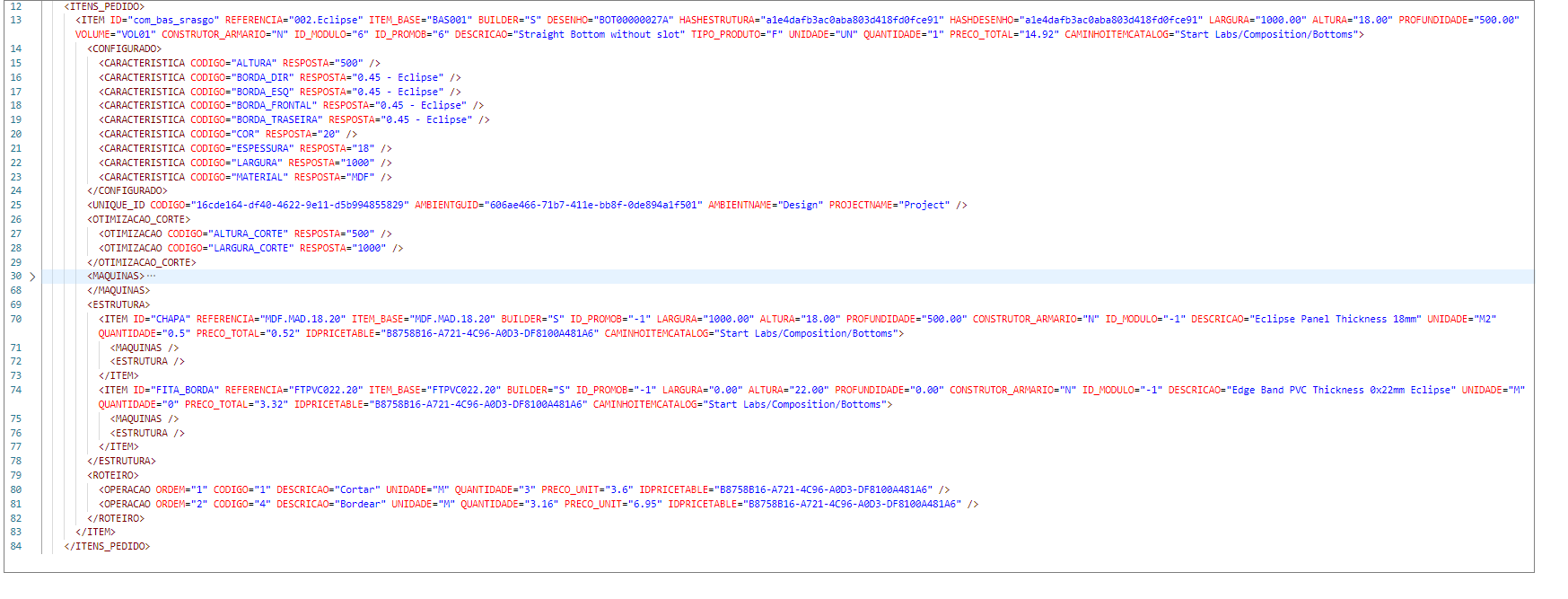

- Result of integration XML:
