Plugin Builder - Cut Planning Integration

This article discusses the settings for integration with the Cut Planning cutting optimizer, where the following topics are presented:

When integrating with this cut optimizer, provide the Plugin Cut Planning to receive the *.csv file exported from Promob. This plugin imports the same *.csv to the optimizer.

• When it is a machine (disconnector) from SCM/Tecmatic, contact the SCM manufacturer. In some situations with SCM/Tecmatic, this plugin is already bundled with the equipment, but it is necessary to confirm;
• When it is an Usikraft machine (disconnector), provide the plugin with the Usikraft manufacturer or Geek System (software company responsible for Cut Planning).

Optimizer Settings

To send files for cutting, through the Plugin Cut Planning, it is necessary to make some settings:

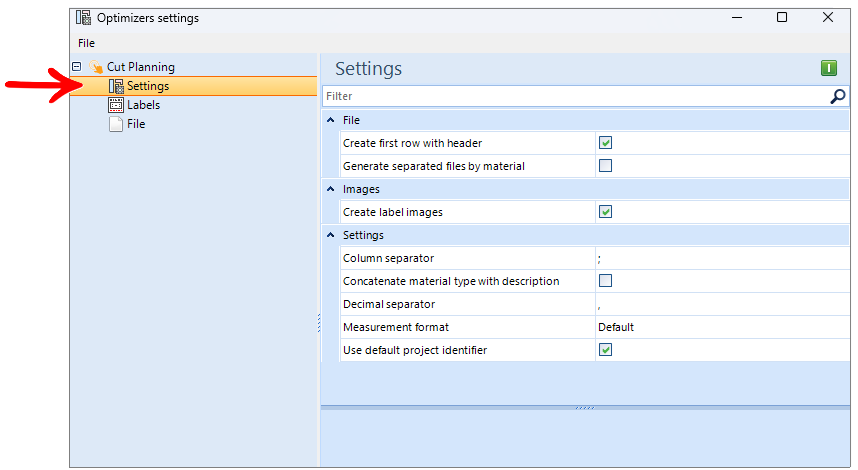

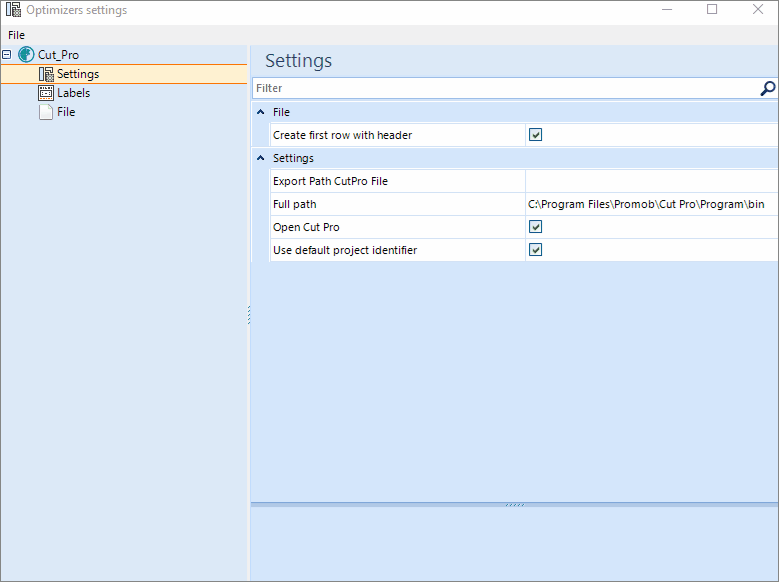

1. Within Promob, go to Optimizer Configuration;

2. On the Settings tab, define:

3. Under Create first row with a header, define whether the file generated by the optimizer will display header;

4. Under Generate separated files by material, enable the files to be generated separately by material;

5. In Create label images, enable to to create the label images.

6. In Column separator, define the column separator character;

7. Concatenate material type with description: when this option is enabled, the material description in the .csv file also displays the material type. It applies to cases where the material type is not in the description; if the material type is already in the description, it is not changed.

IMPORTANT: by default this setting is unchecked and the configuration.

8. In Decimal separator, set the decimal separator character;

9. In Mesurement format, define the unit of measure to be considered;

10. In Use default project identifier, define whether the final file name will be default (3D_space_ClientName) or whether it will be considered a new defined name. Unchecking this option will enable the Project Identification setting;

11. In Project identification define the final name of the file through the screen Expression Editor;

• The Editor field allows you to manually enter information in addition to that selected in Customer Data and Project Data.

Label Settings

To configure label settings:

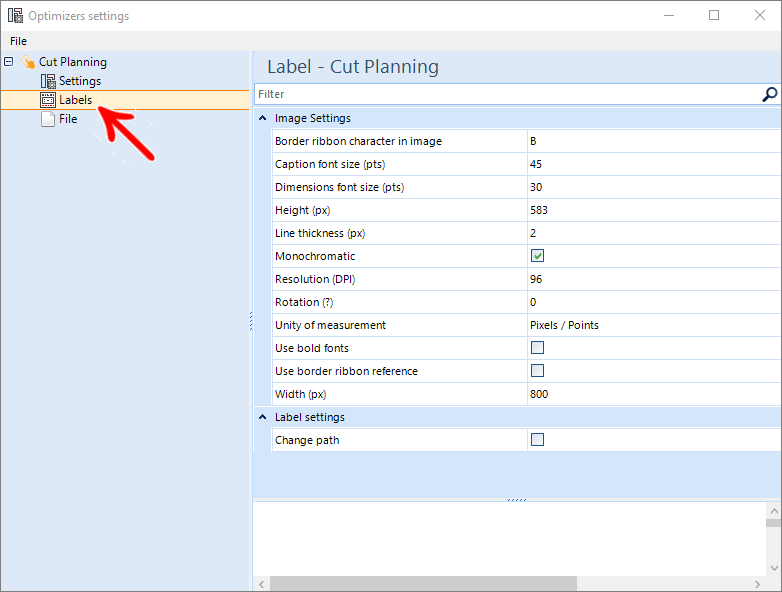

1. Within Promob, in Optimizers Configuration, access Labels;

2. If necessary, view the label settings information here;

Example of label

File Settings

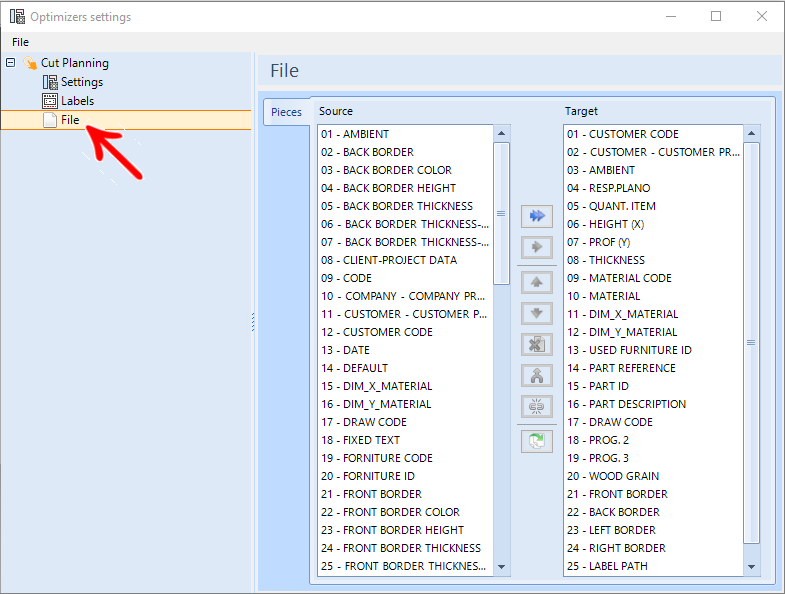

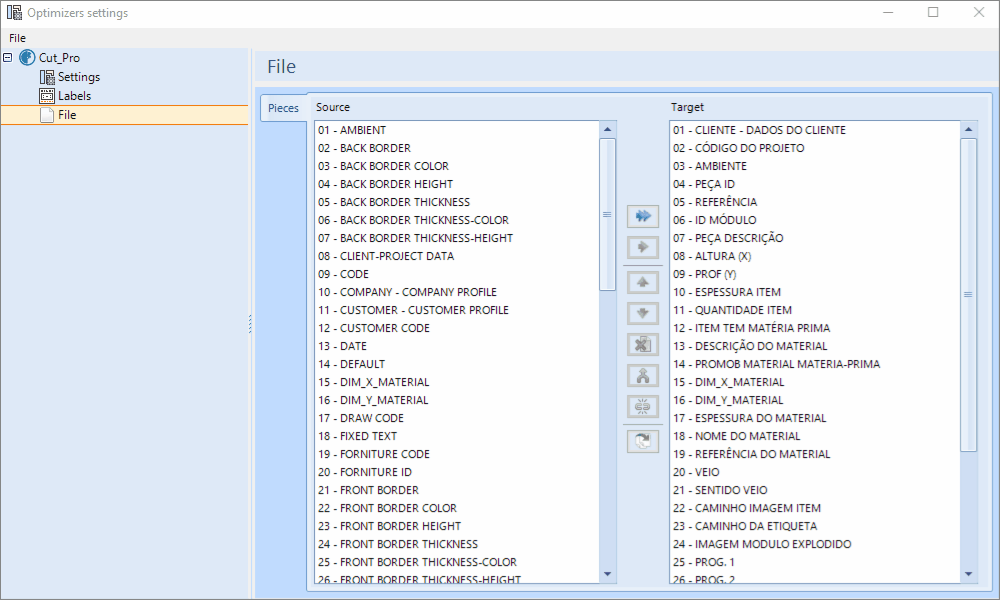

1. Inside Promob, in Optimizer Configuration, go to File;

2. Add or remove fields from the information to be generated as needed;

• Use arrow keys and other options to configure;

Source Column: Displays the columns that are available for the user to add to the final file.

Target Column: Displays the columns that will be generated in the final file.

The Target columns can be edited, for that select with double-click the desired column, and then the Field Editor screen will be displayed. If necessary, access more information about file settings here.
