Plugin Builder - WPS Optimizer Integration

This article discusses the settings for integration with the WPS Optimizer cut optimizer, where the following topics are presented:

Optimizer Settings

To send files for cutting, through the Plugin WPS Optimizer, you need to make some settings:

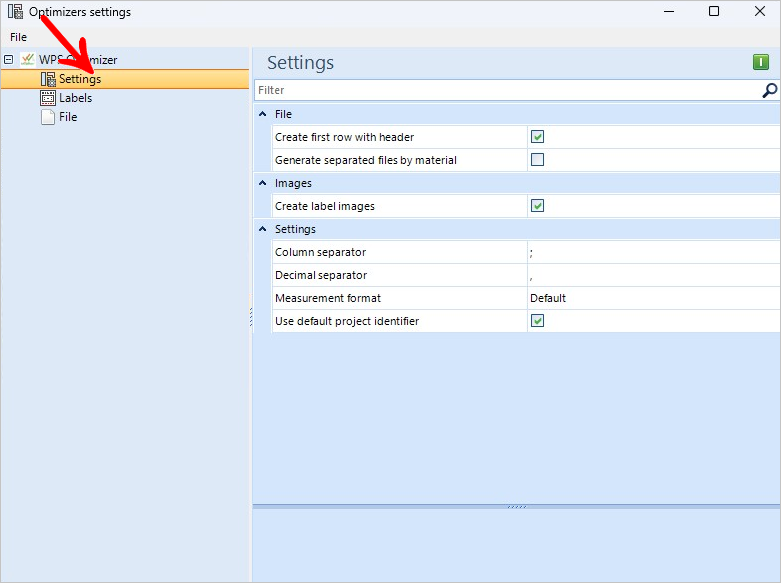

1.  Within Promob, go to Optimizer Configuration;

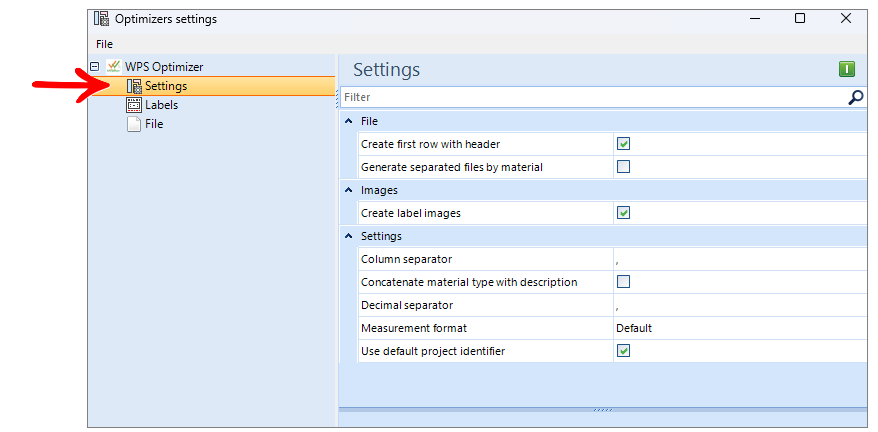

2. On the Settings tab, define:

3. Under Create first row with a header, define whether the file generated by the optimizer will display header;

4. Under Generate separated files by material, enable the files to be generated separately by material;

5. In Create label images, enable to to create the label images;

6. In Column separator, define the column separator character;

7. Concatenate material type with description: when this option is enabled, the material description in the .csv file also displays the material type. It applies to cases where the material type is not in the description; if the material type is already in the description, it is not changed.

IMPORTANT: by default this setting is unchecked.

8. In Decimal separator, set the decimal separator character;

9. In Mesurement format, define the unit of measure to be considered;

10. In Use default project identifier, define whether the final file name will be default (3D_space_ClientName) or whether it will be considered a new defined name. Unchecking this option will enable the Project Identification setting;

11. In Project identification define the final name of the file through the screen Expression Editor;

• The Editor field allows you to manually enter information in addition to that selected in Customer Data and Project Data.

Label Settings

To configure label settings:

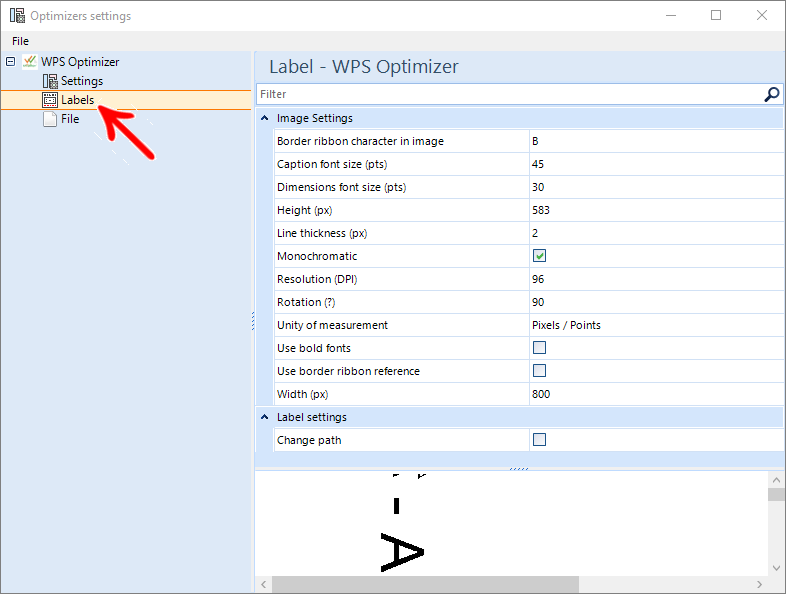

1. Within Promob, in Optimizers Configuration, access Labels;

2. If necessary, view the label settings information here;

File Settings

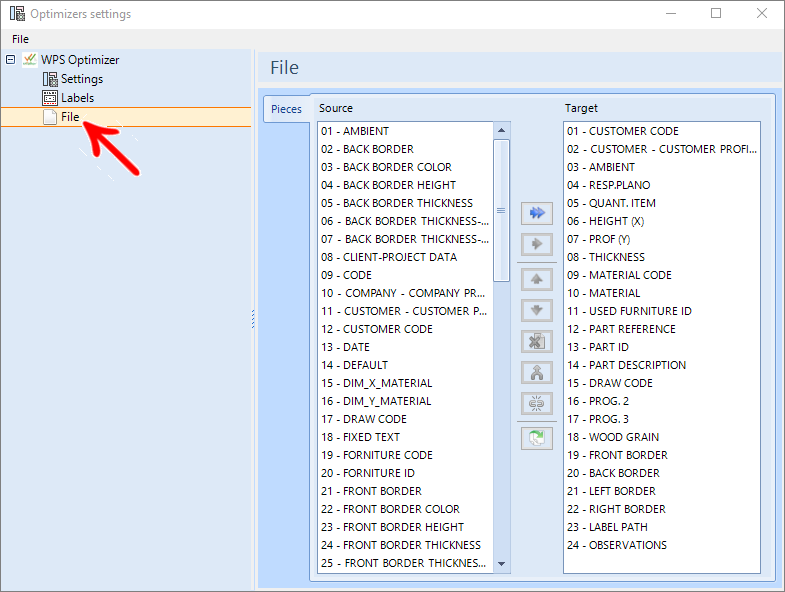

1. Inside Promob, in Optimizer Configuration, go to File;

2. Add or remove fields from the information to be generated as needed;

• Use arrow keys and other options to configure;

Source Column: Displays the columns that are available for the user to add to the final file.

Target Column: Displays the columns that will be generated in the final file.

The Target columns can be edited, for that select with double-click the desired column, and then the Field Editor screen will be displayed. If necessary, access more information about file settings here.
