Available from version:
- Plugin Builder Version: 1.11.19
- Plugin Purchased Item Report Version: 1.11.0

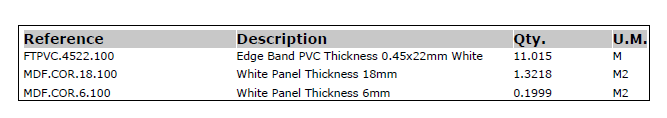

The report will look for information on items purchased in the design.

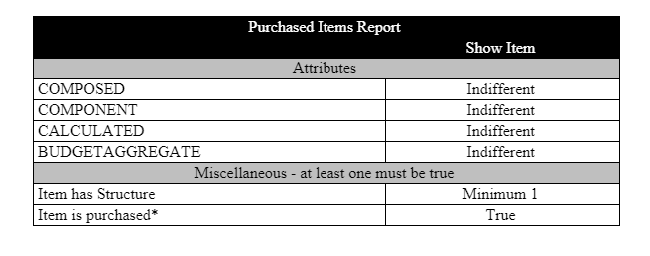

Report Fields
Search for information

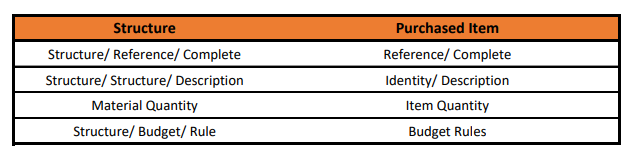

Searching for information is done in two ways:
1. All item structures in the environment.
2. All items that you have marked on the Builder tab as a purchased item.
IMPORTANT: For the structures to appear in the reports, a process must be performed, click here for more information.
Calculation of the Quantity of Panel Purchased
Although the item Panel is commercially sold by unit (UN), this report presents its quantity calculated in square meters (m²).
This is because the exact quantity of panels needed can only be determined after the optimization of the cutting plan, performed by specific software.
During the optimization process, several factors that influence the utilization of the panels are considered, such as: positioning of the pieces, trimmings, tools and cutting parameters, groupings and technical adjustments.
In Promob, the calculation presented serves only as an estimate, based on the sum of the area of the project pieces, without considering the detailed cutting parameters.
For this reason, the Material Purchase Report displays the total in m², offering an approximate reference of the required measurement — and not the exact number of panels to be purchased.
