Available from versions:
- Builder Version: 1.11.19
- Plugin Assembly Report Version: 1.11.0
Objective

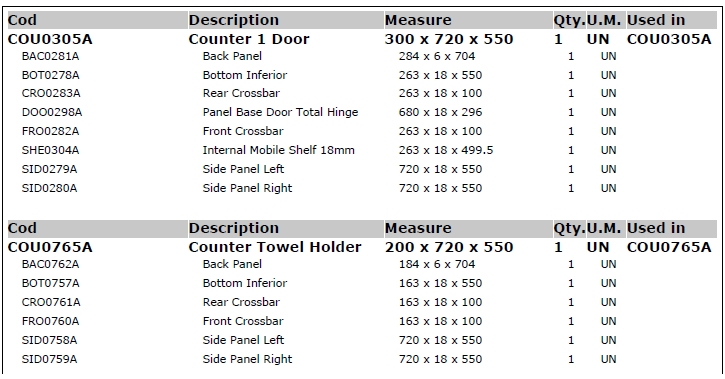

The report will display all items assembled in the 3D space.

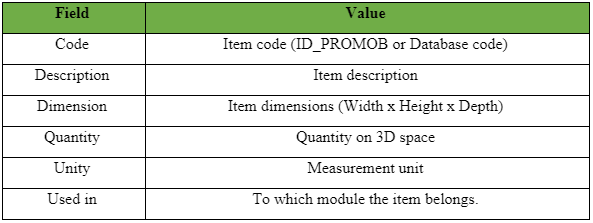

Report fields
The first level will show the module that has the attribute "ASSEMBLED", and right below the respective children that have a drawing code.
Searching information
It will search for all parent items that have drawing code and their details (that have drawing code).

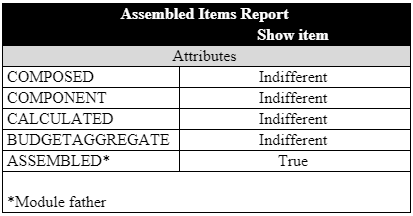

Attributes
How the attributes should be applied to the items to be generated in the reports.
