Available from version:
- Plugin Builder 1.12.13.9
When generating a technical drawing or budget that contains structures for the edges, it will be possible to differentiate the edge according to the association with the structure.
For this to happen, it is necessary to have registered a structure for each type of edge to be represented.
To bind the structure to the edge:

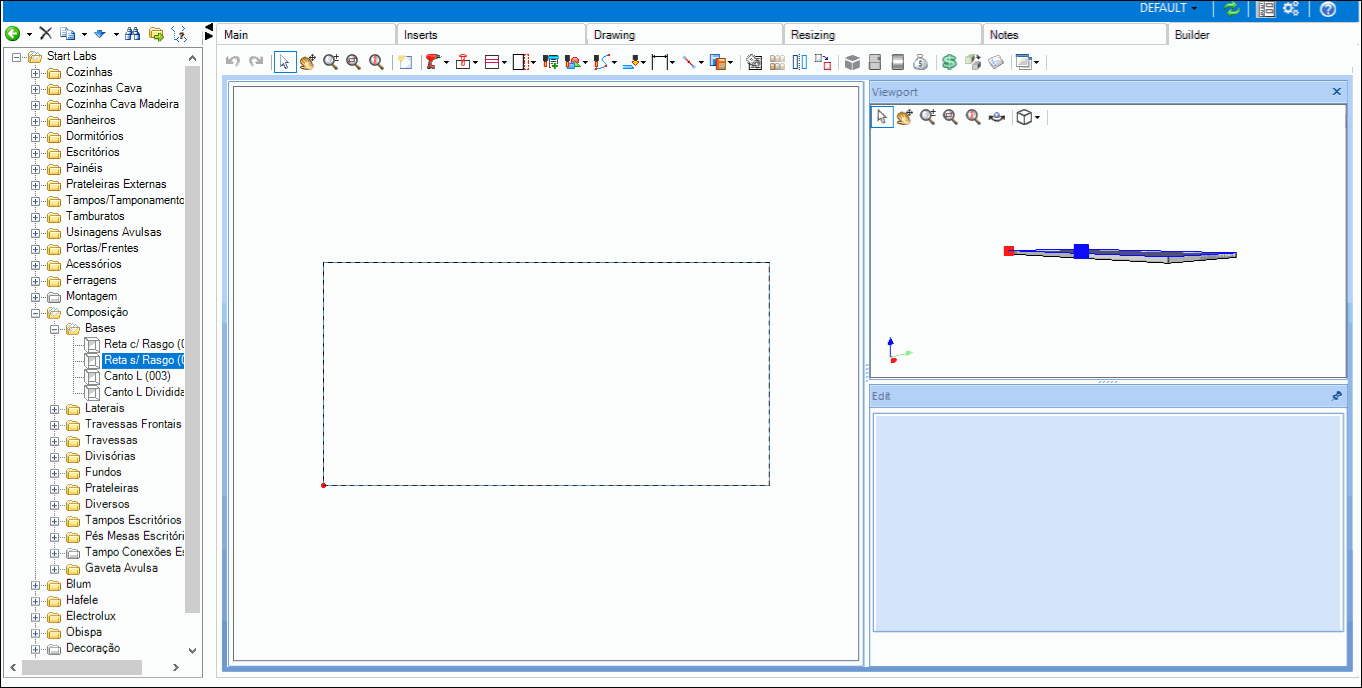

1. Go to the Builder tab
2. Select the desired border and in the Egde band Structures option select as many border structures as you like:
IMPORTANT: The functionality to select one or more structures for the edge band is available from Builder version 1.60.21.2.

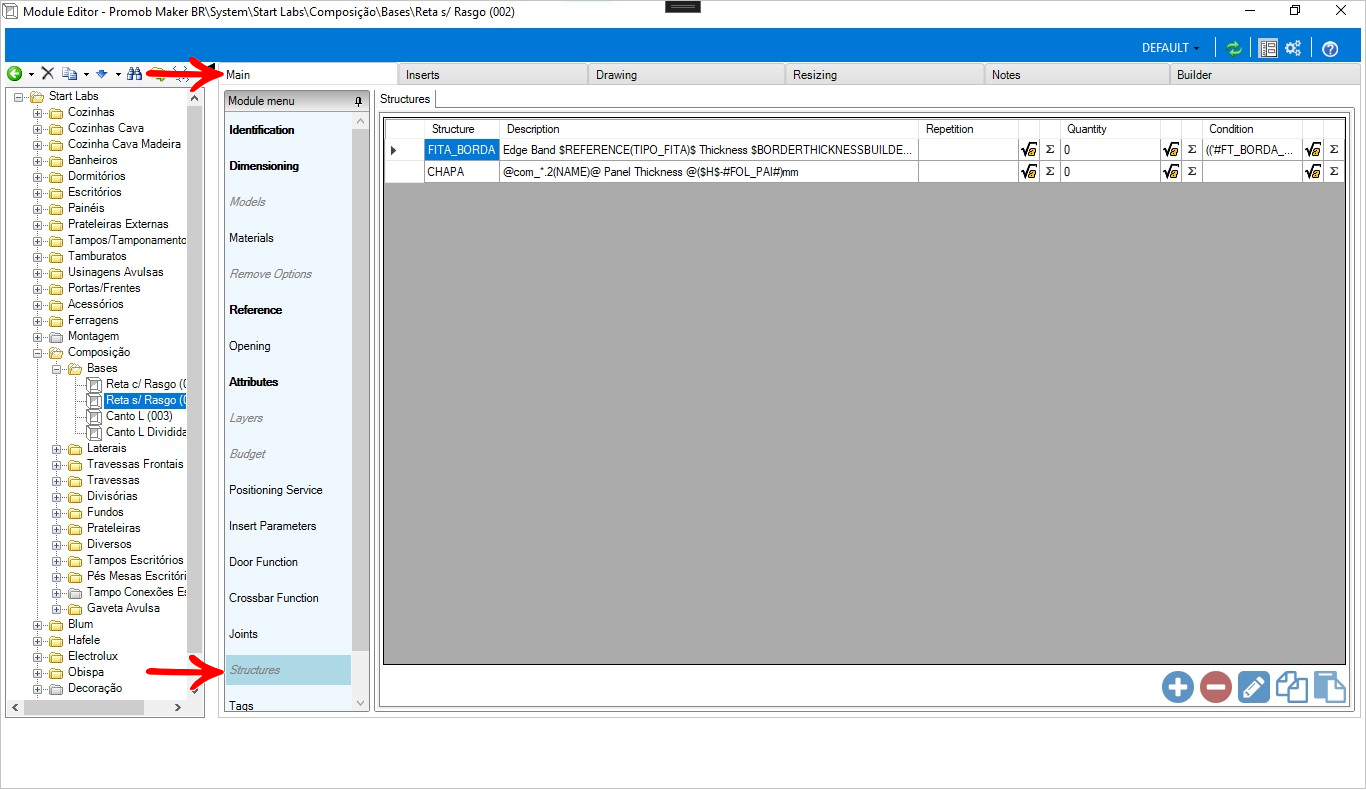

IMPORTANT: The condition that determines which structure is used is on the Main tab under Structures. If no condition is suitable or if there are no conditions, the first structure for the item is chosen.
Representation in the budget:
Representation in the technical drawing:
