Available in Products
|
New Auditor | New Auditor Catalog |
|
IMPORTANT:
|
Check out the latest news from New Auditor:
▼ 1.2.28
Date: 04/15/2026
- Corrections
Unwanted Collisions
1. Fixed an issue where New Auditor identified unwanted collisions in rotated modules that were not in contact. The detection logic has been adjusted to correctly interpret the position and rotation of objects. (1810062)
▼ 1.2.27
Date: 03/16/2026
- Corrections
Competing Items Rule
1. Fixed an issue in the Competing Items Rule where items not highlighted in red were not displayed. These items are now displayed normally. (146175)
2. Fixed the Competing Items Rule so that collisions between items are correctly detected. (140441)
3. Fixed the Competing Items Rule so that when parts only touch each other, the situation is also detected as a collision. (140663)
▼ 1.2.26
Date: 11/19/2025
- Corrections
Validation in Module Collision
1. Corrections made to the module collision validation.
▼ 1.2.25
Date: 11/04/2025
- Corrections
Concurrent Module Validation
1. Fixed the validation calculation between modules to prevent false positives caused by precision differences smaller than one micrometer. (2245821)
2. Updated the Auditor interface icons.
IMPORTANT:
No impact on other modules or integrations.
No additional action is required from support or users after the update.
▼ 1.2.23
Date: 06/24/2025
- Enhancements
General - Modified Entity

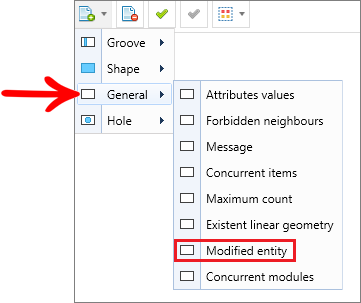

1. A new validation rule has been implemented that checks whether the entity was inserted into the project in a library version equal to or earlier than the audited version. When this occurs, the validation fails. The rule is available only for projects created from version 5.60.38.0 of Promob and requires the Technical Assistance plugin installed. Click here for more information.
▼ 1.2.22
Date: 08/04/2025
- Enhancements
Item Validation

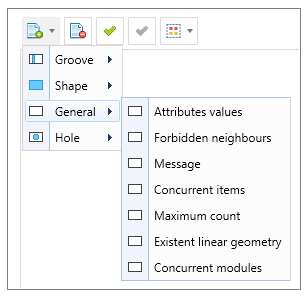

1. A new rule has been added for the validation of concurrent items in different modules. Learn more here.
▼ 1.2.21
Date: 02/26/2025
- Enhancements
Compatibility
1. Added compatibility with Promob version 5.60.38.0.
▼ 1.2.20
Date: 08/27/2024
- Enhancements
Compatibility
1. Added compatibility with Promob version 5.60.35.0.
▼ 1.2.19
Date: 08/27/2024
- Enhancements
Rules
1. Added default rule for specific systems.
▼ 1.2.18
Date: 01/08/2024
- Enhancements
Compatibility
1. Added compatibility with Promob version 5.60.35.0.
▼ 1.2.17
Date: 06/12/2024
- Enhancements

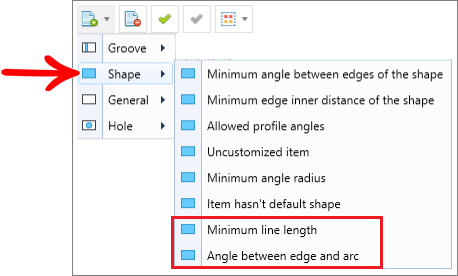

New form rules (inspection rules)
1. Created "Minimum line length" rule
Evaluates the length of the line between two vertices. If the length is less than the parameter, then the inspection fails.
2. Created "Angle between edge and arc" rule
Evaluates whether the angle formed by an arc and an edge is within the range entered, according to the configuration.
▼ 1.2.15
Date: 05/14/2024
- Corrections
Validate Rules
1. Corrected the situation in which the rule was not validated on items in the Closets Builder. (1786943)
▼ 1.2.13
Date: 09/28/2022
- Corrections
Validate Rules
1. Fixed situation in which an unconformity was displayed when validating rules. (1987391)
▼ 1.2.06
Date: 10/17/2022
- Enhancements
Compatibility
1. Added compatibility with Promob version 5.60.17.11 and higher.
▼ 1.2.05
Date: 10/13/2022
- Enhancements
Compatibility
1. Added compatibility with Promob version 5.60.17.11 and higher.
▼ 1.1.26
Date: 07/13/2021
- Enhancements
Compatibility
1. Added compatibility with Promob version 5.60.16.0 and higher.
▼ 1.1.25
Date: 07/13/2021
- Enhancements
Compatibility
1. Added compatibility with Promob version 5.60.16.0 and higher.
▼ 1.1.17
- Enhancements
Validate Rules
1. New rule to validate maximum number of items in an environment.
▼ 1.1.16
- Corrections
Validate Rules
1. Correction to the rule for evaluating the distance between drills.
▼ 1.1.7
- Enhancements
Validate Rules
1. Rule to show a message.
2. Rule for drill diameter.
3. Rule to check if the shape is irregular.
4. Rule that makes it possible to test the neighbors of an item in the project.
5. Rule that validates collision of items in the project, for example, shelf and hinge.
6. Rule to validate the size of the radius with angles.
7. Improvement in the registration screen to facilitate the choice of modulation items.
8. Improved the registration screen to group similar rules.
▼ 1.1.5
- Corrections
Validation
1. Minimum edge distance validation (1216304)
▼ 1.1.4
- Corrections
V alidation
1. Minimum edge distance validation (1216304)
