In the latest versions of Promob new designs are saved directly in the cloud, but it is possible to import old designs from the computer to the cloud, as well as export designs from the cloud to the computer!
This article covers the following sections:
Export Designs / Project Identifier
Project Identifier - Designs Tab
Export Designs / Project Identifier
There are two ways to export a design:
1. In the Promob Start Screen, identify the project to export.
2. Click the Exportbutton .

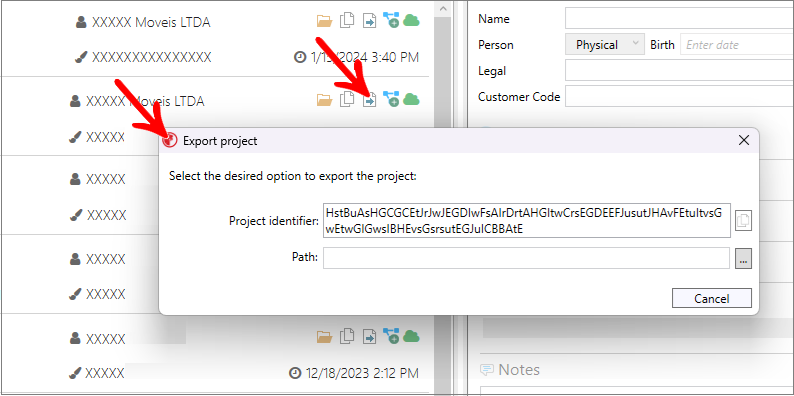

3. And the Export Project screen appears.
4. On the screen that appears, it is possible to find the Project Identifier containing the Import Key and Path.
5. The Project Identifier option is used to copy the Identification Key and import the project on another machine. In the Path option, it is used to export the project in the desired local folder.
6. In the Path field, define the location (folder) where the design will be saved.

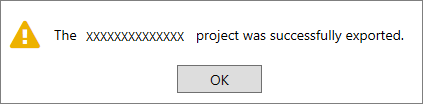

7. Wait for the export confirmation message.
8. The designs will be saved in the chosen folder, with the same name displayed on the Promob Home Screen.

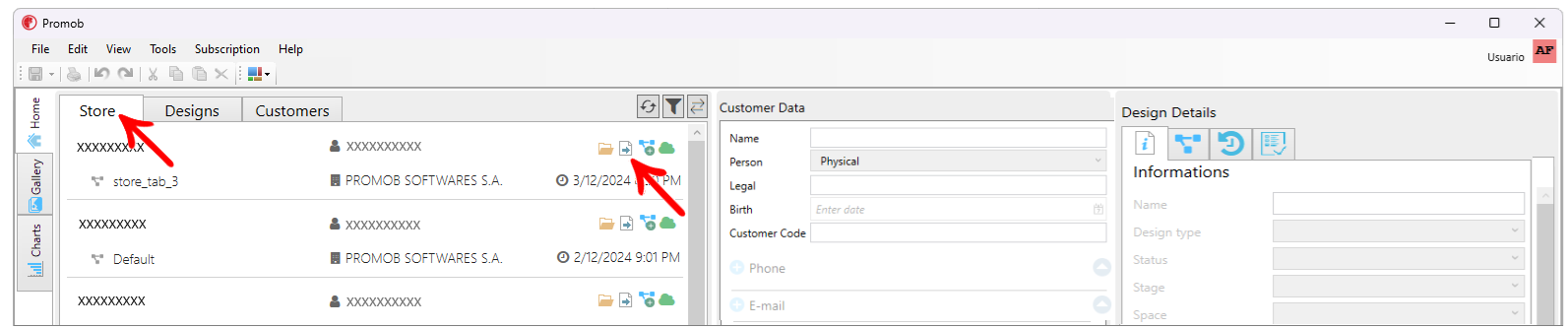

IMPORTANT: The Export Designs functionality is available in the Store tab and in the Designs tab, as shown in the images below:
Export Designs - Store Tab

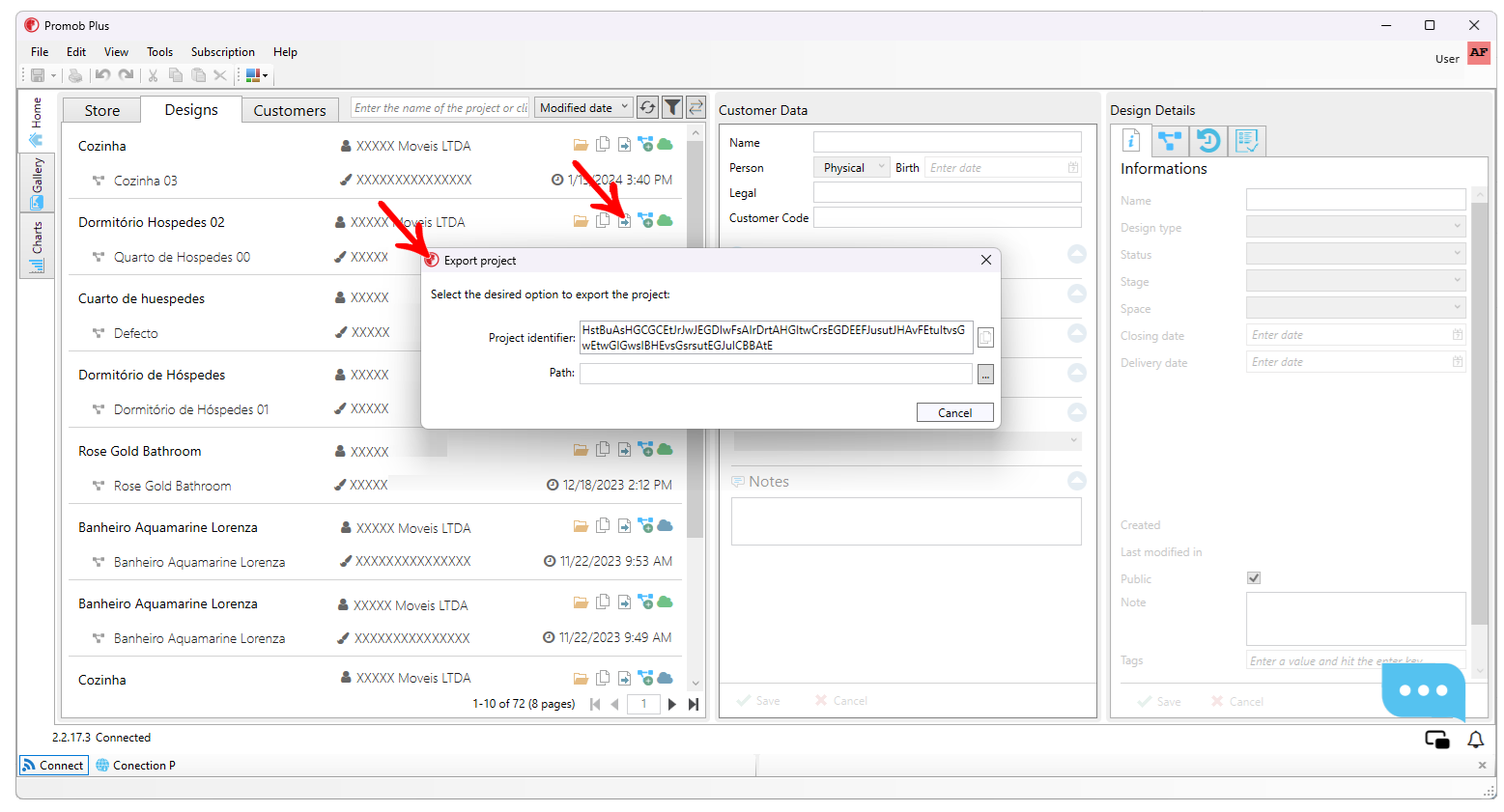

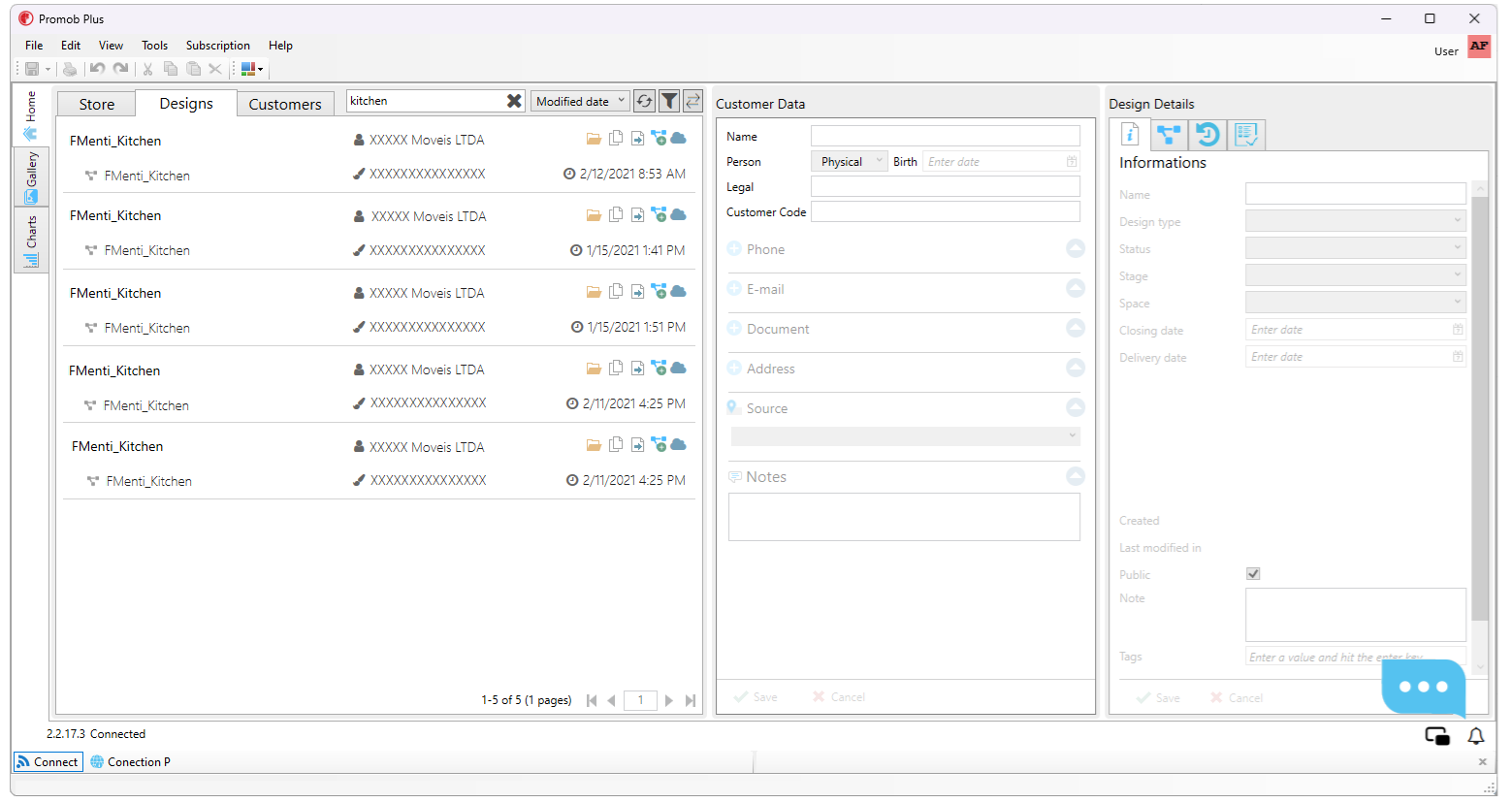

Export Designs - Designs tab
Export a project copy (.promobsnap)
The project copy is a file saved on the computer with the .promobsnap extension. It contains the current project option, in the latest saved version, and can only be imported into the same account in which it was generated.
1. On the Projects tab, locate the desired project and click the Export Project button.
2. On the Export Project screen, select the Create project copy option.
3. In the Path field, click the three-dot button (...) and select the folder where the copy will be saved. The file name is suggested based on the project name, and the file type is Project copy (*.promobsnap). Click Save.
4. The Export screen is displayed while the copy is being generated. Wait for the process to finish. If you want to stop it, click Cancel.
5. At the end, the message Project exported successfully is displayed, along with the file location and capture date. Click OK.
IMPORTANT:
The copy contains only the current project option, in the latest saved version. The other options and versions are not included in the file.
The Create project copy option is available only on the Projects tab.
The .promobsnap file can only be imported into the same account in which it was exported.
Import Designs
You can create an import key for a project so it can be imported into another Promob. To do this:
Import design via .promob

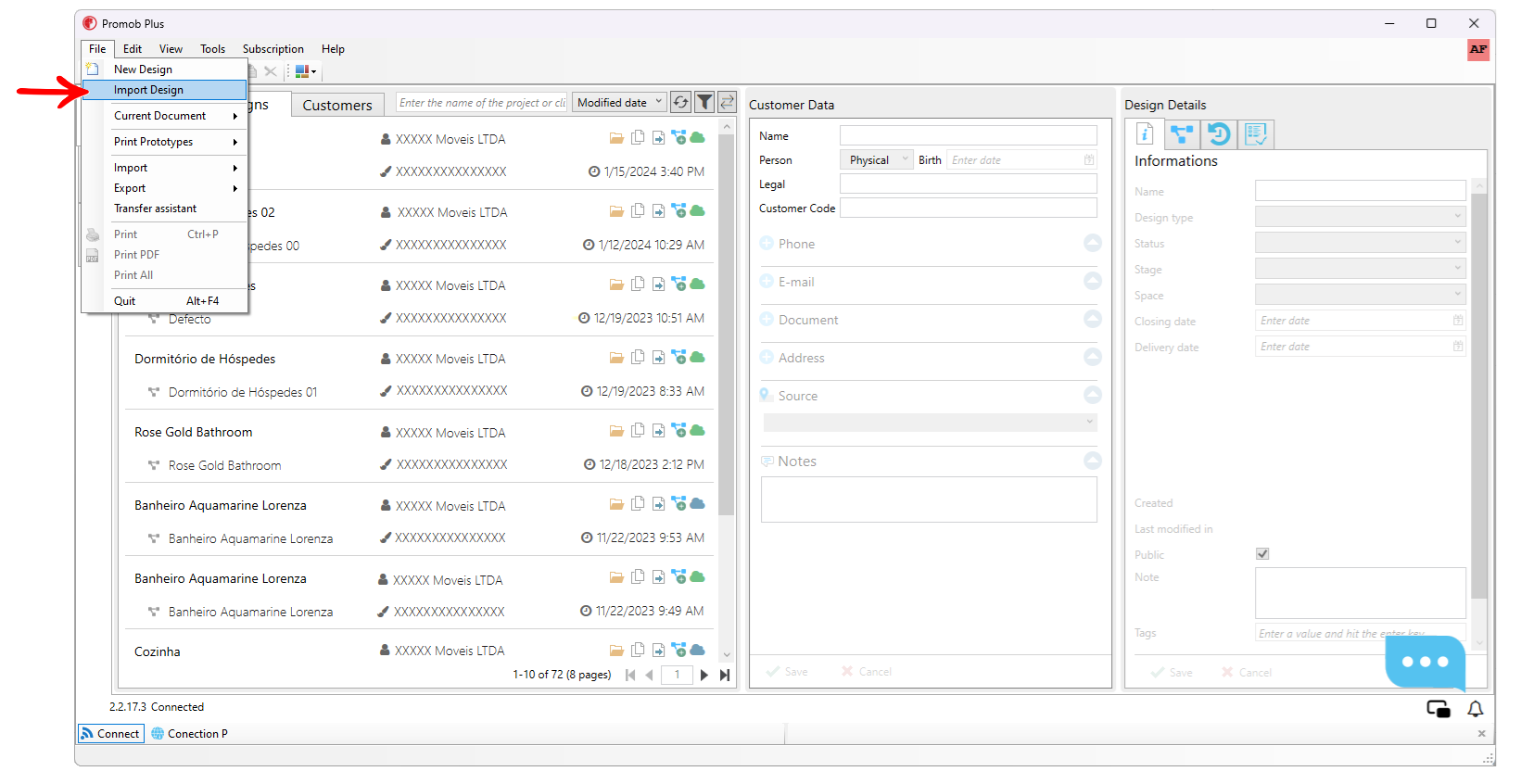

1. To import the file saved on your machine, click on File - Import Project.

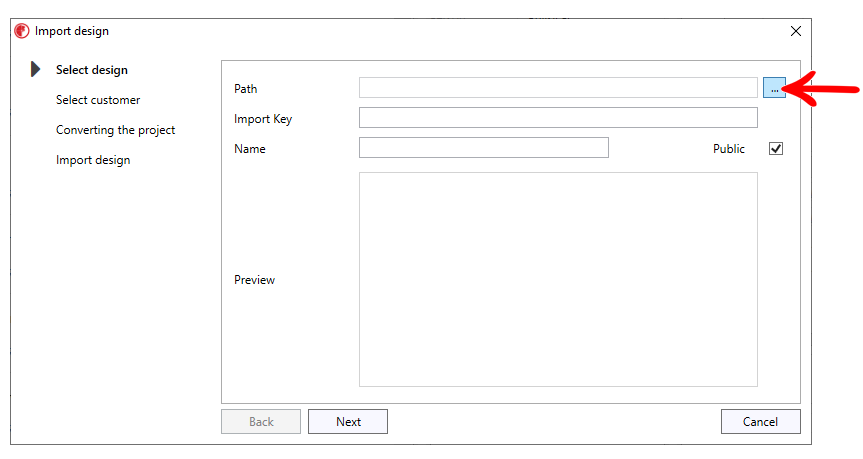

2. On the Import project screen, in Path select the directory where your project is saved.

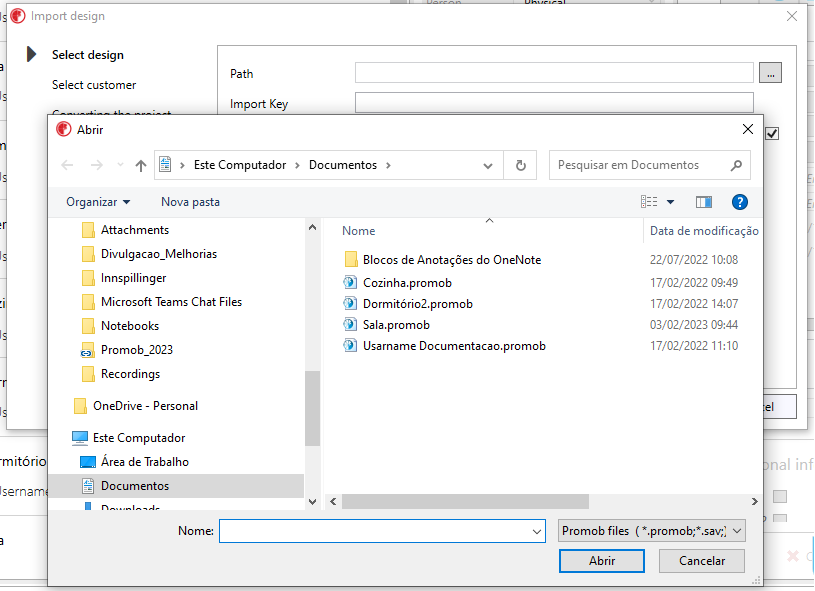

3. The file explorer is displayed, select the desired design.
|

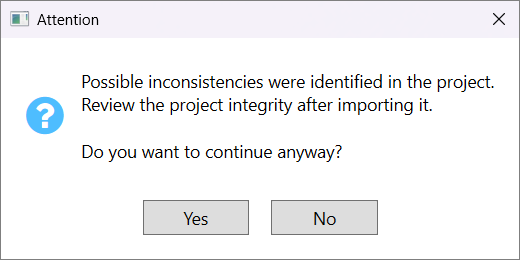

IMPORTANT: when importing a project with missing files, the system displays a warning about the inconsistency and allows the user to decide whether to proceed with the import. If the user chooses to continue, it is recommended to review the project's integrity after the import. |

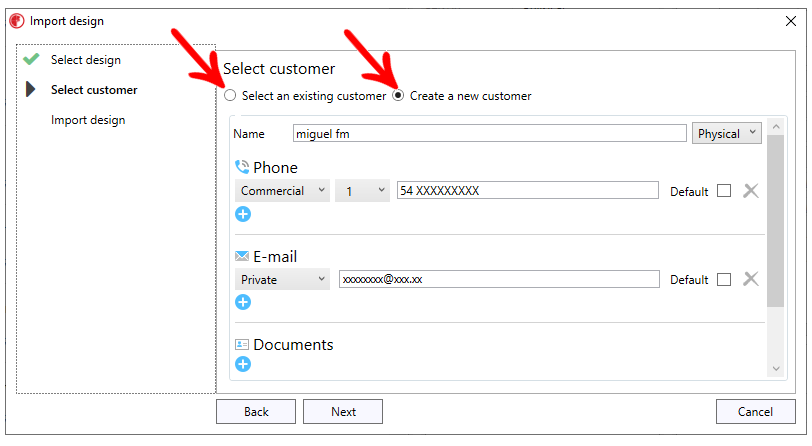

4. After selecting the project, click Next. It is possible to select an existing customer (if he is already registered in Connect) or to register a new customer.
Import a project copy (.promobsnap)
1. To import the copy saved on the computer, select File - Import Project.
2. On the Import Project screen, in the Path field, click the three-dot button (...).
3. In the file explorer, select the .promobsnap file. If necessary, adjust the filter to Project copy (*.promobsnap). The file is also displayed with the All compatible files filter.
4. After selecting the file, the project name and preview are displayed. Click Next. When proceeding, the project receives the original name contained in the copy.
5. The next step depends on whether the source project is available in the account.
If the source project still exists in the account, the message is displayed: Project [project name] has already been imported. You can add a new option or import it as a new project.
New option: the copy is added as a new option in the source project. The options that already existed in the project are not changed. The import proceeds directly to completion, without client selection.
Import: the copy is imported as a new project, and the workflow proceeds to client selection. The source project is not changed.
Cancel: the import is canceled, and no project or option is created.
If the source project no longer exists in the account, the copy is imported as a new project, and the workflow proceeds directly to client selection.
6. In client selection, the client from the source project is already selected. You can keep this client, select another client already registered in Connect, or register a new client. If the source project did not have an associated client, select or register a client to continue.
7. When finished, the message Project imported successfully! is displayed.
Click Yes to open the project in Promob or No to remain in the project list.
Warnings when importing a project copy
File exported from another account
The project copy can only be imported into the same account in which it was generated.
When selecting a .promobsnap file exported from another account and clicking Next, the message is displayed: This type of file can only be imported into the same source account. The selected file belongs to another account.
The import does not continue, and no project is created.
Damaged file
If the .promobsnap file is damaged or has been modified outside Promob, when clicking Next, the message is displayed: Could not import the project copy. Check whether the file is intact and belongs to this account.
If the selected file is not a project copy, the message is displayed: The selected file is not a valid file.
In both cases, no project is created. To resolve the issue, export a new project copy.
Import .skp file (SketchUp)
IMPORTANT:
- This functionality is only available in the Novo Promob version.
- It is necessary to configure the project in SketchUp to make it compatible for import into Promob. More information here.

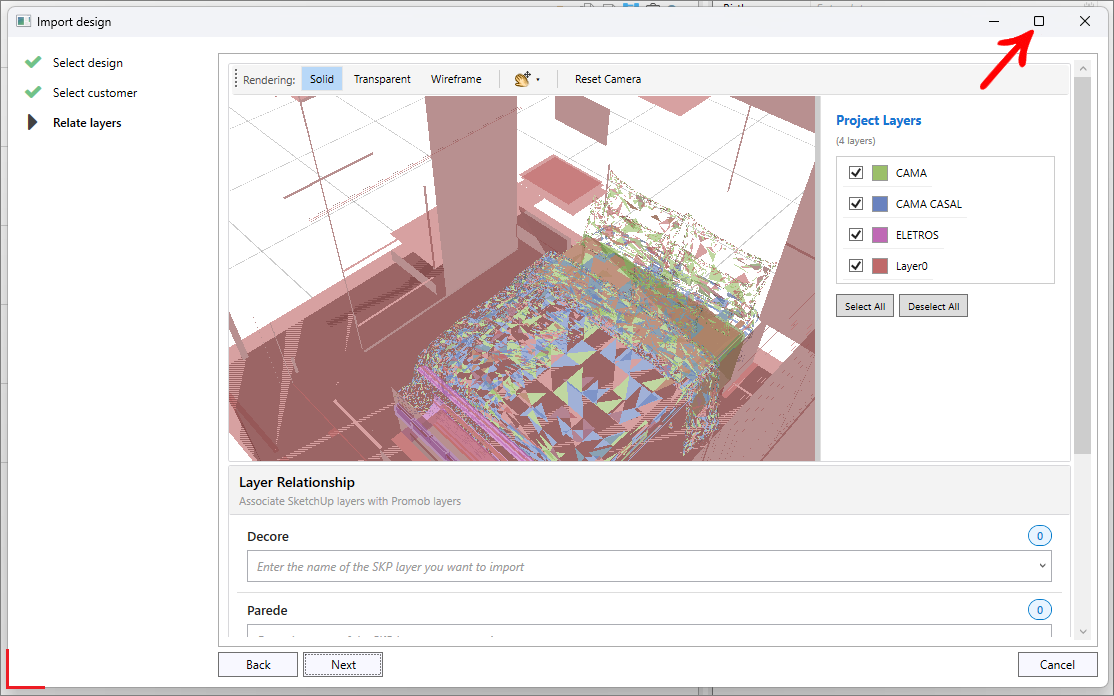

- On the project import screen, the window can be resized by maximizing it or by gradually increasing its size by clicking and dragging the window borders. It cannot be reduced below its initial minimum size.
1. To import the file saved on your machine, click on File - Import Design.

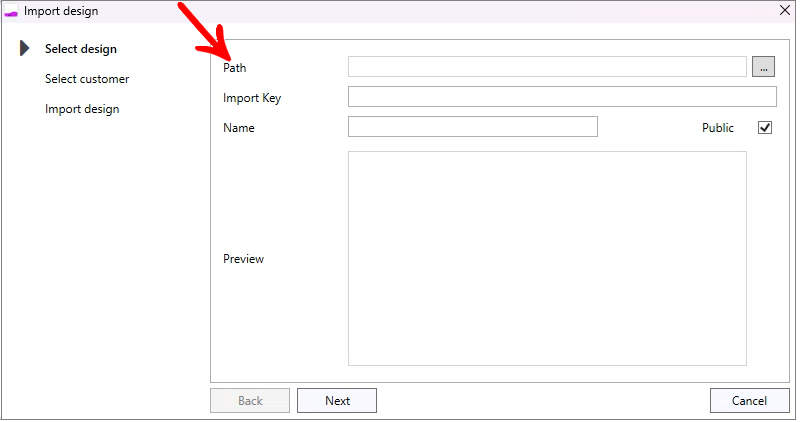

2. On the Import Design screen, under Path, select the directory where your design is saved.

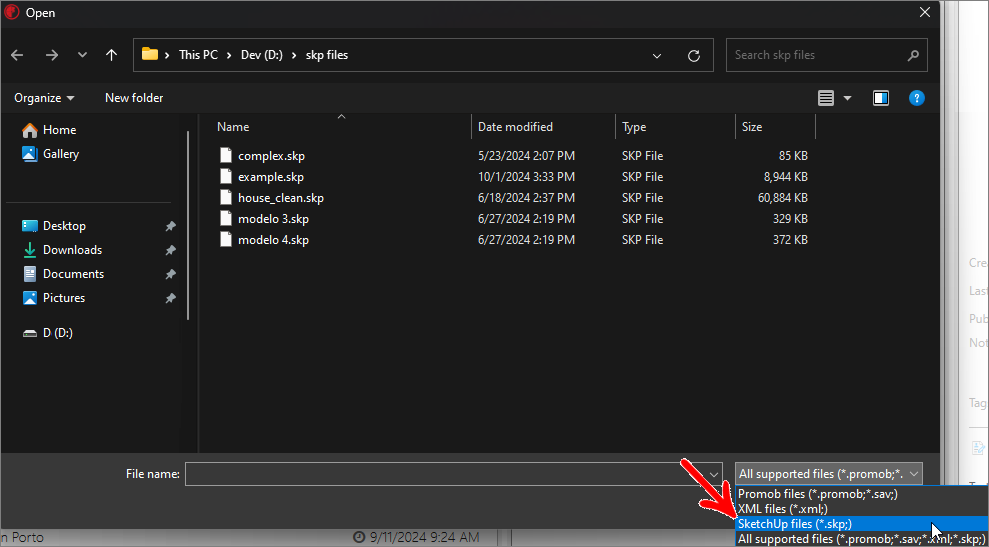

3. The file explorer will be displayed. If necessary, adjust the filter to SketchUp Files (*.skp) and select the desired file.

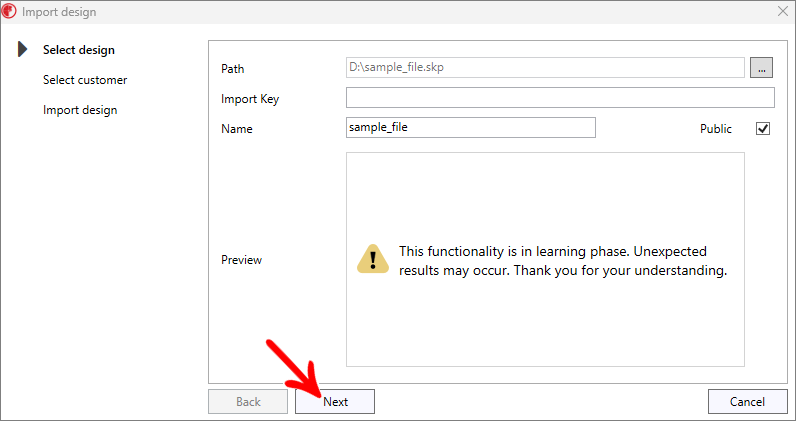

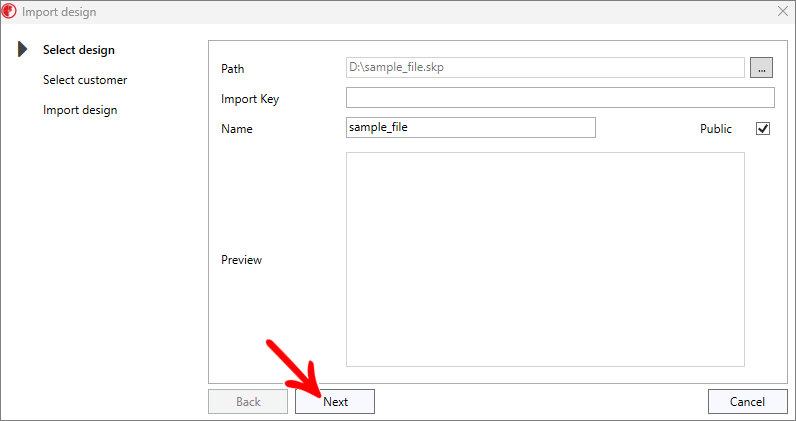

4. After selecting the design, click on Next.

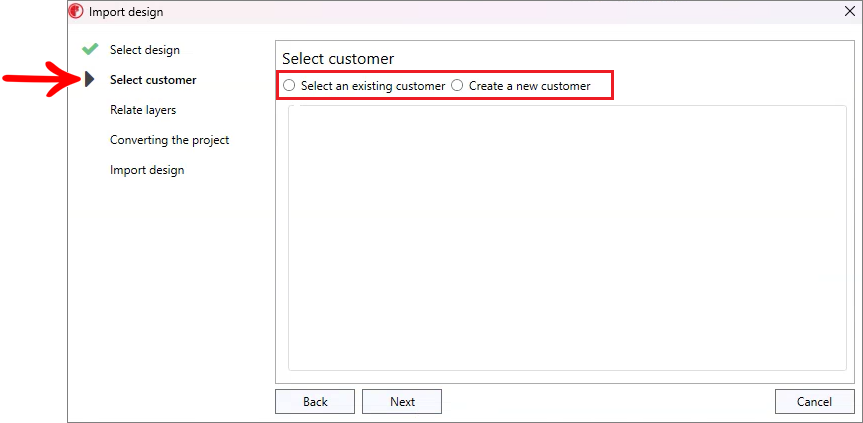

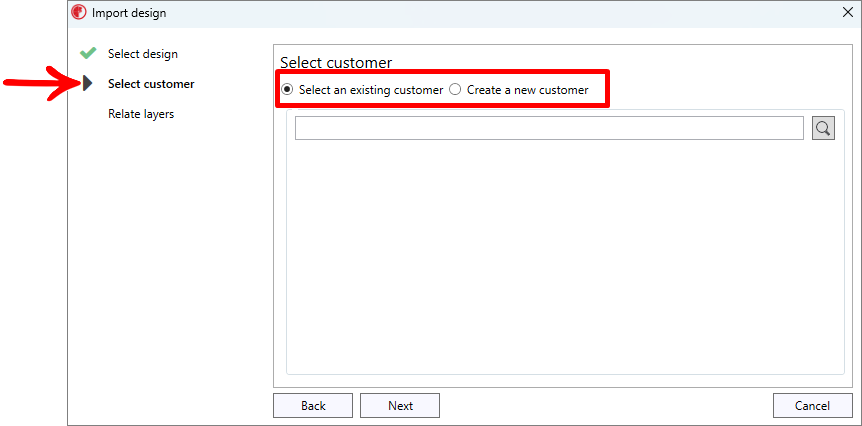

5. It is possible to select an existing client (if they are already registered in Connect) or register a new client.

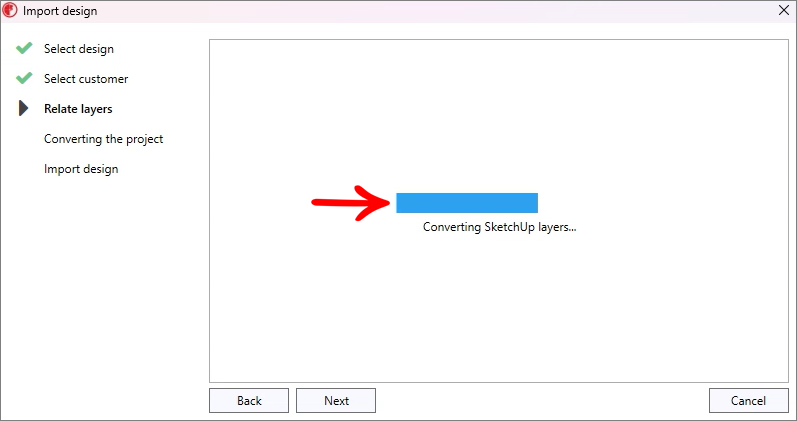

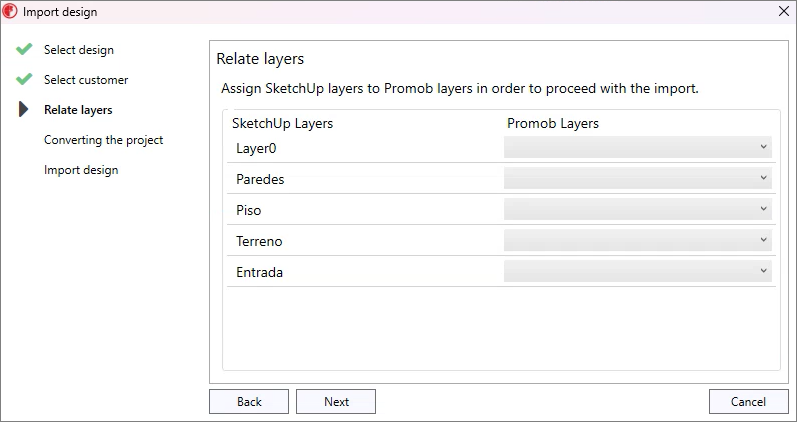

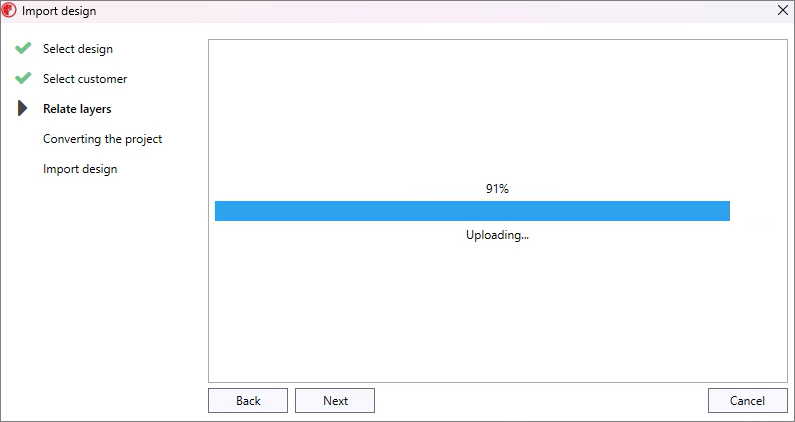

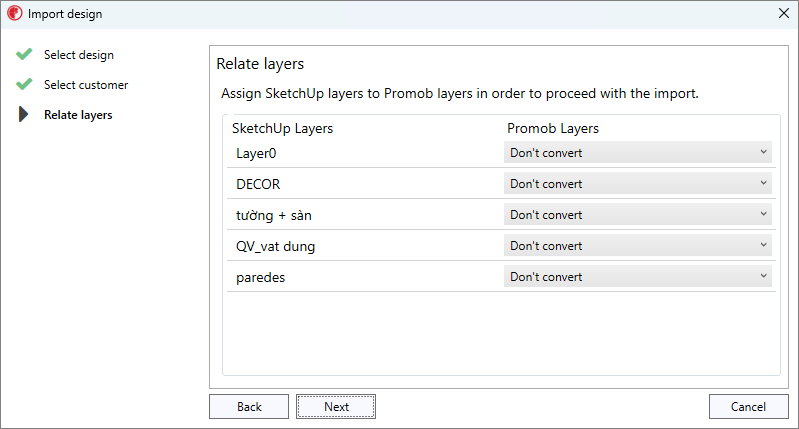

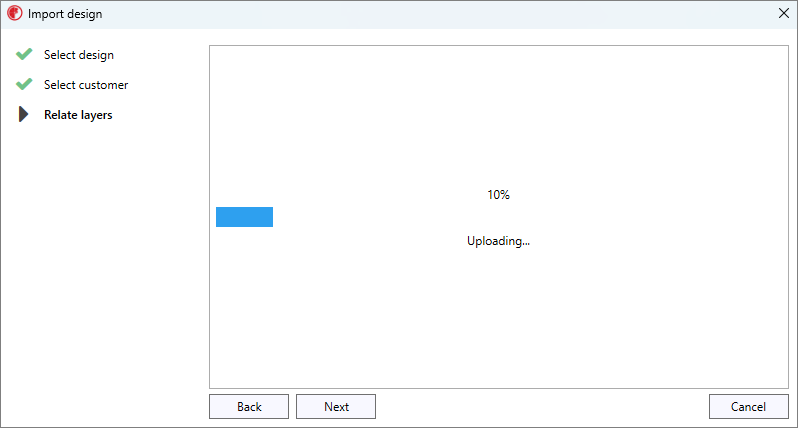

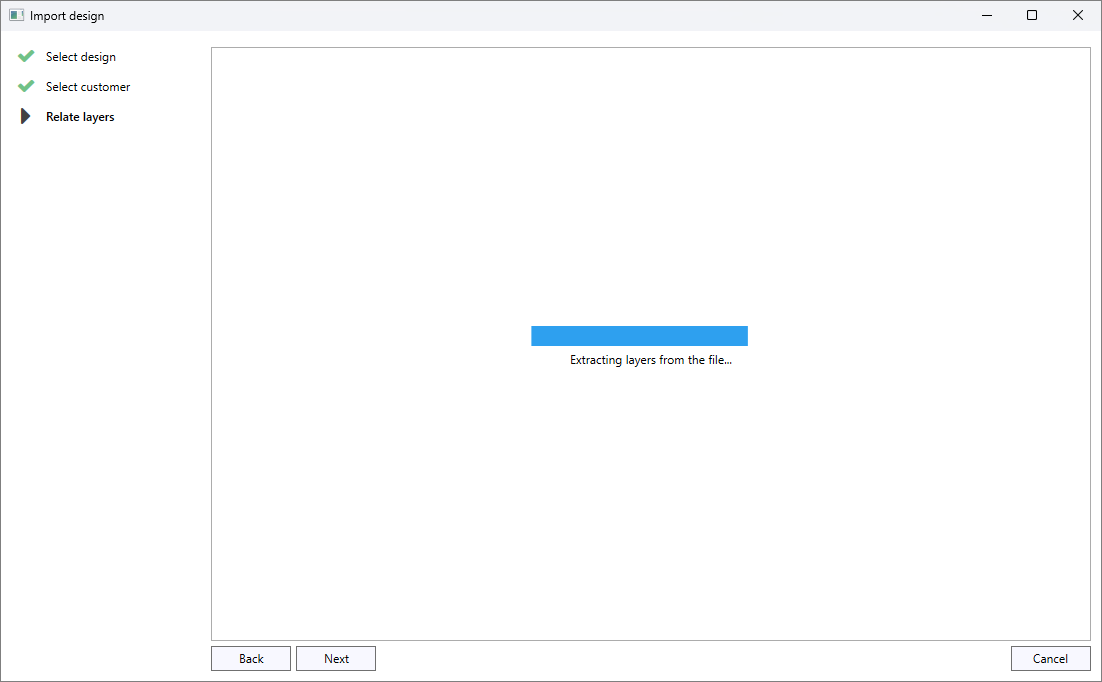

6. After uploading the file to the cloud, it will be necessary to relate the layers of SketchUp to the layers of Promob:

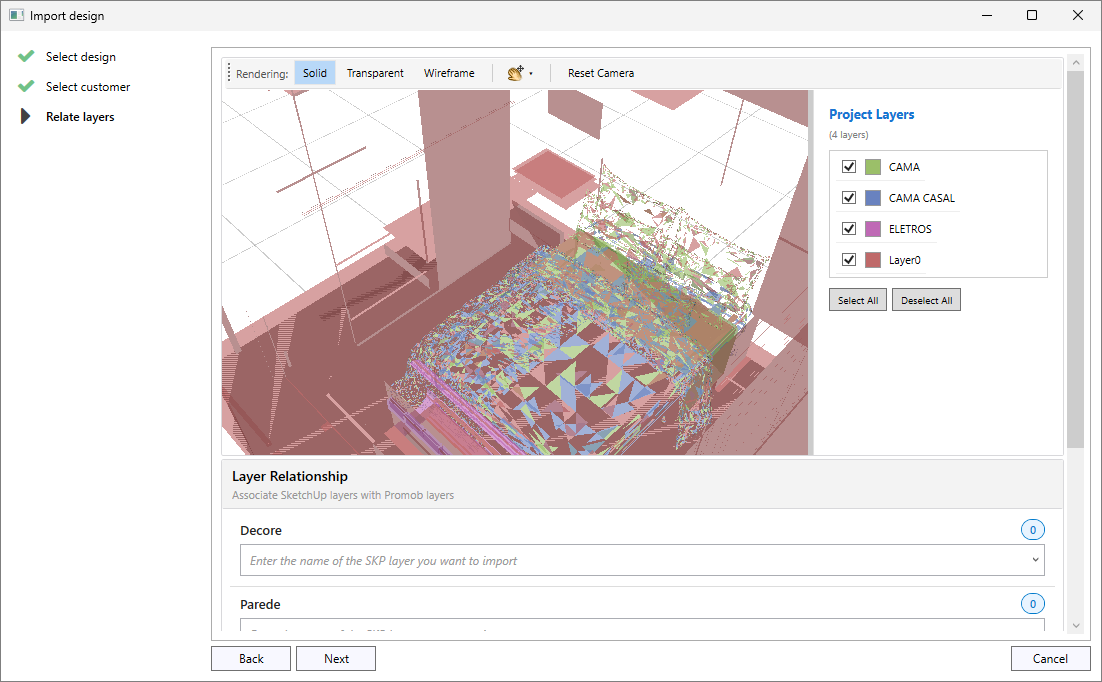

- A window will be displayed containing the 3D viewer for the selected file. Below it, the layer mapping to be configured will be displayed. Select the layers you want to convert for each corresponding layer.
- Layers that should not be converted should be left blank.

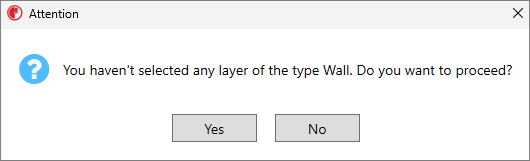

- If no layer is selected for the type Wall, a warning will be displayed.

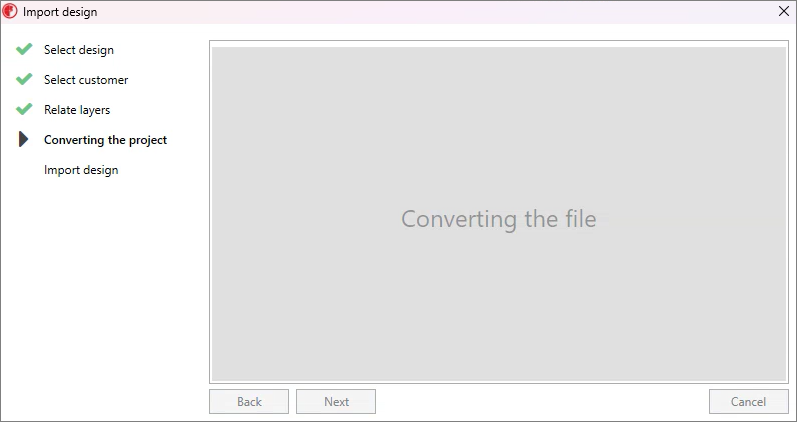

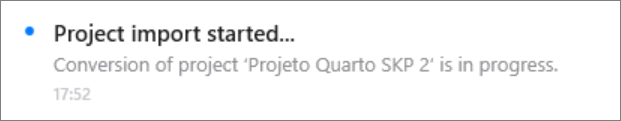

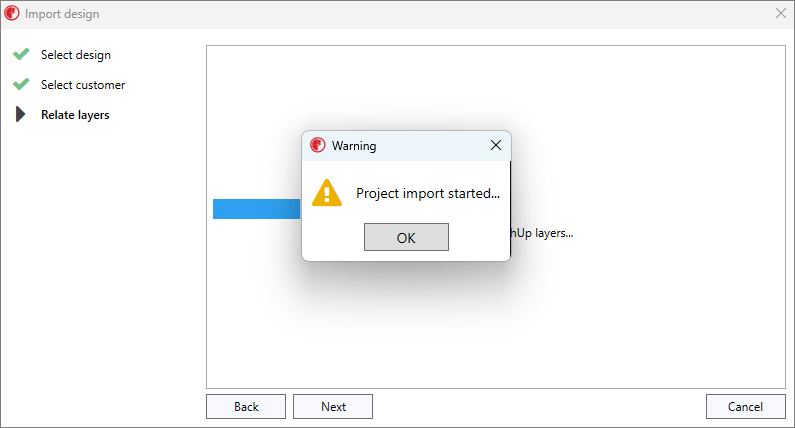

7. A message tab informing that the import process has started is displayed. Along with it, a notification showing the status of the process is displayed.
8. When the conversion is finished, a success notification is displayed. Click on it to import the project into Promob.

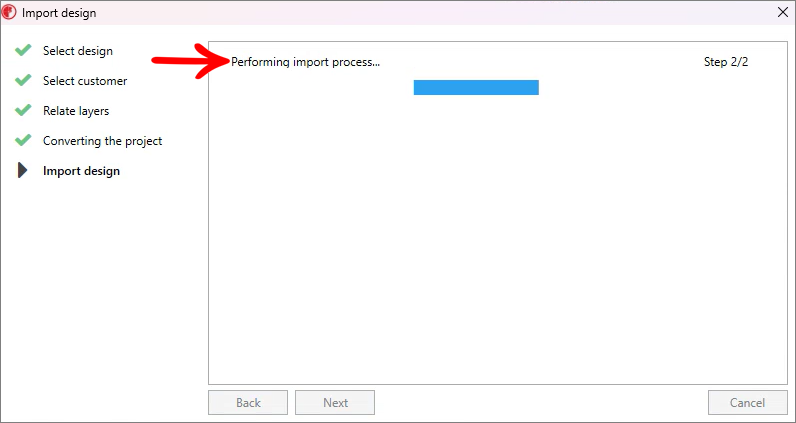

9. After clicking the notification, the project import process within Promob will start. Please wait until the process is completed.

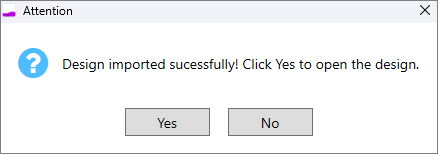

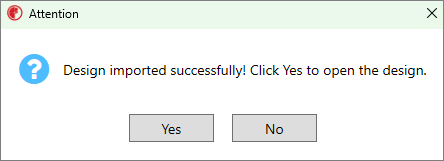

10. As soon as the import is finished, the message Project imported successfully! will be displayed. Click Yes to open the project.
Sending feedback

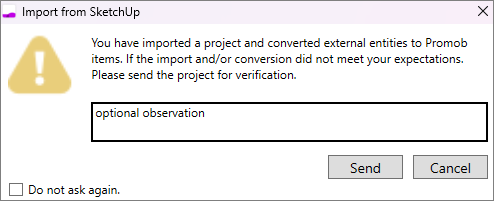

After the first closure of the converted project, a screen will be displayed for you to write feedback about the conversion.
-
Your opinion is very important!
Please take a moment to describe errors, limitations, or suggestions. - Important: After closing this screen, it will no longer be possible to send feedback about this project.
- If you wish to no longer see this screen in future designs, check the option Do not ask again.
Project Identifier - Designs Tab
It is possible to create an import key for a design, so that it can be imported into another Promob. For that:

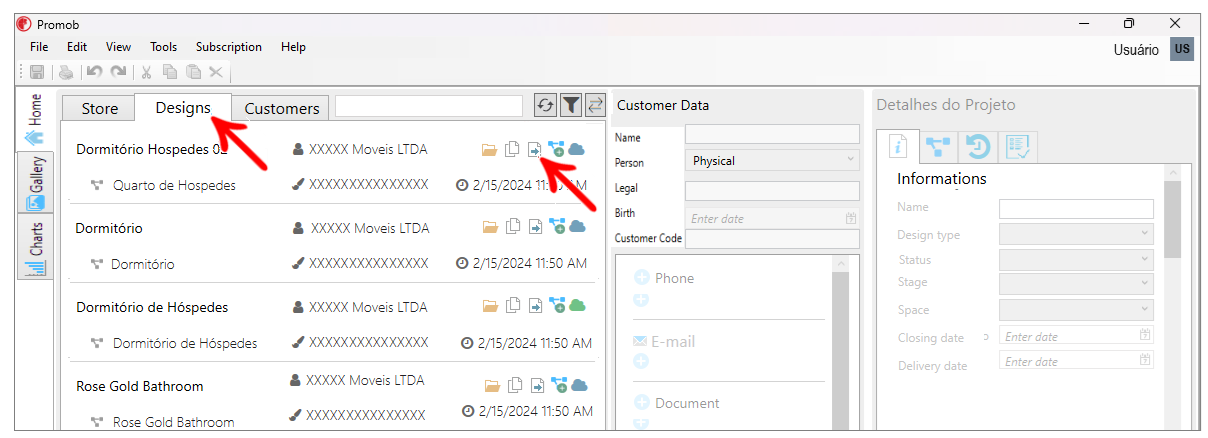

1. Go to the Designs tab, and in the desired project, click Export Project.

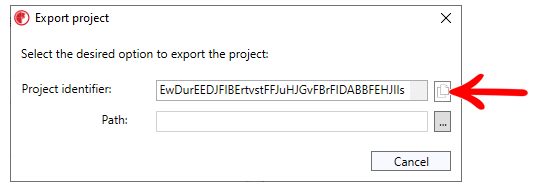

2. The window with the created key appears, to copy the key click Copy to clipboard. Share this key with whoever you want to share your project with.

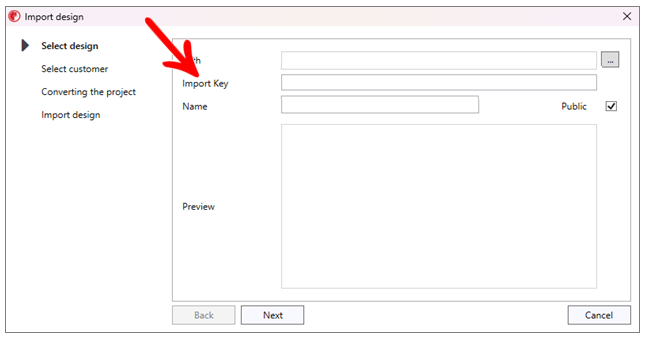

3. To import the design into the other Promob, go to File - Import Design, in Import Key insert the generated link.

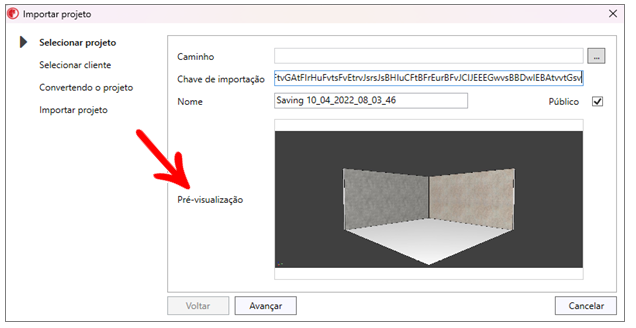

4. Após colar a chave no campo indicado, é carregada uma pré-visualização do projeto, a partir desse momento a importação do projeto é da mesma forma que já era feito a partir do arquivo de projeto. Para visualizar como é feita a importação, clique aqui.
Projeto já é da conta ou já foi importado anteriormente:
1. Na aba Projetos, localize o item Projeto já é da conta ou já foi importado anteriormente.

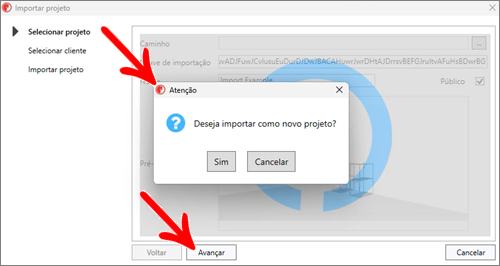

2. Clique em Avançar. O sistema exibe a confirmação: "Deseja importar como novo projeto?".

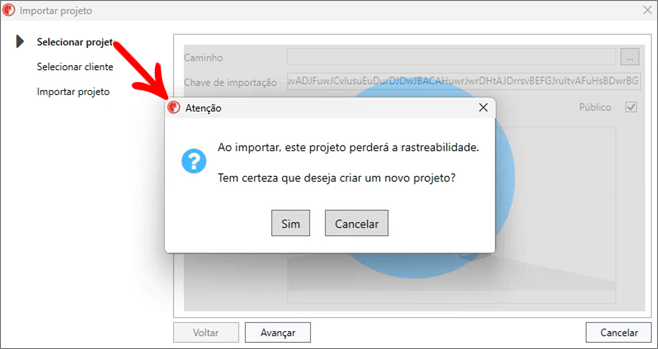

3. Ao clicar em Sim, uma segunda confirmação é exibida com a mensagem: "Ao importar, este projeto perderá a rastreabilidade."
4. Clicando novamente em Sim, o sistema realiza a importação e prossegue com a seleção de cliente, como ocorre na importação por arquivo.
5. Caso clique em Cancelar em qualquer uma das confirmações anteriores, a importação é cancelada e o projeto aparece selecionado na lista de projetos.
Projeto já foi importado, mas a opção ou versão específicas não:

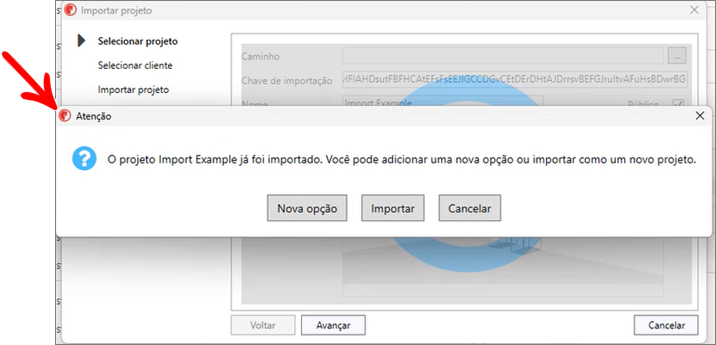

1. Clique em Avançar. O sistema exibe a confirmação: "O projeto [nome do projeto] já foi importado. Você pode adicionar uma nova opção ou importar como um novo projeto."
2. Ao clicar em Nova opção, o fluxo de importação segue normalmente.
3. Ao clicar em Importar, o processo de importação segue como no Passo 2 do item "Projeto já é da conta ou já foi importado anteriormente".
4. Ao clicar em Cancelar, a importação é cancelada.
Projeto já é da conta, mas está na lixeira, ou já foi importado, mas foi excluído"

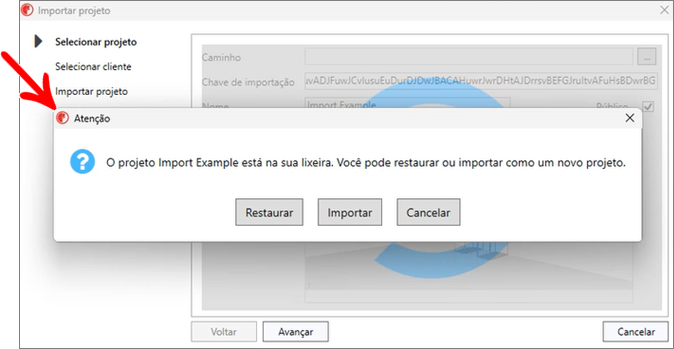

1. Clique em Avançar. O sistema apresenta a confirmação: "O projeto [nome do projeto] está na sua lixeira. Você pode restaurar ou importar como um novo projeto."
2. Ao clicar em Restaurar, o projeto é restaurado e filtrado na lista de projetos.
-
Condição especial:
- Se o projeto for de outra conta, mas já foi importado, ou se a opção/versão referenciada no identificador não foi importada ainda, o fluxo segue como no item "Projeto já foi importado, mas a opção ou versão específicas não", a partir do Passo 2.
3. Ao clicar em Importar, o fluxo segue como no Passo 2 do item "Projeto já é da conta ou já foi importado anteriormente".
4. Ao clicar em Cancelar, a importação é cancelada.
Import Key - Store Tab
Using the Import Key option, the manufacturer can add a manufacturing option to a project using an import key. For that:
IMPORTANT: This option to create an import key is only available to users with visibility to the Store tab. For more information, access the article Connect - Store Tab.

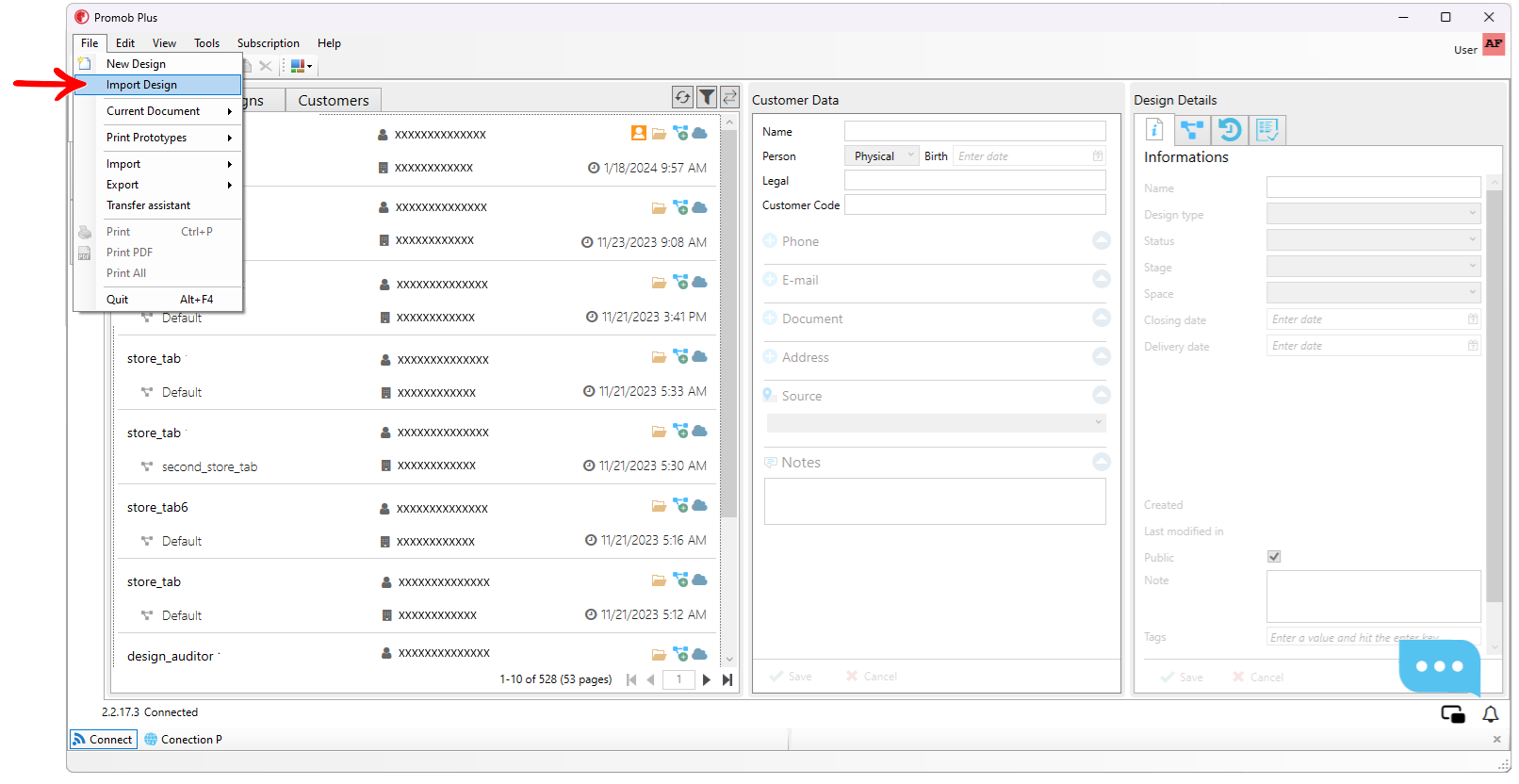

1. Go to the Store tab, and select File - Import Design.

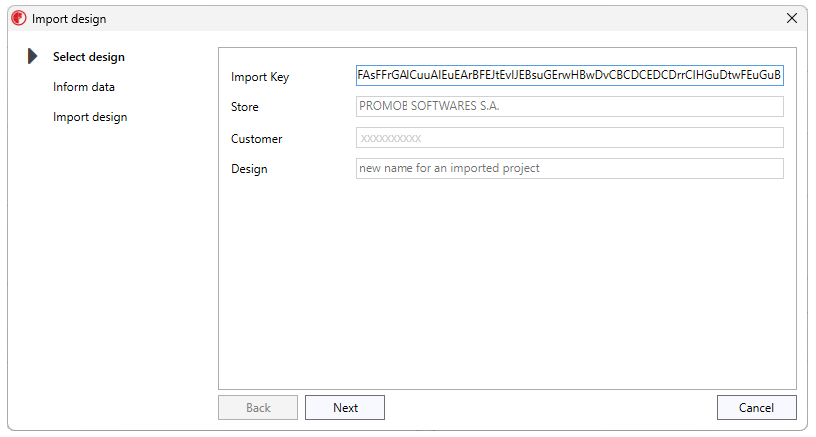

2. Paste the import key, wait for the loading of the design data to be imported.
|

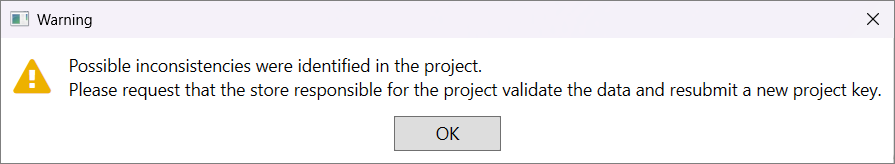

IMPORTANT: when importing a project with missing files, the system displays a warning informing the user of the inconsistency. In this case, it is necessary to contact the store responsible for the project to validate the data and resend a new project key. |

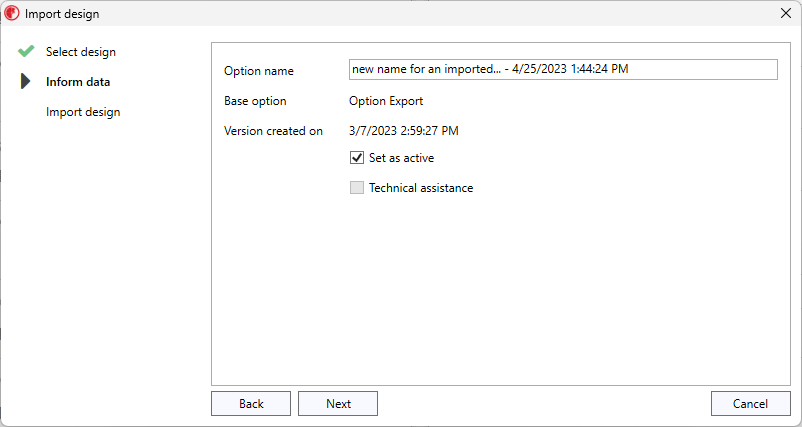

3. After advancing, in the Inform Data tab, a name is requested for the new manufacturing option, the base option and the date of the version referenced by the import key are displayed.

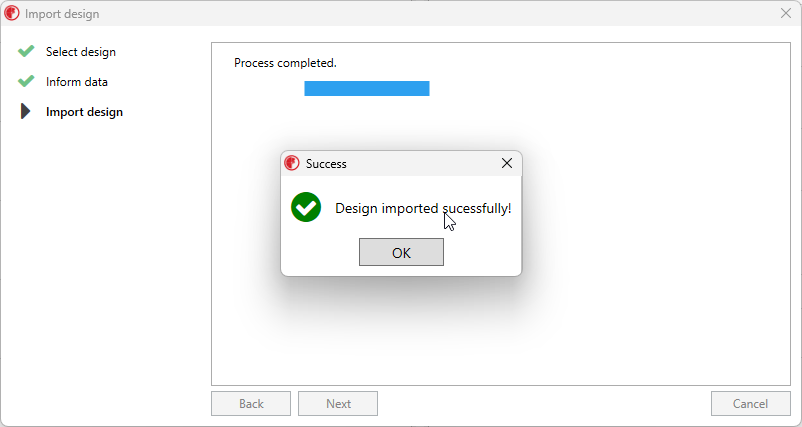

4. Then, on the Import design tab, the project import is finished and the message Design imported successfully!is displayed.
5. After clicking OK on the message displayed, the project is filtered and selected in the list.

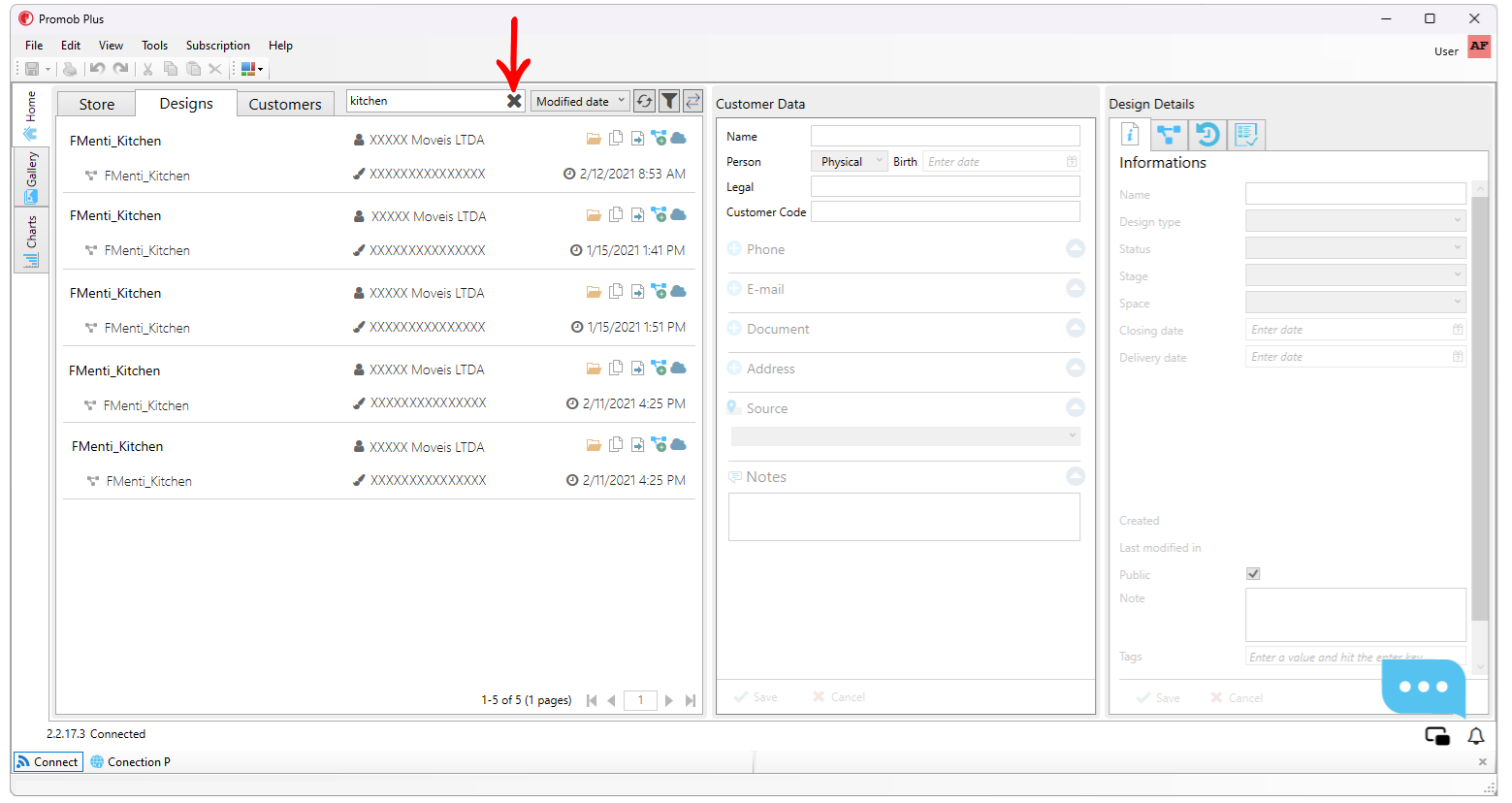

IMPORTANT: to remove the filter, click on the X icon.
If the design has already been imported, the message The design has already been imported, click on OK to select it in the list of projects.
