Builder Parts - Representation of part operations in the environment

Updated
Follow

Available from versions: Plugin Builder Parts 1.60.14.15

The Drill, Slot and Machining operations are represented in the 3D environment, facilitating the visualization and understanding of the final result of the part.

The following are some examples of how the pieces created in the plugin will be displayed in the 3D environment, for each type of operation.

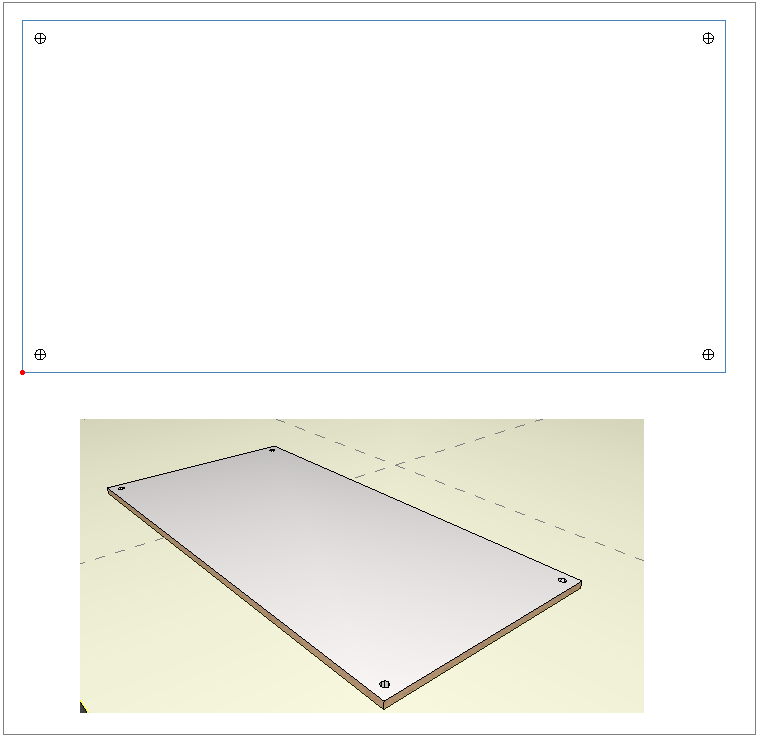

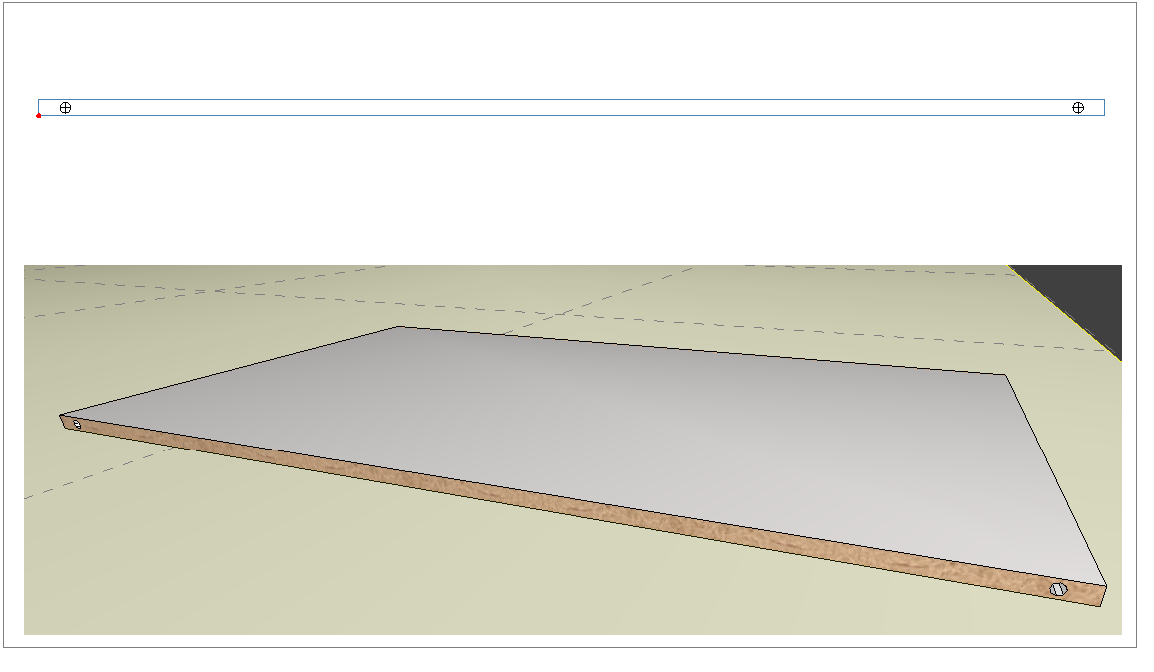

Drill





For more information on the registration of drill, click here and access the Registration of drill.

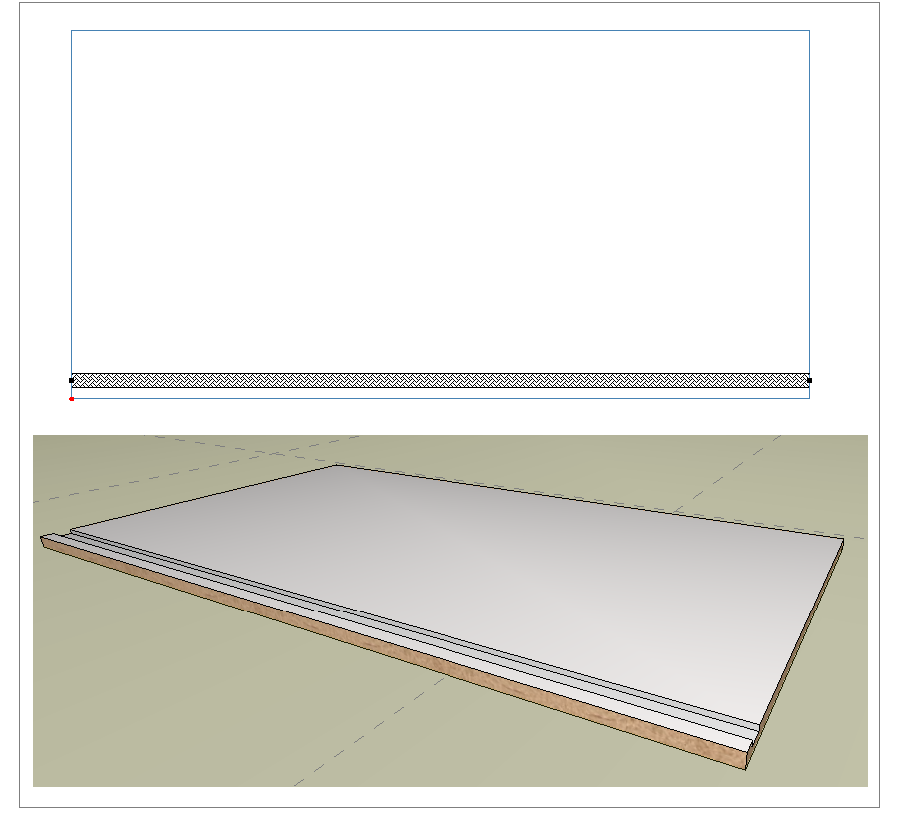

Slot


For more information on the registration of slot, click here and access the Registration of slot.

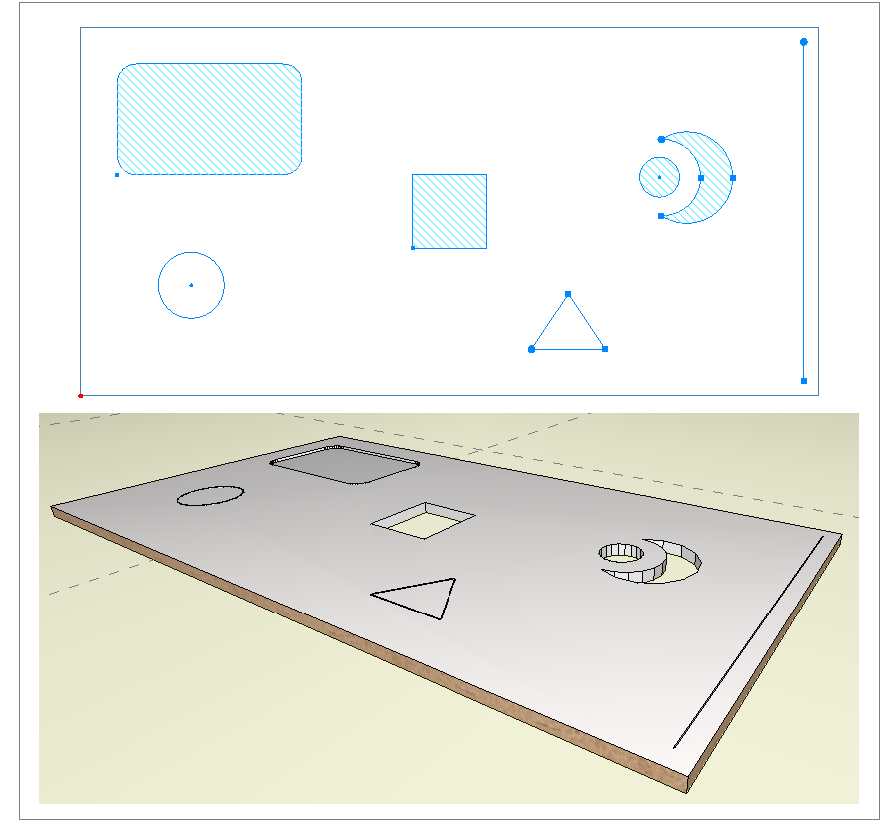

Machining


For more information on the register of machining operations, click here and access the Register of rectangular and circular machining.
