IMPORTANT: To generate the cutting plan correctly, you must be connected to the Internet. If the message that the cutting plan could not be generated is displayed, click here.



Which Cut Pro configuration do you use?

Select the configuration used below and directly access the ideal content to help you.



Cut Pro Complete configuration.

Cut Pro Simplified configuration.



Review Cut Pro's Complete configuration and Simplified configuration here.

Also, review the Main Menu documentation. Click here.



Elements of the cut plane Complete mode



The cut plan of Promob Cut Pro in Complete mode, has several information and features, to better detail the cut.

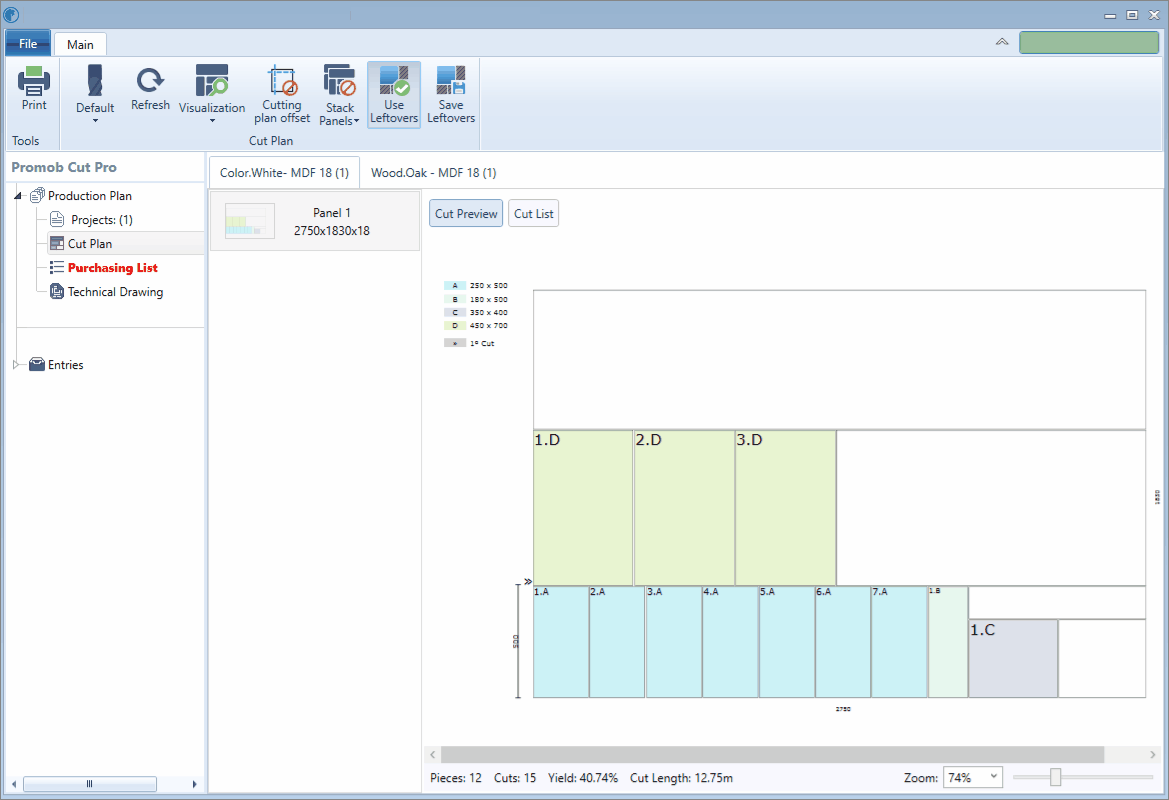

To access the cut plan, click on the Cut Plan, on the left side:

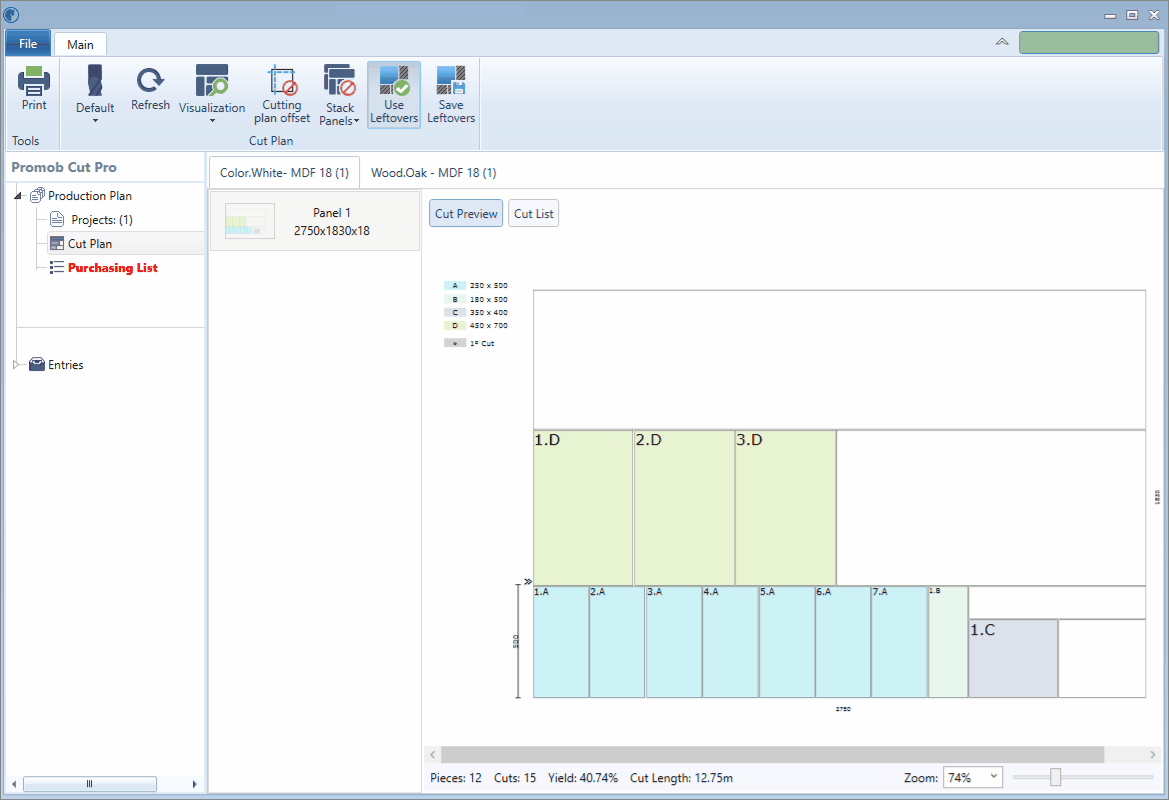

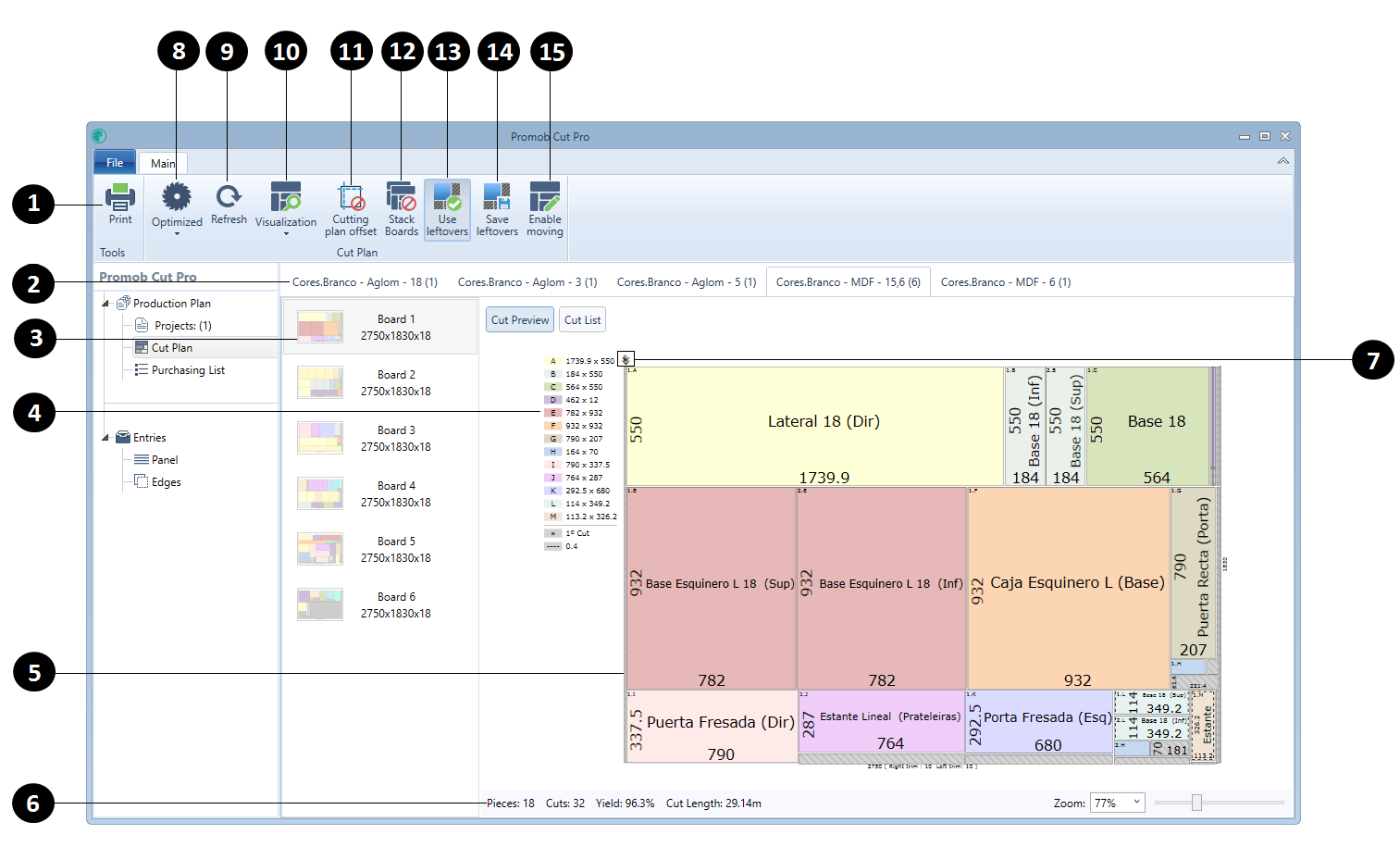

The cut plan will be displayed:



2. List of panels of a finish: list of panels to be cut. In the example in the image above, to manufacture the module with White finish, MDF raw material and thickness 15.6mm, two panels will be used (Cut 1 and Cut 2);

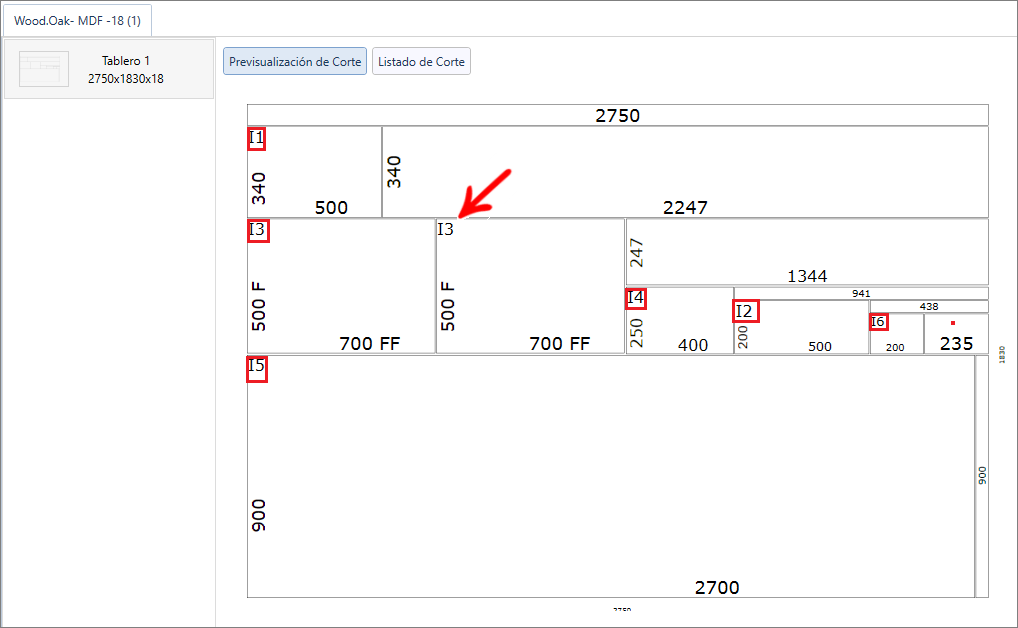

3. Item identification: the items to be cut on the selected panel are identified using a unique code. Items of equal size have the same color and the same letter, the number varies;

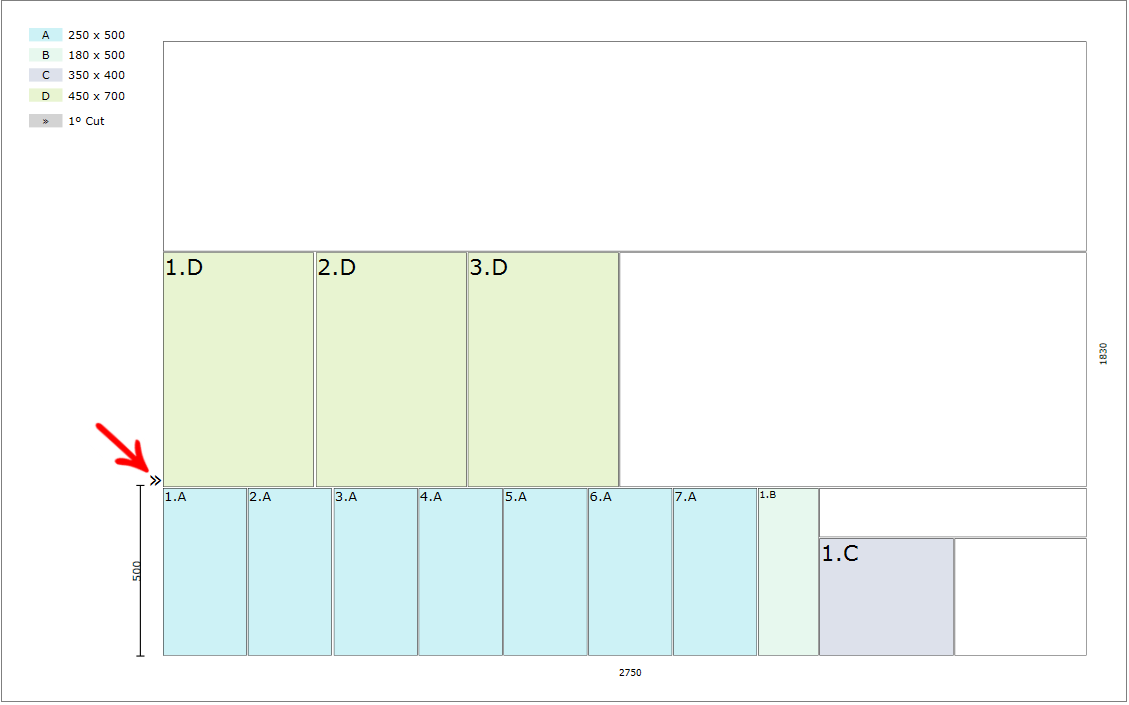

4. Indication of the first cut: indicative that suggests the first cut in the plate. When using a plate that has the register of external trim, the indication of the first cut will be the sum of the external trim plus the value of the first cut;

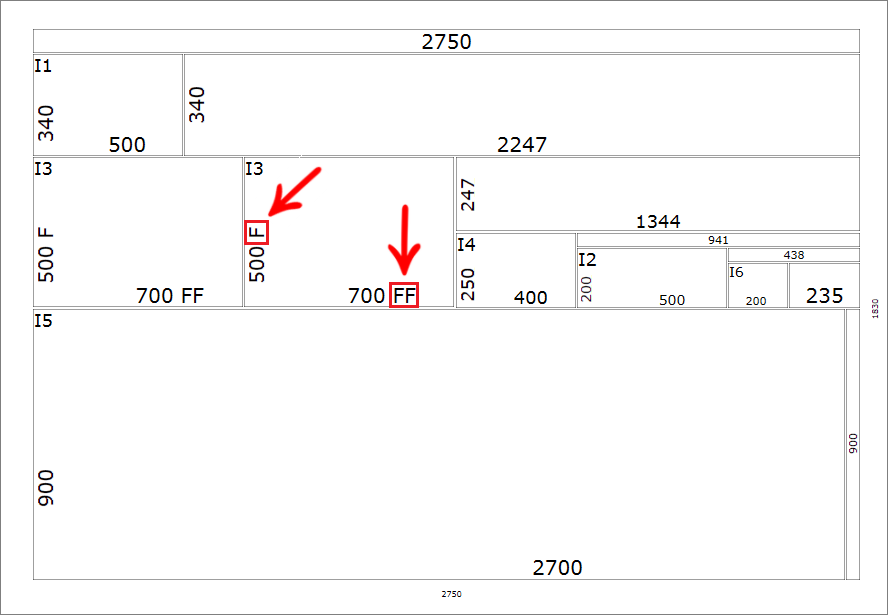

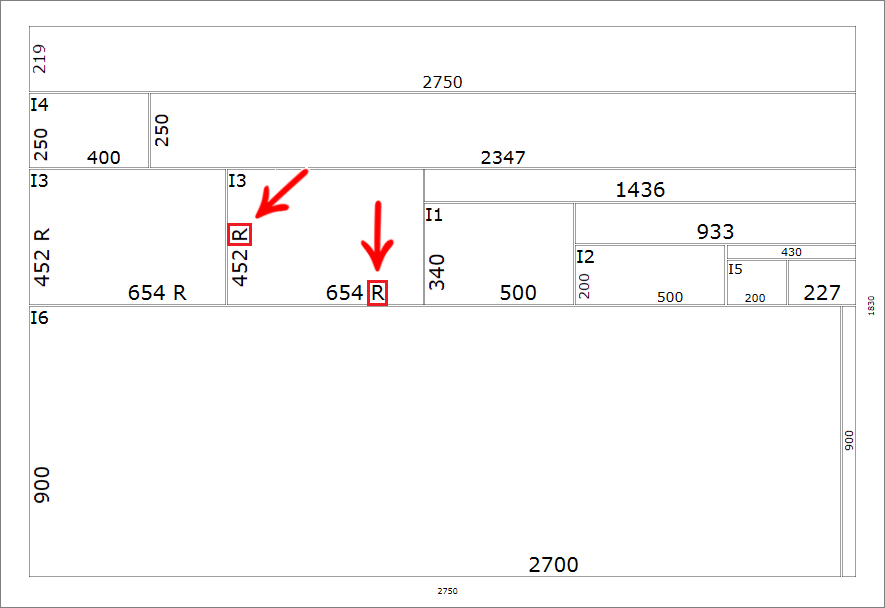

5. Cut preview: it is the cut plane itself. For each item is displayed: description, dimension, representation of the edge band strips and item code;

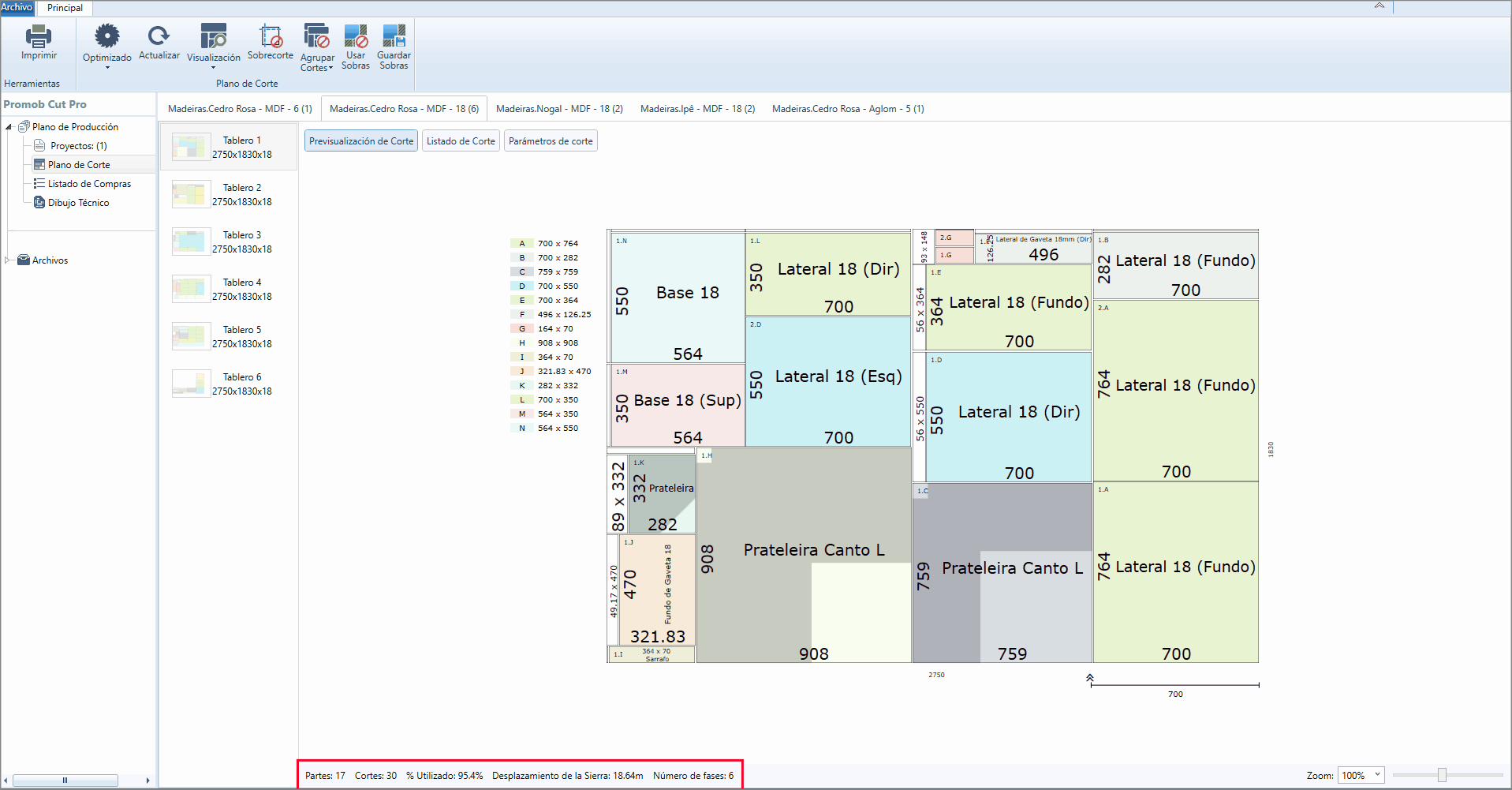

6. Additional information: Indication of the number of pieces, number of cuts, saw displacement, utilization, and number of phases. Information regarding the selected sheet;


7. Print: Allows you to print the cutting plan, among other information. To learn more, click here;


8. Definition of the cutting parameter: defines whether the cutting parameter will be Nesting or Saw. To learn more about Saw click here. To find out about Nesting, click here.



9. Refresh: whenever any information is edited in the cut plan, it is advisable that a refresh be made, for that, just click on the Refresh button;



10. Visualization: what can be visualized in the Cut Preview and the position of the zero point in the cut plane. To learn more, click here;



11. Overcutting: defines whether the overcutting settings should be active or inactive for this cut plan. To learn more, click here;



12. Stack plates: define whether the same cut layouts should be stacked. To learn more, click here;




13. Use leftovers: defines whether the leftovers that have been saved should be used automatically. To learn more, click here;


14. Save leftovers: by clicking on this button the desired leftovers can be saved. To learn more, click here;



15. Enable movement: this function allows the movement of parts on the cut plane. To learn more, click here;

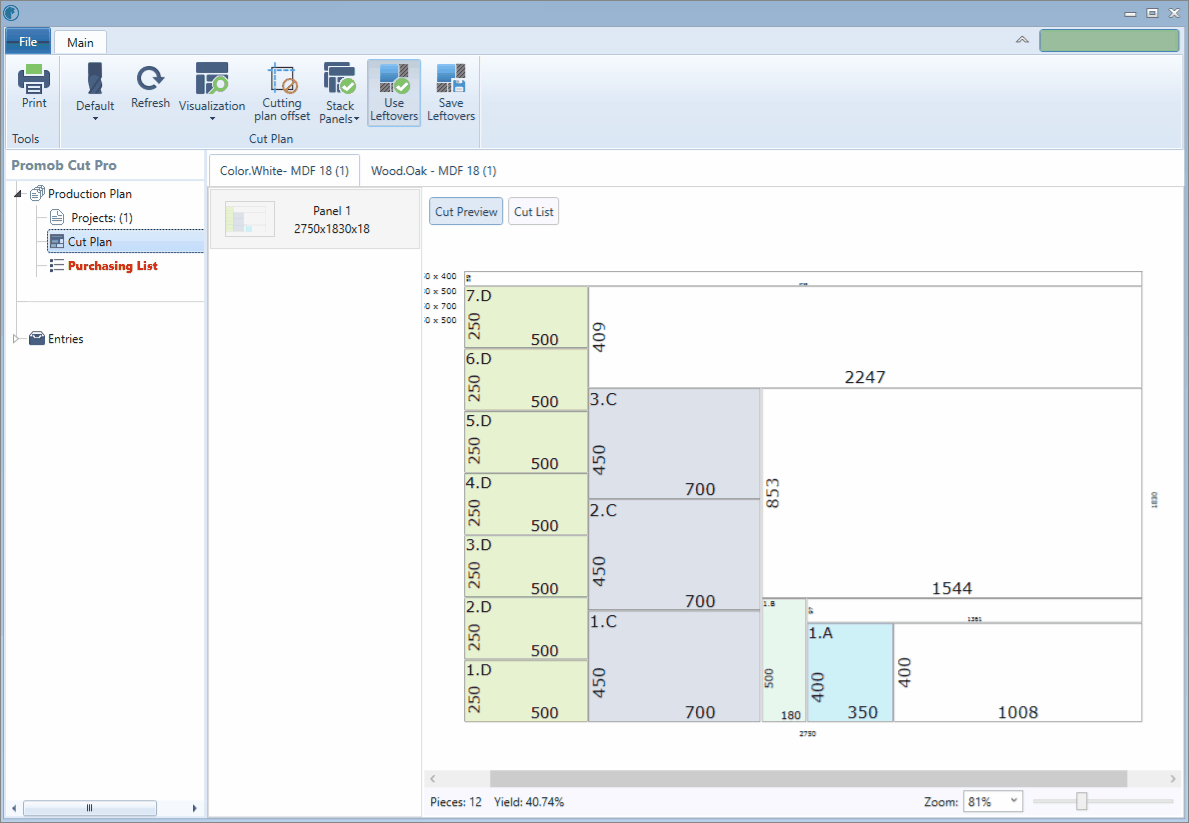

With double-clicking on any of the parts of the cut plane, Promob Cut Pro will take you to the main page, with the part in which the double-click was selected, as shown in the image below:
