Available from Plugin Builder version 1.60.14.24
The BUILDERCUTOPERATION attribute defines whether a part will receive cutting operations. A cutting operation makes it possible to budget for cutting the part and send it to the cutting plan.
IMPORTANT: If the attribute is not registered in the system, the behavior will not be affected.
Attribute Registration

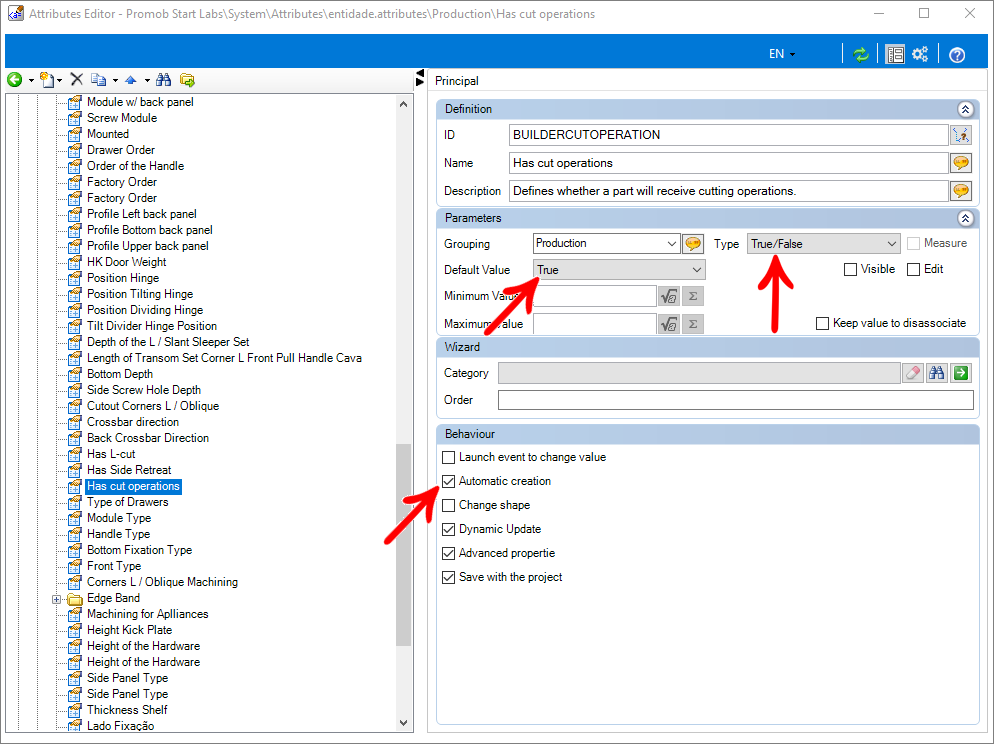

In the registration of this attribute, its default configuration defines that it is created automatically (hidden) for all entities (Automatic Creation property) with a default value of True, that is, the attribute is applied to all items to be defined that the part will receive Cutting operations. If it is necessary to define that the parts cannot have Cut operations, it is necessary to apply the attribute in the module and change it to False value.

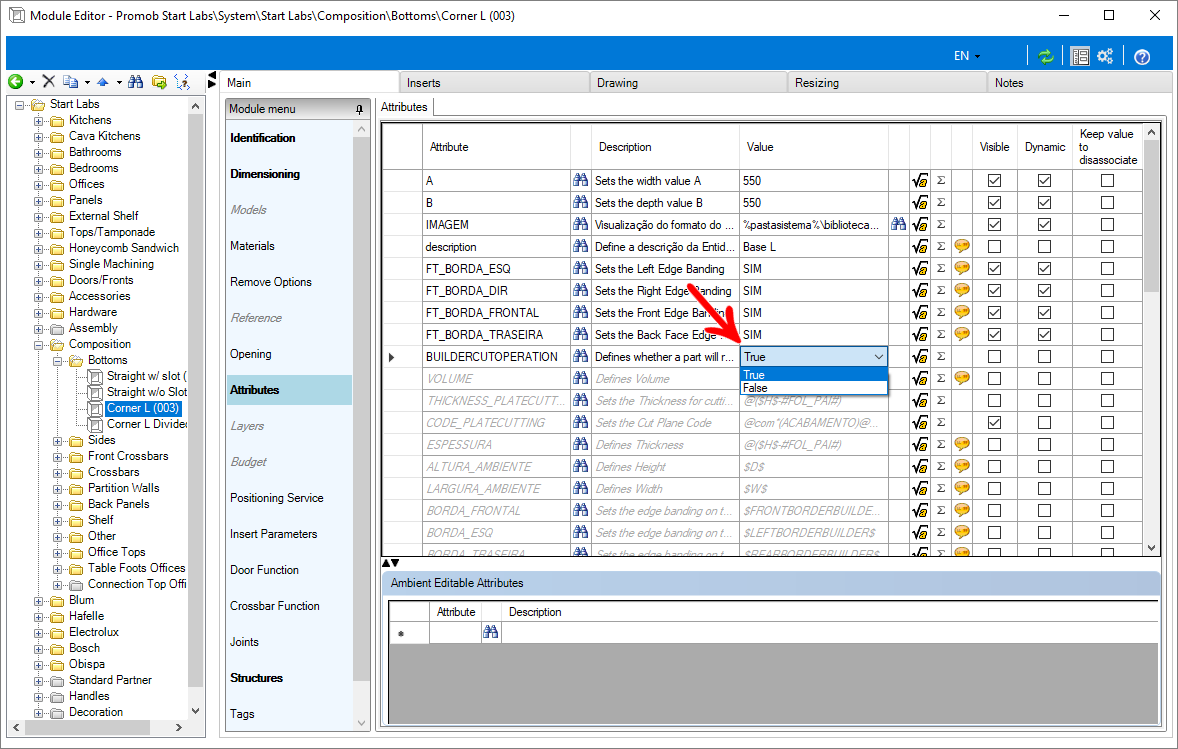

Add attribute to item
BUILDERCUTOPERATION = True: The piece will receive a cut operation (if registered in the library) and will normally budget for the operation.

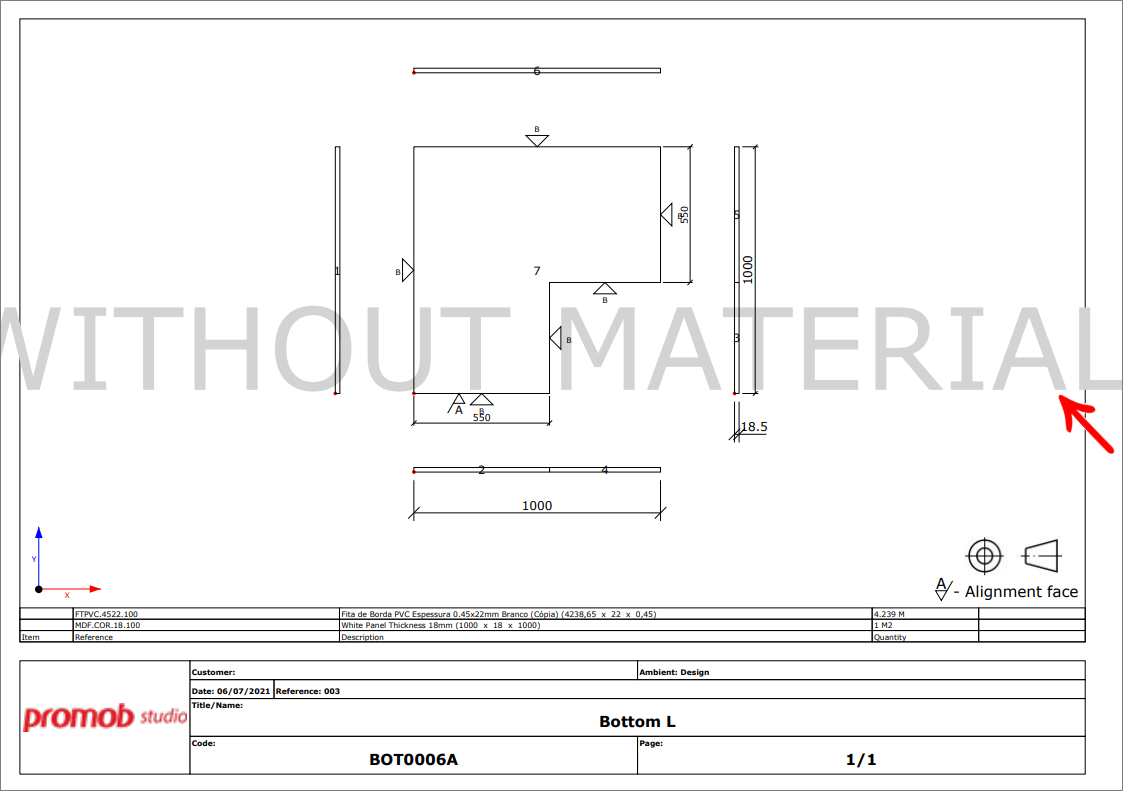

BUILDERCUTOPERATION = False: The part does not receive a cut operation, preventing this operation from being budgeted and preventing the part from going to the cutting plane, also preventing this operation from being listed in the integration. In the technical drawing, a watermark with the description No Material is displayed when the attribute is added to the part with a False value.
EXAMPLES

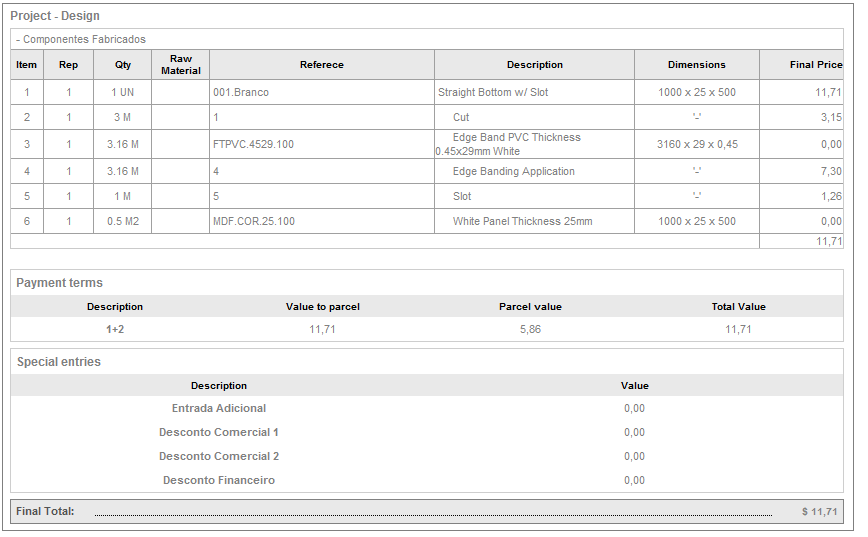

- BUILDERCUTOPERATION Attribute = True

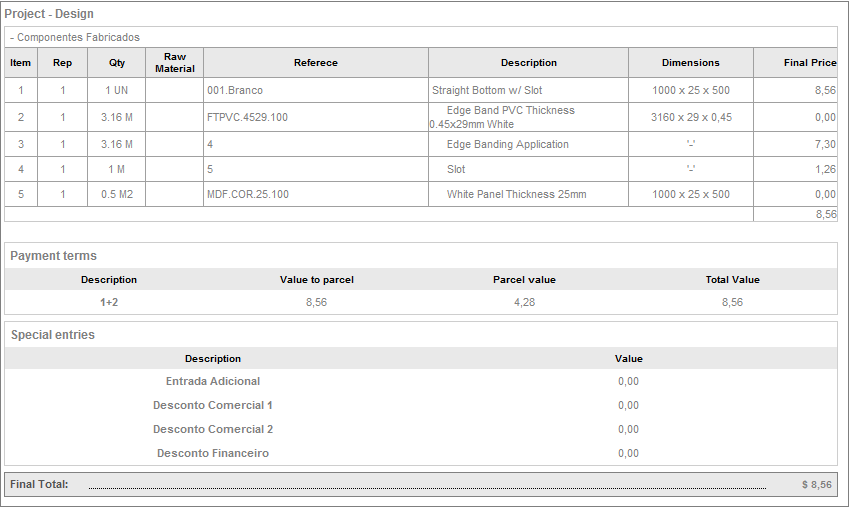

- BUILDERCUTOPERATION attribute = False
