The .dxf files contain information that can be read by different CAD programs. Promob Cut Pro has a web service that allows the generation of these files. In this way, it is necessary to have an internet connection in order to generate such files.
IMPORTANT: The DXF Files option will only be available to users who have the DXF Exporter plugin active on their system.

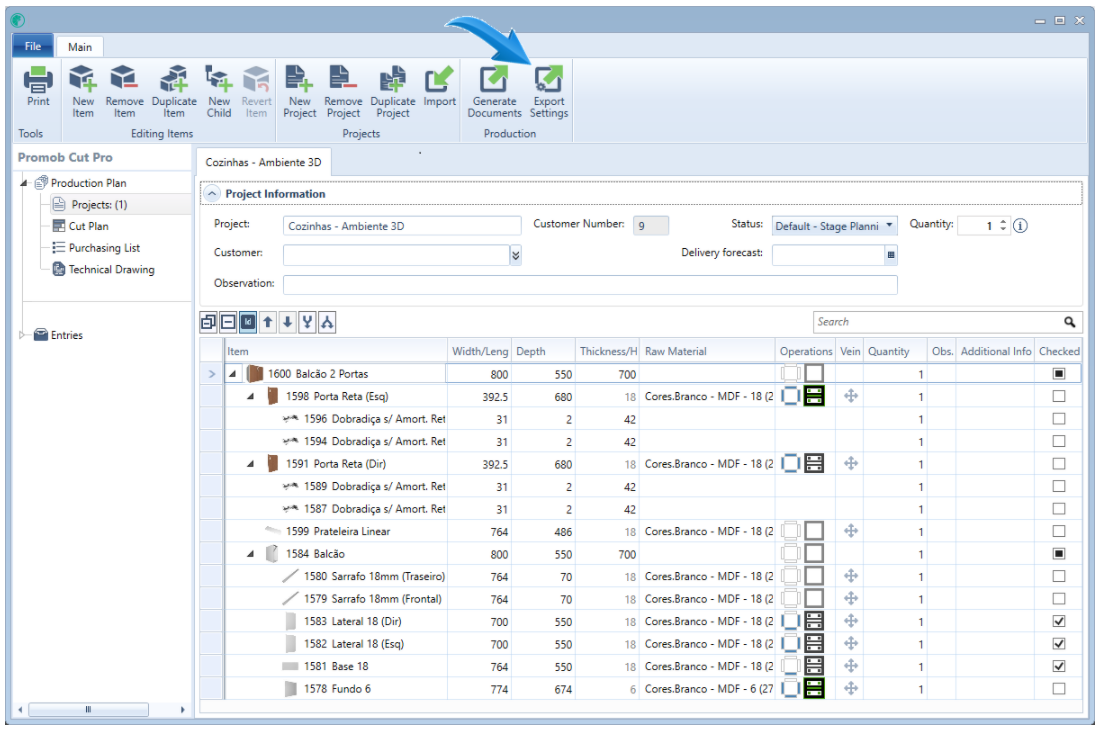

With the file configured, click on the indicated option:

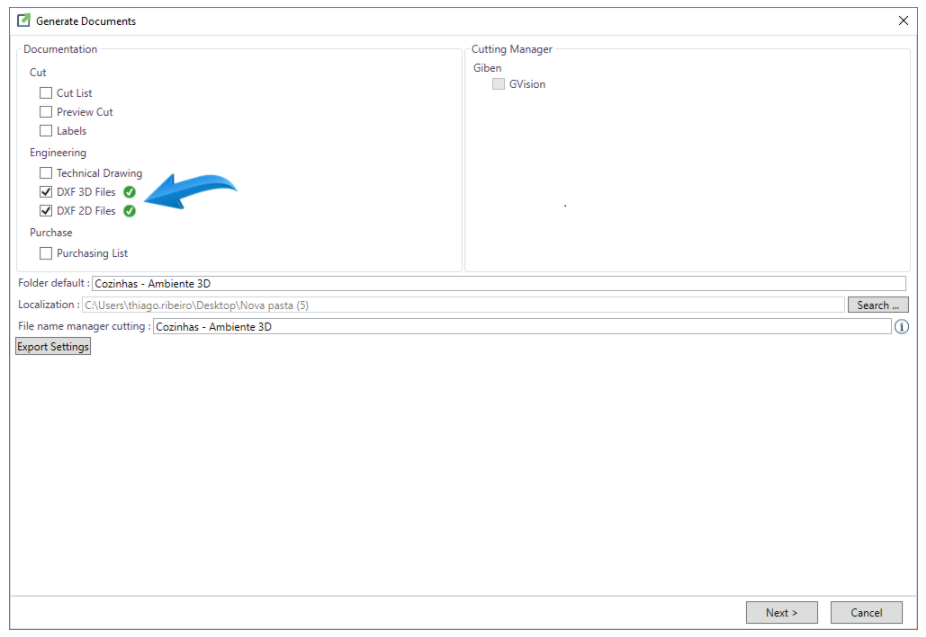

The Generate Documents screen opens. Just choose between DXF 3D or 2D:
When choosing the directory from where the files will be generated click on next.

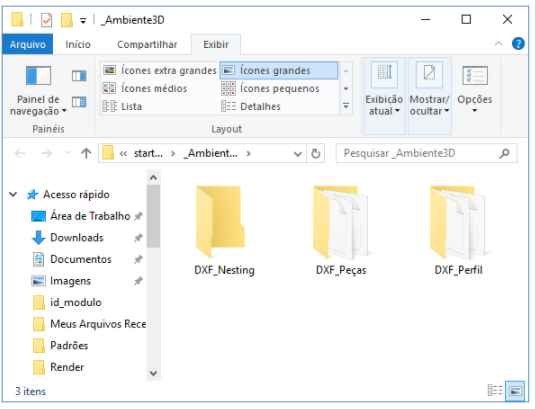

The files will be generated. In the indicated directory, we will find 3 different folders.
The following files will be generated:

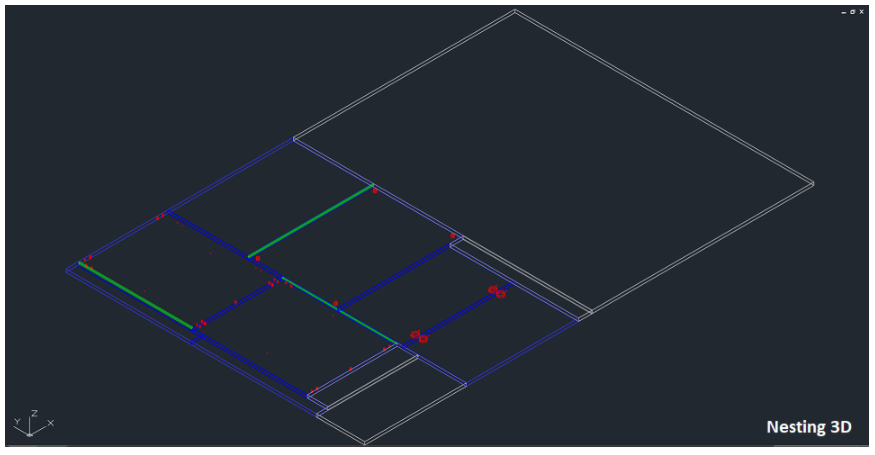

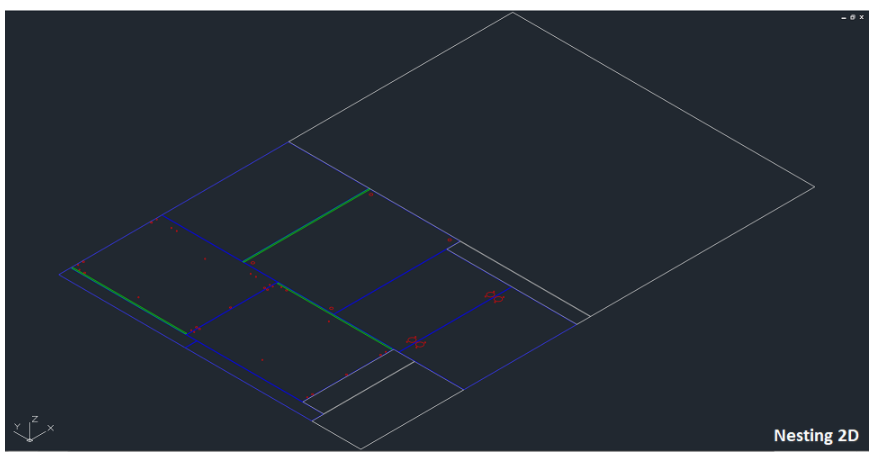

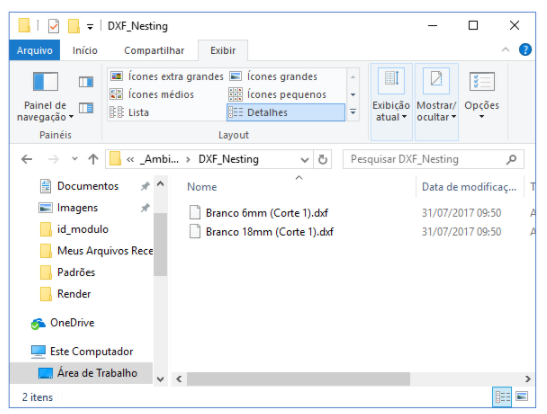

1. DXF_Nesting: In this folder we will find .dxf files with the optimization of the plates in the Nesting cutting parameter. In addition, face operations will also be presented.

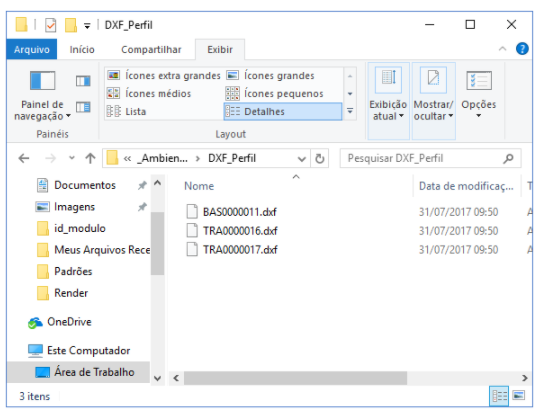

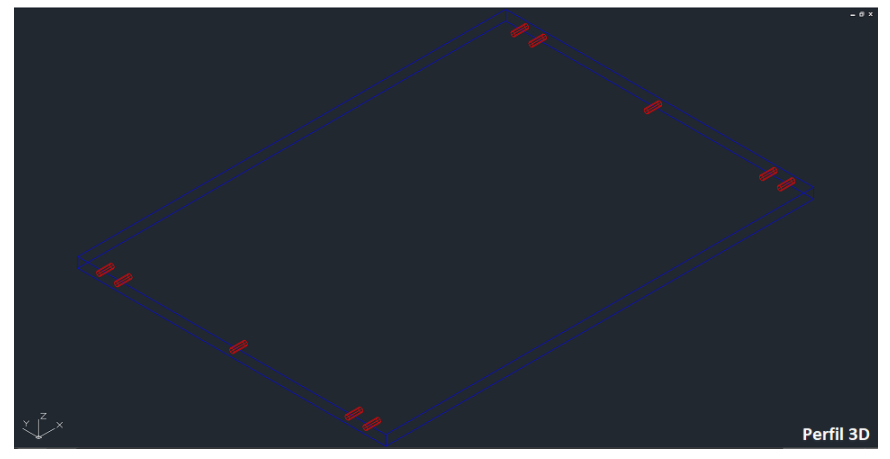

2. DXF_Perfil: In this folder we will find the .dxf file containing the top drilling information for each part. Only those parts that have such operations will be listed..

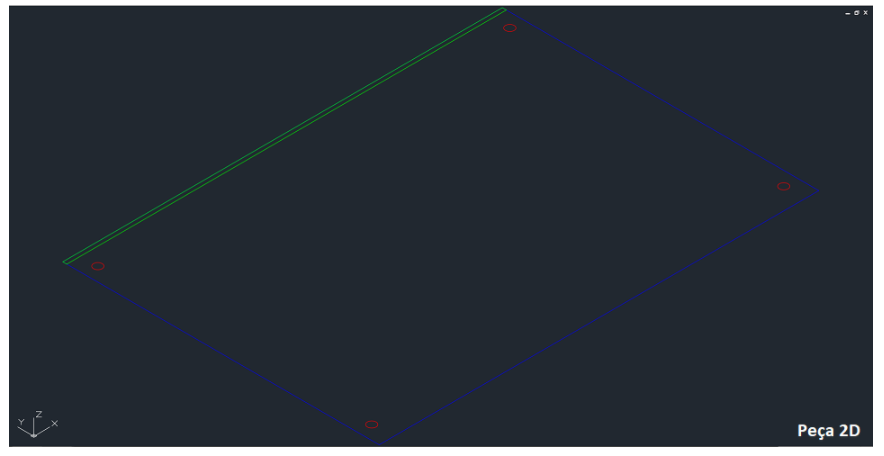

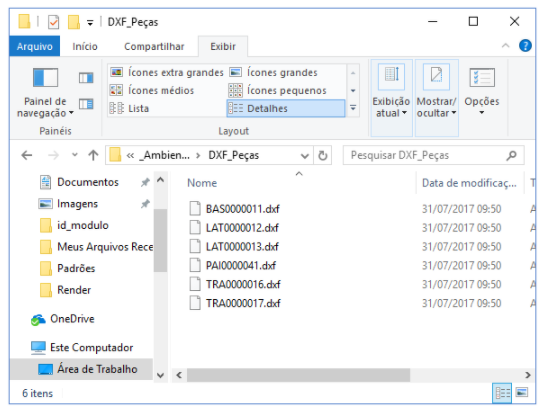

3. DXF_Peças: In this folder we find the .dxf files containing all operations to be performed on each part. As many face and top operations.
