Print prototypes are page templates that can contain elements such as viewport, logo, and footer. They allow standardizing layouts and speeding up the generation of prints.
IMPORTANT: The availability of prototypes may vary according to the installed manufacturer.
Create a print prototype:

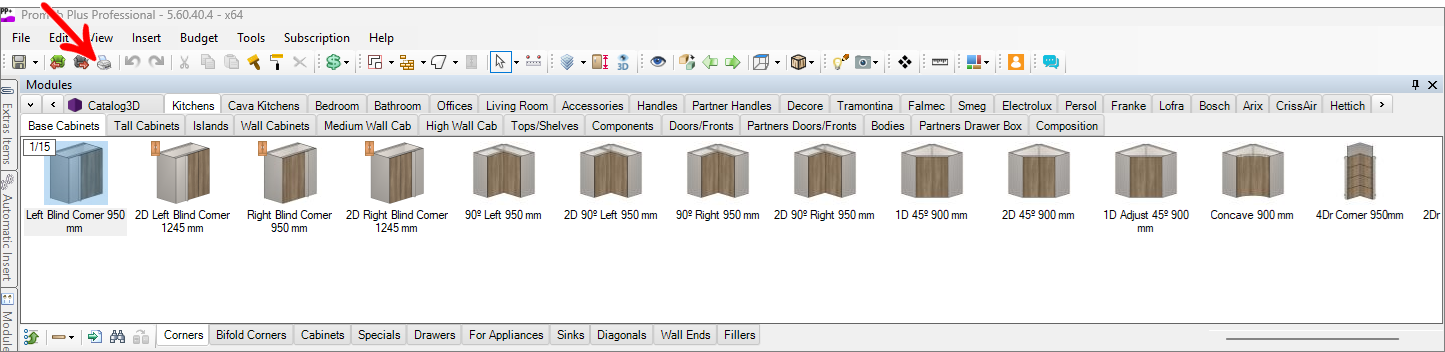

1. Access the Print menu, on the top bar of Promob.

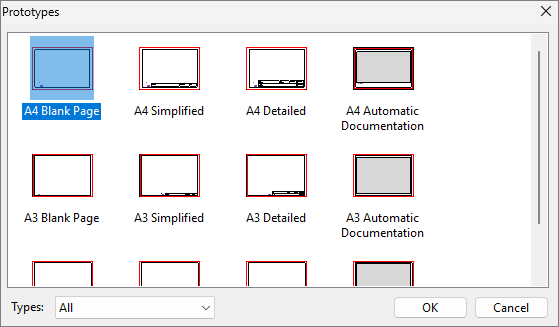

2. In the Prototypes window, select the desired model and click OK.

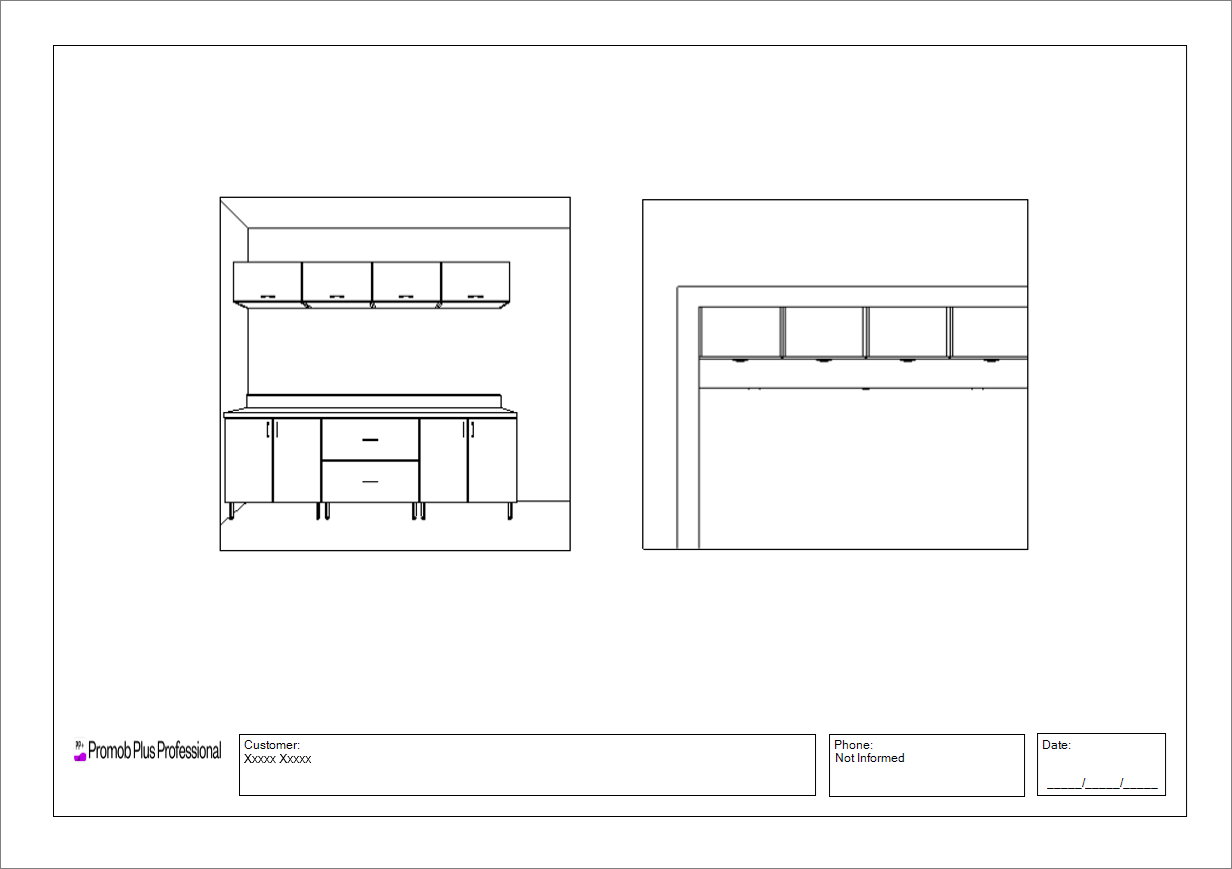

3. Preview the selected prototype on the print page.

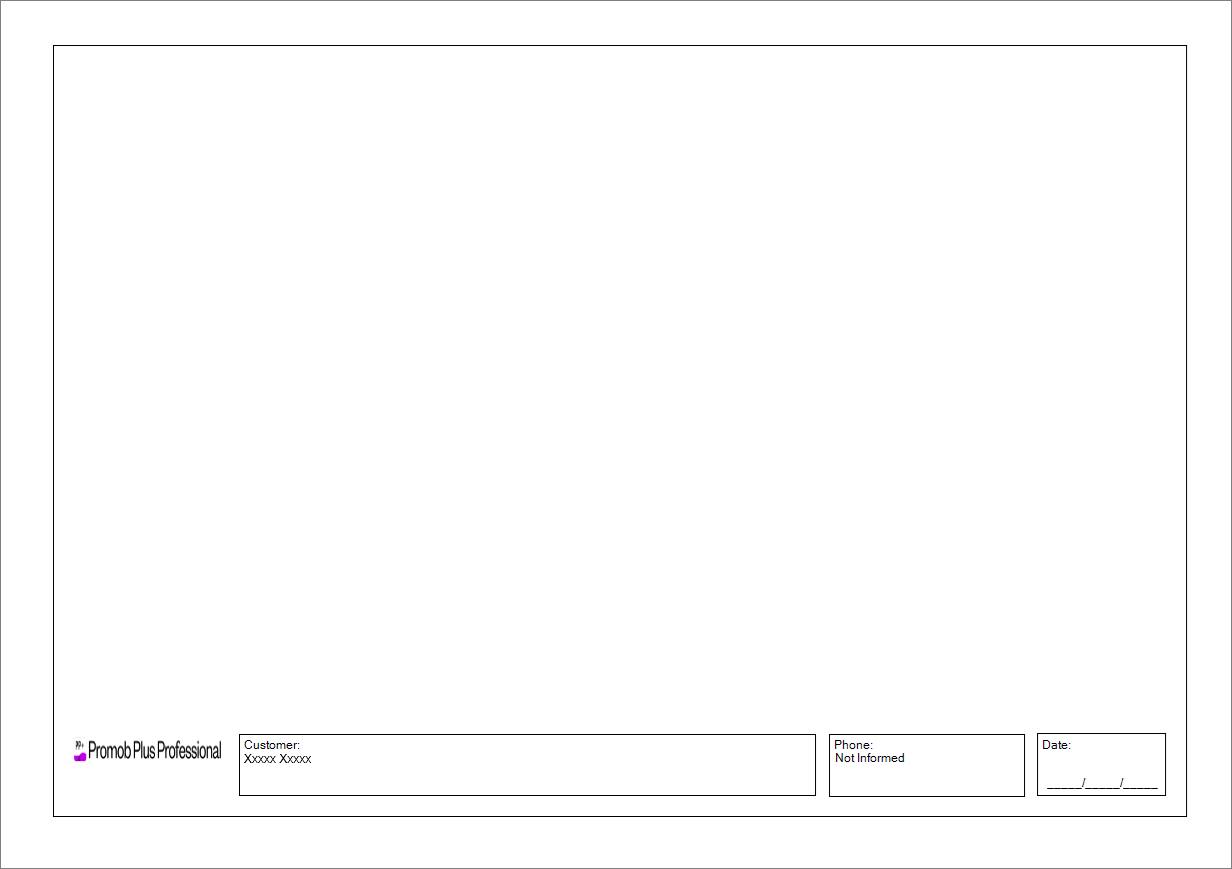

4. You can use an existing prototype or start with a blank sheet to create a more elaborate layout — with multiple views, images, dimensions, and texts as needed.
5. Insert and arrange the elements on the print sheet as preferred.

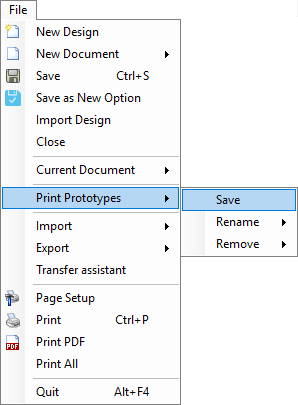

6. Access the menu File > Print Prototypes > Save to save your customized layout.
7. Give the prototype a name and click Save.
8. From then on, when clicking Print, your customized layout will be available in the list of prototypes for quick selection.
9. To rename or delete a prototype, just right-click on it in the Prototypes window and choose the desired action.
