Through the Auto Dimension tool, it is possible to insert dimensions automatically in a certain design plan. To dimensioning from the design automatically:

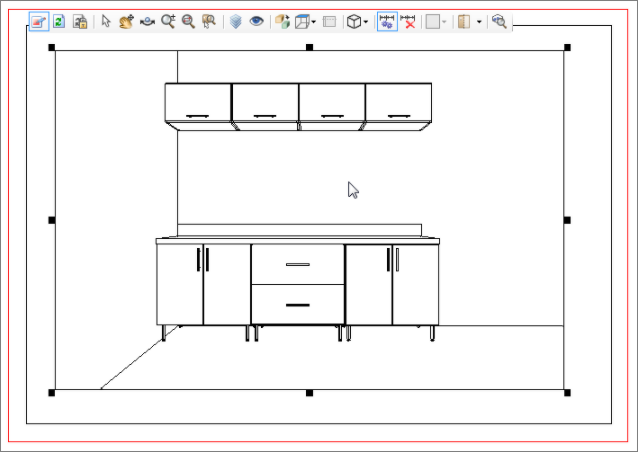

1. Enable the viewport toolbar and click the Auto Dimension button;
- Notice that the mouse cursor changes.
2. Click on the plan you want to dimension automatically;

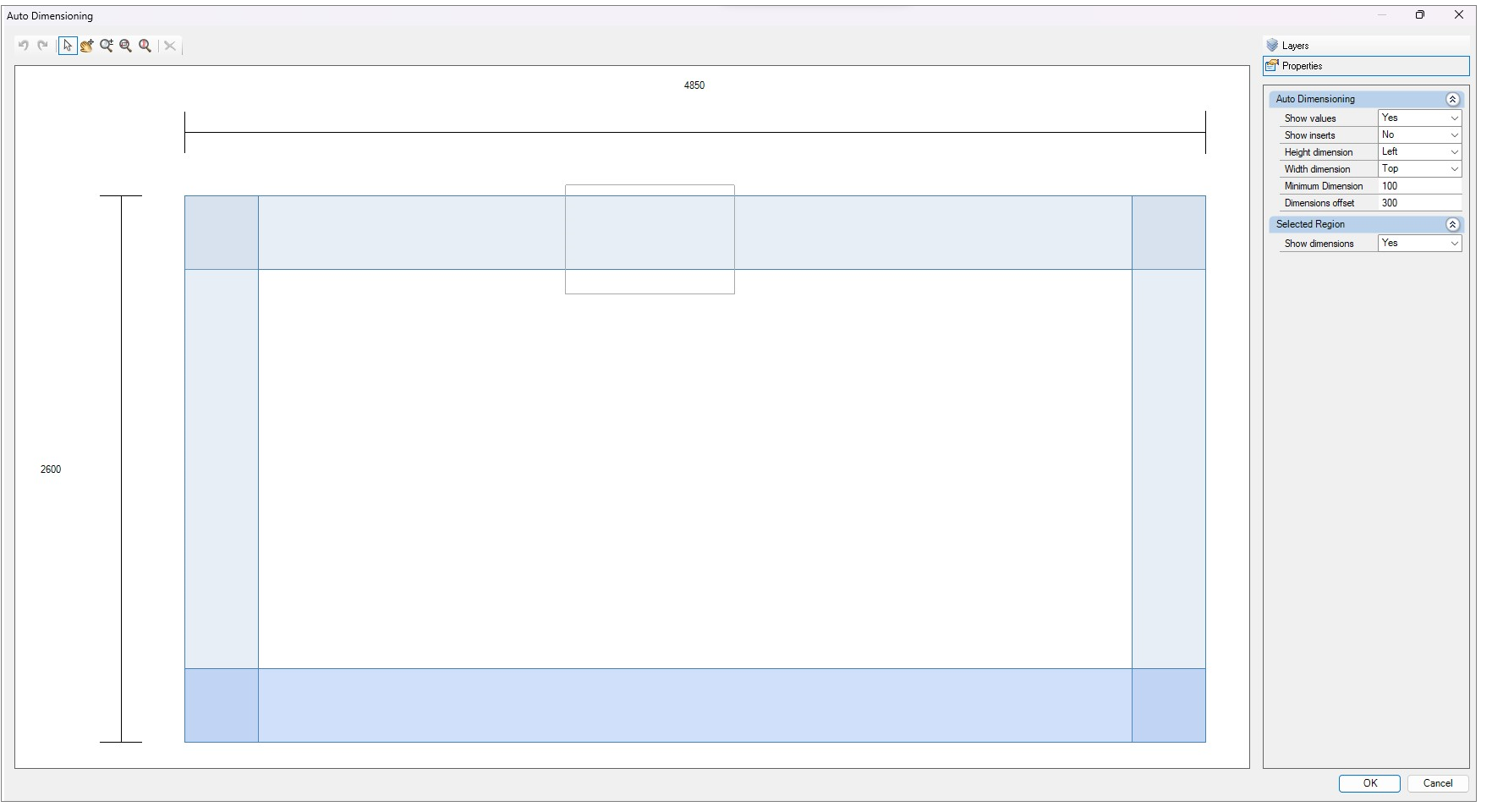

3. By clicking on the edge of the blue area and dragging the mouse, it is possible to define the area of the plane that will be dimensioned;
- Moving the lines allows displaying dimensions both vertically and horizontally for lower and upper modules;

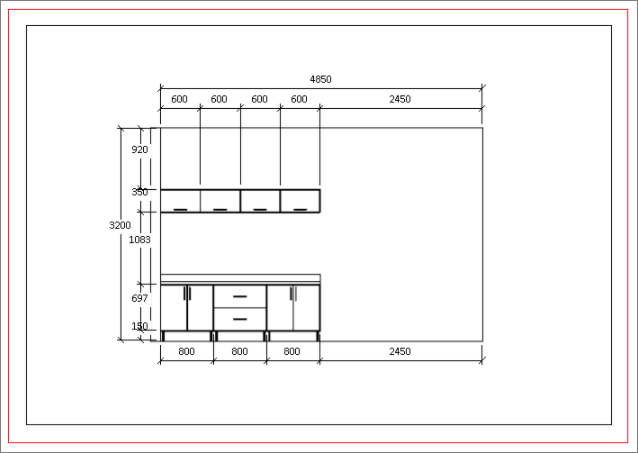

- After selecting the plan that will be dimensioned, the dimensions are automatically displayed;
4. After configuring the dimensions, click OK to place them in the viewport.
IMPORTANT: Automatic dimensions are only generated when some end of the module/item is within the dimensioning area. If both ends are outside the region as shown in the figure below, automatic dimensioning is not performed.
