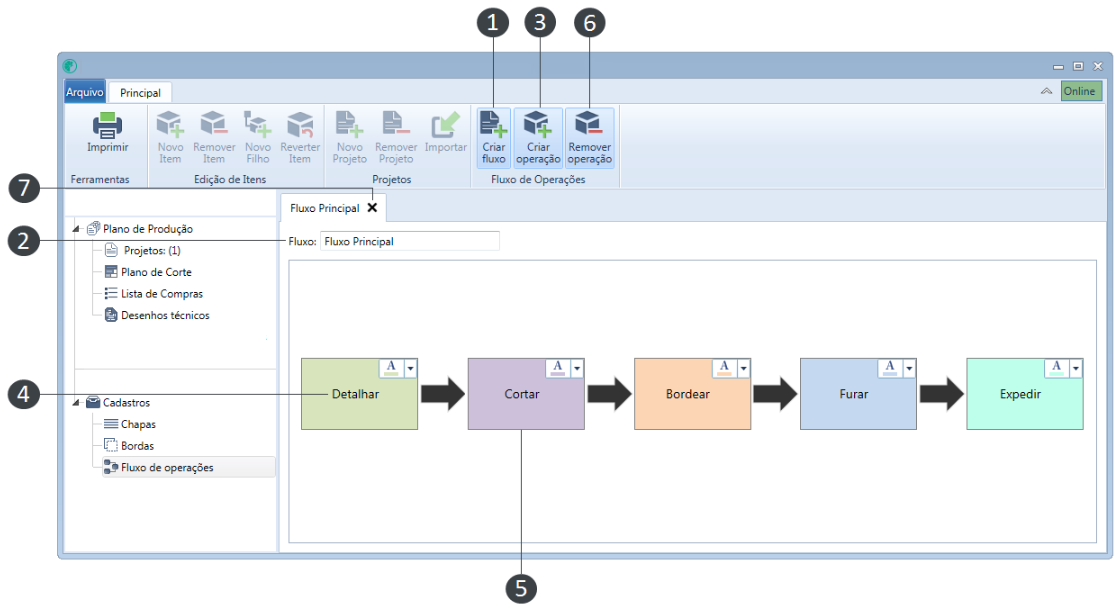

To register the Operations Flow:
1. Click on the Create Flow button;
2. Enter the name of the flow;
3. Click on the Create Operation button;
4. Double-click over the current name of the operation to rename it. Select one of the color options to identify the flow's stage. By associating a specific color for each operation of the flow, indicators are created in the File menu for easy identification of the project's status;
5. Sign the other operations of the production process;
6. To delete an operation, select it and click on the Remove Operation button;
7. To delete a flow, click the "x" next to the flow's name.
IMPORTANT: it is possible to register as many flows as necessary. For example: if the production flow of the kitchen line is different from the production flow of the office line, it is possible to register a flow for each need. It is also possible to change the production flow step via the File menu, as shown in the image below:

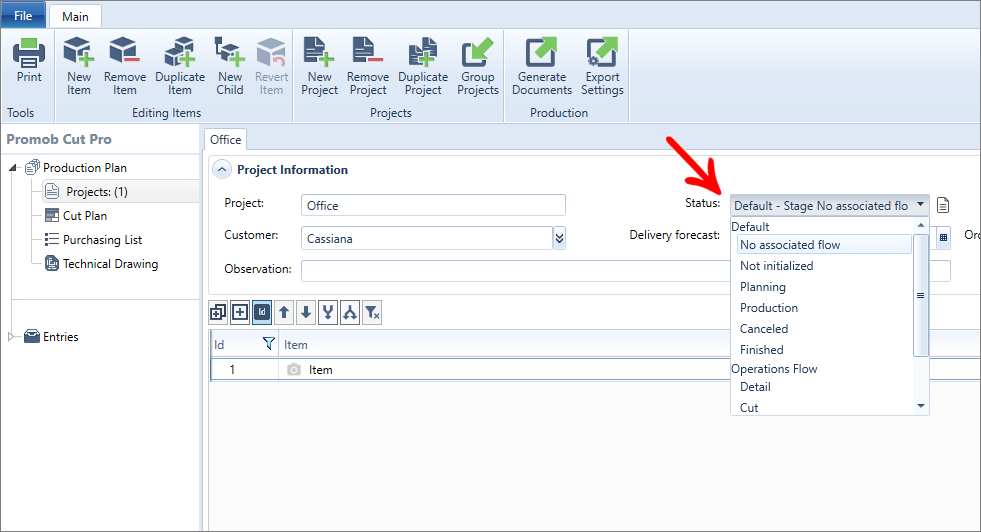

With the flow created we can associate it to the projects, for this, access the Main menu. In the header of the same is the option Status, where it is possible to select the flow and the stage in which the project is:

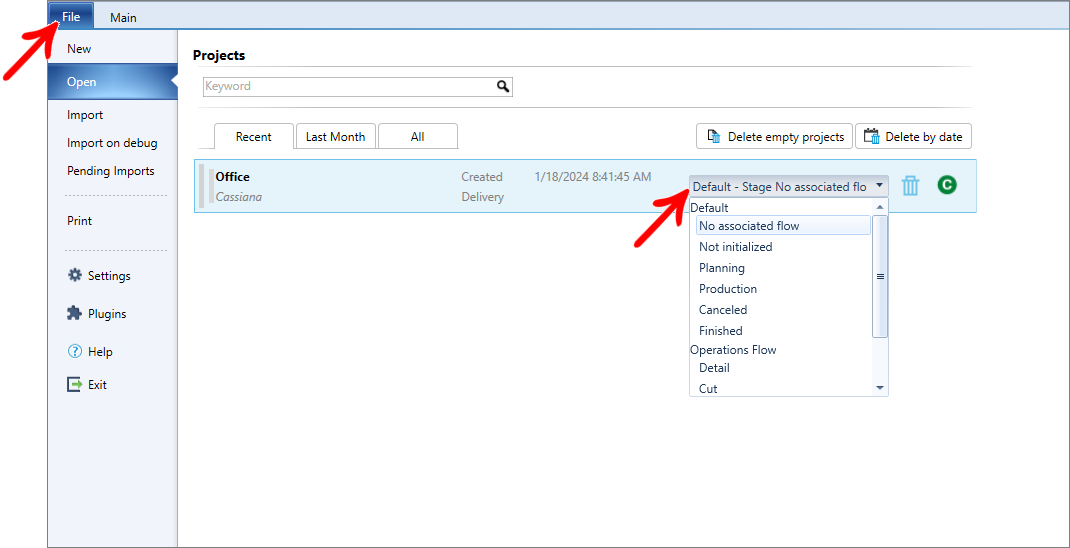

It is also possible to change the production flow step via the File menu, as shown in the image below:
To Favorite Flows

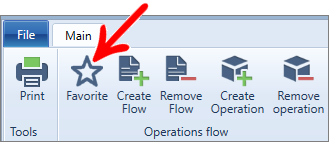

On the top tool, it is possible to find a button called Favorite. Its functionality consists of indicating which flow should be automatically applied to a project during its creation or import, as shown in the image below: By default, the pre-registered flow is used as the favorite.

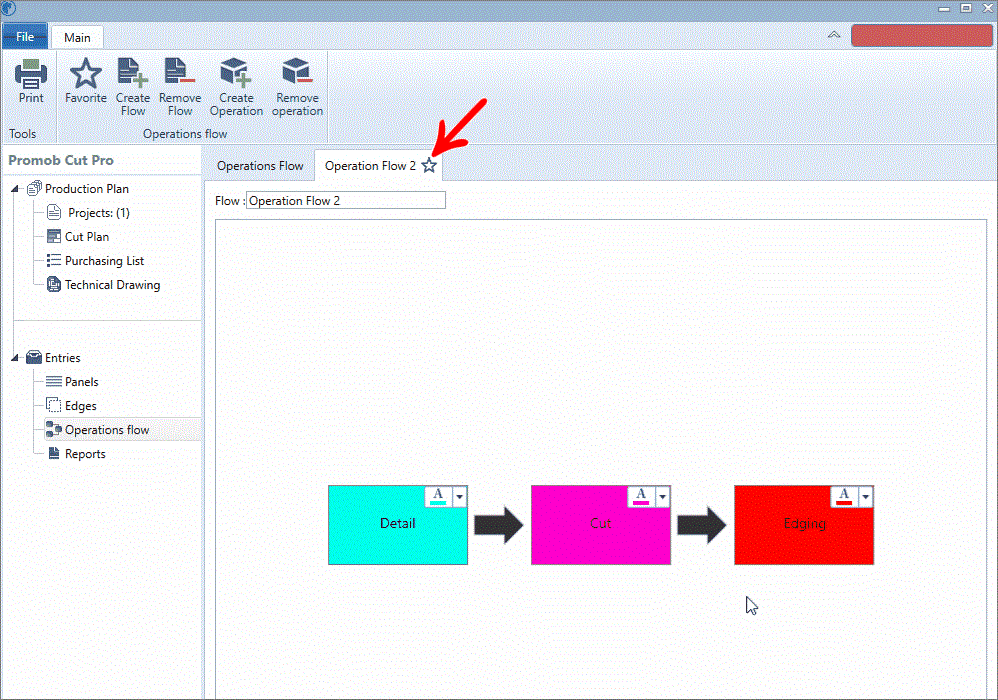

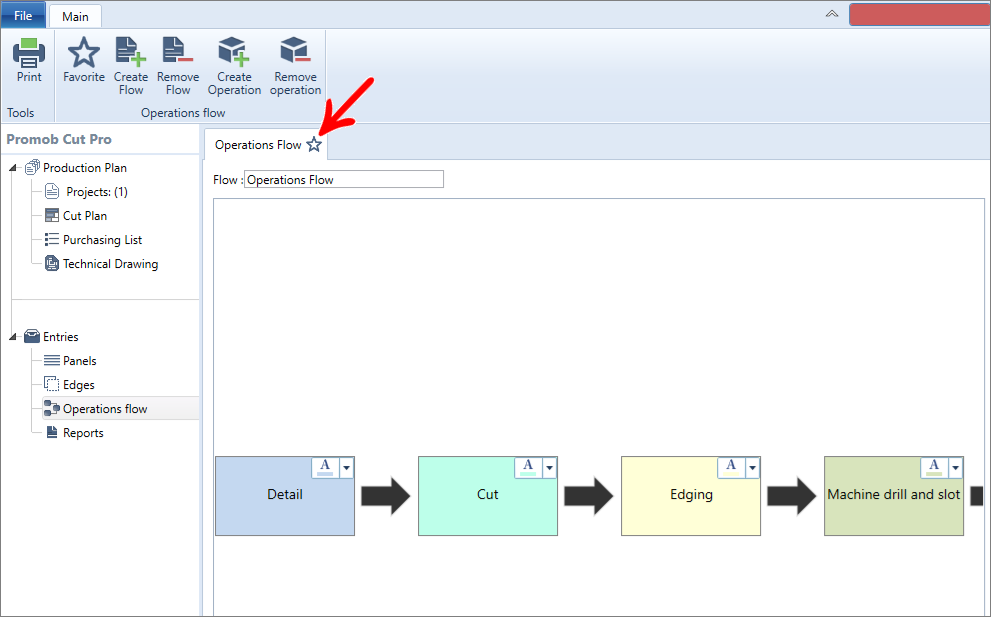

It is possible to identify which flow was established as a favorite by using the star present next to the name of the flow in the corresponding tab.
IMPORTANT: It is not possible to mark more than one flow as a favorite at the same time.
NOTES: To change the favorite flow, open the desired flow and click on the Favorite button.
