In the Builder's general settings, you can make settings for selecting the parent item, manufacturing settings and part configuration.
This article covers the following sections:
Accessing the general settings
Accessing the general settings
1. Access Builder Documentation, and select General Builder Settings.

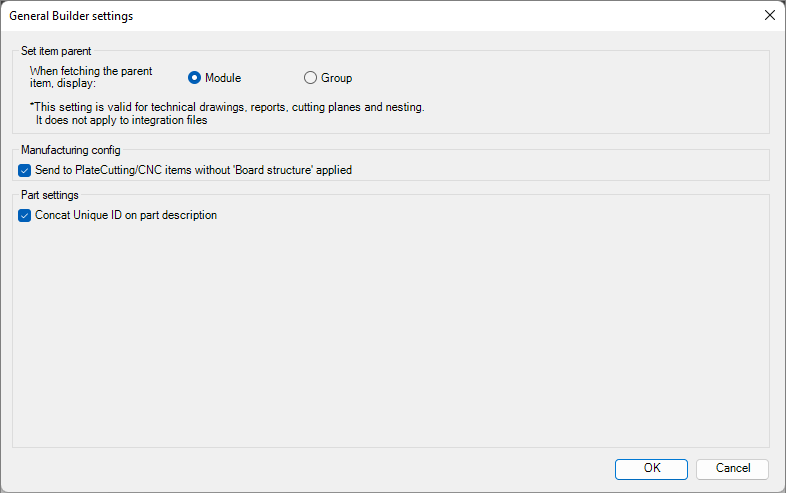

2. The available settings will be displayed:
3. After making the desired changes, click OK to save the changes.
Set item parent
To find out more about the parent item selection settings, go here.
Manufacturing config

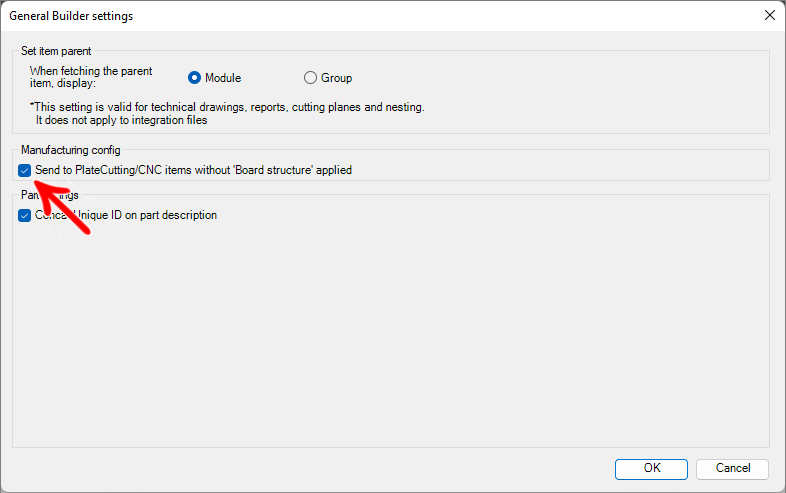

Select the option Send to PlateCutting/CNC items without 'Board structure' applied for items that do not have the sheet structure applied, thus allowing these items to be sent to the cutting plan and machine programmes.
Part setting

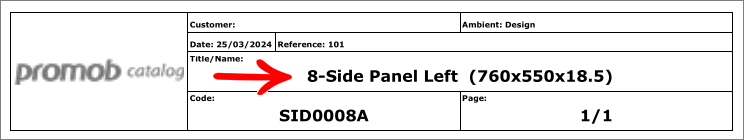

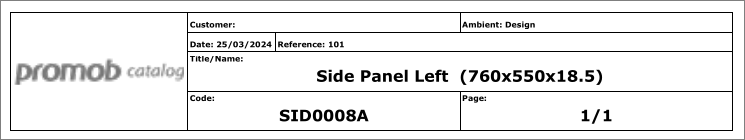

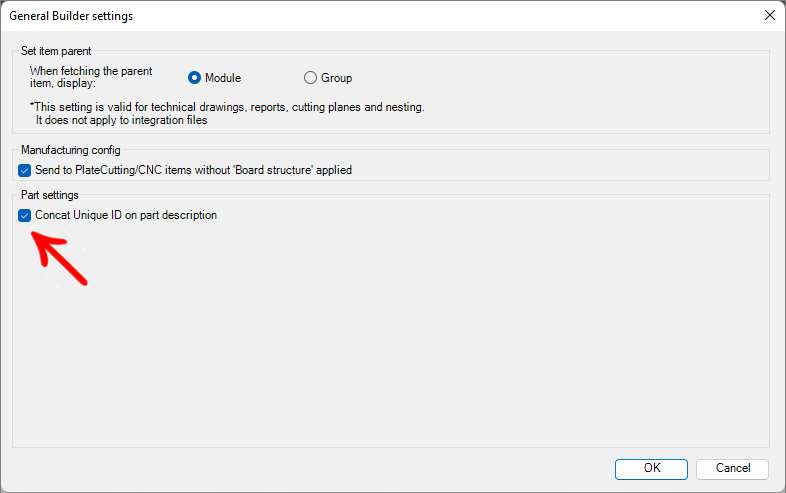

The Concat unique ID on part description option adds the unique ID of the part in the description to Builder reports.
