Edge Registration

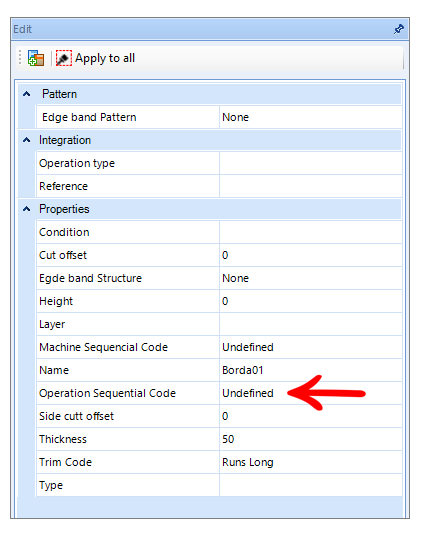

Sequential operation code
It will inform the sequence of operation of the edge, which can be:
- Edge before laminates
- Laminates before the edge
- Undefined
IMPORTANT: the registration by default is Indefinite.
Machine Sequencial Code
It will inform the sequence of operation of the edge, which can be:
- Edge before CNC
- Edge on CNC
- Edge after CNC
- Undefined
IMPORTANT: the registration by default is Undefined.
Cut Type
Informs the type of border cut, which can be:

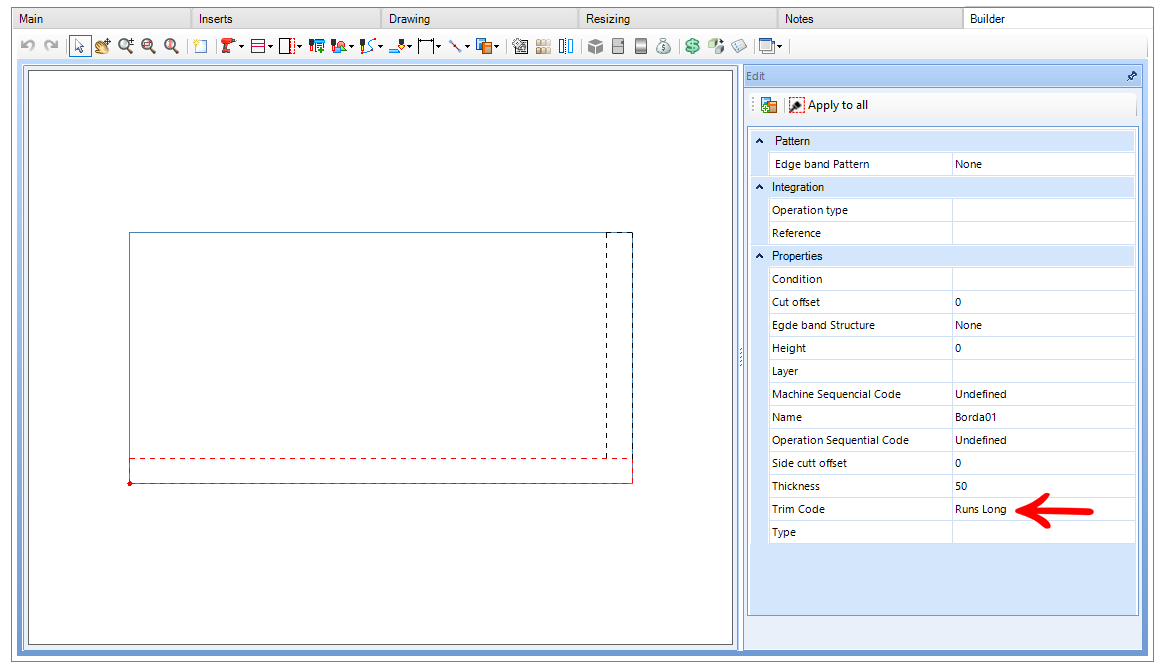

- Long: When the border goes to the end of the next border.

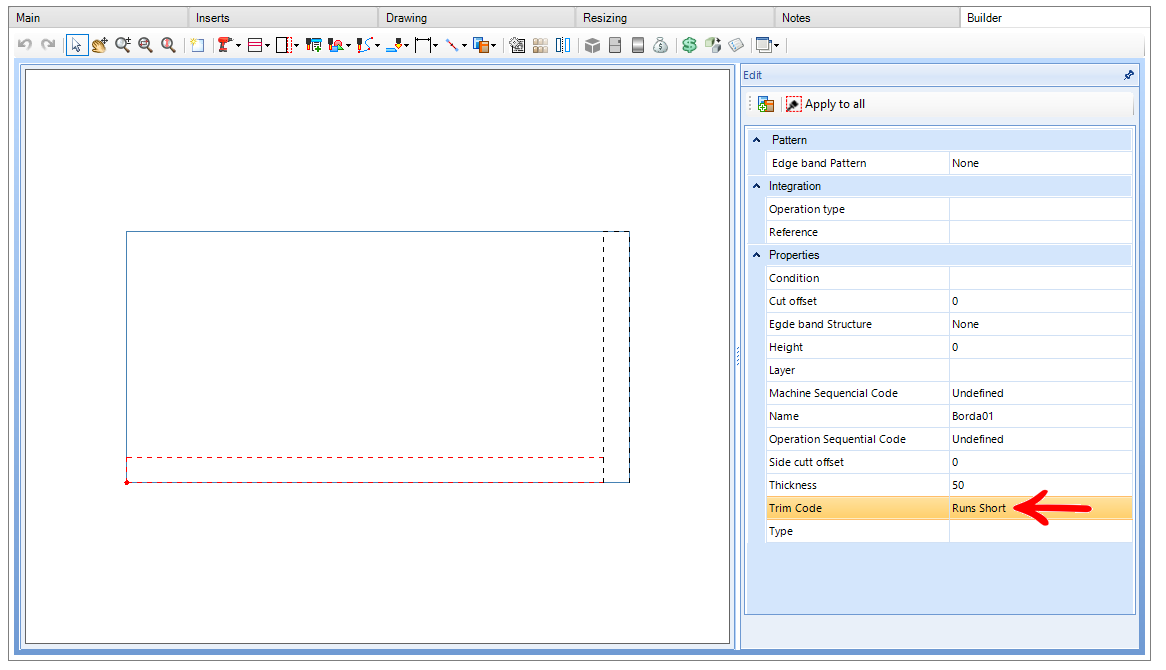

- Short: When the edge is cut before the start of the next edge.

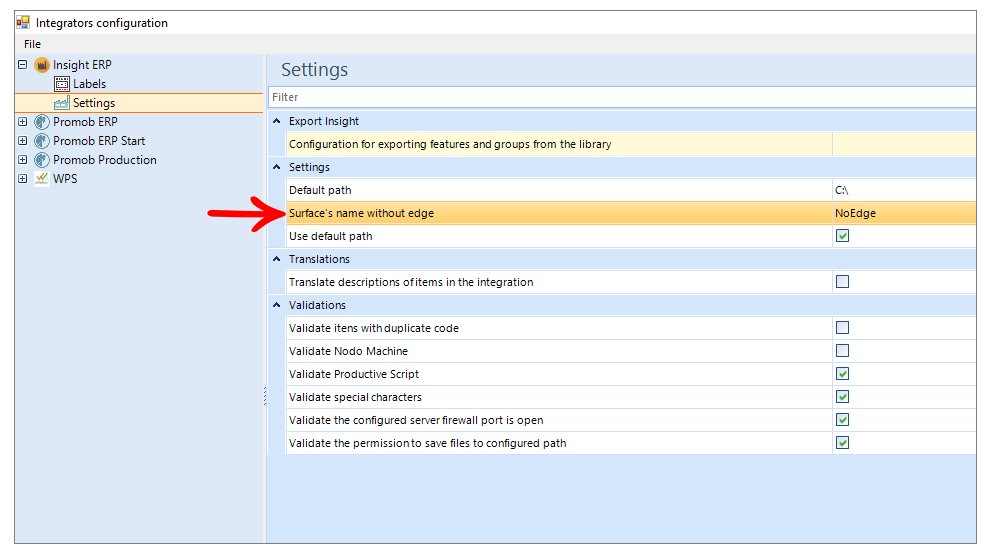

Configuration on surface's without edge
When a surface's name without edge must be entered to identify this situation.
IMPORTANT: This value will be used by Plugin ERP Insight to identify that the face is without edge.

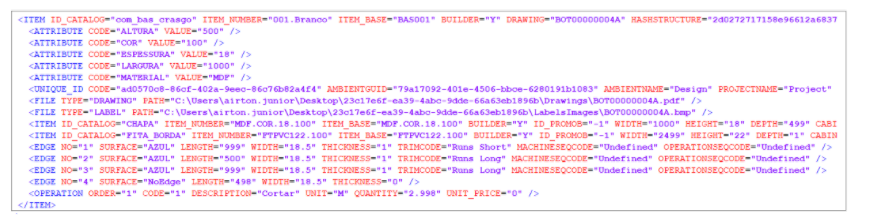

Integration Xml
NO: Identification number of the edge face
SURFACE: Edge Color Name
LENGTH: Edge length
WIDTH: Edge Height
THICKNESS: Edge thickness
TRIMCODE: Edge trim type
MACHINESEQCODE: Sequence code on the CNC machine
OPERATIONSEQCODE: Operation sequence code
