Available as of version: Aspan Router Plugin 1.60.16.1
In the Aspan plugin, the following columns are exported in the Nesting .csv file:
- BorderLeft
- BorderLeft_A
- BorderLeft_B
- BorderTop
- BorderTop_A
- BorderTop_B
- BorderRight
- BorderRight_A
- BorderRight_B
- BorderBottom
- BorderBottom_A
- BorderBottom_B
Each column refers to the edge band present on the respective face of the part, carrying in its value, the edge band code (example: B1) in case there is an edge band on the face.
IMPORTANT: If there is no edge band on the face, the column value will be empty.

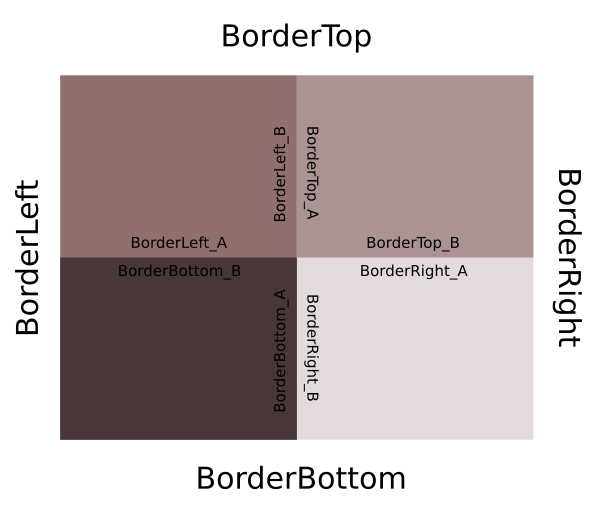

The columns ending in '_A' or '_B' refer to intermediate faces for parts with more than 4 faces, and their arrangement is represented in the following picture:
