Cut Pro - Cutting Manager - Giben - Presizing

Updated
Follow

Available from Cut Pro version 1.2.4.25 or higher.



To use the Presizing Plugin:

1. Active the Plugin, for more information on purchasing the plugin, contact Promob.

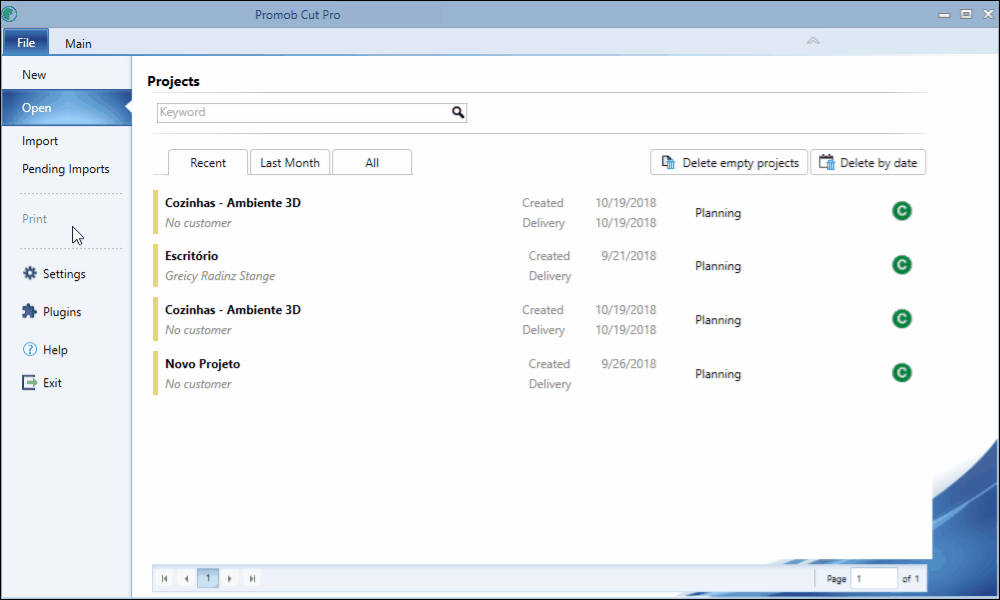

2. Configure your plugin by going to the Main menu - Export Settings.

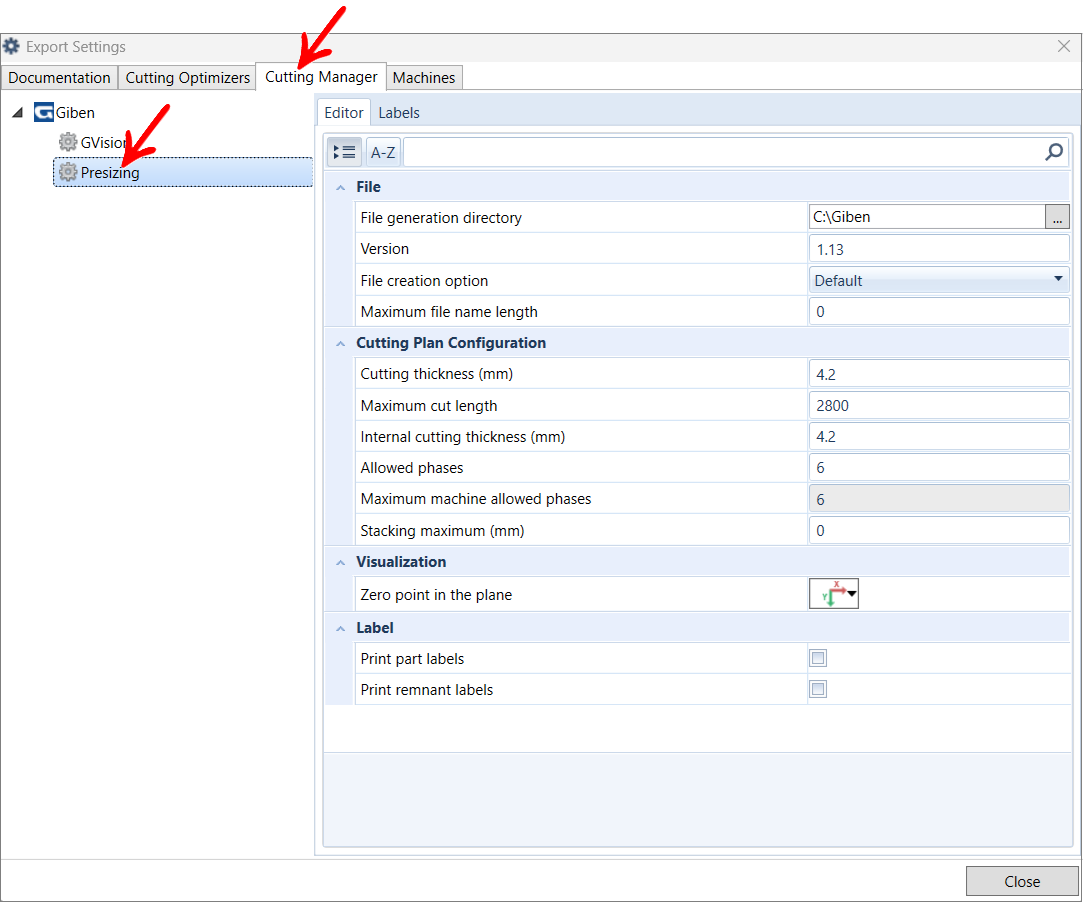

3. Access the tab Cutting Manager, and on the Editor tab, define the desired settings for the Presizing plugin.




File

  • File generation directory: indicates the directory where the .ptx file will be generated;

IMPORTANT: in cases where the cut manager installation directory is not informed in the Export Settings, the file will be saved in the directory indicated in the Location field0 on the Generate Documents screen.

  • Version: file version of Presizing.
  • File creation option: allows integration files to be generated separately by material, find out more here.
  • Maximum file name lenght: Report the maximum number of characters for the integration file name. IMPORTANT:
    • Use the value 0 to not limit the size of the file name;
    • The minimum value for the number of characters is 5.



Cutting Plan Configuration

  • Cutting thickness (mm): it defines the thickness of the saw, in millimeters, that makes the cut. This value must be the same as that registered in Presizing;
  • Maximum Cut Size: sets the maximum cut size possible for the machine;
  • Internal cutting thickness (mm): defines the internal cutting thickness. If you enter 0, the cutting plane will be generated without internal cutting thickness;
  • Allowed phases: defines the number of phases to be used in the cut manager;
  • Maximum machine allowed phases : defines the maximum number of phases allowed for the cutter manager;
  • Stacking Maximum(mm): defines the maximum measurement, in millimeters, of stacking sheets to make the cut.



Visualization

  • Zero point in the plane: define the position of the zero point used by the cutting manager.



Labels

  • Print part Labels: with this option selected, the information related to the shapes labels is sent in the .ptx file;
  • Print remnant Labels: with this option selected, the information related to the leftover labels is sent in the .ptx file.

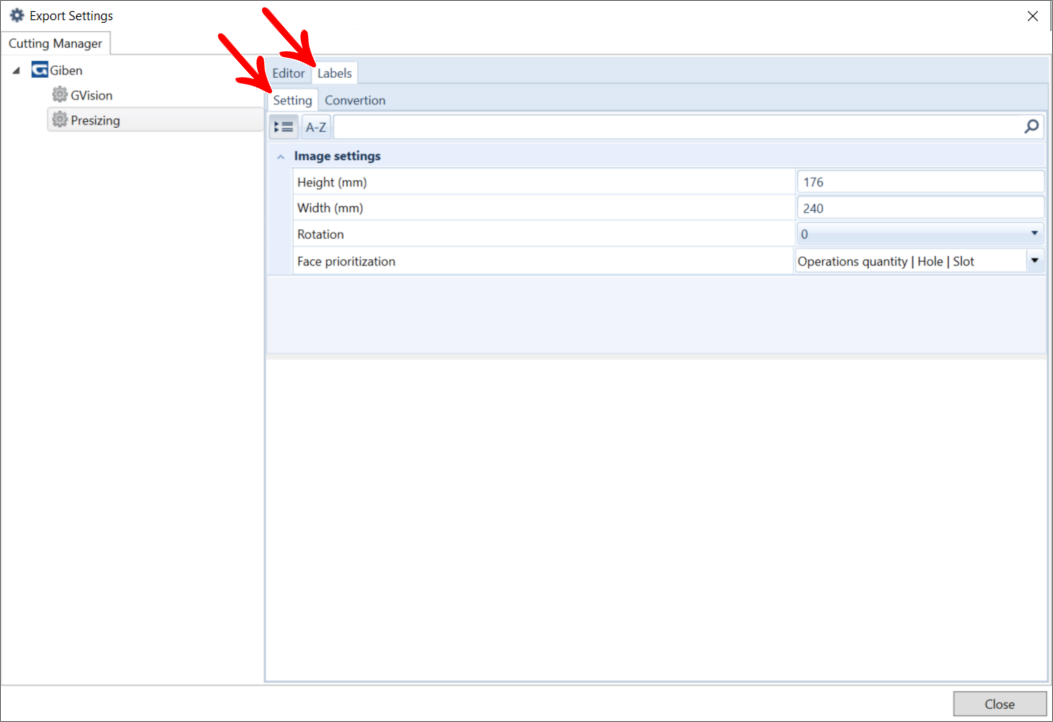

On the Labels tab, on the Settings tab, adjust the rotation, width and height of the label image.

IMPORTANT: these measurements are defined in the configuration of Presizing, because Presizing does not send the label template, only the content of each field.

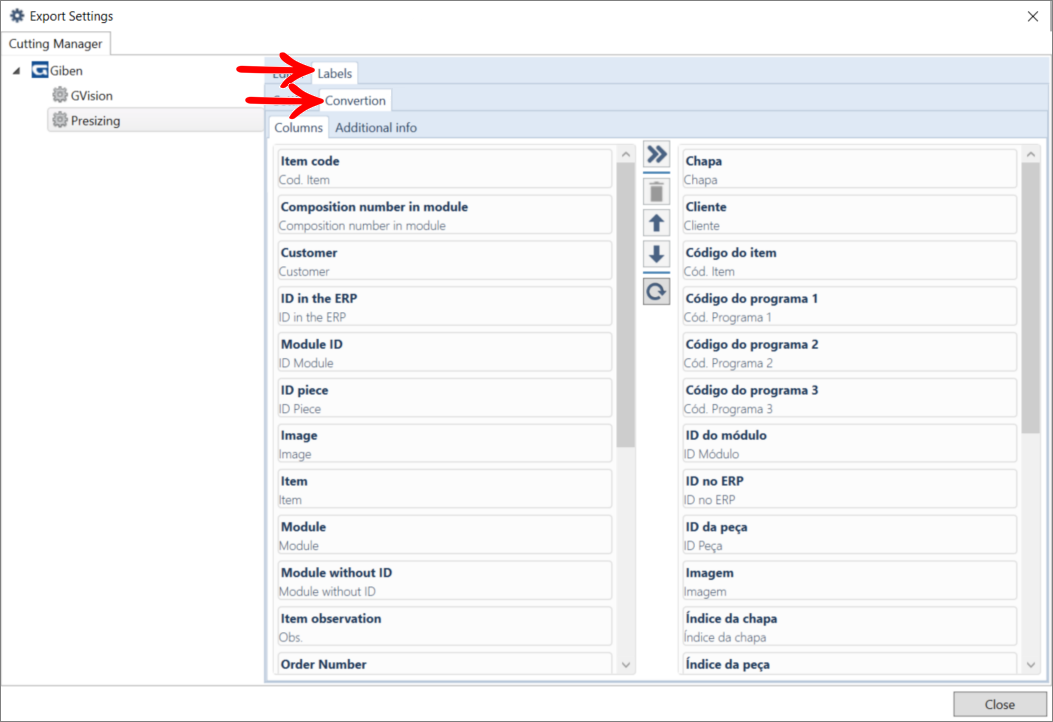

On the Labels tab, on the Conversion tab, it is possible to configure the columns that will be sent to print the labels.

IMPORTANT: Values are sent in the order they are configured on this tab.


IMPORTANT:

  • The cutting manager files will not be generated if the cut plane has been edited by moving parts;
  • For all managers, you can configure the label image using the File - Print menu.
