Cut Pro - Inmes Cutting Managers - InmesCut Automatic

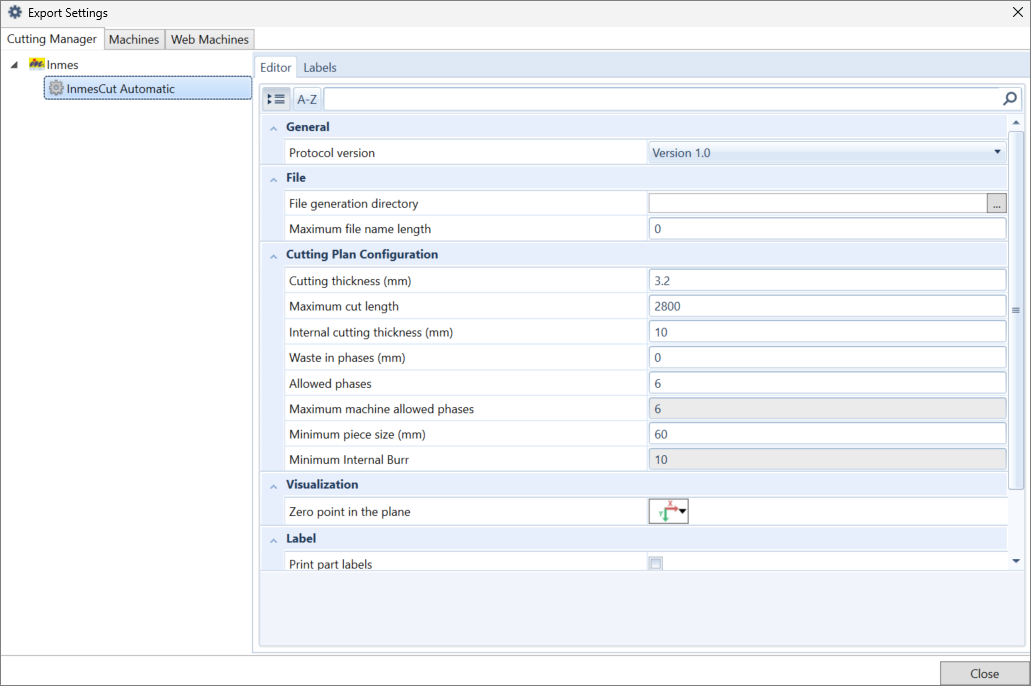

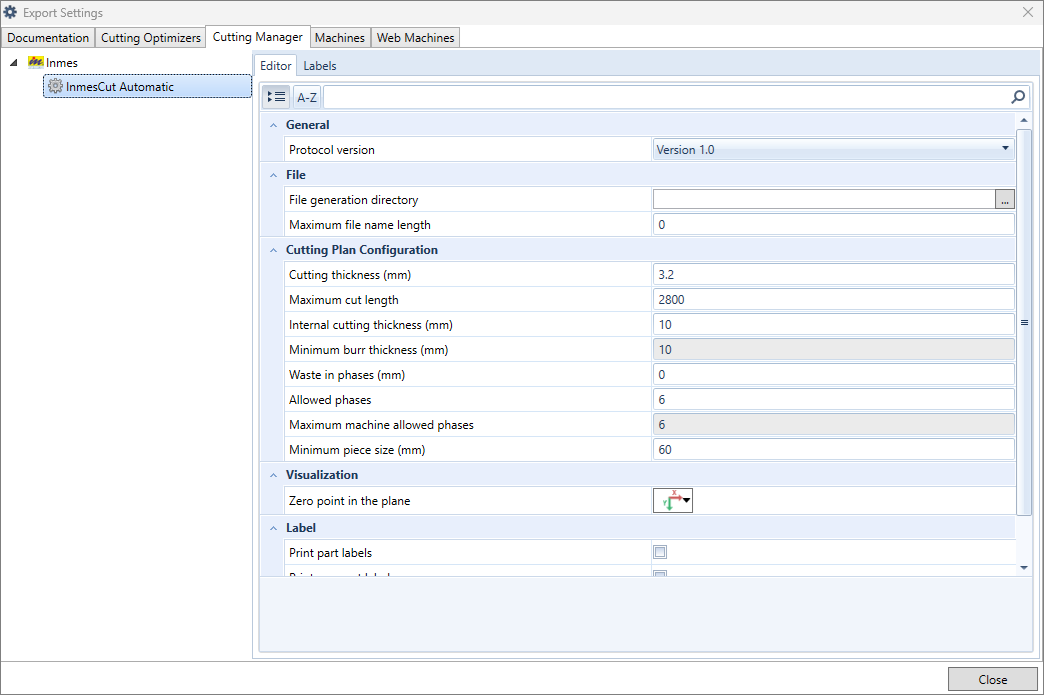

In the Editor tab, perform the following settings:

General

• Protocol version: Choose the version of the InmesCut communication protocol.
  The 1.1 version of the protocol allows the integration file to include the following data:

  • Information about the grain direction of the sheet;

  • Allows stacking of sheets;

  • Printing of leftover labels linked to the cutting command, not only at the end of the process;

  • QR code field available to be included on the label.

• File generation directory: select the location where the *.xml file will be generated. If not specified, the file will be saved in the location specified in the Location field on the Generate Documents screen.

• Maximum file name length: Enter the maximum number of characters allowed for the integration file name. IMPORTANT:

  • Use the value 0 to not limit the file name length;

  • The minimum value for the number of characters is 5.

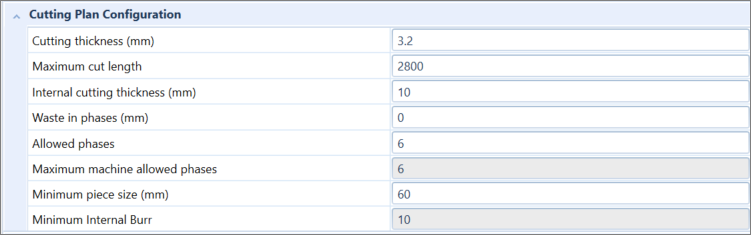

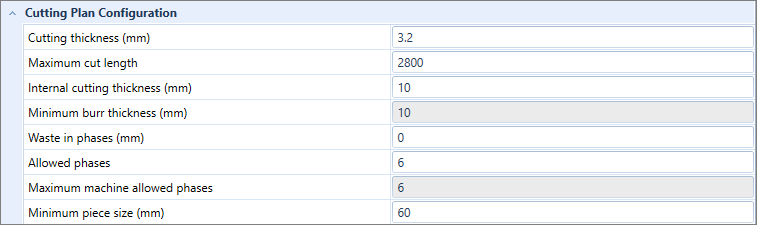

Cutting Plan Settings

• Cutting thickness (mm):  enter the thickness of the saw that makes the cut. The value must be informed in millimeters and be the same as registered in InmesCut.

• Maximum Cut length: enter the maximum cut size allowed by the machine.

• Internal cutting thickness (mm): measurement in millimeters that the cutting plane needs to cut when performing an internal cutting.

• Waste in Phases (mm): defines the waste raw material at the end of the phase.

• Allowed phases: defines the maximum number of phases to be used in the cutting manager;

• Maximum machine allowed phases: enter the maximum number of phases allowed by the machine. If the version is Up to 3 phases, the maximum number will be 3. If the version is Up to 6 phases, the maximum number will be 6 phases.

• Minimum piece size (mm): enter the minimum size allowed for cutting pieces. The value entered must be in millimeters. Parts with dimensions smaller than the value entered will not be sent for cutting.

• Minimum internal Burr: Minimum burr command value displayed by the machine, in millimeters. If the sheet’s burr is smaller than the minimum external burr + saw thickness, this new parameter will be considered, applying the minimum external burr + saw thickness as the new external burr. NOTE: This is a requirement established by the machine manufacturer, and the absence of the minimum burr causes the situation described below:

• Zero point in the plane: Define the position of the zero point used by the machine manager.

• Print part labels: Select this option to generate part labels;

• Print remnant labels: Select this option to generate remnant labels;
