Builder – Plugin IMA Imagic - Drill from Below (BVU)

Updated
Follow

Available from Builder version 1.60.16.18 or superior.



Through the IMA Imagic Plugin it is possible to program the machine to mirror the drilling, according to the selected head.



Access

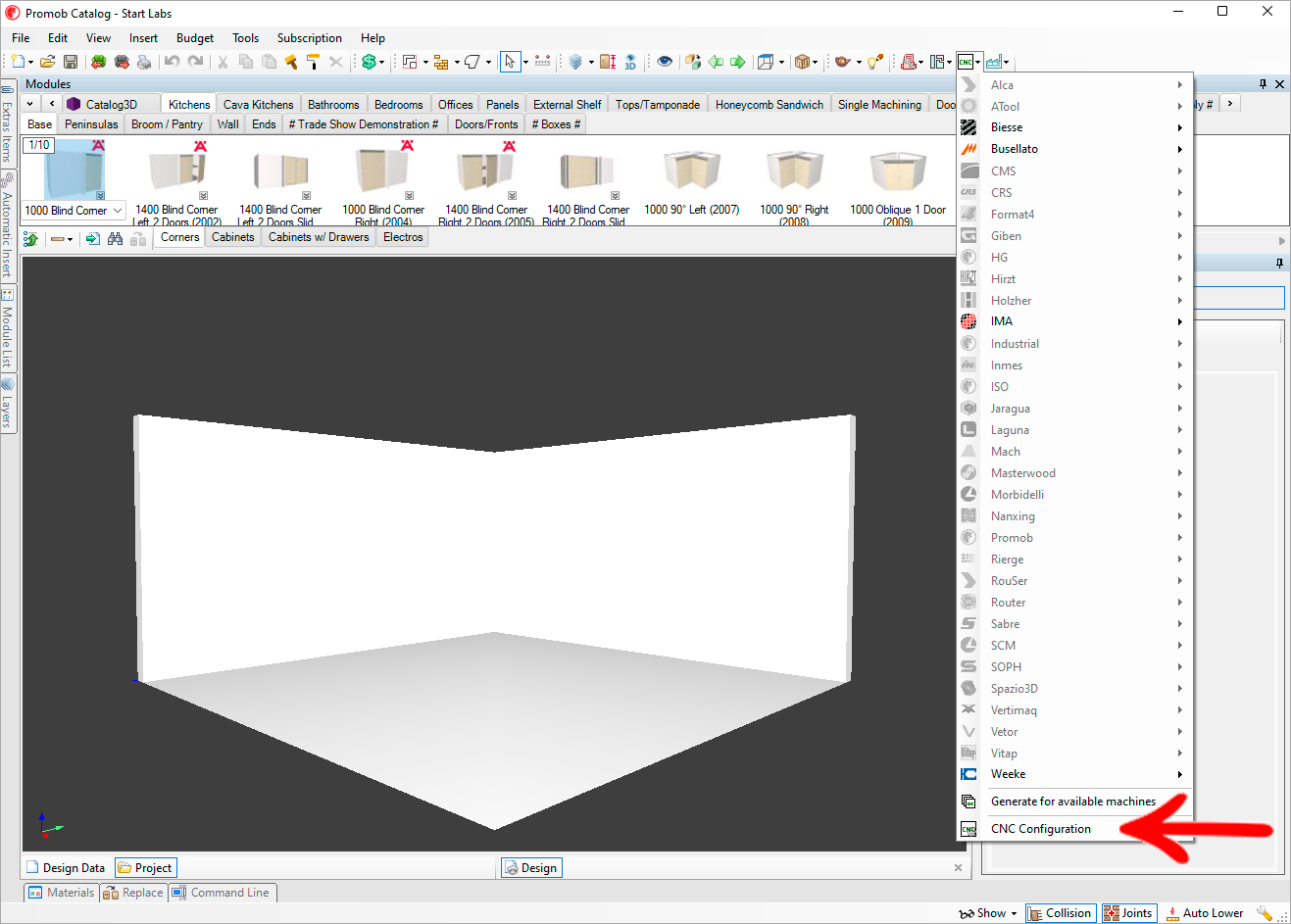

1. Through Promob, access CNC - CNC Configuration.

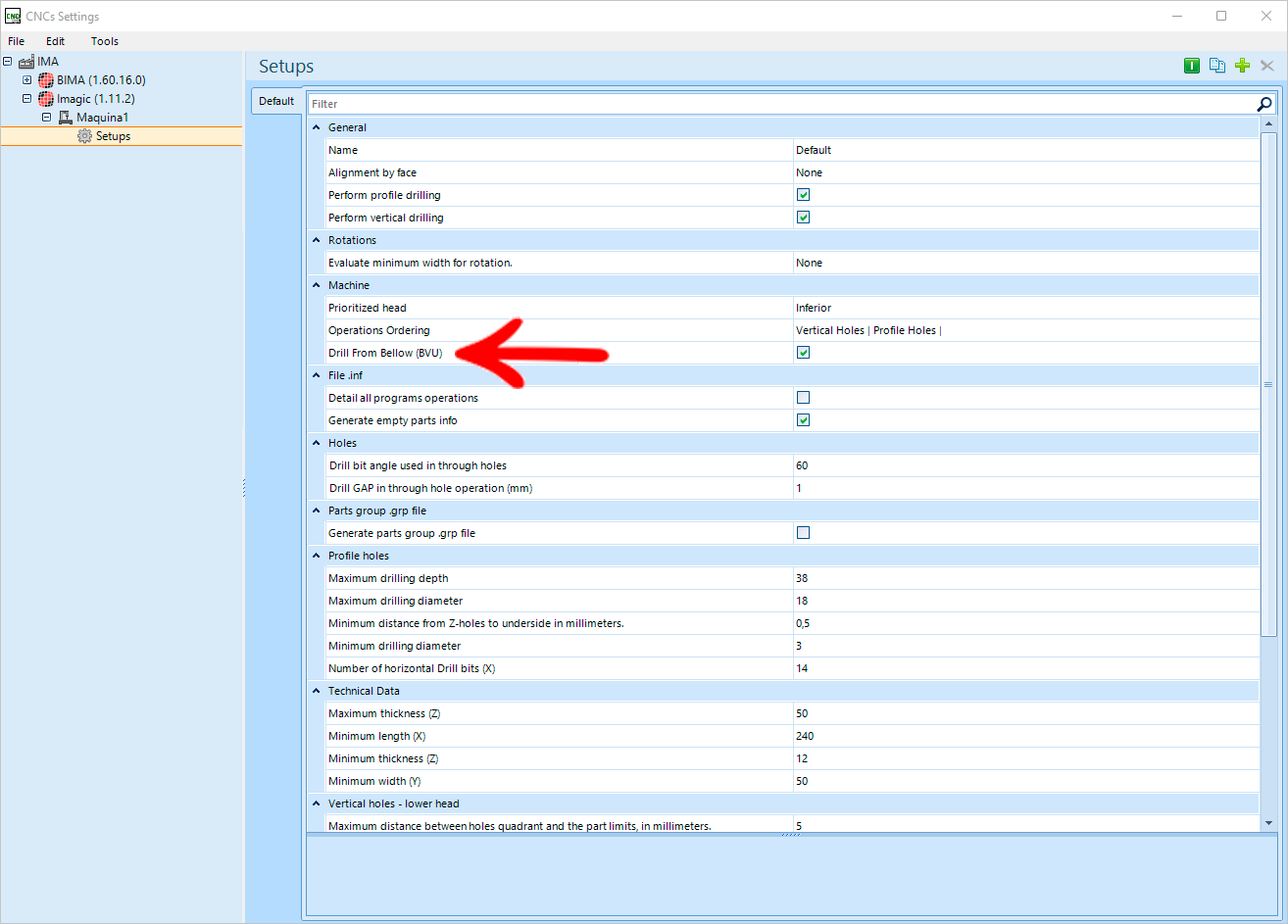

2. In the IMA Imagic machine settings, the Drill From Below (BVU) field has been added. This functionality allows you to choose whether to mirror the drills according to the selected head. This way, from the prioritized head, the drills can be mirrored or not.


3. Enable or disable the option as desired.

4. If the option is enabled, when generating the schedule, the Builder automatically checks the field and mirrors the holes.
