Builder - SCM - Pratika - Head Displacement

Available from builder version 1.60.17.2

Now, through the Head displacement type option, it is possible to define whether the head displacement is performed by the absolute zero point or relative zero point.

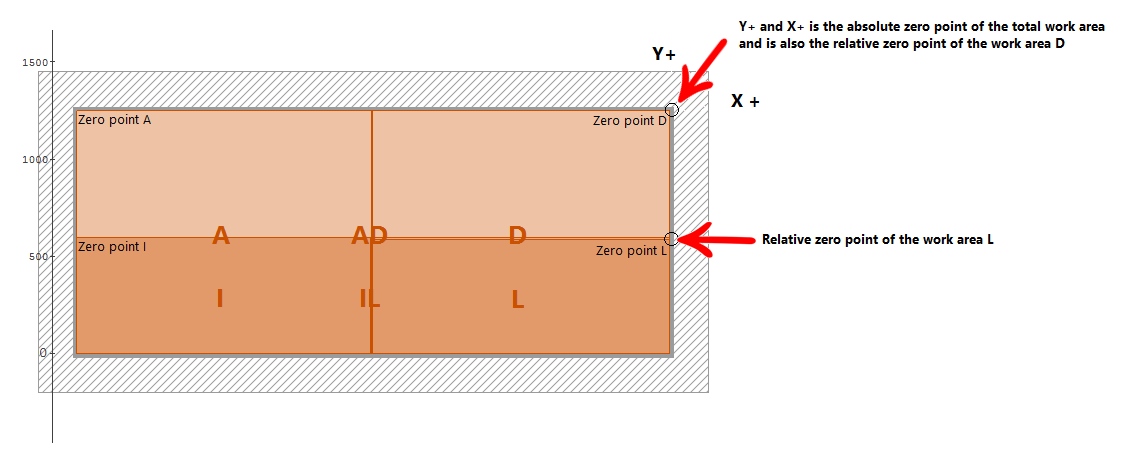

The absolute displacement directs the head to the absolute zero point, which is the zero point of the total working area. The relative displacement is directed to the relative zero point, which is the zero point of the small work area, which is separated from the table. Look at the image below:

Settings

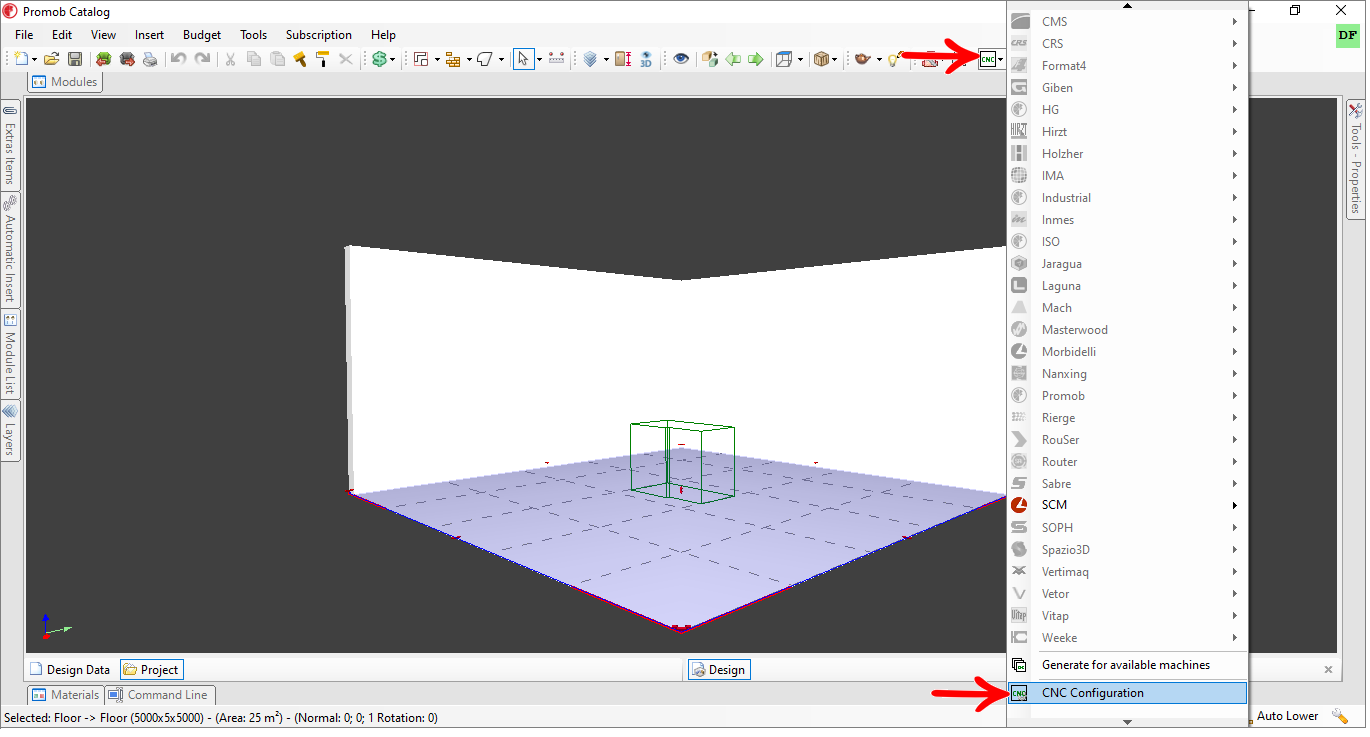

1. Access CNC - CNC Setup.

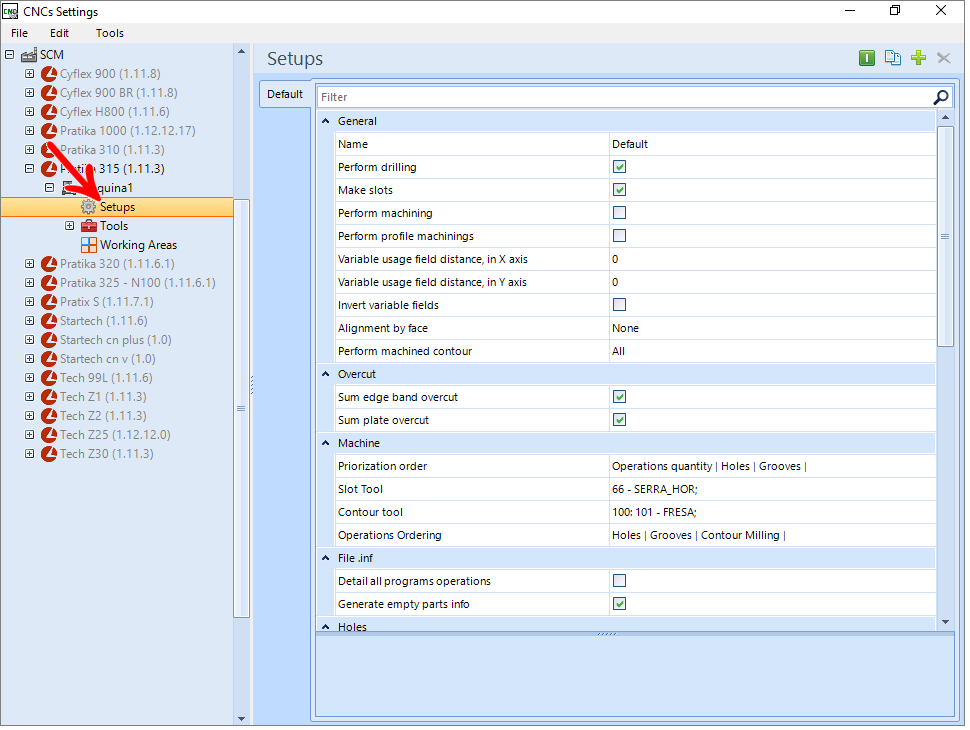

2. Select the desired machine and go to Setups.

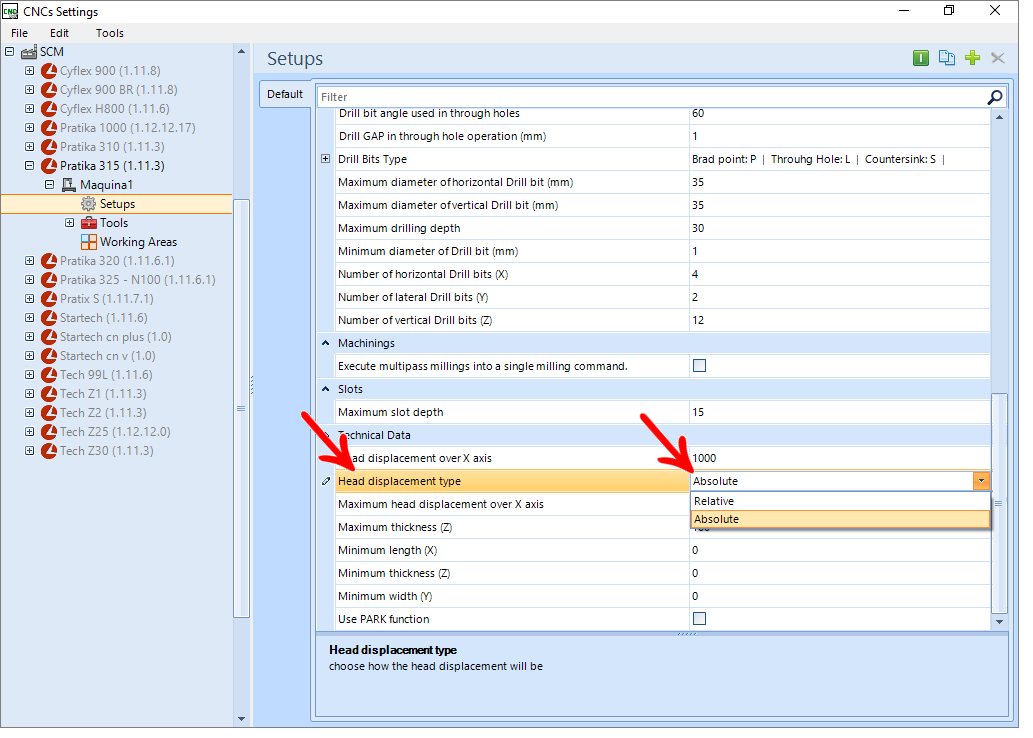

3. On the Technical Data tab, access Head displacement type and select the Absolute or Relative option.
