When integrating with the Plugin C-Express, it is possible to configure, through its Setup, the version to use the TPA ServicePack service. The version of this service determines the correct reading, by the machine, of files with the extension .TNC, generated in Builder.
For certain versions of the service, the files are generated with different structures, so it is necessary to configure the service version in the Plugin Setup.
To configure the use of the TPA ServicePack:
1. Within Promob, access CNC - CNC Configuration;
2. Access Format4 - C-Express 920;
3. When selecting the Plugin name, the TPA ServicePack Version option is displayed;
4. Inform the version of the service installed on the machine;
When generating the program, the files will be generated with the extension .TNC;
See the difference in the structure of the files, according to each version below:

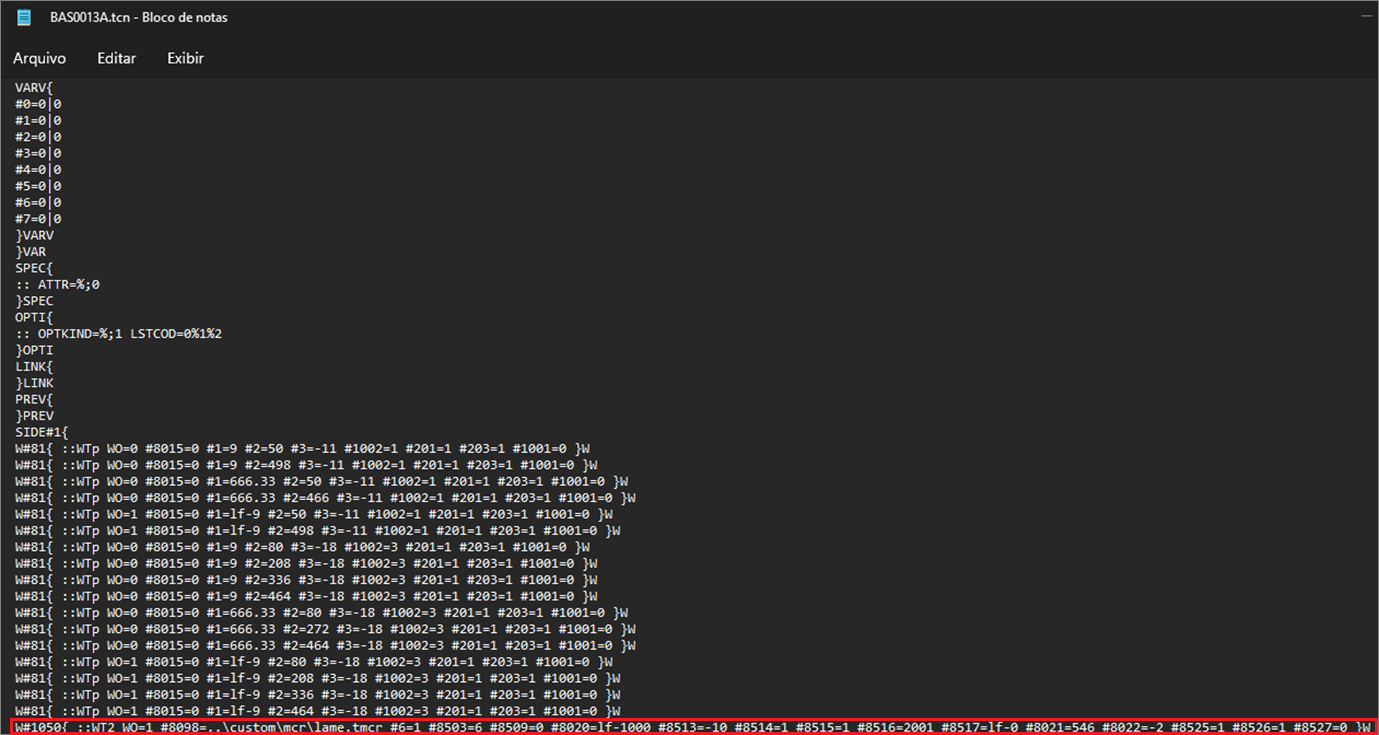

Version higher than 3.3.21

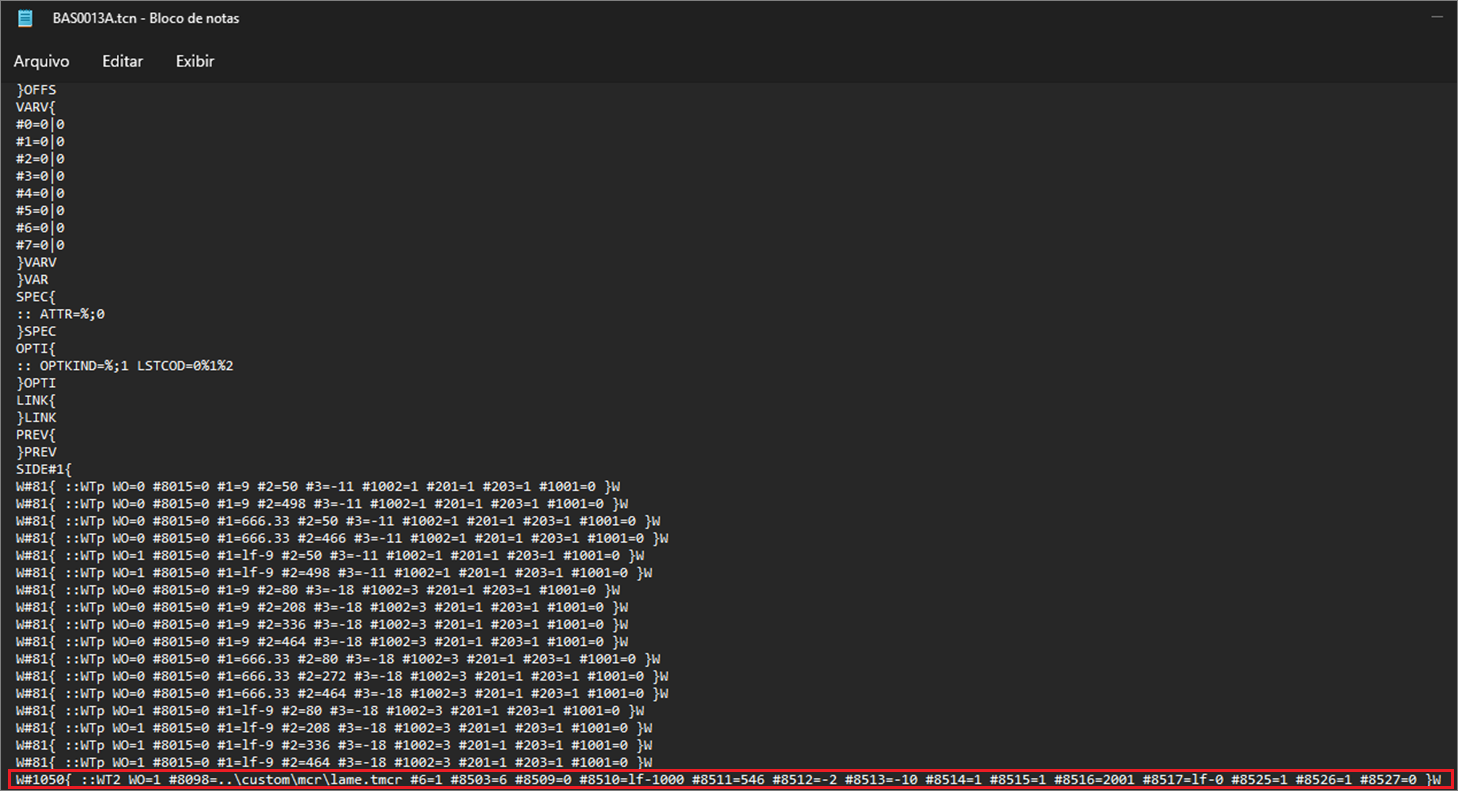

Below version 3.3.21

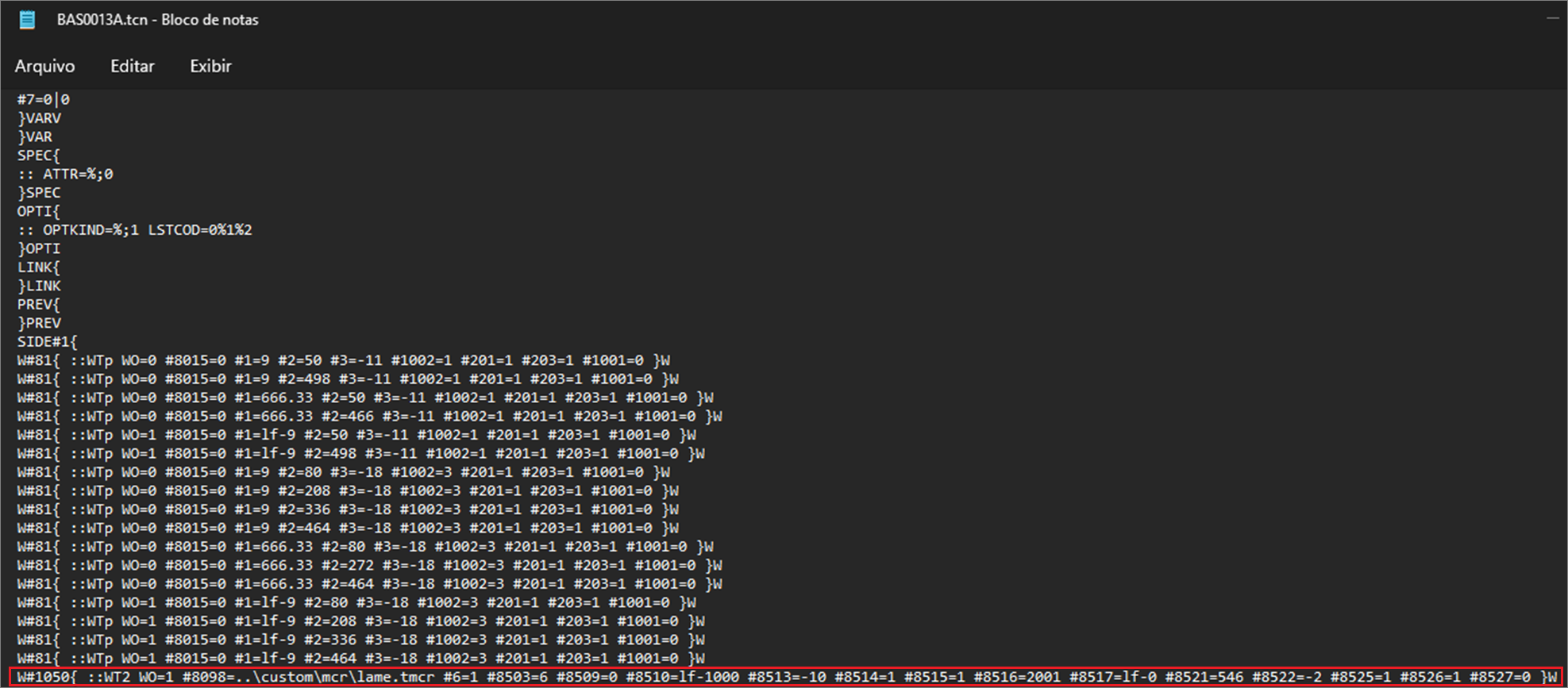

In version 1.7.9
