Plugin Builder - Pratix-S working depth setting in Xilog Maestro

Updated
Follow

For the Pratix_S programs to work correctly, it is necessary to change the Maestro Software's working depth notation according to the following steps:

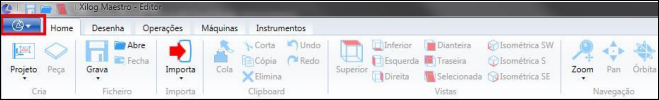

1. Click on the button with the Maestro icon:

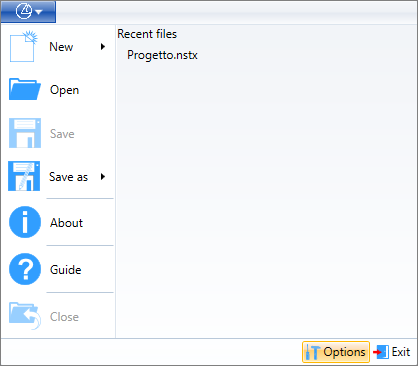

2. Click on the Options icon:




3. Open the Parameters tree:

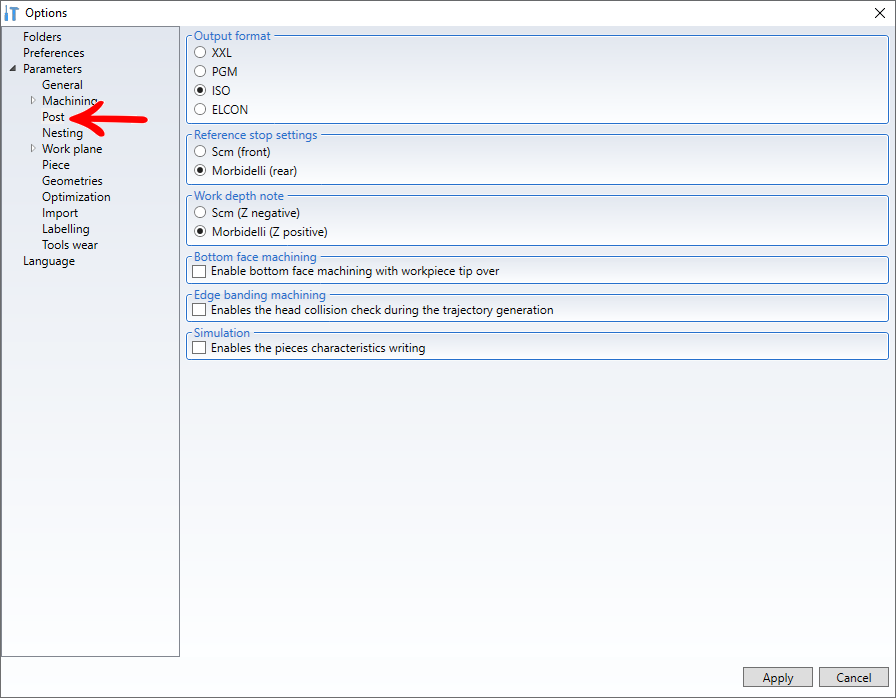

4. Click on Post:

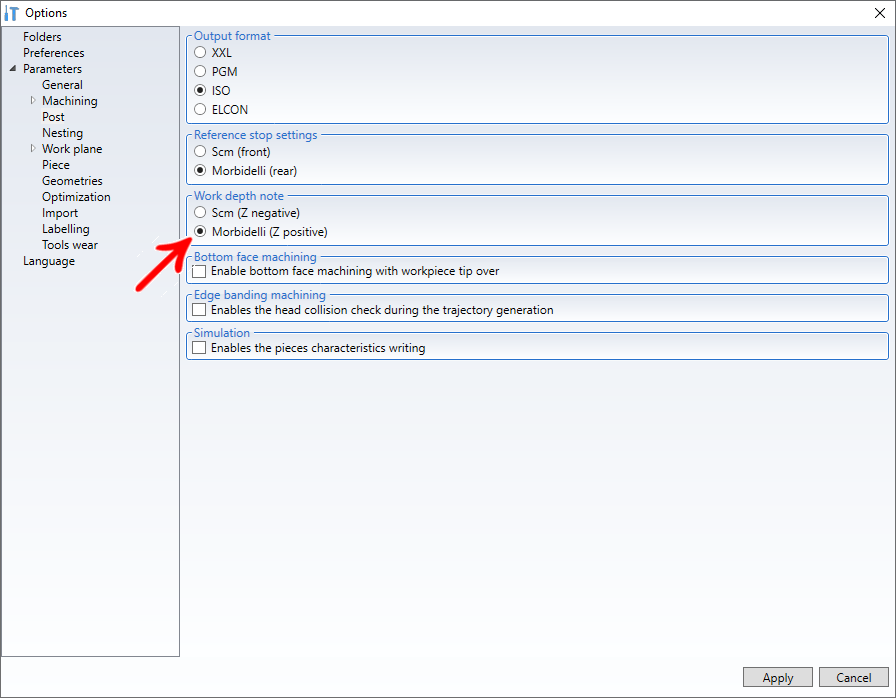

5. Change the Working depth notation to Morbidelli (positive Z):




6. Apply the changes:

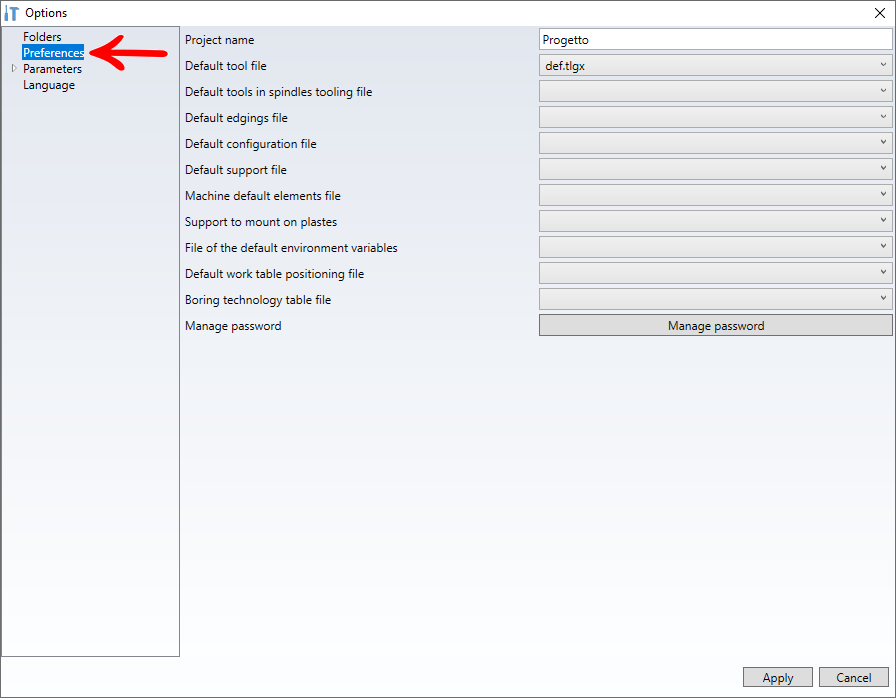

In: Options - Preferences set in:

  • Default configuration file: Configurazione – piano mltf – Pratix.cflgx
  • Default support file: Libreria supporti.lbsx
  • Default machine elements file: Libreria elementi macchina.lbdx

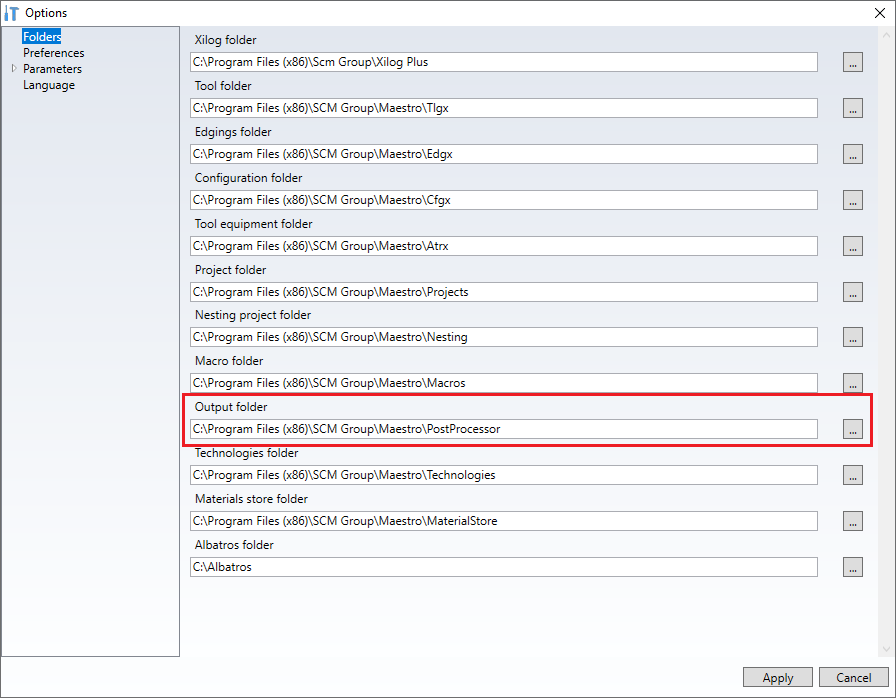

Folder where programs are generated:




NOTE: After generating the optimization in Maestro, save it in the folder shown above, where it looks for the optimized  .pgm file, to open it in Xilog and run the process.
