Check below the specifications and configurations available in the BP195T plugin:
Available from version: Plugin Builder 1.60.17.4
Machine Type: Centro de Furação CNC
Manufacturer: Weeke/Homag
Generated file extension: .Mpr
Manual: for more information contact the manufacturer.
Main features
- Holes
- Slot
- Machining
Settings
To check the settings on CNC Machines, click here.

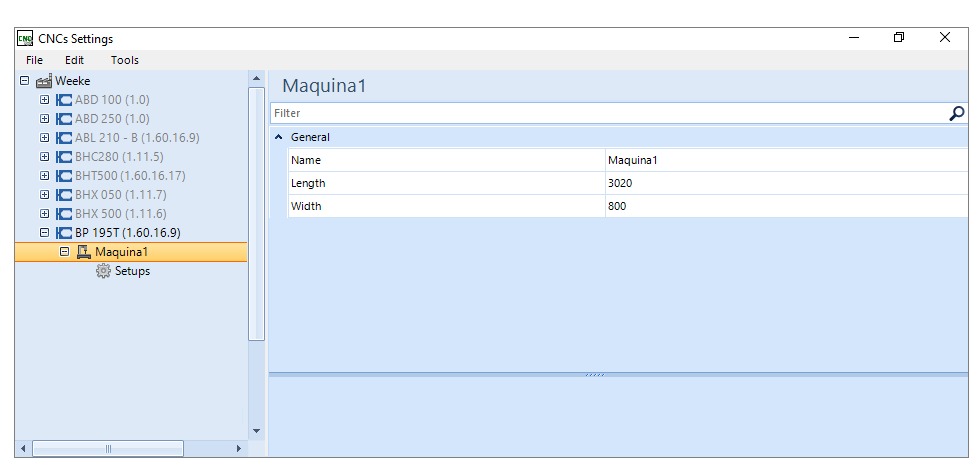

Máquina 1
General

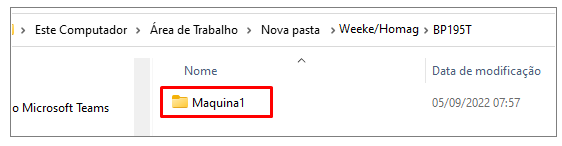

Name: define the name for the machine. IMPORTANT: The name set in this field also changes the name of the folder where the generated files will be saved.
Length X (mm): the value entered in this field indicates the maximum usable length of the machine.
Width Y (mm): the value entered in this field indicates the maximum usable width of the machine.

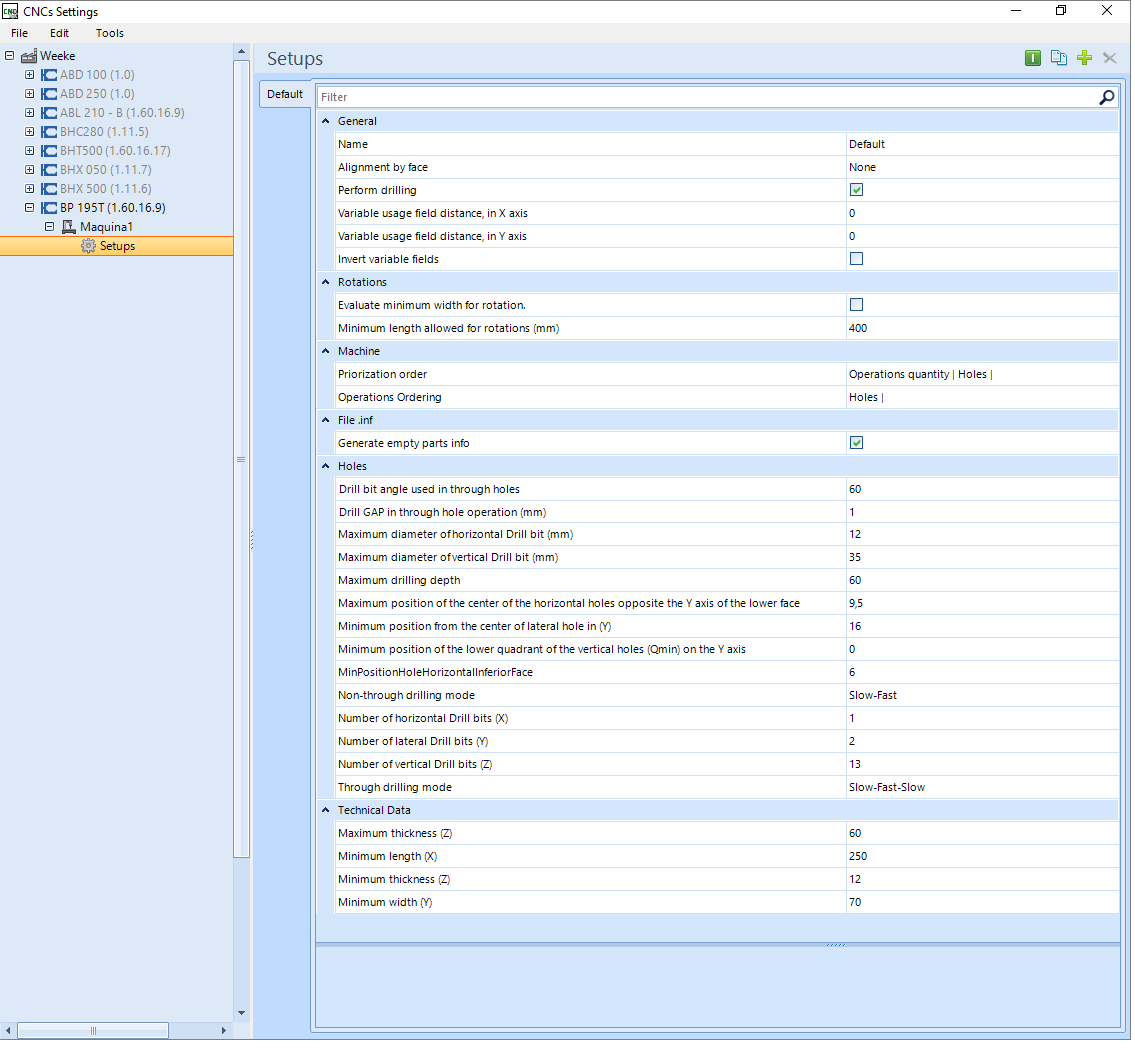

Setups
General

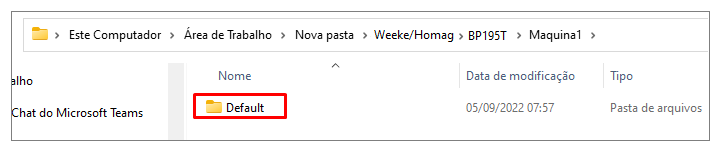

Name: the name set in this field also changes the name of the folder where the generated files will be saved.

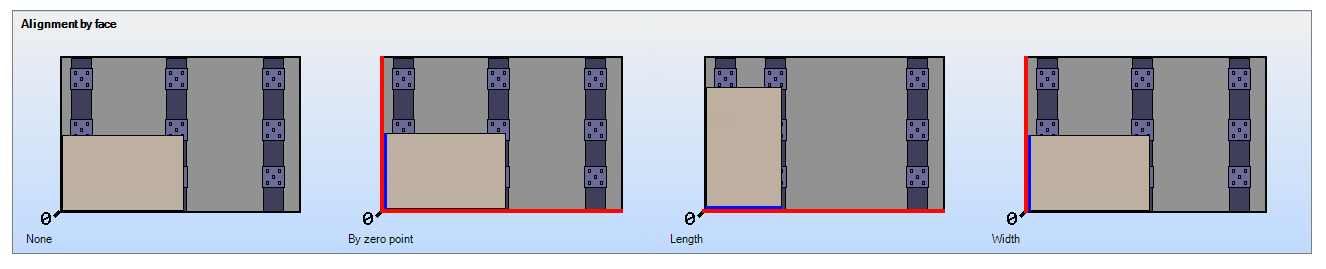

Alignment by face:defines whether the alignment face registered on each part is considered when generating programs. If yes, this face will be aligned according to the selected configuration. For more information click here.
Perform drilling: machine is enabled to drill holes.

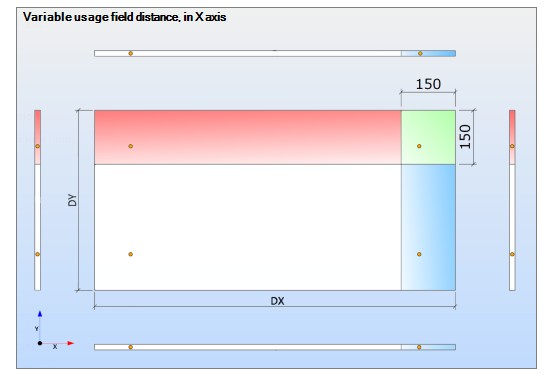

Distance from variable usage field on the X axis: Distance from the end of the part on the X axis, which determines the area (blue area on the image) where operations should take variable part size minus the distance from the operation under consideration to the end.

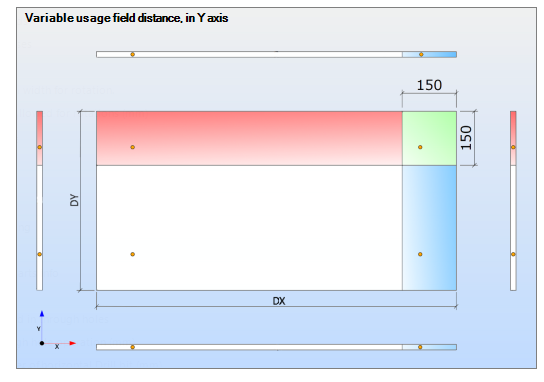

Distance from the variable use field on the Y axis: distance from the end of the part on the Y axis, which determines the area (red area on the image) where operations should take variable part size minus the distance from the operation under consideration to the end.

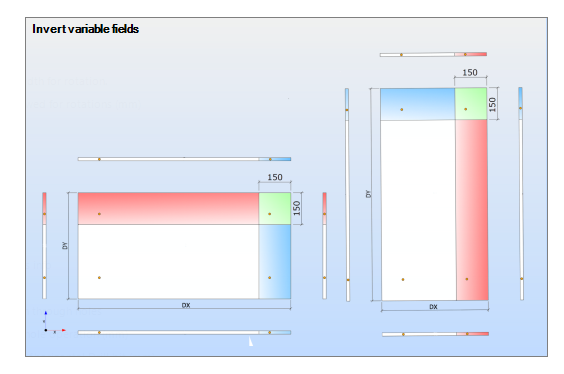

Invert variable fields: by checking this option, when a rotated part is generated, the fields invert as shown in the picture.
Rotations
Evaluate minimum width for rotation: defines if in the generation of the programs the minimum dimension of the part to be rotated in the length direction will be evaluated. If yes, parts that have a face with a dimension smaller than the one defined will be rotated, they will have this face aligned to the machine width axis.
Minimium length allowed for rotations (mm): defines the minimum length allowed for rotations, in millimeters. If the part's length is shorter than defined, the largest part dimension will be set to X. (displayed value is 400)
Machine
Priorization order: defines the order of prioritization of operations for program generation. According to the order indicated in this field the plugin will prioritize in program A the selected option.
Example: In a part that has holes on one side and tears on the other side, the order indicated in this field will determine which of them will be prioritized in the A program.
Operations ordering: order that the machine performs operations. Example: in a part that has holes and tears on the same face the order indicated in this field will determine the sequence in which they will be executed by the machine.
File .inf
Generate empty parts info: generate part .inf file without operation. (is selected as True by default).
Holes
Drill bit angle used in through holes: determine the drill bit end angle for through hole usage (from 25 to 90 degrees). This value is used in the calculation to determine the increment in the through-hole depth to ensure that the hole passes completely through the part.
Drill GAP in through hole operation (mm): determine the clearance of the drill for use in through holes.
Maximum diameter of horizontal drill bit(mm): maximum diameter of the horizontal drills.
Maximum diameter of vertical drill bit (mm): maximum diameter of the vertical drills, in millimeters. Maximum value: 35.
Maximum drilling depth: maximum depth that the drill can drill, in millimeters.
Maximum position of the center of the horizontal holes opposite the Y axis of the lower face: is the maximum position of the center of the horizontal holes opposite the Y axis of the lower face.
Minimium position from the center of lateral hole in (Y): minimum center position of the horizontal holes opposite the Y-axis. Value: 6.
Minimum position of the lower quadrant of vertical holes (Qmin) on the Y axis: the lower quadrant of the hole must be in position Qmin from the bottom edge of the part. DY being the height of the part. To calculate the quadrant position, the hole center at (y) - the hole radius is considered.
Non-through drilling mode: drilling mode for through holes. Value: Slow-Fast-Slow.
Number of horizontal drill bits(X): number of drills, for each horizontal face, present in the machine. Value: 0.
Number of lateral drill bits (Y): quantity of drills, for each side face, present in the machine. Value: 2.
Number of vertical drill bits (Z): number of vertical drills present in the machine. Default value: 13.
Technical Data
Maximum thickness(Z): maximum thickness of the part that the machine can perform operations.
Minimum length (X): minimum thickness of the part that the machine can perform operations.
Minimum thickness (Z): minimum thickness of the part that the machine can perform operations.
Minimum width (Y): minimum part length for the machine to perform operations.
