Release Notes – Machine Programs Service

Date: 15/05/2025

• Corrections

Nesting File

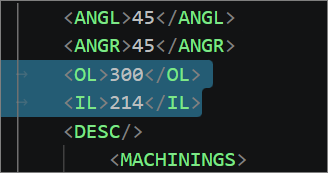

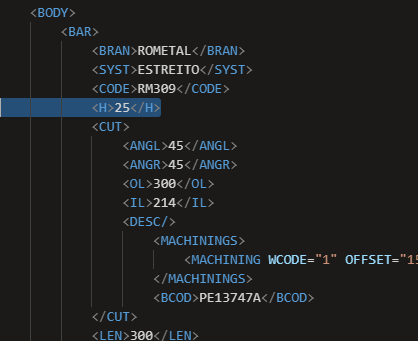

1. Adjusted the maximum number of characters to 26 in the Nesting files for machines that have the Label Application Mode in Nesting option. (2229929)

Date: 05/14/2025

• Corrections

Machining

1. Fixed the situation where machining operations were not generated when the user assigned a process to the operation. (2228398)

Date: 05/08/2025

• Corrections

Profile Machining

1. Fixed the situation where profile machining operations were not processed, even with the Make profile machining operations option enabled.

Date: 05/05/2025

• Corrections

Rectangular profile machining

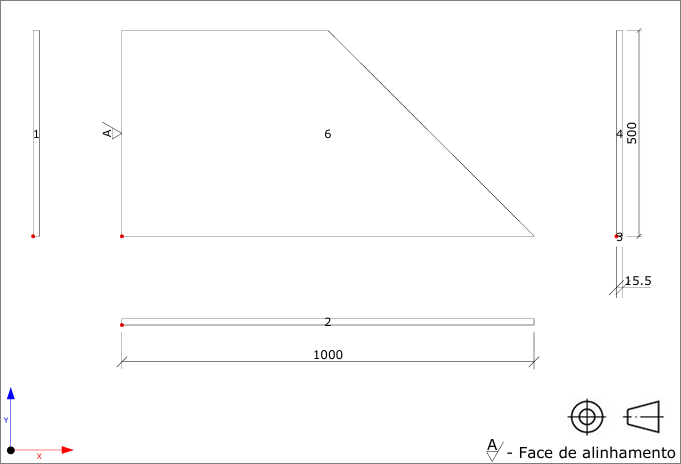

1. Adjusted the center of the rectangular profile machinings to align correctly with the registration in the 3D environment. (2226438)

Date: 04/25/2025

• Enhancements

System

1. Improvements implemented to prevent service instabilities (2217169 and 2221608)

Integration with CNC machines

1. Implemented new .ban format for the Nanxing NCB2112S machine.

Date: 12/03/2025

• Corrections

Validation

1. The validation that checks if the holes are inserted in the parts has been adjusted to ensure the generation of machine programs. (2208981)

Date: 03/10/2025

• Corrections

Machining

1. Adjustment made to the Nanxing NCG3021L machine for cases where the machining angle was inverted, generating a different line than designed. (2208933)

Date: 25/02/2025

• Corrections

Machine Programs

1. Adjusted irregular pieces that had internal machining in the incorrect position when generating the cutting plan. (2201943)

2. Corrected the situation so that all cutting plans are correct when the option Generate programs by tools is selected in the machine setup. (2201779)

Date: 02/04/2025

• Corrections

Machine Programs

1. Added tool code in the programs of the machine Alca AL FD1200 ECO T6. (2199573)

Date: 02/04/2025

• Corrections

Machine Programs

1. Adjusted so that the process tool is used only when the process is present in the operation. (2199472)

Date: 28/01/2025

• Corrections

Programas de Máquina

1. Corrected the situation in which a unconformity was displayed when generating programs, which occurred when the option Merge programs from several rotations in the same program was used. (2197365)

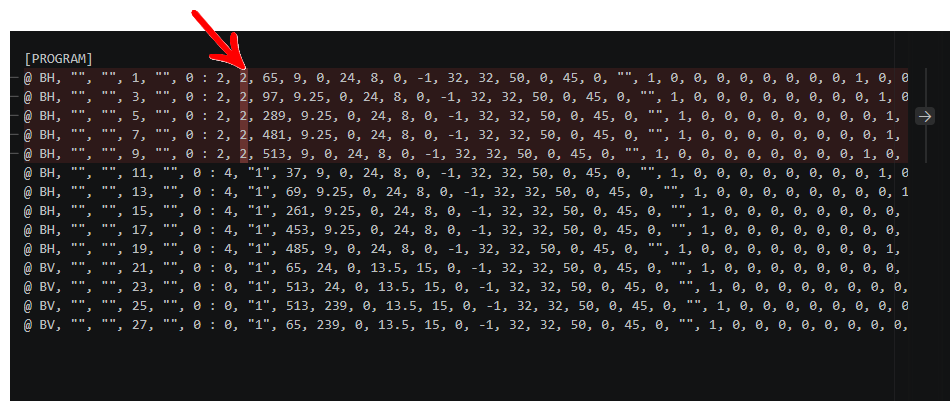

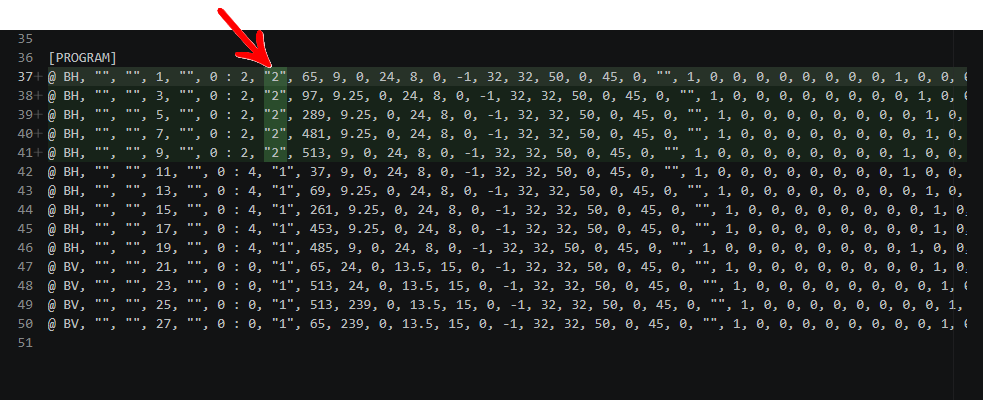

2. Fixed situation where program codes B and C in .xml extension files were not displayed correctly in the Nesting columns. (2196577)


Date: 01/13/2025

• Corrections

Machine Programs

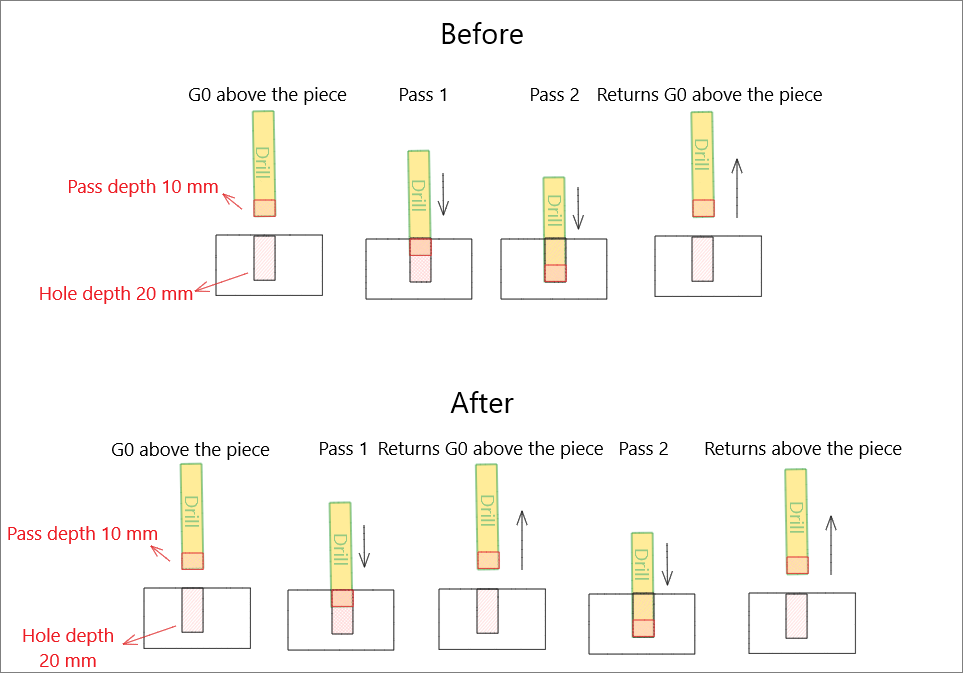

1. Adjusted to ensure that operations with two passes and a depth are prioritized in the Machine Programs. (2188406)

2. Adjusted the depth of the milling pass in Profile Machining for MPR Machine Programs. (2190022)

Date: 12/10/2024

• Corrections

Machine Programs

1. Adjusted the selection of the correct process tool when generating a Machine Program. (2178973)


Date: 12/03/2024

• Corrections

Drilling

1. Adjusted the position of the holes on the Profile Faces of the Soph MSZ600C machine. (2183882)

Date: 25/11/2024

• Corrections

Hole

1. Adjusted the restriction that validates whether the hole is positioned inside or outside the part. (2181227)


Date: 11/11/2024

• Corrections

Leftovers

1. Fixed an issue where cutting plans that used leftovers were generated without some parts.

Nanxing NCB612

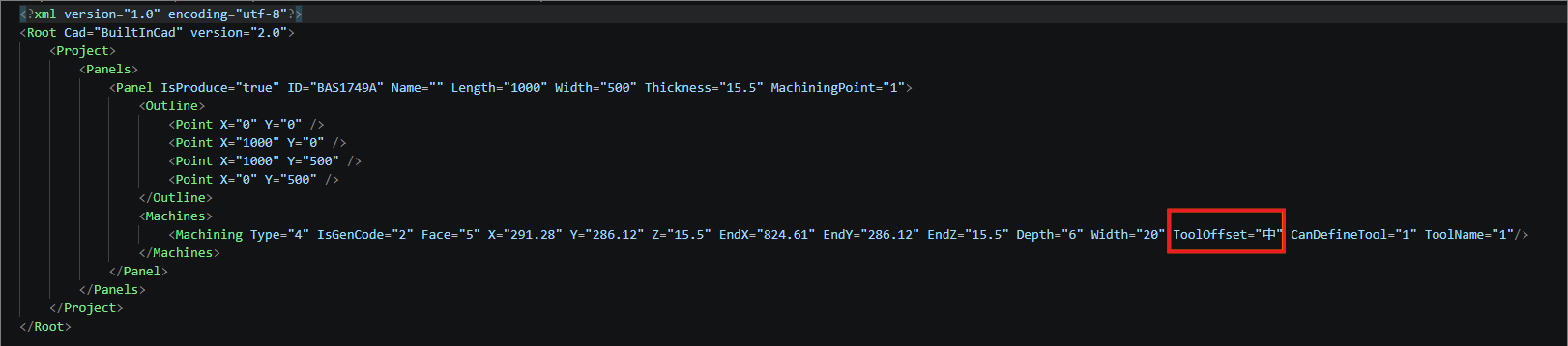

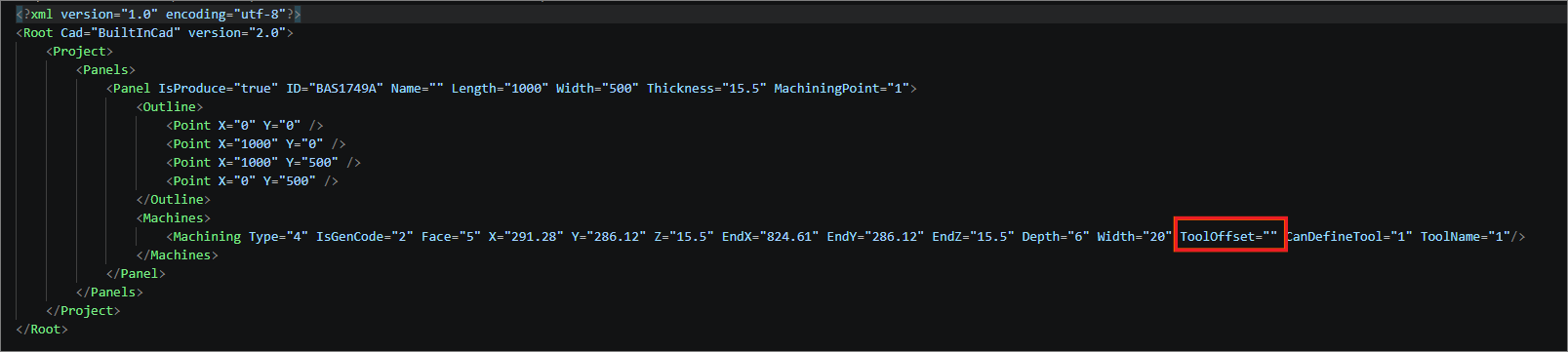

1. Fixed an issue where the tool offset was incorrectly sent to the Nanxing NCB612 machine. (2179144)


2. Fixed an issue where some modules were not generated depending on their position in the Promob environment; this occurred due to the depth calculation for the Nanxing NCB612 machine. (2166037)

Date: 07/11/2024

• Corrections

Cutting configuration

1. Corrected the situation where small parts were overlapping others in some cutting configurations. (2177301)

Date: 10/22/2024

• Corrections

Machining

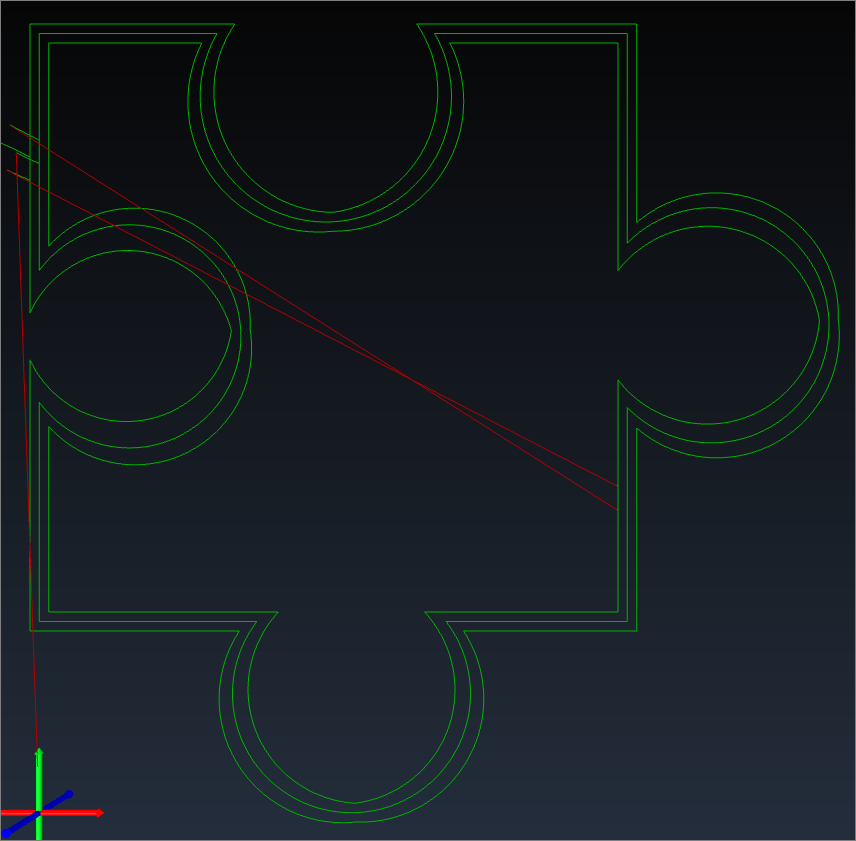

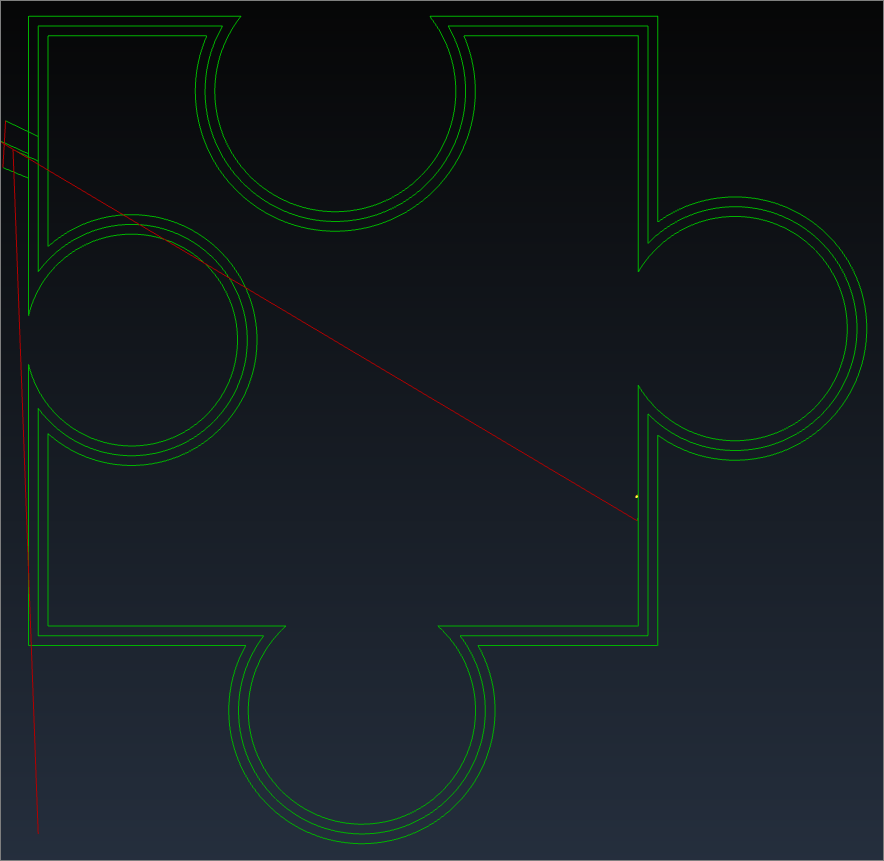

1. Fixed the situation where, when starting contour machining at the corner of parts, operations were overlapping. (2172511)

2. Fixed the situation where holes converted into circular machining were not executed, even when the tool was compatible with the operation. (2170396)

Date: 10/07/2024

• Corrections

Machining

1. Fixed the situation where a circular machining operation, which could not be processed, was being improperly executed by the system. (2164972)

Date: 30/09/2024

• Enhancements

Plugin Nanxing NCB612

1. Added the option Disconnect contour machining points which allows the machine to perform machining operations without the need for emptying. Learn more here. (2105952)

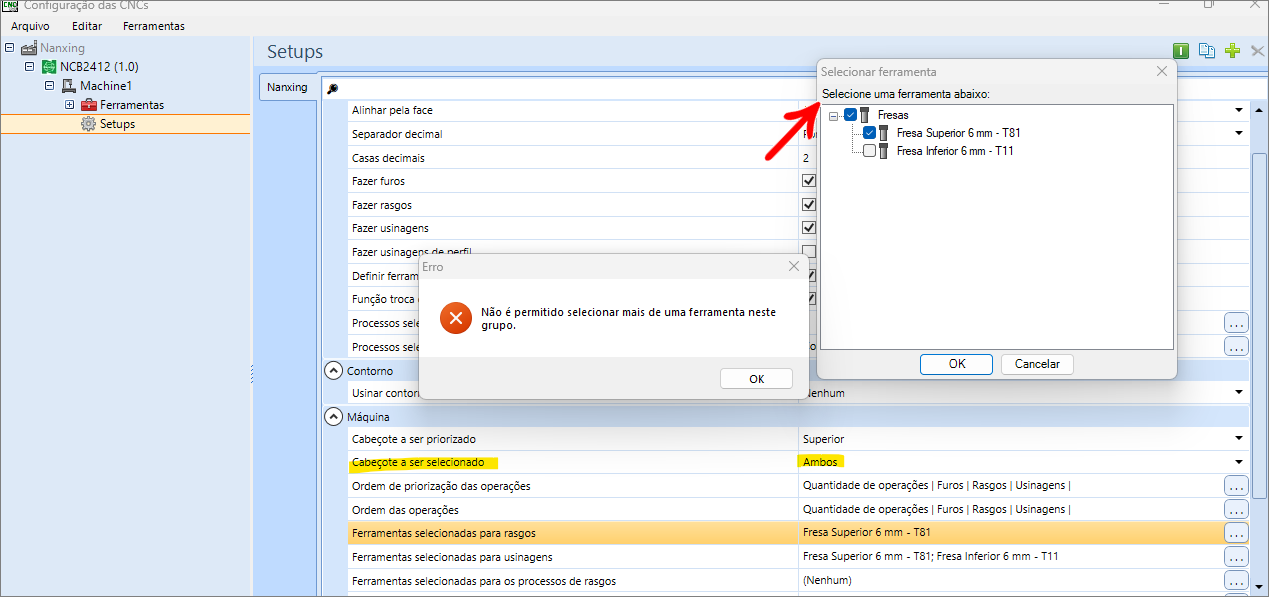

2. New options added to the Tool change function with magazine to modify the tool change command. Learn more here. (2105952)

Date: 09/19/2024

• Corrections

Nesting

1. Fixed the situation where through rectangular machining operations were not sent to the Nesting program when the Generate finished parts option was enabled.

Date: 09/09/2024

• Corrections

Tools

1. Corrected the situation in which rectangular angled machining operations were in the incorrect position in machine programs.

Date: 05/09/2024

• Corrections

Cutting plane programs

1. Corrected a situation in which, when using the setting Holes behave like machining operations, the cutting plane programs were generated incorrectly.


Date: 09/08/2024

• Corrections

Router Machine

1. Fixed the situation where not all cutting plans are output from Router machines. (2147769 and 2144960)

Date: 02/08/2024

• Corrections

Nesting

1. Fixed situation where operations were not included in the Nesting program, even without having any restrictions for execution. (2135858)

Date: 07/23/2024

• Enhancements

Nanxing

1. Added cutter diameter to Nanxing machine programs. (2141077)

• Corrections

Rover 22

1. Adjusted the input and output of the milling cutters for the Rover 22 machine in .PAN format. (2133840)


Date: 07/08/2024

• Corrections

Tools

1. Corrected the situation in which the Nesting programs incorrectly rotated the parts when the cutting plane had different parts with the same dimensions.


Date: 27/06/2024

• Corrections

Rover 22

1. Adjusted the tool entry and exit when machining is not variable for the Pan format on the Rover 22. (2133840)



Nanxing NCG3021L

1. Adjusted the overcut sum of the Nanxing NCG3021L, so when there are pieces without operations, the overcut is added to the size of the sheet. (2133953)


Date: 25/06/2024

• Enhancements

Nanxing NCG3021L

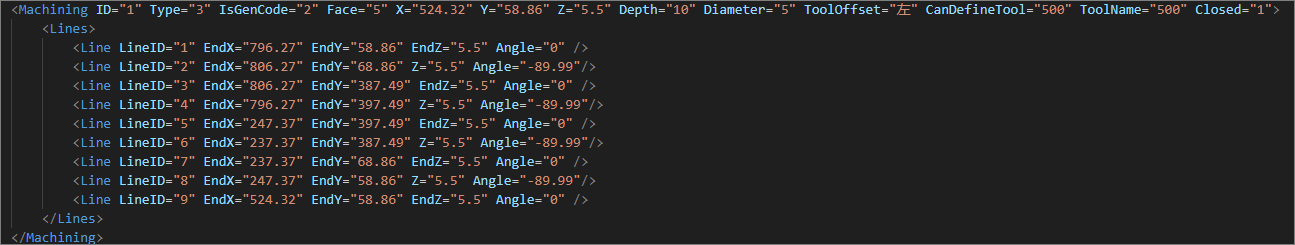

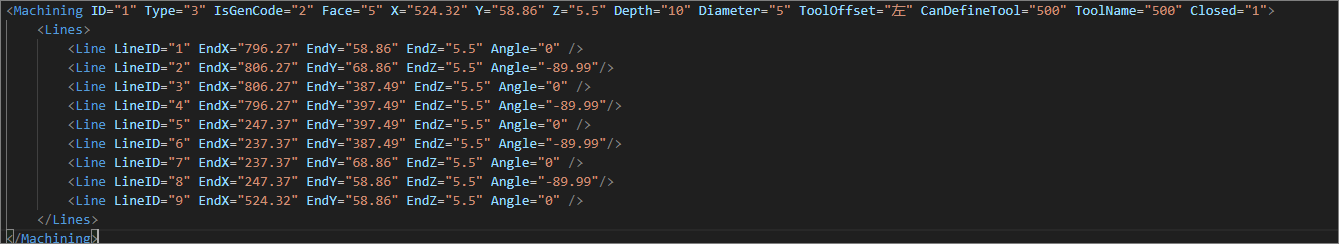

1. Added the "Z" field to the Nanxing NCG3021L program that defines the depth of the operation. To fill in this field, the machining depth is subtracted from the thickness of the part. The EdgeGroup field was also added at the end of the program.


2. For Nanxing NCG3021L, the generation of emptying operations has been made available. (2128356)


• Corrections

Router Machines

1. The issue where through machining operations with a linked process were not displayed on the priority face of the Nesting program or in the Cutting Plan, on Router machines, has been corrected. (2113995)


SCM - Tecmatic Machines

1. Corrected the situation in which the minimum entry/exit radius configured on the milling was not used to calculate circular entry/exit on SCM - Tecmatic machines. (2131497)


Date: 06/18/2024

• Corrections

Plugin Biesse Rover 22

1. Corrected the situation that occurred in the tool input and output command in .PAN format on the Rover 22 machine. (2130047)

Date: 06/14/2024

• Corrections

Tools

1. Adjusted the face on which machining starts in the Skipper 100 and 130 machine programs. (2126481 and 2128747)

• Improvements

Tools

1. Added Profile Machining menu for machines that use .BPP and .CIX format.

2. Included option to generate individual part programs for Nesting with Cutting Plan. (2028714 and 2106629)


Date: 06/13/2024

• Corrections

Plugin Biesse Rover 22

1. Fixed the situation where machining with arcs had incorrect direction, angle, and file size .PAN of the Rover 22 machine. (2123082)

Date: 05/27/2024

• Corrections

Cutting Plan

1. Adjusted the issue where Nesting cut plan files were generated with missing pieces (Reversed changes related to Release 448). (2124102)

Date: 05/24/2024

• Corrections

Plugin Jaragua CNC Router Exclusive 28182

1. Fixed the situation where rectangular Pocket machining operations with the same cutter width were not generated correctly in the Jaragua CNC Router Exclusive 28182 plugin. (2116347)

Date: 05/23/2024

• Corrections

Cutting Plan

1. Corrected the situation in which Nesting programs improperly rotated parts when the cutting plane had different parts with equal dimensions.

Date: 05/10/2024

• Corrections

Tool
1. Adjusted the Tool output to PAN format. (2119002)

2. Adjusted the origin of the tear with a cutter on the Skipper 100 and 130 machine. (2112132)

Date: 05/06/2024

• Corrections

T NCG3021L
1. Removed the Outline mode.

2. Removed blank line within MACHINING mode.

3. Removed the tag CAMINHOETIQUETA, now it is the user's responsibility to manually include the option in the file list. (2113915)

Date: 04/23/2024

• Corrections

Tools
1. Adjusted the entry angle of the mill when it comes to Contour Machining. (2109186)

Date: 04/17/2024

• Corrections

Machines
1. Corrected the contour command when the Nesting type selected is Rectangular on Morbidelli machines. (2110115)

Date: 04/09/2024

• Corrections

Machines

1. Corrected the situation where the clamp restriction of the Skipper 100 and Skipper 130 machines resulted in the invalidation of operations on the incorrect side of the part. (2101794)

Date: 03/28/2024

• Corrections

Machining
1. Corrected a situation in which machining operations with arcs in the Nanxing NCB plugins had the angle inverted. Corrected plugins: (2100671)

• NCB612T
• NCB612FT
• NCB612DXT
• NCB612DT
• NCB612DPT
• NCB2412
• NCB612
• NCB612S
• NCB612DX
• NCB612D
• NCB612DP
• NCB612DXS

Overcutting

1. Corrected offset calculation with options to add edge band offset and discount edge band thickness. For more information click here. (2100468-2102599)

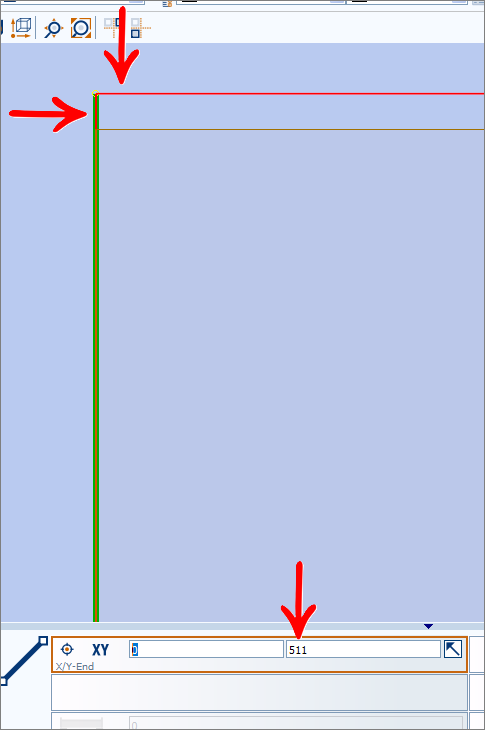

Image above with zoom applied:

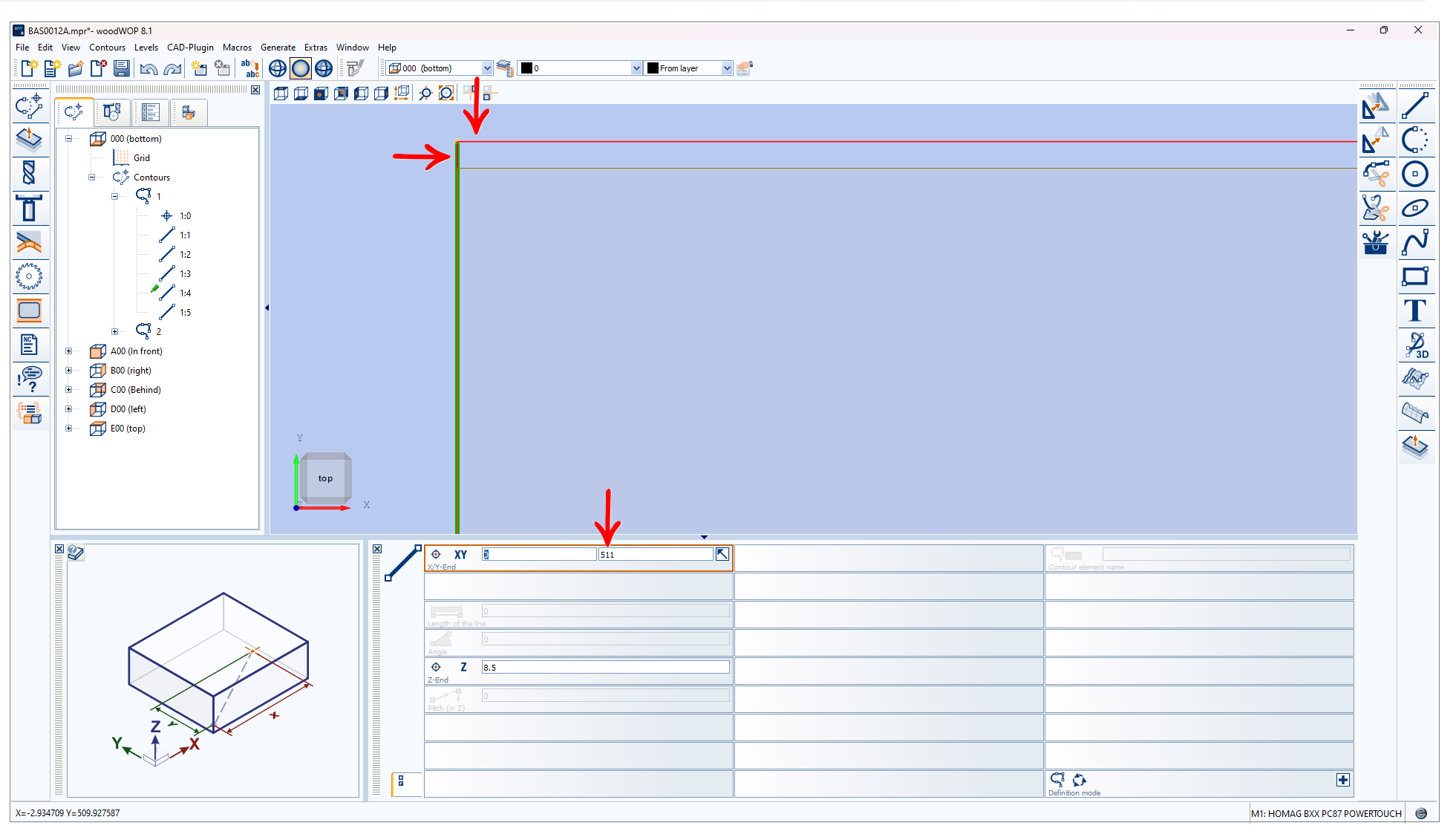

PGMX programs with parking:



1. Fixed situation where the head displacement type (Absolute and Relative) was inverted, following Maestro documentation. (2060954)

PAN Program

1. Fixed the depth dimension of the slot in Pan format on the Rover 22 machine. (2104970)

Date: 03/22/2024

• Corrections

Cut Planning

1. Adjusted the Ordering of Processes in Machine Programs. (2018138)

Date: 03/20/2024

• Corrections

1. Fixed the situation where the start point of machining was changed incorrectly to the corner. (2101805)

2. Corrected a situation in which the program's final depth was generated incorrectly when the depth of the pass was exactly the same as the machining depth. (2089431)

3. Fixed the situation where the overcut and edge thickness values were not added up correctly when necessary.  (2063483)
4. Adjustments were made to treat situations in which the conditions for tool selection presented more than two criteria. (1968543)

Date: 03/14/2024

• Corrections

1. Fixed the situation that caused slowness in the Machine Programs service. (2099007)

2. Fixed the situation where, when a cross occurs larger than the diameter of the cutter, an inconsistency was displayed. (2094671)

Date: 05/03/2024

• Corrections

1. Adjusted the situation in which the ADB100 and ADB250 machines did not consider the restriction Maximum drilling position and the insertion of vertical hardware from the edge. (2096190)

2. Corrected the situation in which holes that turned into circular machining operations were generated with the wrong depth. (2095709)

Date: 03/01/2024

• Corrections

1. Fixed the orientation of parts that were machined from the incorrect direction. (2090484)

2. Adjusted the tool alignment command to the .bpp extension. (2086308 and 2063483)

3. Fixed the situation where the direction of the arcs was incorrect when performing Nesting with the Cutting Plane. (2085204)

4. Fixed the situation where some Nesting files were not generated. (2092235)

Date: 23/02/2024

• Corrections

1. Corrected a situation where drilling unnecessarily activated the through hole function in BiesseWorks. (2092190)

2. Fixed situation where machining operations were unlinked from their respective process in BiesseWorks. (2092641)

Date: 02/20/2024

• Corrections

1. Fixed situation where B programs were incorrectly generated in the Nesting folder instead of the Profile folder. (2091005)

2. The commands to identify the closest profile faces, C1 and C3, were inverted in the ABD250 Plugin. (2087734)

Date: 02/09/2024

• Corrections

1. Fixed the situation in which the content of program B displayed the code of program A. (2087430 and 2084317)

Date: 02/08/2024

• Corrections

1. Corrected the restrictions of the StarTech CN Plus machine for the correct generation of top holes. (2087368)

Date: 02/06/2024

• Corrections

1. Fixed the situation where arcs presented inverted angles in the IMA BIMA plugin. (2083615)

Date: 01/26/2024

• Corrections

1. Fixed the situation where it was not possible to select/edit the lines of machining/slot with milling operations in BiesseWorks in programs with extension .bpp. (2081174)

Date: 01/18/2024

• Corrections

1. Fixed the situation where an improper slot occurred when there was no tool selected on the SCX machines. (2079131)

Date: 01/12/2024

• Enhancements

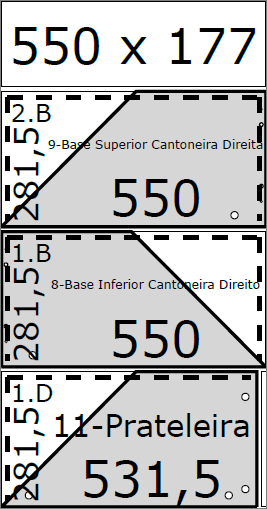

1.  The plate code is now displayed in the Nesting file name, separated by material. (2076131)

• Corrections

1. Fixed situation where part orientation was incorrect on MSZ600C machine. (2070196)

2. Corrected the situation in which, when generating Nesting programs on the Rhino RMC 3000 machine, the message InternalServerError was displayed. (2076769)

3. Corrected the situation in which the cutter alignment was incorrect in emptying machining where the operation was smaller than expected. (2068100)

Date: 12/21/2023

• Enhancements

1. Updated the Machine Program Service to allow the generation of machining with variable depths. (2045909)

• Corrections

1. Fixed the situation that occurred when commanding Holes on HOP system machines. (2073069)

Date: 12/19/2023

• Corrections

1. Fixed the situation where internal machining operations were not generated on machines with Weeke - Homag integration. (2071925)

Date: 12/13/2023

• Corrections

1. Fixed the situation where operations in the profile were not generated for machines with multiple heads. (2070131)

Date: 12/08/2023

• Corrections

1. Fixed the situation where the input position of the edge head was incorrect. (2069047)

Date: 12/05/2023

• Corrections

1. Corrected the situation in which when the BPP format was selected, the Tool name was searched for instead of the code, making it impossible for the user to select other tools. (2068685)

Date: 12/04/2023

• Corrections

1. Corrected a situation where a divergence occurred in the programs due to the inversion of values when the needDecreasingDepth property was activated. In this case, the depth value was higher than that of the pass, and the system incorrectly interpreted that it should perform more passes. (2068162).

2. Adjusted the maximum diameter restriction for the Imagic machine drilling. (2067219)

Date: 12/04/2023

• Corrections

1. Fixed the situation where, when the CIX format was selected, the Tool name was searched for instead of the code, making it impossible for the user to select other tools. (2028724)


2. Corrected the situation in which PGMX programs did not correctly generate the contour command when there were multiple passes in Maestro version 22 or higher. (2044665)

3. Corrected a situation where the outline of parts with an arc was drawn incorrectly on machines with .bpp and .cix integration (2060852)

Date: 11/27/2023

• Corrections

1. Adjusted the offset calculation for the IMA BIMA machine. (2058216)

Date: 11/24/2023

• Corrections

1. Adjusted milling slot control for operations on part profiles (2063171)


2. Corrected a situation in which, if the machining had lines outside the part, the entry and exit of the tool were incorrect, with the entry inside the part. (2061188)

3. The prioritized head was not considered primary for through operations. (2064346)

4. Adjusted bridge machining so that it comes out correctly in the machine program. (2040568)

Date: 11/20/2023

• Corrections

Nesting Machine

1. Corrected a situation in which, if the client had configured the depth of the passes on the Weeke machines, the program did not allow the option to invert the points, so the depth was inverted. (2057482)

Date: 11/16/2023

• Corrections

Nesting Machine

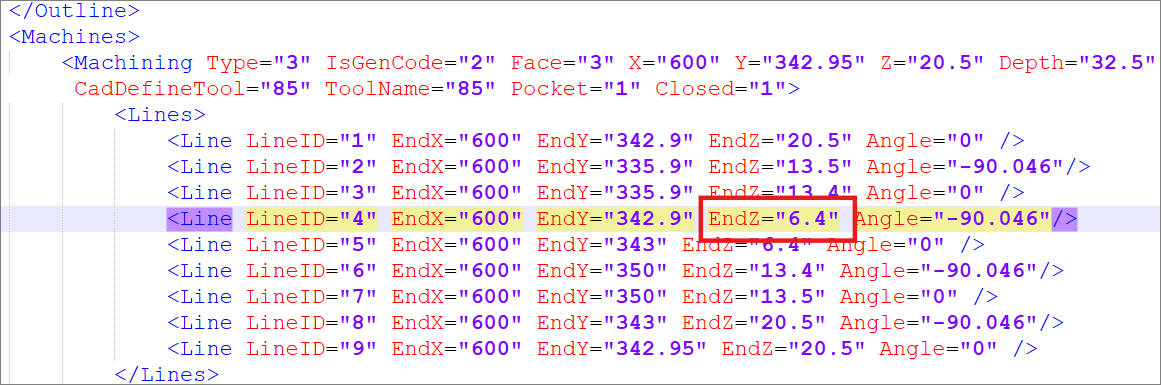

1. Made adjustments to the XML format in the Nanxing NCG3021L machine plugin. The direction of the vein is now displayed in the header. In addition, a new command has been added for arc machining, including information on the cutting direction. For more information, click here. (2061841)

2. Fixed the situation where the BIMA machine overcut was incorrect. (2058216)

3. Adjustments were made to the machining direction according to the settings registered in the tool. (2040610)

Date: 11/10/2023

• Corrections

Nesting Machine

1. Fixed the situation where the .csv file for Nesting machines was generated with missing items. (2053138)

2. Corrected situation where prioritisation was incorrect for the top head for the Imagic machine. (2060362)

Date: 11/03/2023

• Corrections

Machine Programs

1. Fixed the situation where Programs B and C had a different rotation compared to Program A, even when it was possible to execute the program with the same rotation. (2050829)

2. Corrected the situation in which the Input Extension configured was not considered in machining/slots operations with milling cutters. (2055405)

3. Fixed the situation where Operations on the profile face were incorrectly displayed on the top face on machines that used .cix files. (2053879)

Date: 10/26/2023

• Corrections

Machine Programs

1. Fixed the situation where an inconsistency occurred in opening programs with extension .pan, .bpp and .cix in BiesseWorks. (2053421)

2. Adjusted the depths of machining operations of Weeke machines. (2053718)

3. Fixed the situation where items of the same material with different vein directions were not listed in the same nesting CSV. (2053138)

Date: 10/16/2023

• Corrections

Machine Programs

1. Corrected the situation where the tool for process operations was not chosen correctly.

2. Corrected the situation where hollowing machining on the X200 Cell machine did not generate operations.

Date: 09/13/2023

• Corrections

Machine Programs

1. Corrected the situation where an inconformity occurred that resulted in the generation of Nesting programs and drawings without some parts. (2039401)

Date: 08/30/2023

• Corrections

1. Fixed the situation where the heads of Ventures machines were not retracting from the last machining position. (2033082)

2. Fixed the situation in the BIMA Plugin where the tool's entry and exit extension value were not being considered in case of overcut on the part. (2017026)

3.  Fixed the situation where operation variables were being incorrectly inverted. (2022828)

4. Fixed the situation in which the machine programs in the Usaberg ATC 2819 Router plugin were not generated.

Date: 08/23/2023

• Corrections

Machine Programs

1. Corrected the situation where machine programs were not generated in the BHX055 plugin. (2019090)

Date: 22/08/2023

• Enhancements

Security Service

1. Security package update to version 1.1.56. This update maintains acceptance of the Promob token and also adds acceptance of the Flex token.

IMPORTANT: Available from Builder version 1.60.20.2.

Date: 08/03/2023

• Corrections

Machine Programs

1. Fixed the situation where machine programs were not generated in the BHX055 plugin. (2019090)

Date: 07/14/2023

• Corrections

Machine Programs

1. Fixed situation where operations could be duplicated if they had different links to each other in Ima Imagic. (2017457)

IMPORTANT: Correction number 2 included in version 297 on 28/07/23:

2. Adjustment made to the hardware insertion control of the ABD 100 machine, making sure that the hardware is inserted in the correct place.

Date: 07/12/2023

• Corrections

Machine Programs

1. Corrected a situation in the Venture 1M Plugin where through machining operations were incorrectly being treated as off-part machining operations, resulting in them not being executed. (2016515)

Date: 07/12/2023

• Corrections

Machine Programs

1. Corrected the situation on Alca 2030 3s and Weeke Venture 316 machines, where the contours were generated only in rectangular mode, without respecting the L-shaped corners. (2014170 and 2014171)

Date: 07/04/2023

• Corrections

Machine Programs

1. Corrected the situation where the Machine Program was not generated due to an inconsistency when generating the BHX 055 file. (2012246)

2. Fixed the situation where some Overcut settings generated in the Manufacture service were incorrect. Now the Overcut is generated correctly according to the documentation. (2000390)

3. Corrected the situation in which an inconsistency was displayed in the BIMA plugin, causing the generation of negative values in the border position in the Machine Program. (2008808)

Date: 05/17/2023

• Corrections

Machine Programs

1. Fixed the situation where the Generate Finished Parts option did not work correctly in the Nesting settings.

IMPORTANT: Correction number 2 included in version 281 on 06/20/23:

2. Corrected the situation in the Machine Program of the AL2030B plugin, where the command to turn on the motor in Circular Machining was not being sent. (2007803)

IMPORTANT: Correction number 3 included in version 281 on 26/06/23:

3. Fixed the situation where when selecting a machining operation in the settings of the Pratika 315 plugin, the selected machining operations were not respected. (2009029)

Date: 05/12/2023

• Corrections

Machine Programs

1. Corrected the situation where no operations were generated on Nesting machines.

Date: 05/08/2023

• Corrections

Machine Programs

1. Corrected the situation where .inf files were generated on successfully generated parts.(1989086)

2. Corrigida a situação no Builder, em que a opção Gerar peças finalizadas, não era respeitada nas operações de perfil. (1989953)

Date: 04/28/2023

• Corrections

Machine Programs

1. Corrected the situation in the Morbidelli - Uniflex plugin, where the alignment tool on the underside of the part was incorrect. (1964141)

2. Fixed the situation where when generating the . csv Nesting file, via Promob ERP Integration, the amount of parts was improperly grouped. (1983671)

Date: 04/26/2023

• Corrections

Machine Programs

1. Corrected the situation where when generating parts in the ERP Plugin, the quantity of items in the .csv file was duplicated. (1983671)

2.  Corrected the situation where the B program for parts was not generated. (1988558 and 1976573)

3. Fixed the situation where when using the ERP Plugin, more programs were generated than necessary. (1983728)

4. Corrected the situation where the behavior of the slot in the execution of Nesting, considered the radius of the cutter, changing the initial/final position of the slot. With the correction the slot is generated according to the initial/final position set in the part. (1964901)

Date: 04/06/2023

• Corrections

Machine Programs

1. Fixed the situation in which there were improperly two passes in the contour of the SCM machines. (1974546)
