Available from the version:
- Plugin Builder 1.60.21.3 or higher.
The GETBUILDERMODEL attribute is used to determine which entity will contain the information about the model material in a specific format.
If the registration of the model in a specific format requires more levels and is different from the standard stipulated, the material will not be required to be registered in the Builder, which will result in total disregard of the information for the next operations.

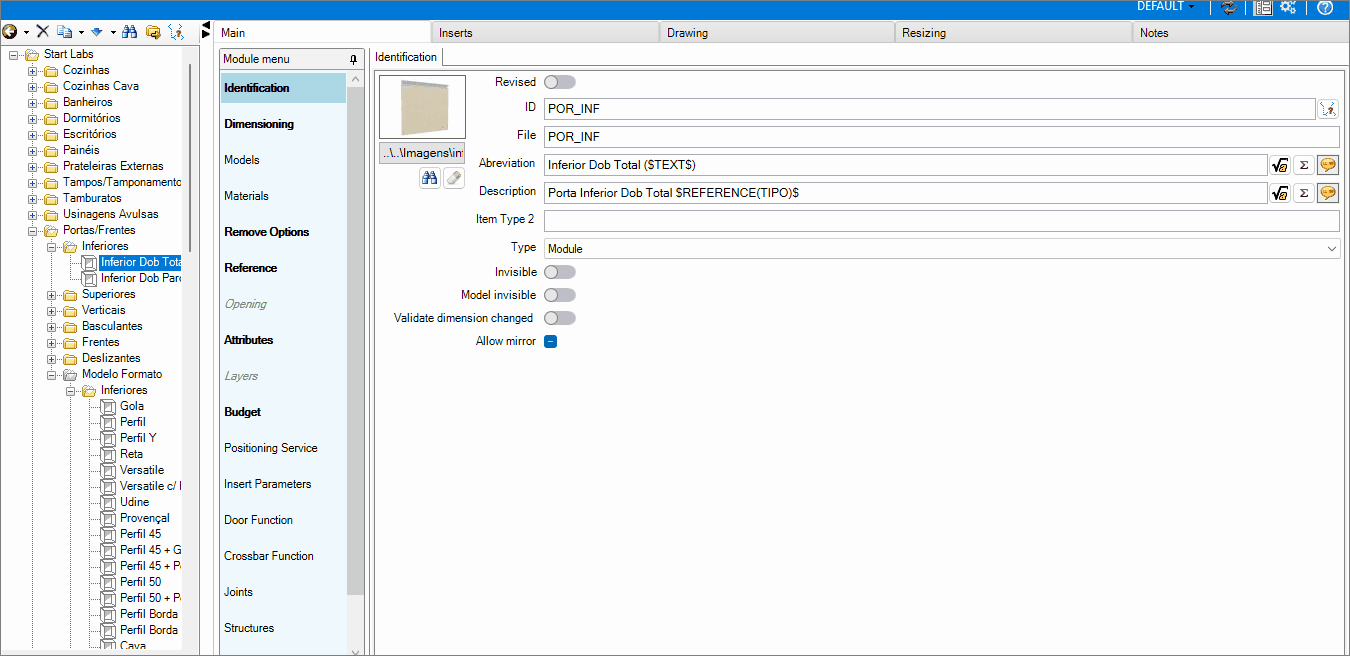

Example of standard registration:

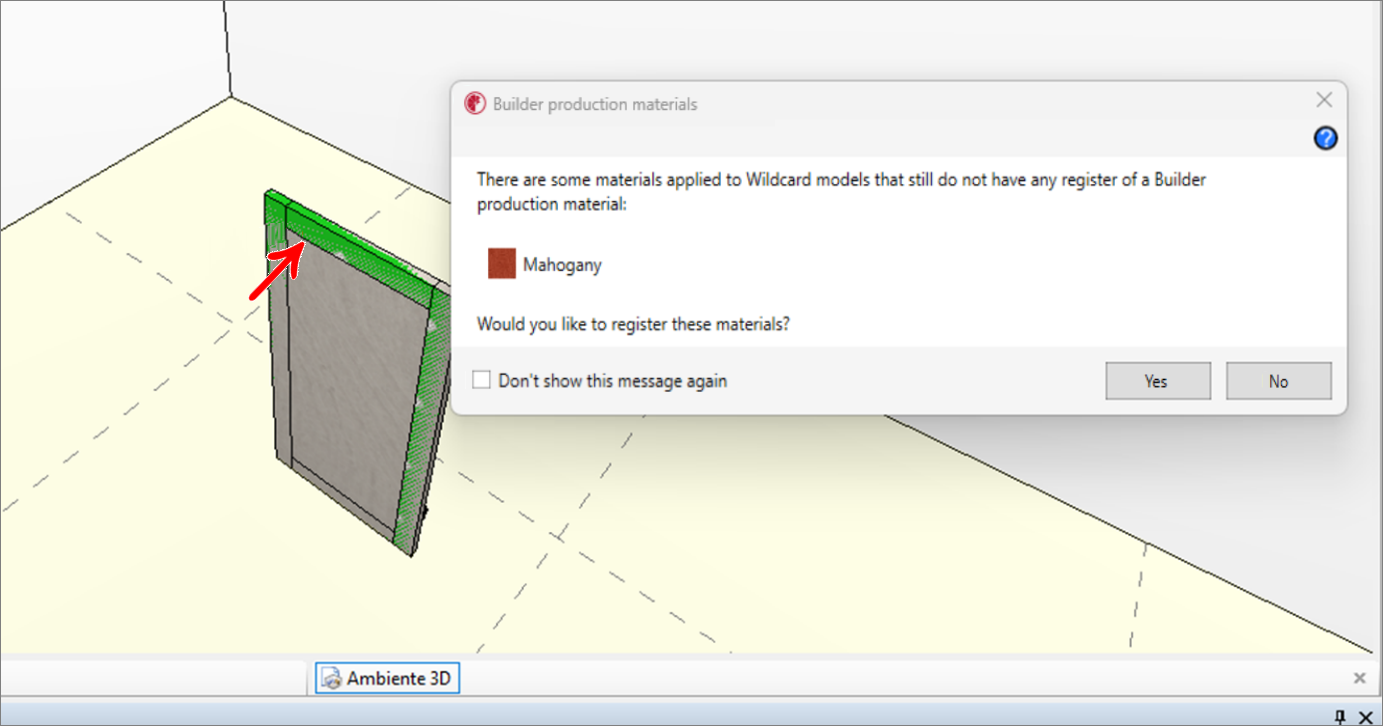

Example of a message to register:
The message There are some materials applied to Wildcard models that still do not have any register of a Builder production material:

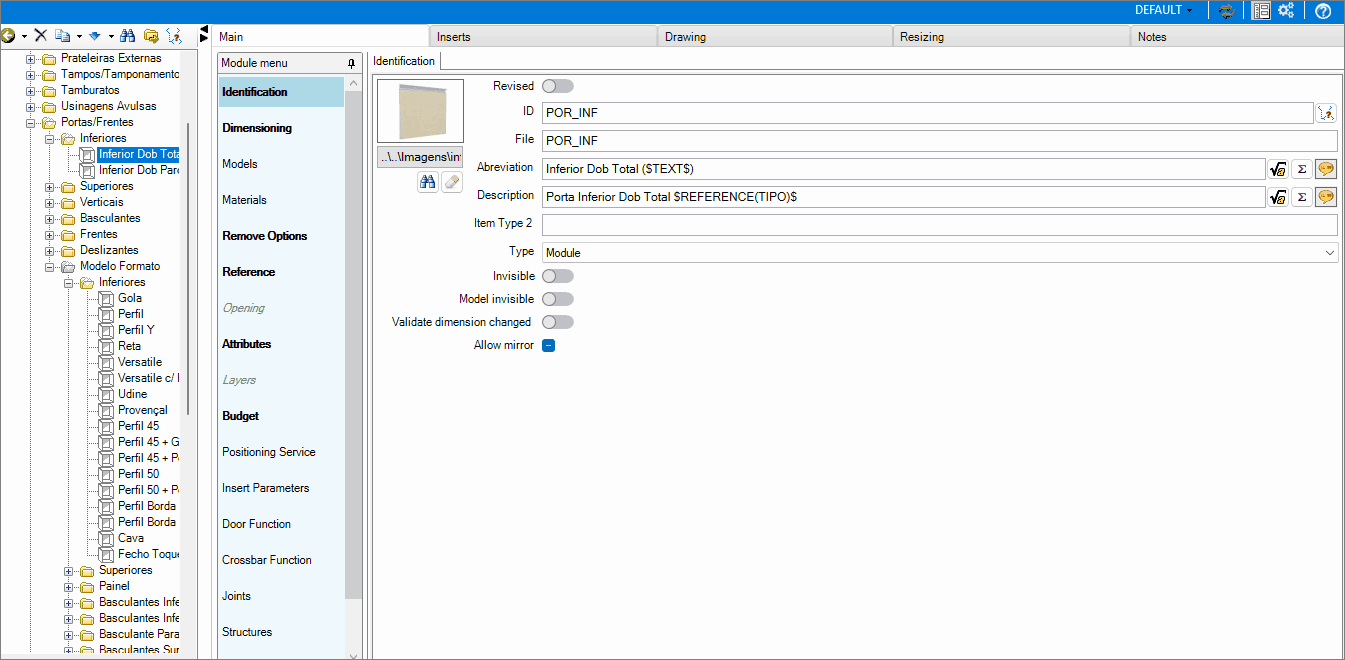

Example of non-standard registration:
It is possible to observe that in the above example, out of the standard, the information about the Door Panel is missing, and the level that contains the material details diverges from the standard, not being a geometry, but a module. Under normal circumstances, it would not be possible to fetch the material information, however, with the attribute added to that entity, the Builder can retrieve the information.

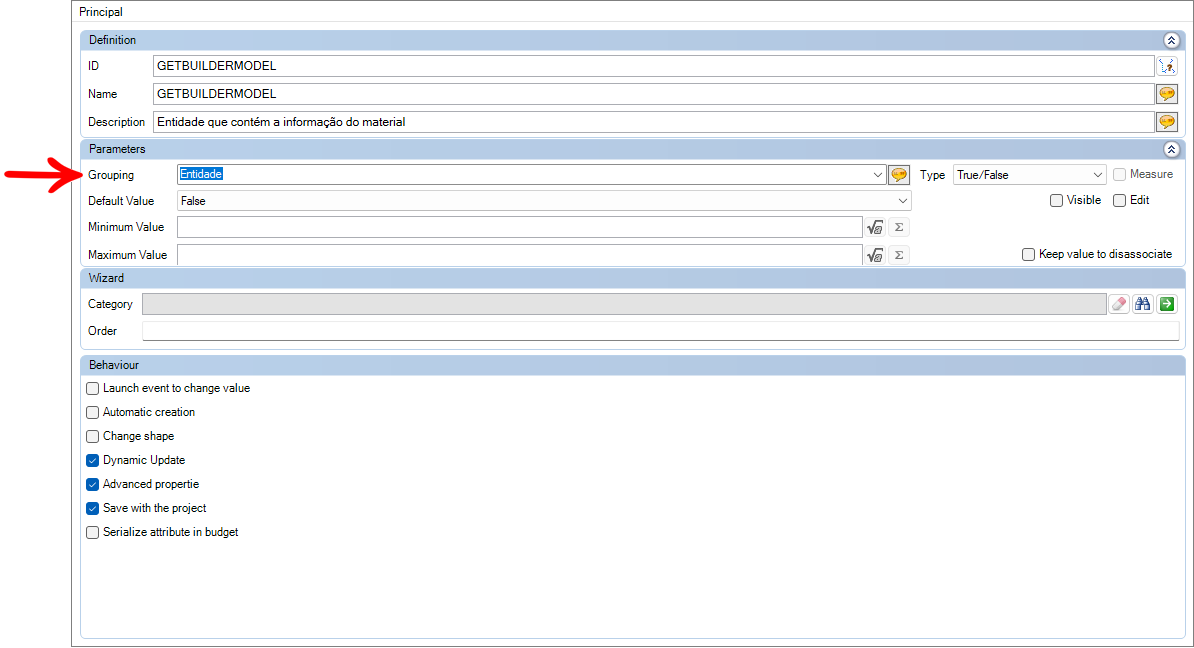

Attribute Register
The GETBUILDERMODEL attribute is being registered as an entity attribute. For more information on registering an attribute, click here.
Definitions:
- ID: GETBUILDERMODEL
- Name: GETBUILDERMODEL
- Description: Entity containing the material information
Parameters:
- Grouping: Entity
- Type: True/False
- Default value: False
Behavior:
- Dynamic Update
- Advanced properties
- Save with the project
OBSERVATIONS: This attribute will only be validated if the item has a model applied; otherwise, it will have no effect.
