Plugin Builder - Cut List Integration

This article discusses the settings for integration with the Cut List cut optimizer, where the following topics are presented:

Optimizer Configurations

To send files for cutting using the Cut List Plugin, it is necessary to make some settings:

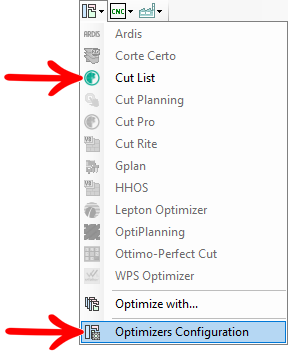

1. Within Promob, go to Optimizer Configuration.

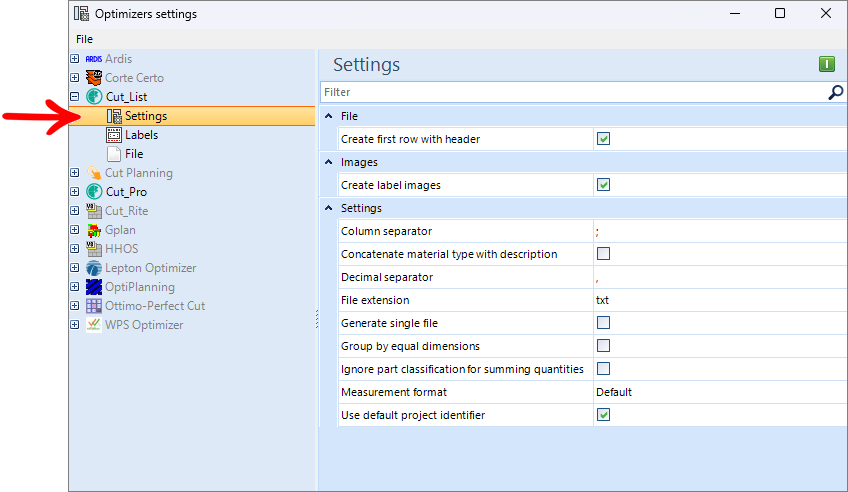

In the Settings tab, set:

File

1. Create first row with header: set whether the file generated by the optimizer displays a header.

Images

1. Create label images: enable to create label images.

Settings

1. In Column separator, define the column separator character.

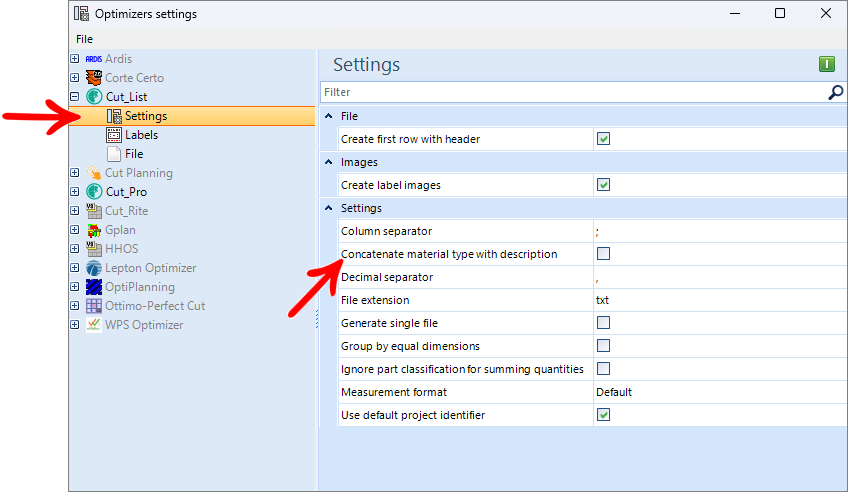

2. Concatenate material type with description: when this option is enabled, the material description in the .csv file also displays the material type. It applies to cases where the material type is not in the description; if the material type is already in the description, it is not changed.

IMPORTANT: by default, this setting is unchecked and the configuration.

3. File extension: .txt

4. Generate single file: if the value is True - Setting Checked, only one file is generated according to material and thickness.

5. Group by equal dimensions: items are grouped by equal dimensions.

6. Ignore part classification for summing quantity: if the value is True, the part ID is generated in the file grouping.

7. Measurement format: Define the measurement format to be used to convert all values.

• The unit of measurement is already defined, so when you click on this option you will be prompted for a security key, and you should ask Promob Support for help setting it up.

8. Use default project identifier: define whether the final name of the file is the default (NameClient_3D_Environment) or whether a newly defined name is considered. Unchecking this option enables the Project identification setting.

Label Settings

To define the label settings:

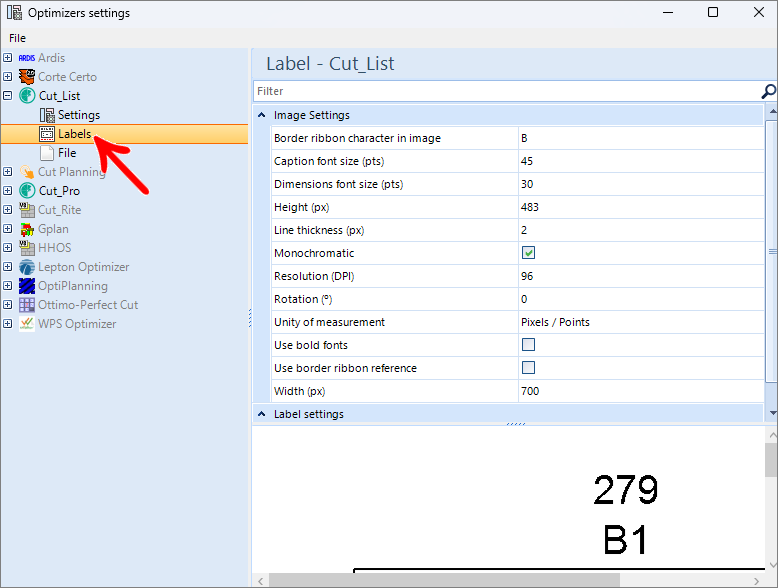

1. In Promob, under Optimizer Configuration, go to Labels.

2. If necessary, view the label settings information here.

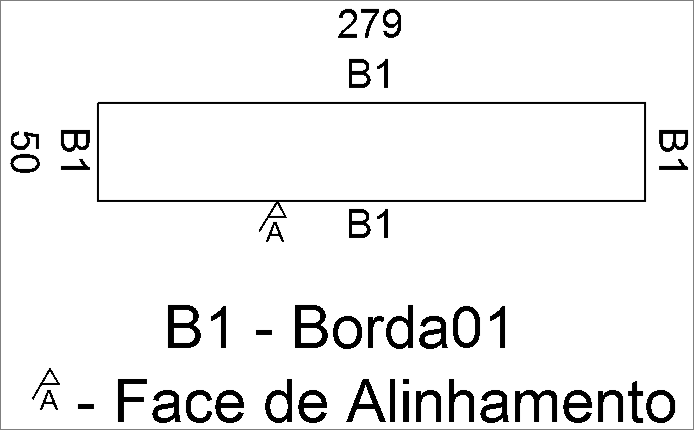

Example Label

File Settings

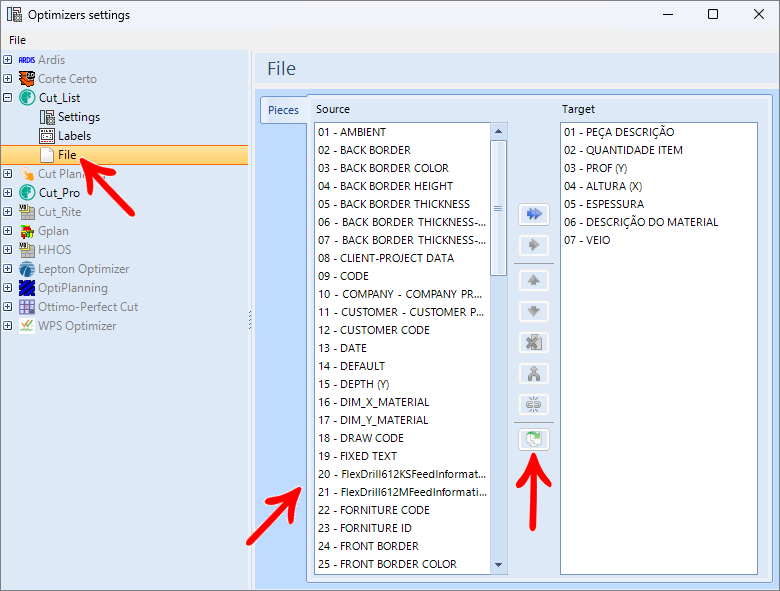

1. In Promob, under Optimizer Configuration, go to File.

2. Add or remove fields from the information to be generated as necessary.

• Use the arrows and the other options to configure.

Source column: Displays the columns that are available for the user to add to the final file.

Target Column: Displays the columns that will be generated in the final file.

The columns in the Objective can be edited, so double-click on the column required and the Field Editor screen will appear. If necessary, find out more about file settings here.
