Builder - Creator 950 - Kind of Optimization

Follow

Available from version 1.60.24.1 or higher of the Builder plugin.



In the General settings of the Creator 905 machine plugin, the Kind of Optimization option has been added.

IMPORTANT: The feature is only available for the Creator 950 machine.



To access this feature, follow the procedures below:

1. Open the Promob Catalog.

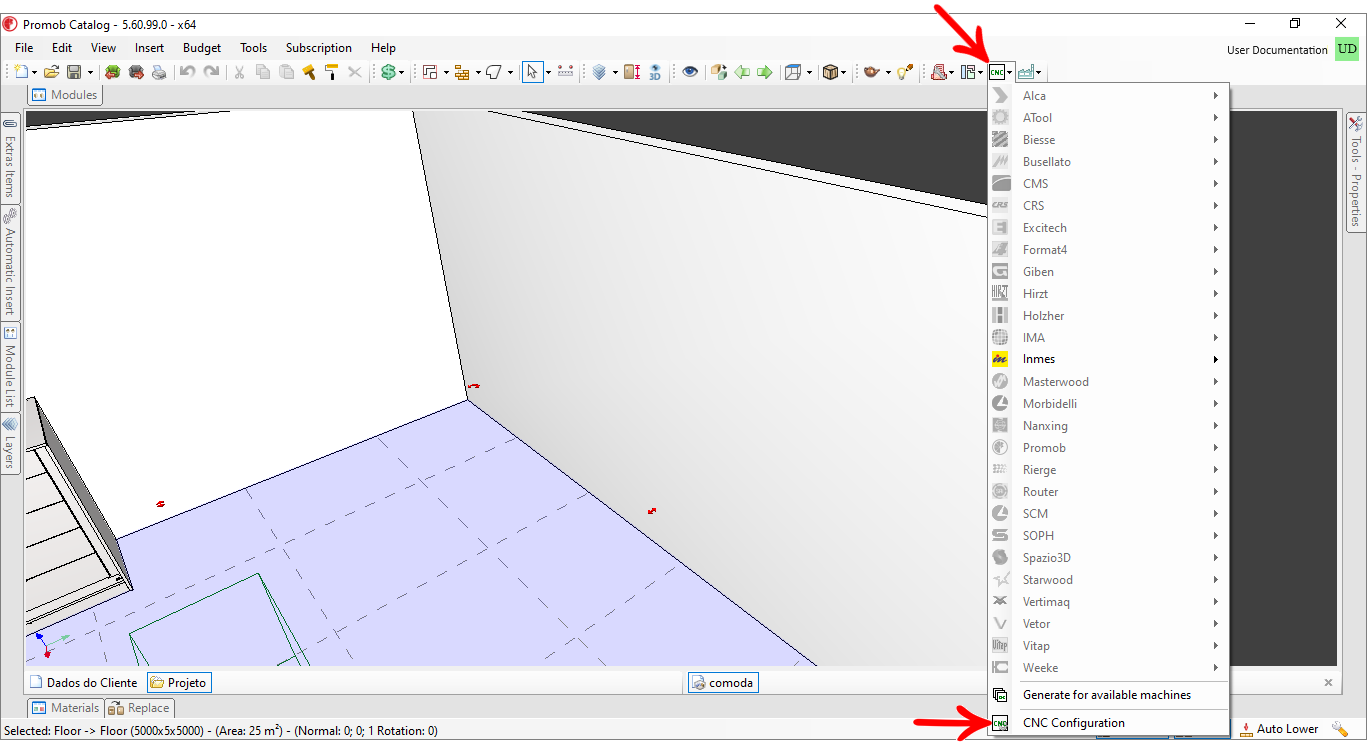

2. Go to CNC Machine Settings and click CNC Configuration.

image open cnc eng.png

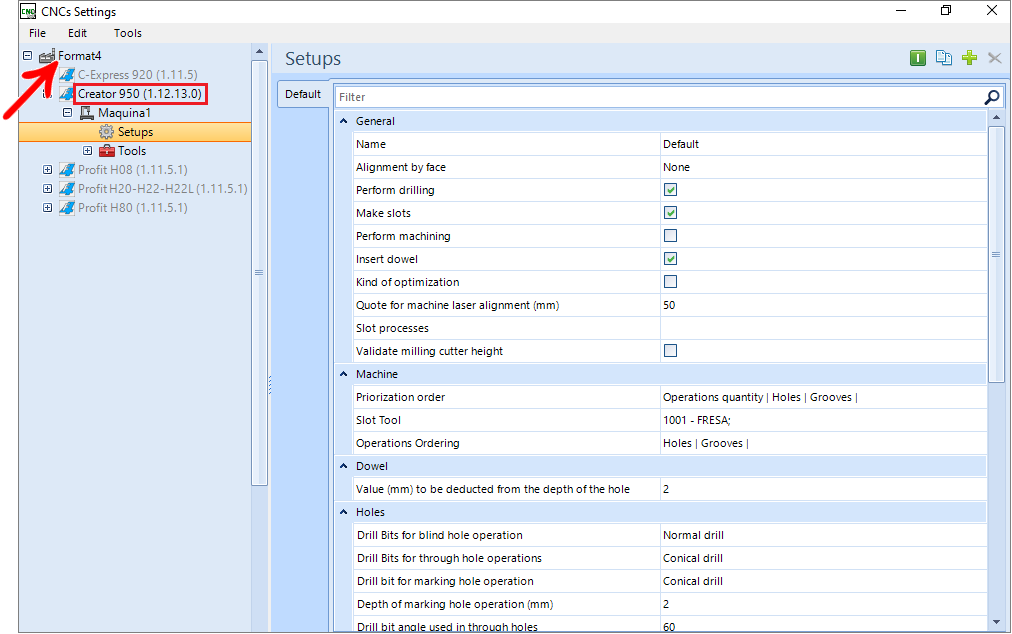

3. Select the Format4 machine and click on the Creator 950 machine plugin:

ENG 1.png

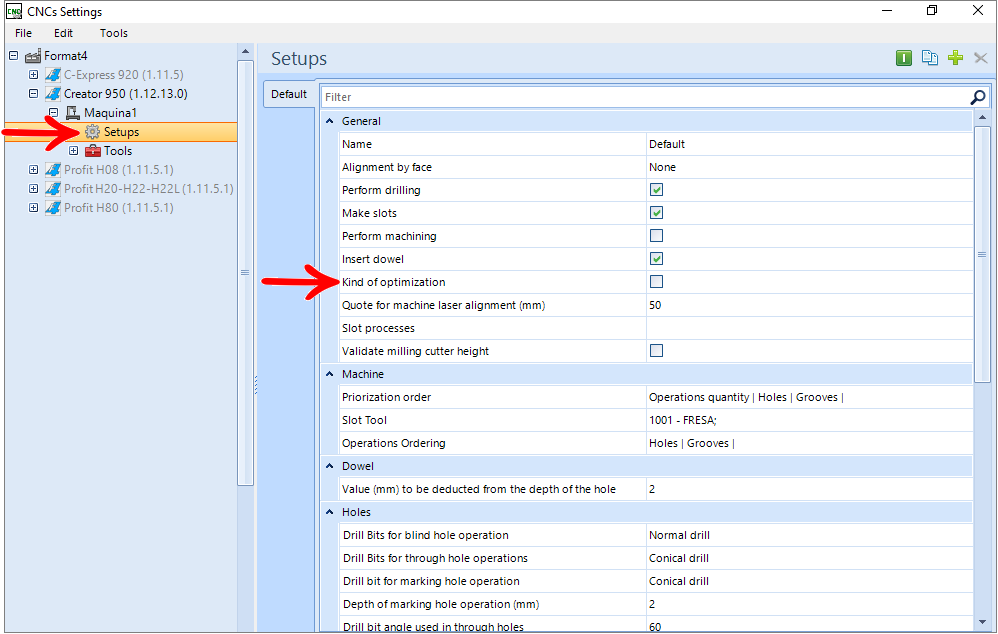

4. Locate the Setup menu.

ENG 2.png



Setup

In the machine setup, the Kind of Optimization option has been added. This setting allows you to define the optimization mode used during production. The options available are:

  • Checking the option: sets the optimization type to Sequential. In this mode, the operations are performed in a predefined order.
  • Unchecking the option: sets the optimization type to Automatic. In this mode, operations are optimized automatically.
