Builder - Cyflex 900 - Profile Restriction for Holes

Updated
Follow

Available from version:

  • Plugin Builder 1.60.28.2 or higher.

The new functionality aims to add restriction for holes in the profile face. The new functionality aims to add restriction for holes in the profile face.



To access:

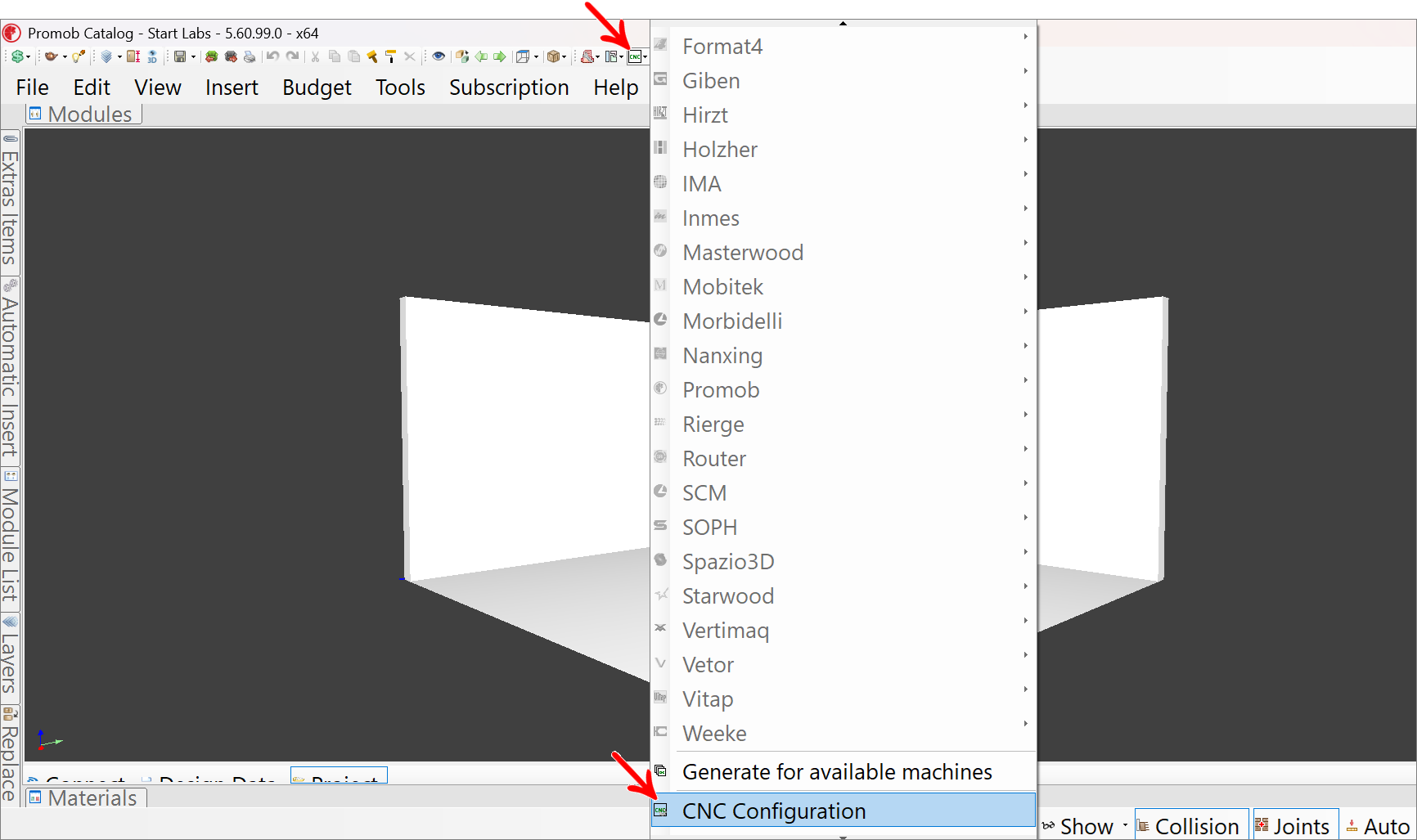

1. Click on CNC Configuration, located on the top tab of Promob.

Acessando setups ENG.png

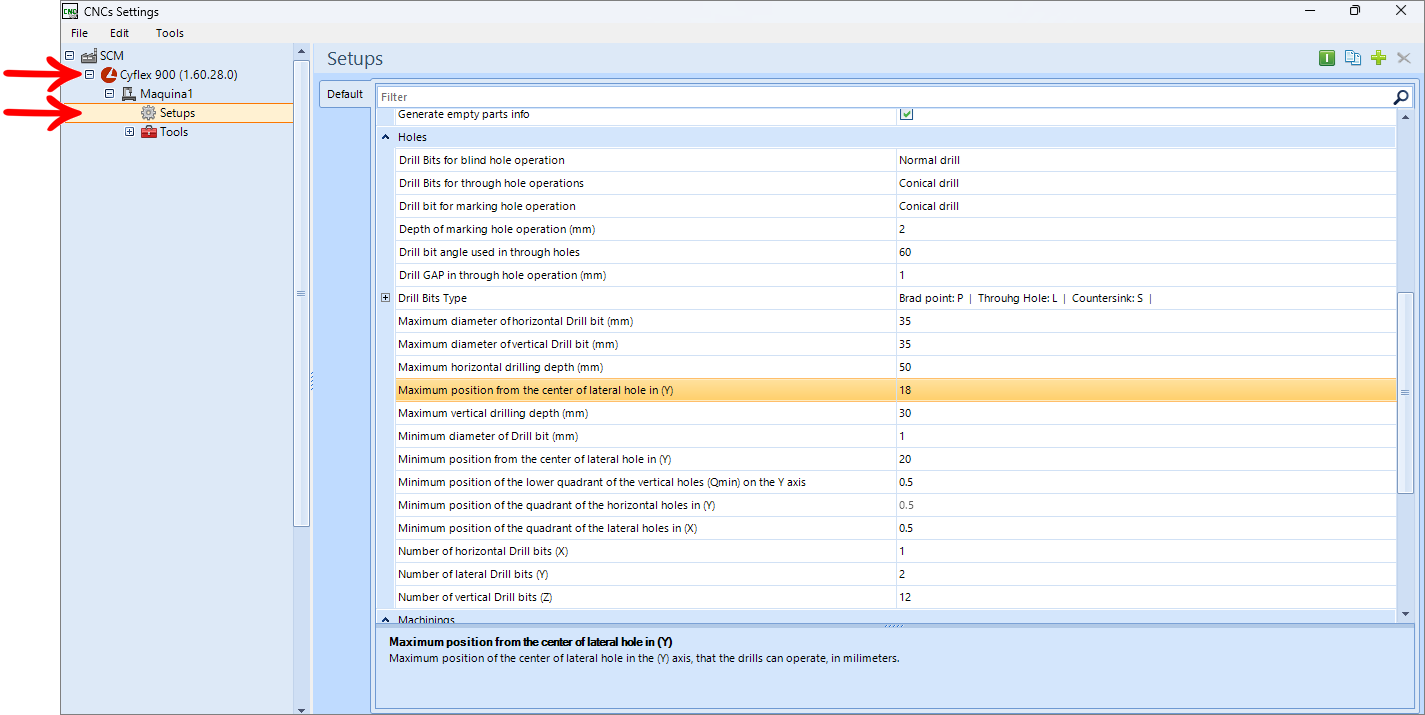

2. Access the Cyflex 900 machine Setup.

setup eng.png

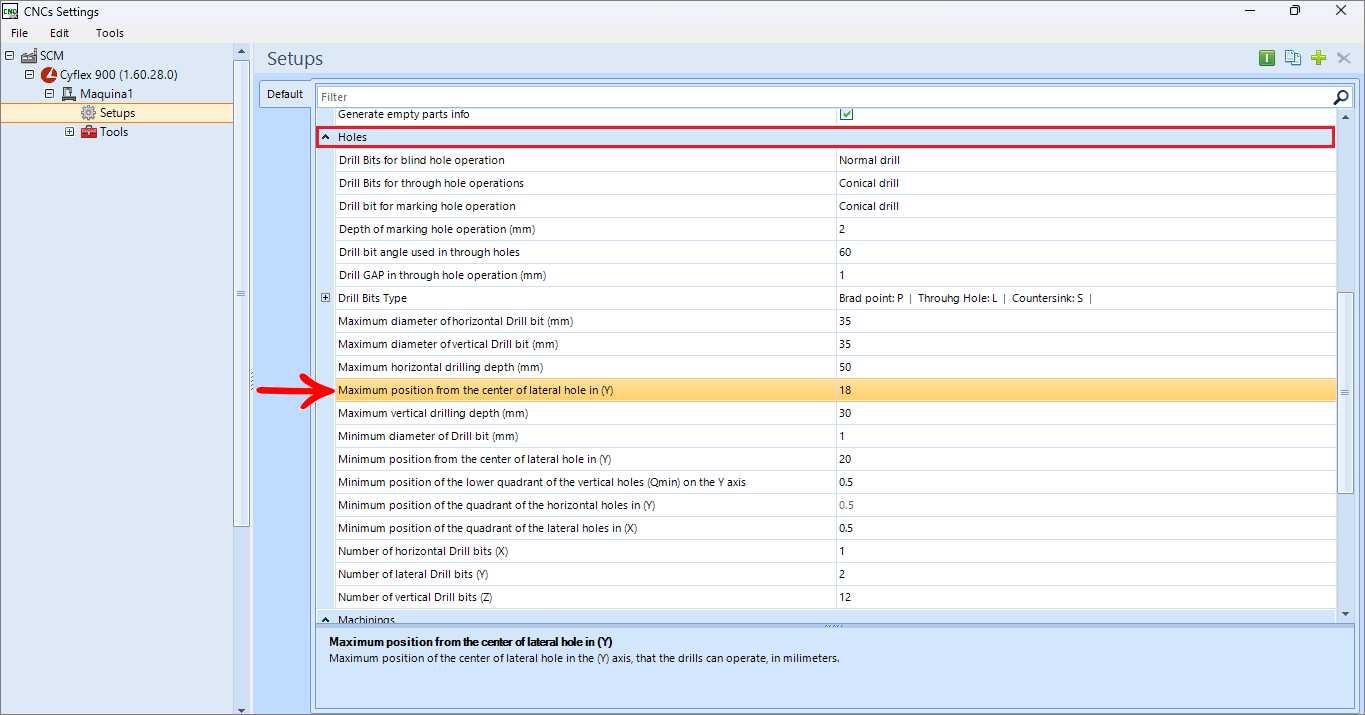

3. Enter the Holes settings.
setup 2 eng.png





Configuration details:

  • The machine has a factory default value set at 18mm for the restriction.
  • It is possible to adjust this value as required directly from the Setup.



IMPORTANT: If you want to change the default value, contact Promob support to change the field.
