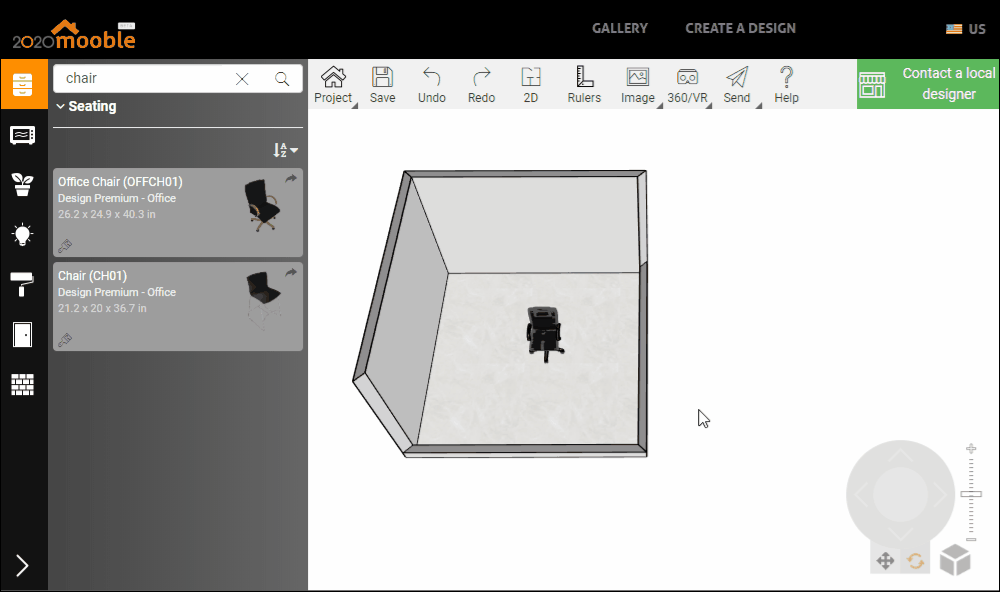

You can create item and group arrangements in Mooble, for this:
Create Arrangement
1. Select an item or group of items.
2. From the Settings menu, select Create arrangement.
3. Select the type of arrangement, define your settings and click Insert.
Types of Arrangements
Linear Arrangement
In the linear arrangement, the new modules are included in the X, Y and / or Z axes of the item, or of the group.

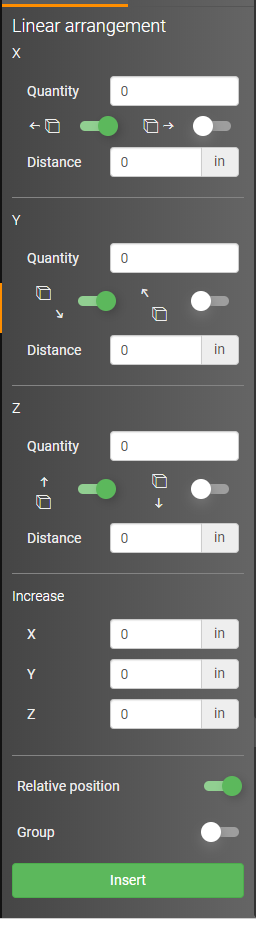

1. Set the number of modules, the insertion direction and the distance between items for each axis.
2. The Position Increase is only available when the quantity is 0.

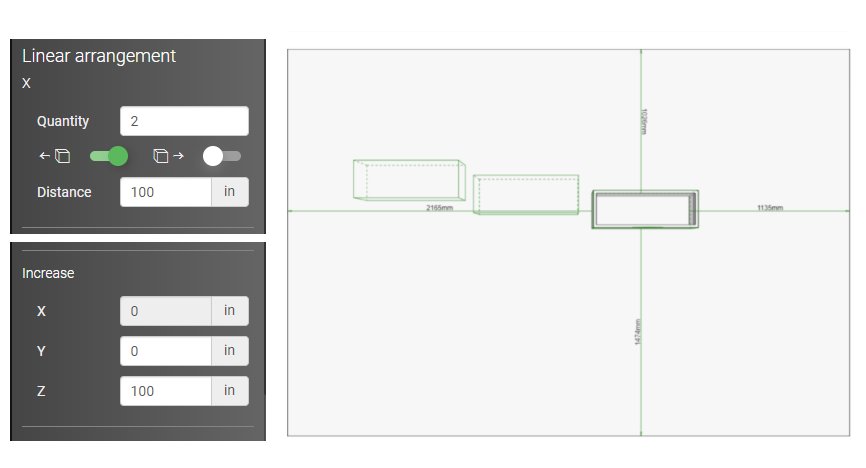

- Example of arrangement with increase:
3. When activating the Relative Position, it will activate the axes that will be positioned the new modules, taking into account the rotation of the item. When left off, the axes will be displayed by default.

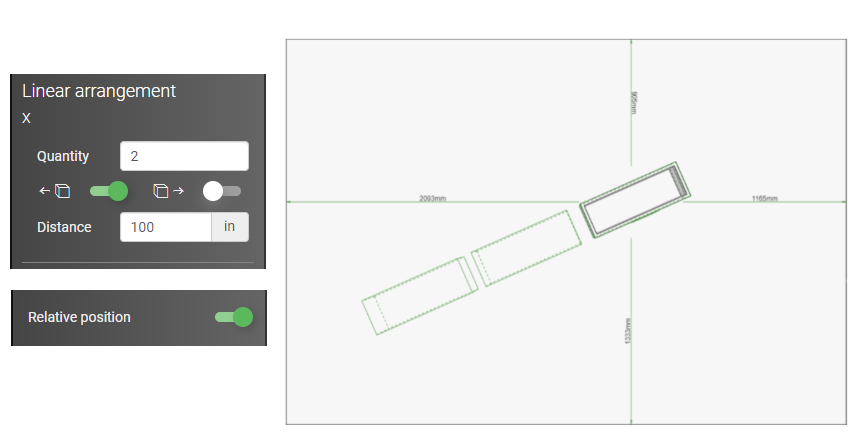

- Example of arrangement with relative position enabled:

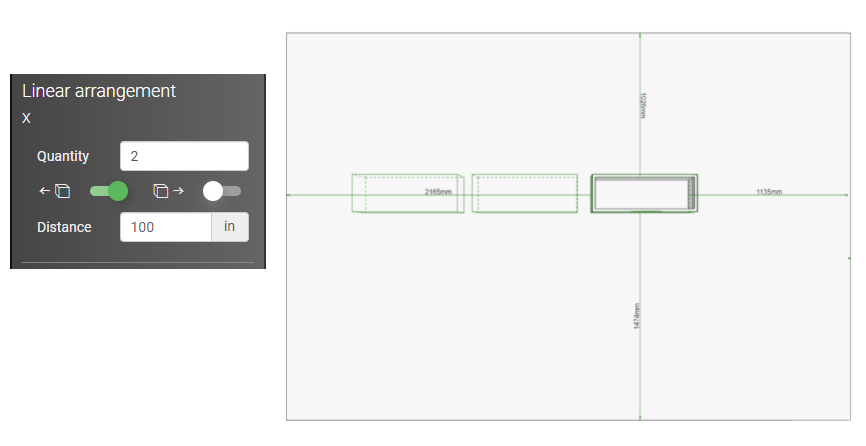

- Example of arrangement with relative position disabled:
4. When you choose Group new modules will be grouped to the selected item, otherwise the new modules will only be included without being grouped.
5. To finish inserting the arrangement, click Insert.
See some examples of Linear Arrangement:
- Example 01: Arrangement with two items and addition on only one axis.
- Example 02: Arrangement with two items and addition in only one axis with an increment.

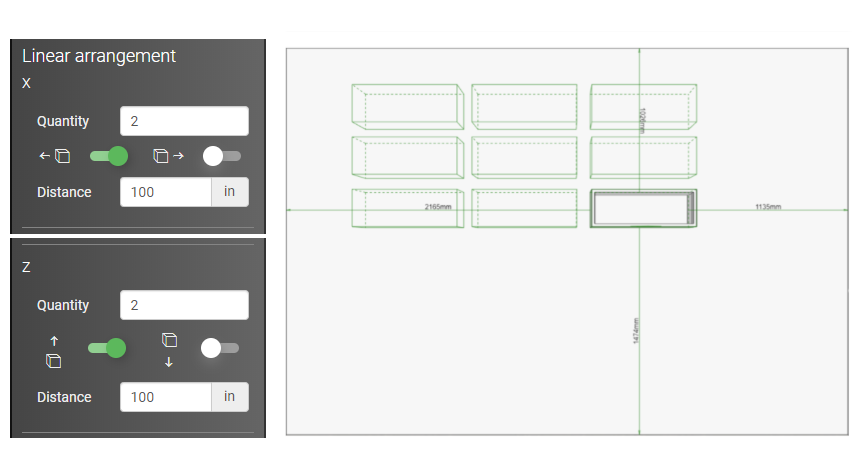

- Example 03: Arrangement with two items and addition in two axes.
Polar Arrangement

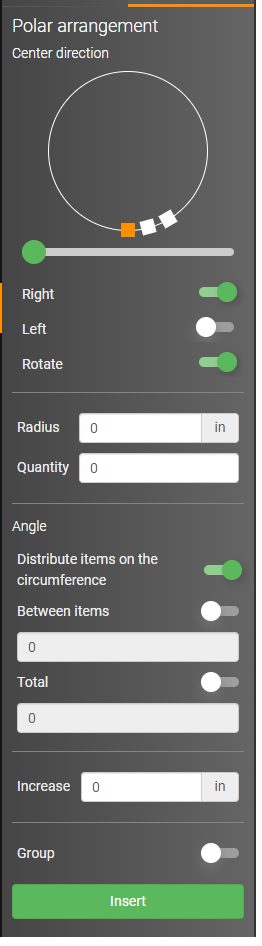

In the polar arrangement, the new modules are included in a circle with point of origin in the selected item or group.

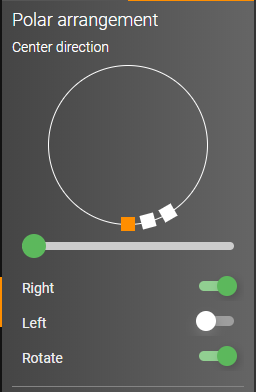

1. Define the Direction of the center of this circle, taking into account point 0 of the selected item. You can also define from which side, Left and / or Right the items will be inserted, if both are active the number of items is divided in the directions.
Check Rotate, to rotate according to the circumference.
2. Enter the Radius size for this circle, and the Quantity of items.
3. The angle between the items can be changed, by activating the option of Distribute Items on Circle the angle will be calculated by dividing the total angle of the circumference 360° by the number of items.
To set the angle between the line items manually, select Between items and enter the desired value. And if Total is active, the angle between the items is calculated by dividing the angle entered by the user and the number of items.
4. Enter the Increase value for the position in the Y axis of the item.
5. If the Group option is active, the new modules will be grouped with the selected item, otherwise, the new modules will only be included without being grouped.
6. To finish inserting the arrangement, click Insert.
See below some examples of Polar Arrangement:

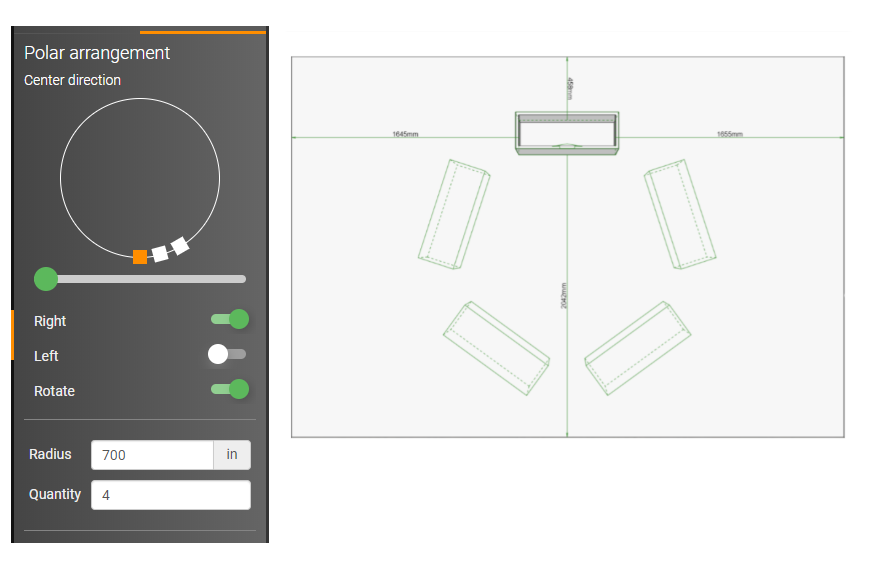

- Example 01: Arrangement with 4 items with a circumference of radius 700 with modules rotated in the circumference.

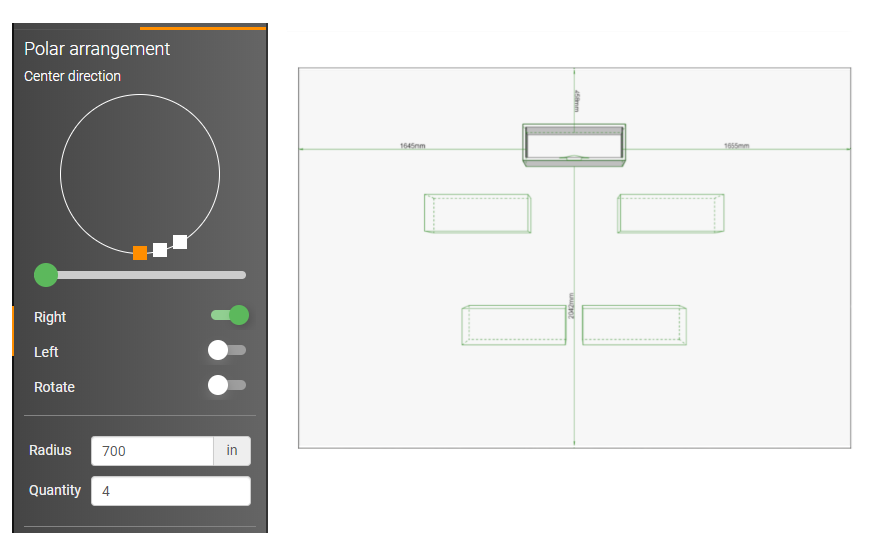

- Example 02: Arrangement with 4 items with a circumference of radius 700 with modules without rotating in the circumference.
- Example 03: Arrangement with 4 items with a circumference of radius 700 with modules rotated in the circumference, and with the center of circumference changed.

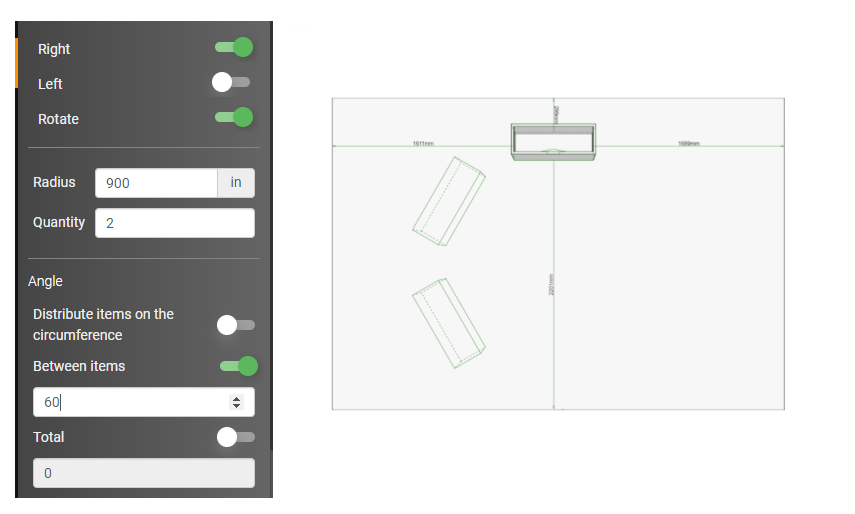

- Example 04: Arrangement with 3 items with a circumference of radius 900 with modules rotated in the circumference, with the angle between items changed.

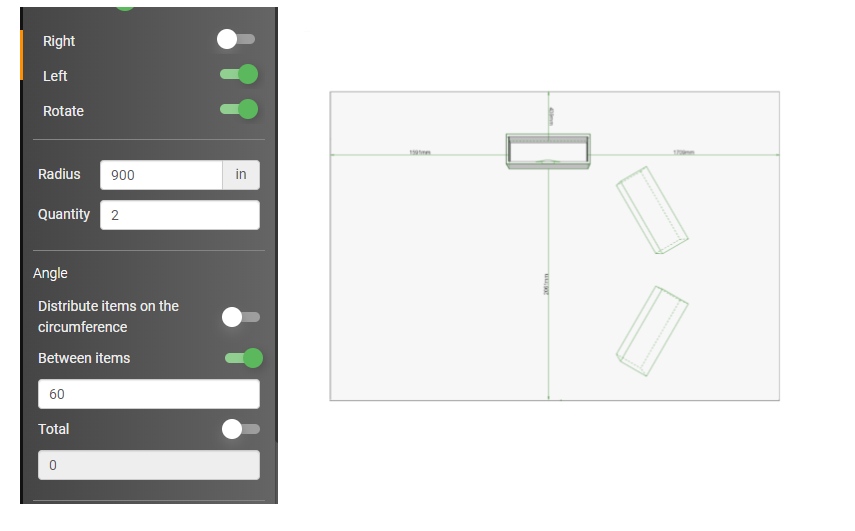

- Example 05: Arrangement with 3 items with a 900 radius circumference with modules rotated on the circumference, and with the direction changed.

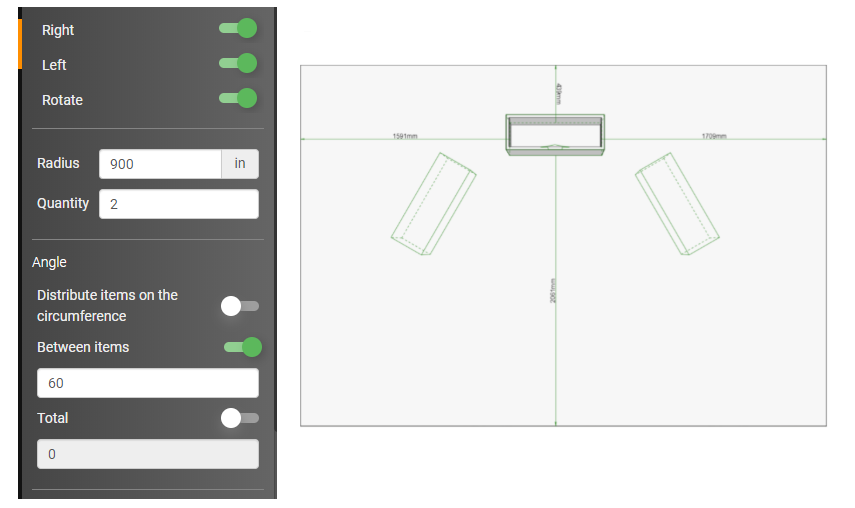

- Example 06: Arrangement with 3 items with a circumference of radius 900 with modules rotated in the circumference, and with both directions.

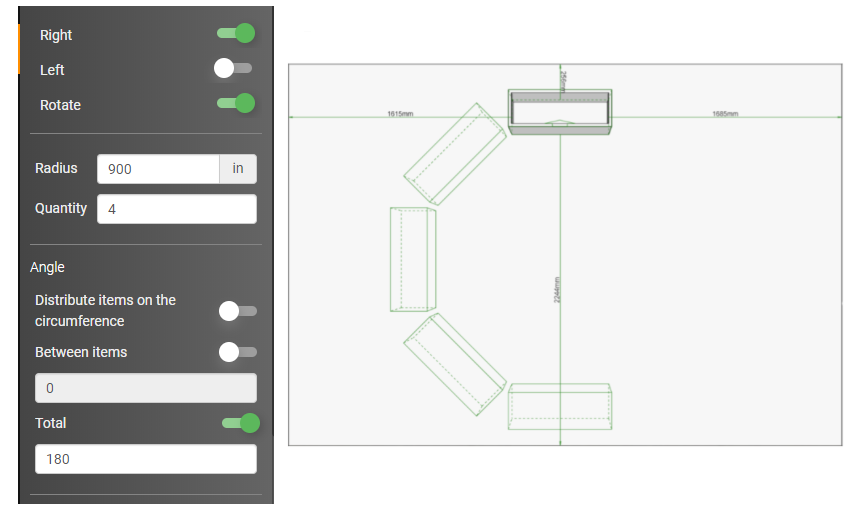

- Example 07: Arrangement with 4 items with a circumference of radius 900 with modules rotated with Total of half circumference.

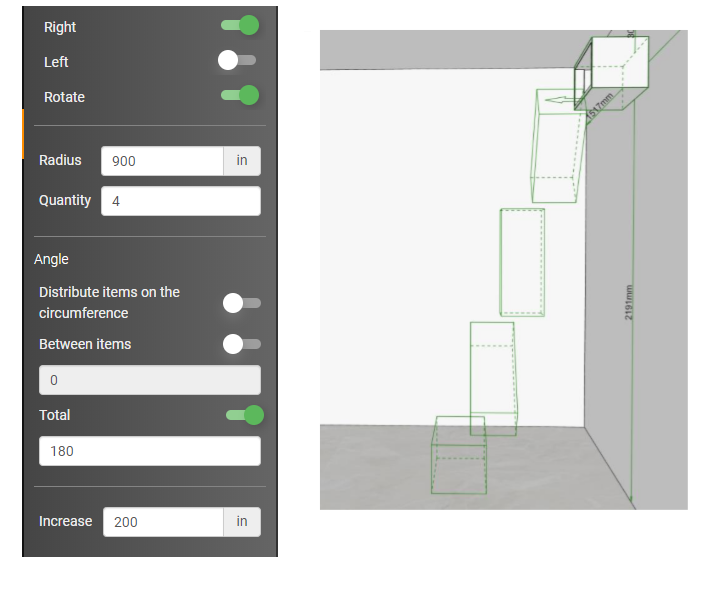

- Example 08: Arrangement with 4 items with a circumference of radius 900 with modules rotated with Total of half circumference and increment.
