IMPORTANTE: Available in Maker Design only when using the Standard Configuration.
Available from version 1.2.0.23 of the Library Configurator Plugin
The price configurator available in the Promob Maker Content Configurator makes it possible to register and edit prices online for raw materials, accessories, operations, etc., which form the prices of the module structures contained in the content.
IMPORTANT:
- Only items that have templates registered and applied to the type will be displayed.
- As of Maker version 1.2.1.12, the description entered on the Dimension Configurator screen is now displayed on both the Material Registration screen and the Price Configurator screen.
Click on the icon on the top bar of Promob and select the Price Configurator.

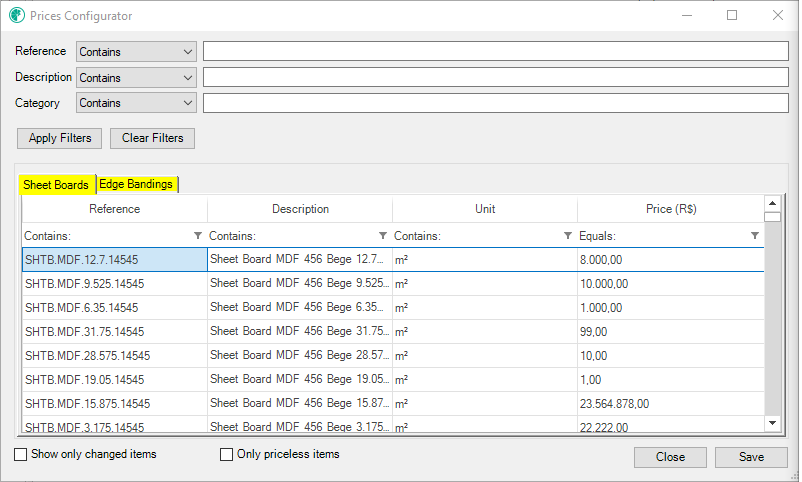

When opening the Price Configurator, all items with an editable price will be loaded in the window, separated by tabs corresponding to the category.
To find the desired items, you can use the filters available at the top of the window.

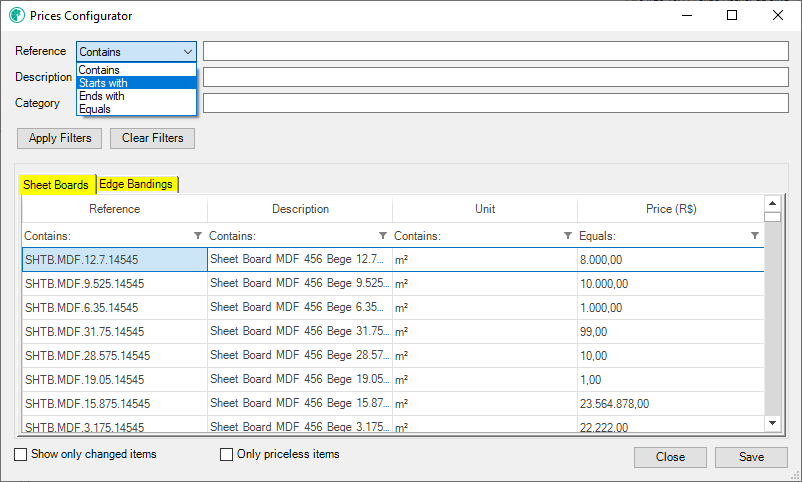

It is possible to filter the items by Reference, Description and Category, and for each field, there are options for how the term entered will be filtered, namely:
Contains: limits search items to only items that contain the word entered in the respective field
Starts with: limits search items to items that begin with the word entered in the respective field
Ends with: limits search items to items that end with the word entered in the respective field
Equals: limits search items to only items where the respective field has a value equal to the word entered.

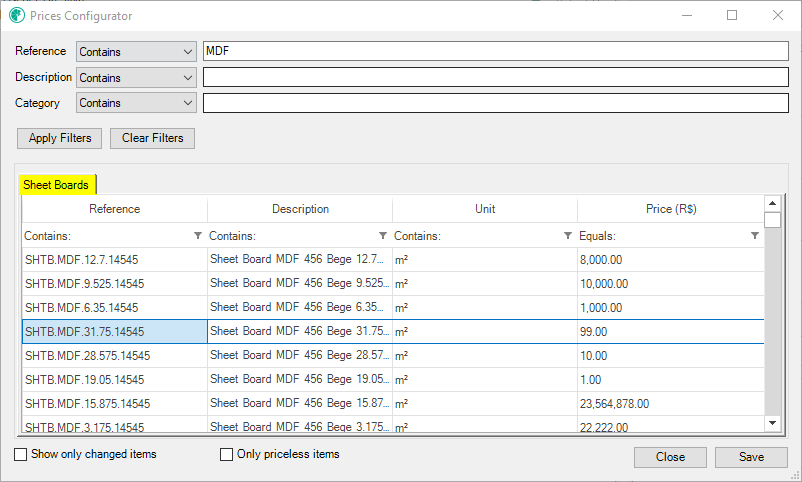

When you click Apply Filters, the items that fit with the filters will be loaded on the screen.

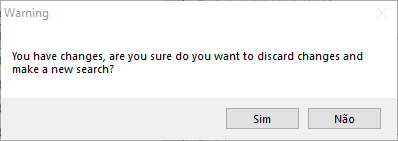

When clicking on Clear Filters, the search fields will be cleared, if changes have been made, the following message will be shown.
Upon confirmation, the table will show all items available for editing again, with no filter applied.
From the items shown by the Top Filters, it is possible to restrict the presentation of the items to facilitate viewing, from the options:

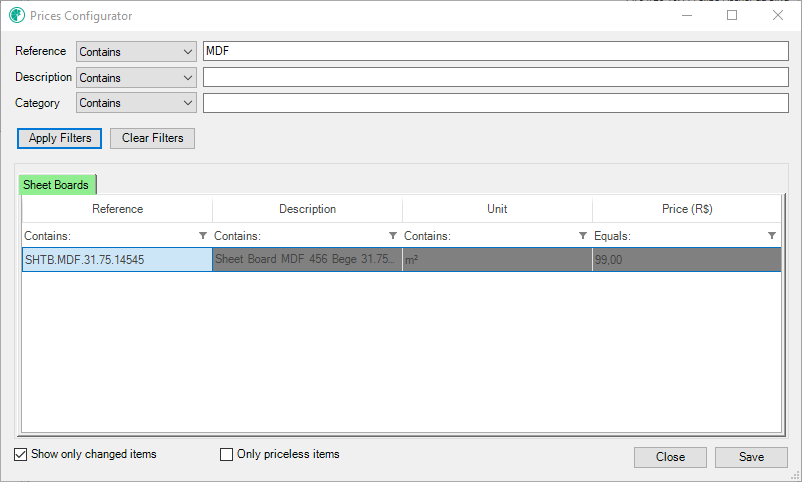

Show only changed items
Shows only items that have been changed and not yet saved.

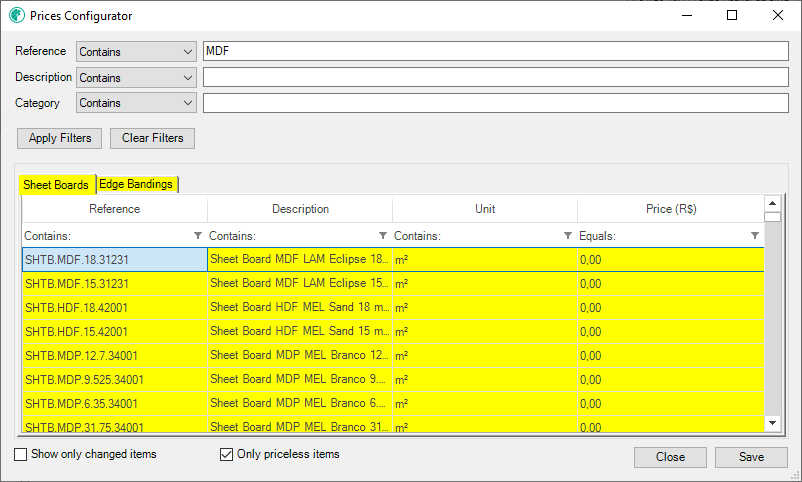

Only priceless items
Displays only zero-priced items.
It is possible to filter items within the table itself, so that specific item can be found quickly, without the need to clean the upper filters.

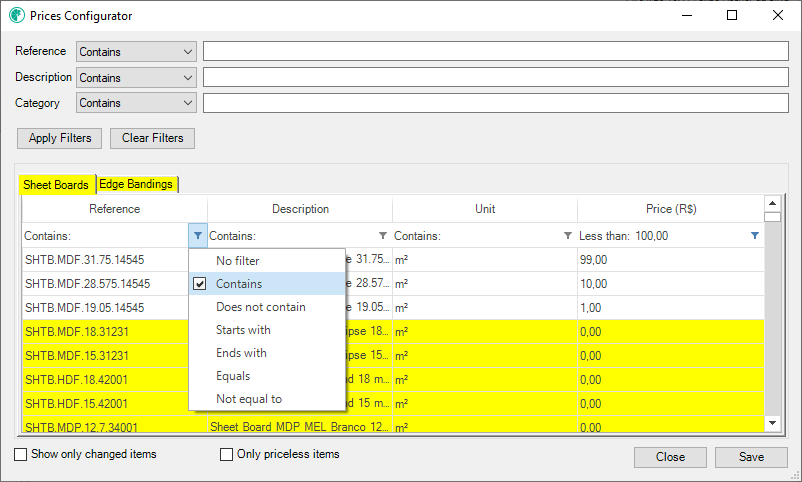

For the Reference, Description and Unit columns, there are the filters shown in the image below:

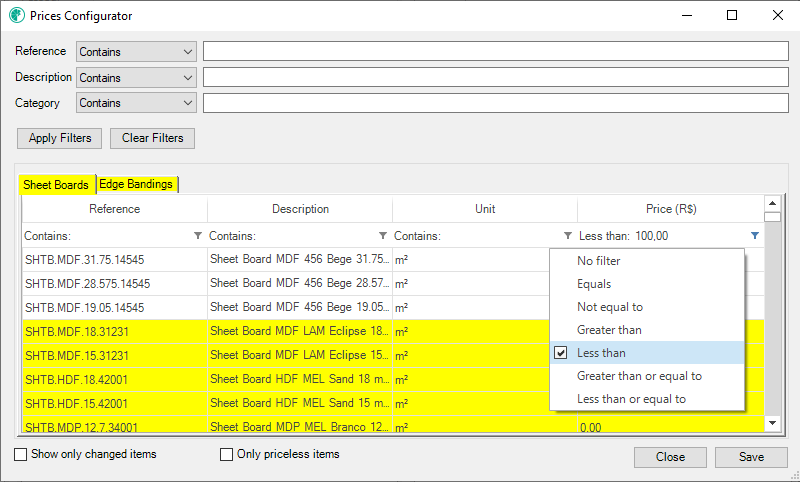

The Price column has filters with specific comparison operators for the numerical value of the items in the column.
IMPORTANT: column filters can be applied freely between price editions, while upper filters can only be applied again by discarding or saving changes that were made in the editor.

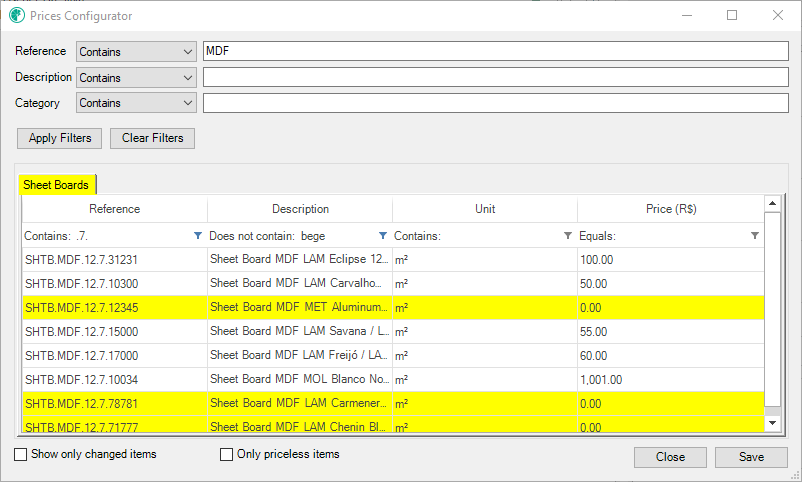

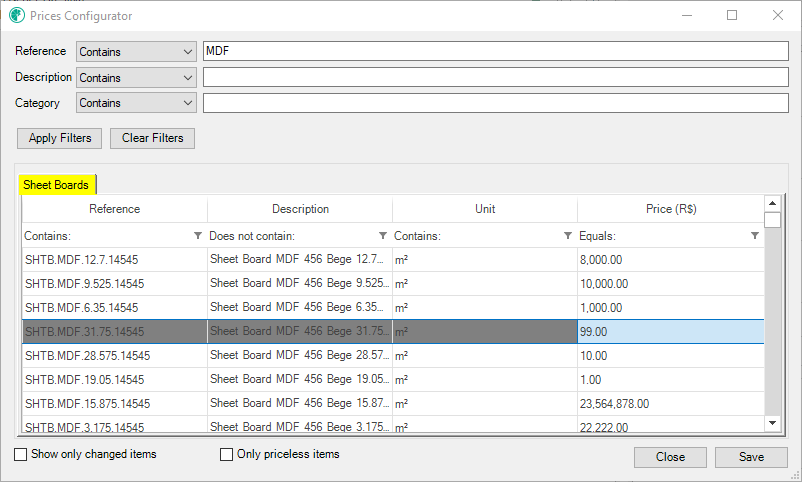

Example:
Edit Prices
Items without price will be marked in yellow, items that have been changed and not yet saved, will be represented in gray.
Locate the items you want to edit, select the cells corresponding to the price column and enter the new values.

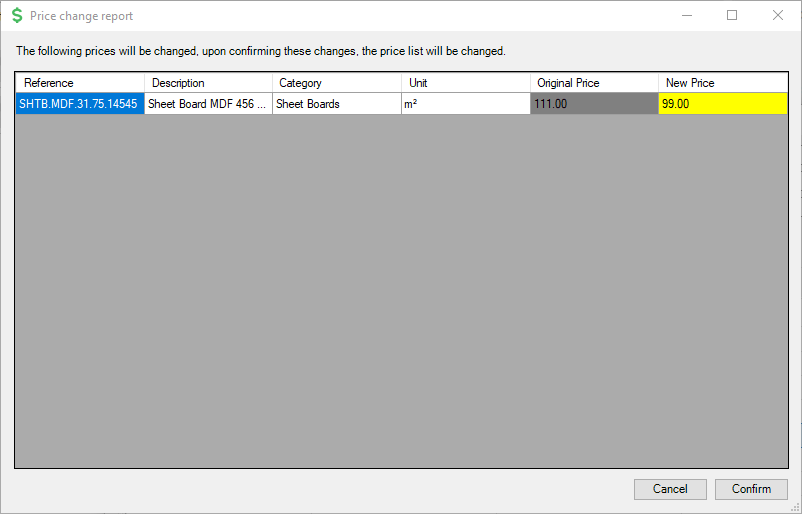

When making all the necessary changes, click Save, and then you must review the changes in the following report, which compares previous prices with those recently changed for conference purposes.
Viewing the values in the report and clicking Confirm, the new prices will be updated online and will be considered in the next budgets.

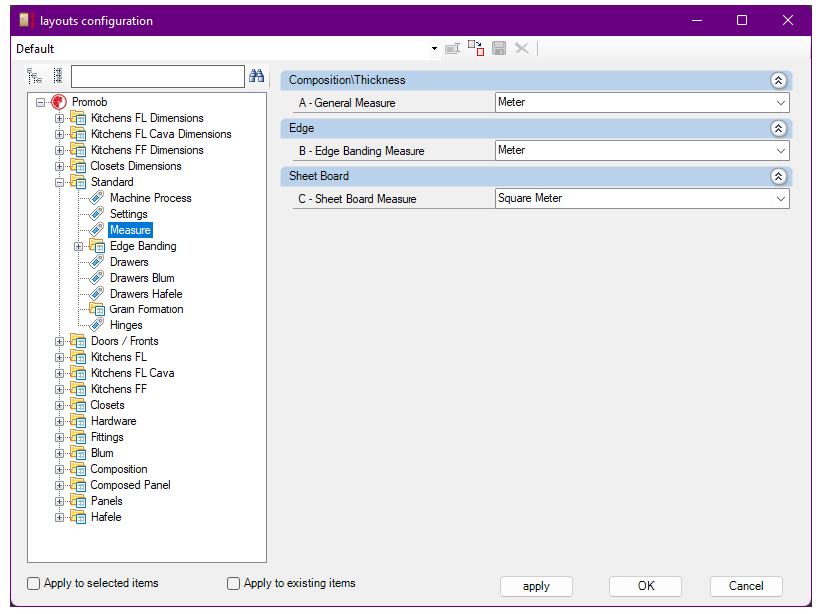

As of version 1.2.0.88 of the Catalog Configuration Plugin in Promob Maker NA, the Unit of Measure column in the Pricing Configuration window for sheet boards, edge bandings and glasses displays the unit of measure registered in the Layout Configurator.
In the structure Standard - Measure, being:
A - General Measurement: for glass
B - Edge Band Measure: for edge banding
C - Sheet Measure: for sheet metal
IMPORTANT: This functionality is only available for Maker NA.
