It is through the Layouts Configurator that we create and make available the configuration layouts that will be used by users of Promob Maker Automate, Produce and Design. It is possible to activate and deactivate the created settings.
In this article, the following subjects will be addressed:
Accessing Layouts Configuration
How to access the Layout Configurator

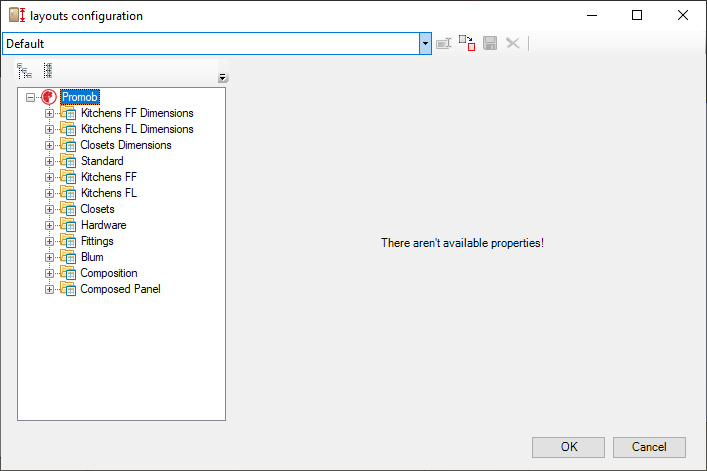

To access the Layouts Configurator, with the 3D design space open, click on the icon . After clicking on Layout Configuration, the screen will open.
Accessing Layouts settings

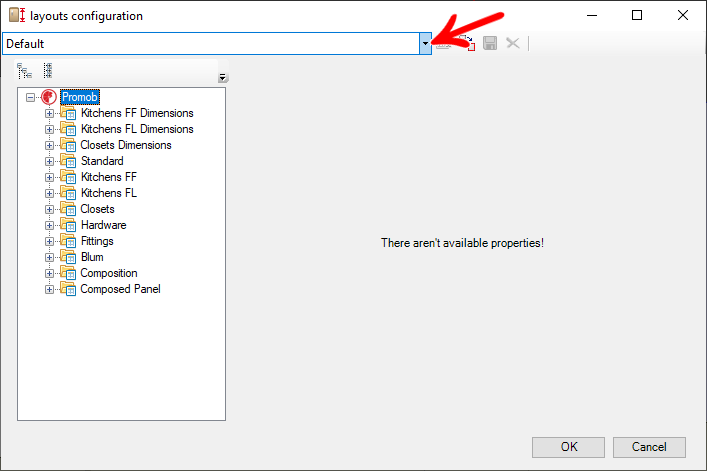

When accessing the Layout Configurator, it is possible to access the list of definitions already configured. To access the list, just click on the arrow next to the configuration already selected.

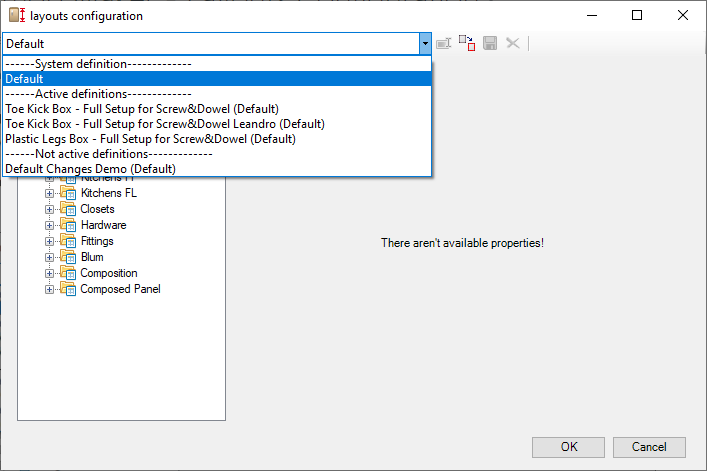

In this field, the settings are separated by:
System definition: Below this option, the standard layout made available by Promob is displayed. It is from this definition that others will be created.
Active definitions (Automate/Produce): Below this option, all active configuration definition will be displayed for users.
Not active definitions (Automate/Produce): Below this option, configuration definition that are not available to users will be displayed.
Unsaved definition (Automate/Produce): Below this option, the definition being edited will be displayed, but it has not yet been saved.

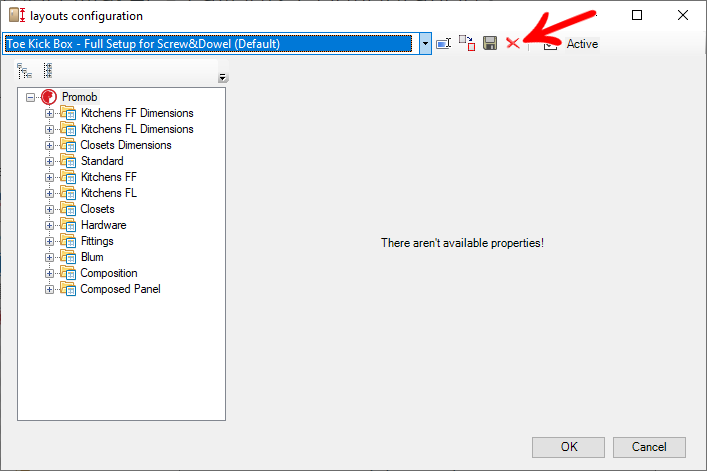

To delete a configuration, with it selected, click Delete. Remembering that exclusions will only be allowed for changed settings that are not active. System settings cannot be deleted.
Duplicate Layout
To duplicate, select the desired configuration and click on the Duplicate Configuration option.
Enter the name of the configuration and click OK.
Rename Layout
After locating the desired configuration, click the rename button and on the open screen, enter the new configuration name.
Then click OK.
Edit and save Layout (Automate/Produce)
Editing the layout settings can be done through the standard Layout made available by Promob or Layouts that have already been created by the user.
To edit a layout, simply select the desired configuration and make the necessary changes.
After you finish editing, be sure to click Save .
Enable / Disable Layout (Automate/Produce)

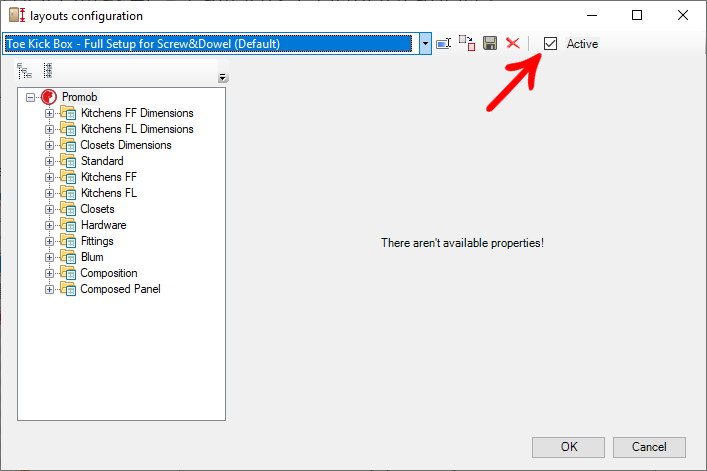

To activate or deactivate a layout/definition, simply select the desired configuration and check or uncheck the Active option.
Definitions with the Active option checked will be displayed to all users through the Feature Configuration. Definitions with this option unchecked will not be displayed to users.
Apply Layout Settings
After creating the Layout Configuration and checking the Active option, it is possible to select it so that the configuration is applied to the items inserted in the 3D Space.
To do this, access the Layouts Configurator and select the Layout created. From this moment on, the items inserted in the 3D Space will receive the configuration of the selected Layout.

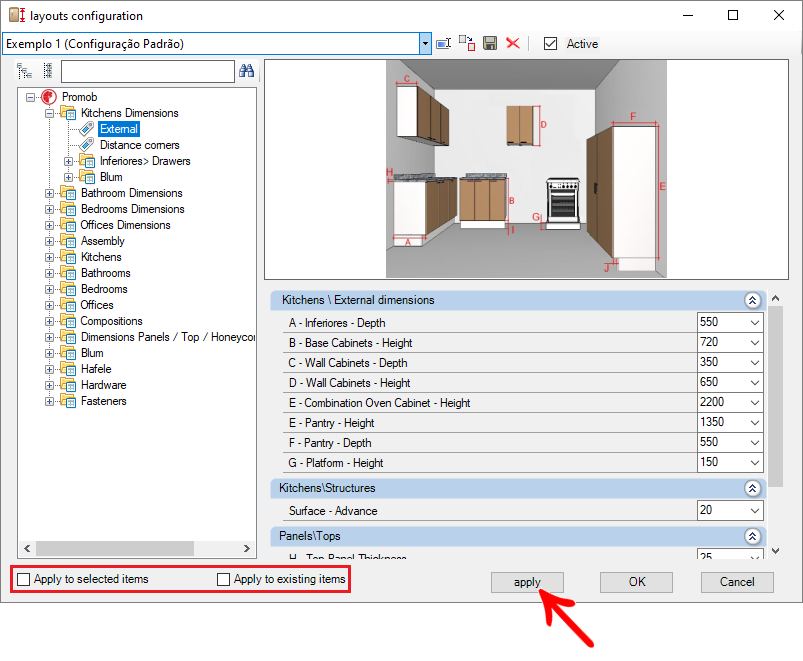

The Layouts Configurator allows applying the changes made in three ways. The options are:
Apply: the settings made are applied in the next items to be inserted in the project. The selected setting will be the default for the next 3D design
Apply to selected items: the settings made are applied to the selected items in the 3D design also to the next items to be inserted
Apply to existent items: the settings made are applied to all items in the 3D design also to the next items to be inserted.
