Check below the specifications and configurations available in the Nanxing NCG3021L plugin:
Available from version: Plugin Builder 1.60.18.2
Machine Type: CNC Machining Center
Manufacturer: Nanxing
Generated file extension: XML files, as of Builder version 1.60.21.0.
IMPORTANT: .mpr and .csv files were generated until Builder version 1.60.20.3.
Manual: manual available for the manufacturer, click here.
Main features
- Holes
- Slot
- Machining
Settings
To check the settings on CNC Machines, click here.

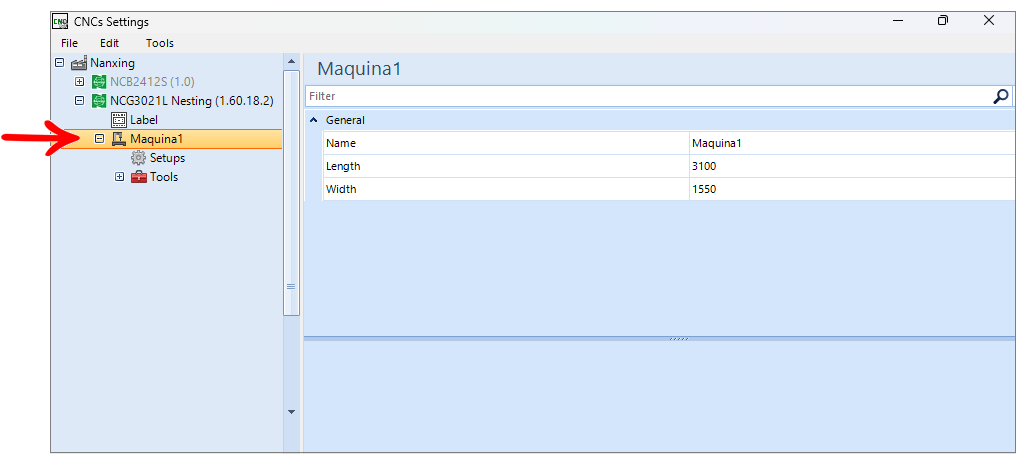

Machine 1
General
Name: define the name for the machine.

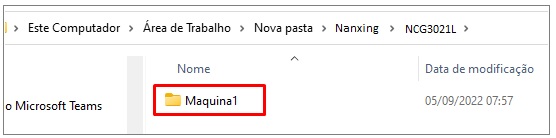

IMPORTANT: The name set in this field also changes the name of the folder where the generated files will be saved.
Length: the value entered in this field indicates the maximum usable length of the machine.
Width: the value entered in this field indicates the maximum usable width of the machine.
Mills
The mills are used to perform slotting and machining.
Contour Machining
Contour machining start: defines where contour machining starts, at one of the corners or in the middle of one of the workpiece edges. This option is applicable only to external contour machining.
External contour cut direction: defines whether contour machining has to be done clockwise or counterclockwise.
Internal Milling
Internal contour machining start: it defines internal machining to be made in a non-clockwise or anti-clockwise direction.

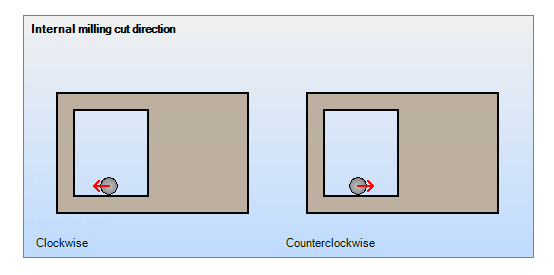

Internal milling cut direction: defines where internal contour machining starts, at one of the corners or in the middle of a machining edge.
Use cutting direction in single line operations: when you mark this setting, single-line machining operations follow the cutting direction of the mills.
For more information click here.
Lead in
Input type in linear machining: defines the type of input the tool will use when machining and contouring linear forms. Options Ramp, vertical, circular.
- Circular: in this type the tool descends outside the part and then starts cutting tangentially before entering the part.
- Vertical: in this type the tool descends vertically onto the workpiece and begins cutting.
- Ramp: in this type the tool descends by making a ramp until it reaches the maximum depth of operation.
Lead in extension (mm): extension of the entrance before the contour cutting starts, equivalent to the red line in the image.
Lead Out
Lead Out extension (mm): output extension after machining/contouring is finished, equivalent to the red line.
Lead Out Type: defines the type of output that the tool will use when machining and contouring.
- In the vertical type, the tool descends vertically onto the workpiece and begins cutting.
- In the circular type, the tool descends outside the part and then starts cutting tangentially before entering the part.
- In the ramp type, the tool descends as a ramp and starts cutting.
Properties
Code: the code defined in this field must match the registration defined on the machine so that the tool can be located correctly.
Diameter (mm): tool diameter.
Feed rate: tool speed when advancing through the workpiece, The default value used is Standard.
Height (mm): height of the tool.
Name: the name defined in this field must match the registration defined on the machine so that the tool can be located correctly.
Overlap (mm): overpass between tool passes to avoid material leftovers.
Rotation Speed: rotational speed of the workpiece, The default value used is Standard.
Step depth (mm): depth of tool step.
Through plunge and milling offset (mm): compensation of the drilling and machining of the part.
Tool Alignment
Define tool alignment type: defines whether tool alignment is automatic.
Milling alignment: defines whether the tool has an offset in the center, left or right according to the direction of the Cutting direction option for contour machining. For more information, click here.
Saws
Saws are used to make slot.
Properties
Alignment: alignment of the saw, center, left or right.
Code: the code defined in this field must match the registration defined on the machine so that the tool can be located correctly.
Feed Rate: tool speed when advancing workpiece. The default value is Standard.
In offset (mm): transfer between the passes of the hardware to avoid leftover material.
Name: the name defined in this field must match the registration defined on the machine so that the tool can be located correctly.

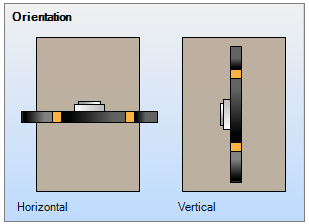

Orientation: tool orientation, vertical or horizontal.
Out offset (mm): saw output compensation for performing the cut, in millimeters. This setting is only applied if the slot ends outside or on the endpoint of the part.
Rotation Direction: direction of the saw rotation Synchronous option refers to the standard movement and the Asynchronous option to the opposite movement.
Thickness (mm): thickness of the saw.

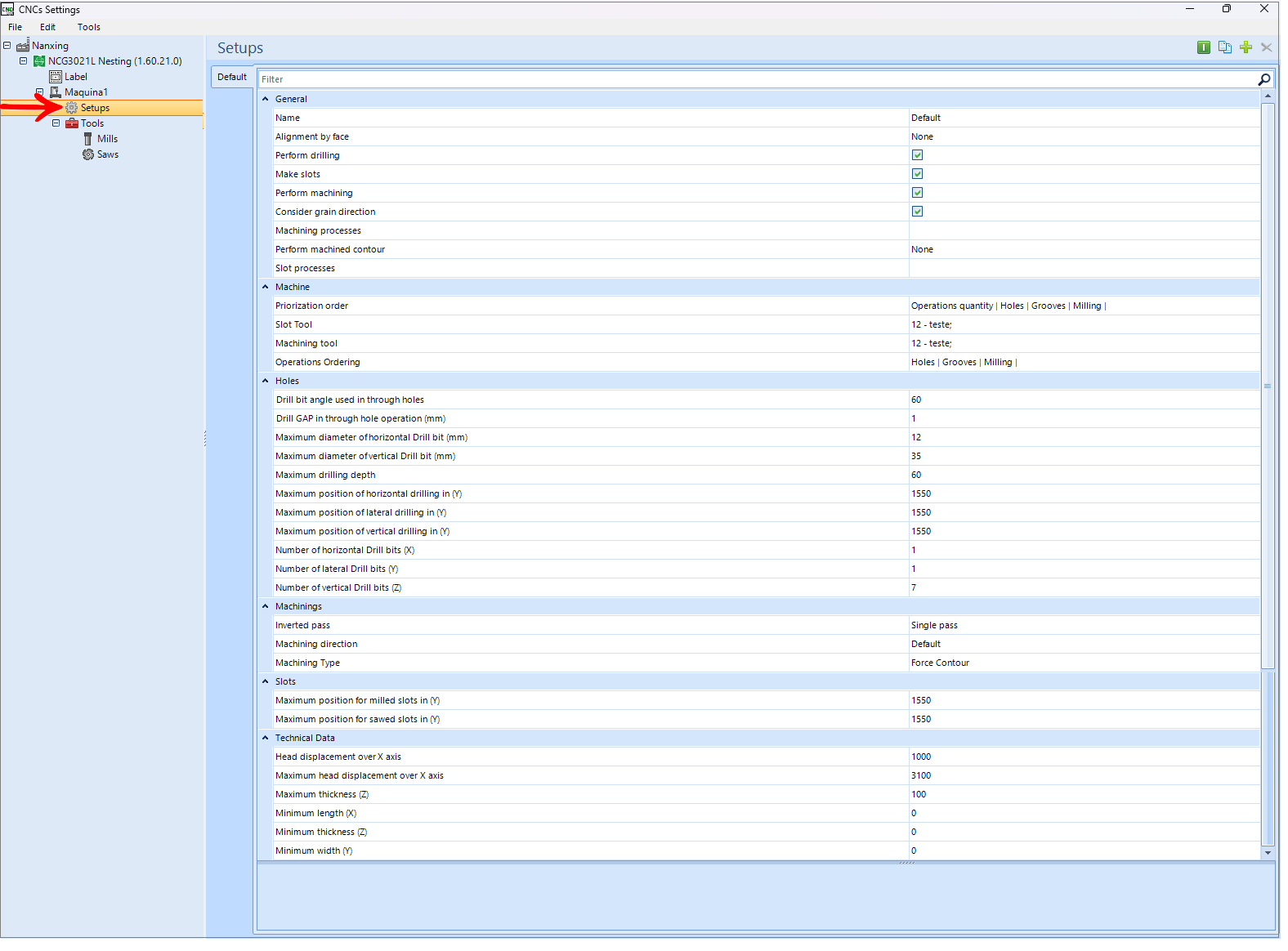

Set Ups
General

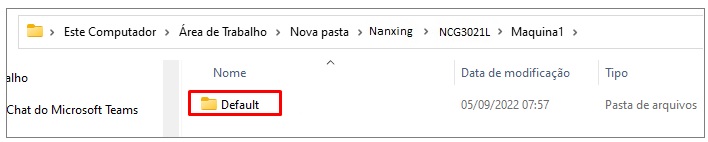

Name: the name set in this field also changes the name of the folder where the generated files will be saved.

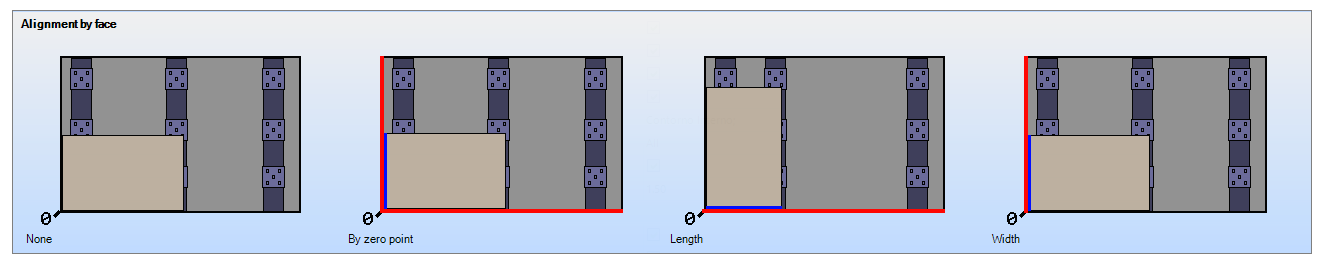

Alignment by face: defines whether the alignment face registered on each part is considered when generating programs. If yes, this face will be aligned according to the selected configuration. For more information click here.
Perform drilling: machine is enabled to drill holes.
Make slots: with the option checked the registered slot will be generated in the machine programs.
Perform machining: with the option checked the registered machining operations will be generated in the machine programs.
Variable usage field distance in X axis: distance from the end of the workpiece on the X-axis, which determines the area where operations should take variable of the size of the workpiece minus the distance from the operation under consideration to the end.
Variable usage field distance in Y axis: distance from the end of the workpiece on the Y-axis, which determines the area where operations should take variable of the size of the workpiece minus the distance from the operation under consideration to the end.
Invert variable fields: by checking this option, when a rotated part is generated, the fields invert.
Consider grain direction: considers grain direction when generating Nesting programs.
Discount edge band thickness: defines whether or not to discount the edge thickness.
Machining processes: through Plugin Builder, it is possible to create and determine types of processes for machining registered in the library, thus enabling the use of a particular tool for a particular machining. For more information click here.
Perform machined contour: defines the contour of which parts will be generated.
- None: contour machining will not be generated for any part;
- All: contour machining will be generated for all parts;
- Only marked: contour machining will be generated only for parts that have the Machined Contour property enabled in the library register.
Overcut
Sum edge band overcut: consider the edge band overcut value registered in the part.
Sum plate overcut: consider the plate overcut value registered on the part.
Machine
Priorization order: defines the order of prioritization of operations for program generation. According to the order indicated in this field the plugin will prioritize in program A the selected option.
Example: In a part that has holes on one side and tears on the other side, the order indicated in this field will determine which of them will be prioritized in the A program.
Slot tool: tool used for slots. IMPORTANT: This option is available when the Make Slots option is selected.
Machining tool: tool used for machining. IMPORTANT: This option is only available when the option Machine Process is selected.
Contour tool: tool used to make contours.
Operations ordering: order that the machine performs operations.
Example: in a part that has holes and tears on the same face the order indicated in this field will determine the sequence in which they will be executed by the machine.
Holes
Drill bit angle used in through holes: determine the drill bit end angle for through hole usage (from 25 to 90 degrees). This value is used in the calculation to determine the increment in the through-hole depth to ensure that the hole passes completely through the part.
Drill GAP in through hole operation (mm): determine the clearance of the drill for use in through holes.
Maximum diameter of horizontal drill bit (mm): maximum diameter of horizontal drills.
Maximium diameter of vertical drill bit (mm): maximum diameter of vertical drills.
Maximium horizontal drilling depth (mm): maximum depth the drill bit can drill horizontally.
Maximum position of horizontal drilling in (Y): maximum position in which the machine can make horizontal holes in (Y), in millimeters.
Maximium position of lateral drilling in (Y): maximum position where the machine can drill lateral holes in (Y).
Maximium position of vertical drilling in (Y): maximum position at which the machine can drill vertical holes in (Y).
Non-through drilling mode: drilling mode for non-through holes.
Number of horizontal drill bits (X): the number of drills, for each horizontal face, present in the machine.
Number of lateral drill bits (Y): number of drill bits, for each side face, present in the machine.
Number of vertical drill bits (Z): number of vertical drills present in the machine.
Through drilling mode: drilling mode for through holes.
Machinings:
Inverted pass: Reverse pass used in edge-out operations.
- None: The cutter will follow the normal machining path entering one edge and exiting the other.
- One pass: The cutter will enter one edge of the part making only a small entry. Then the cutter will climb, go to the other end of the machining, and then follow the normal machining path.
- Double pass: The cutter will enter one edge of the part making only a small entry and return to the starting point. Then the cutter will climb, go to the other end of the machining, and then follow the normal machining path.
Machining type: defines the behavior of through machining. Default: follows the operation registration. Force Empty: removes all material. Force Contour: performs only the contour of the operation. For more information click here.
Slots
Maximum position for milled slots in (Y): maximum position in which the machine can make machining operations with a milling cutter in (Y).
Maximum position for sawed slots in (Y): maximum position in which the machine can make sawed slots in (Y).
Technical Data
Head displacement over X axis: displacement of the head after operations, so as not to be above the workpiece, in millimeters. The set value will be added to the measurement (X) of the part, if this sum exceeds the allowed value, the maximum displacement of the head in (X) will be considered.
Maximum head displacement over X axis: maximum value that the head can displace over (X) axis after operations.
Maximum thickness(Z): maximum thickness of the part that the machine can perform operations.
Minimum length (X): minimum thickness of the part that the machine can perform operations.
Minimum thickness (Z): minimum thickness of the part that the machine can perform operations.
Minimum width (Y): minimum part length for the machine to perform operations.
Header Panel
Header Info |
Info Promob |
IsProduce |
If the part is produced, it will always go with the true value. |
ID |
The part ID will be the same for both the part and the label. Example: PRA0073A |
Name |
Name |
Material |
It is a combination of the core of the material, the color of the material and its thickness. Example: MDF - Branco18.5mm |
Lenght |
Length |
Width |
Width |
Thickness |
Thickness |
Qty |
Quantity |
Grain |
Information about the vein direction of the material:
W: for Horizontal L: for Vertical N: if the material has no vein |
MachiningPoint |
Fixed information '1' |
Info1 |
Reference |
Info2 |
Description |
Info3 |
Observation |
Info4 |
IDERP |
Info5 |
Description of the father of the piece
|
